YCCFAN 20mm DC Cooling Fan 5 volt 20*20*10 Mini Small Axial Flow Brushless Fan Price
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (60587787338):
Product Overview
Description

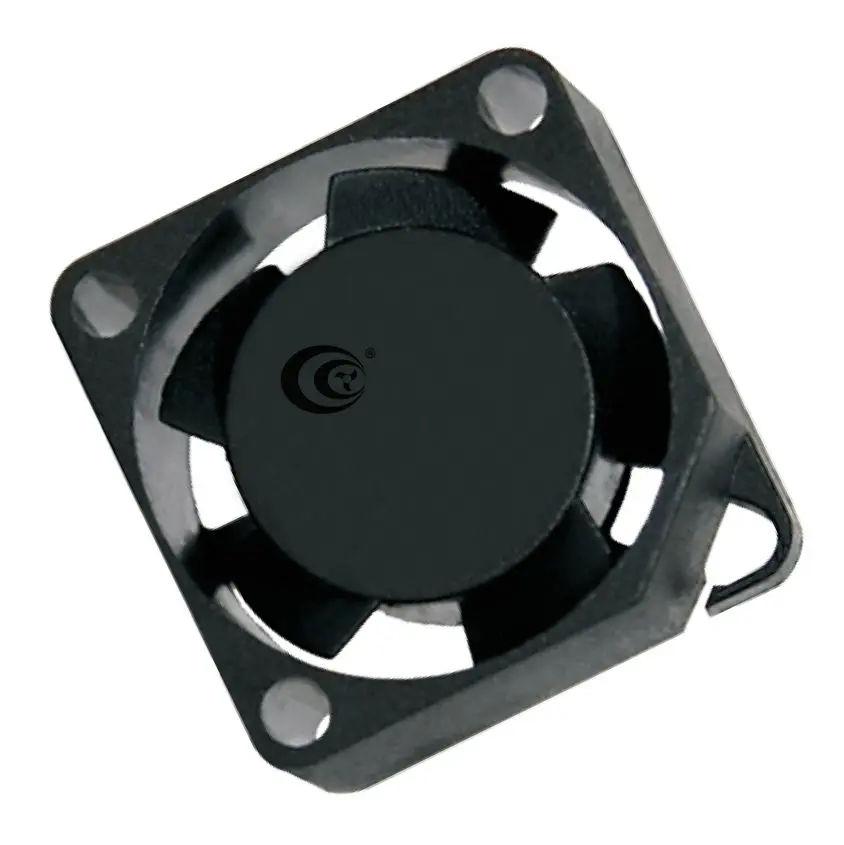

YCCFAN 20mm DC Cooling Fan 5 volt 20*20*10 Mini Small Axial Flow Brushless Fan Price
Product Description

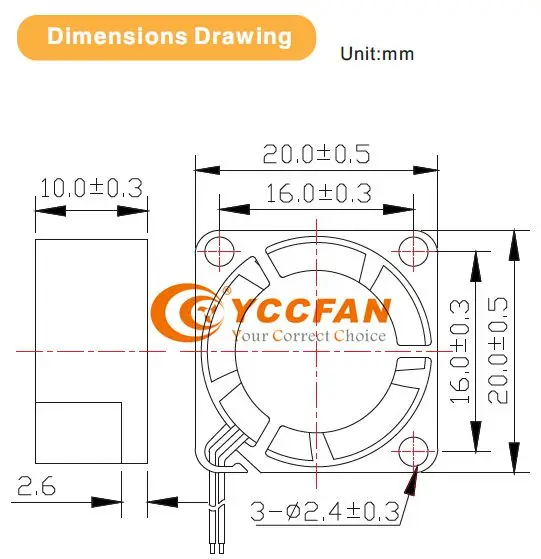

SIZE: 20*20*10mm 20m 1.5v 2.7v dc mini cooling fan

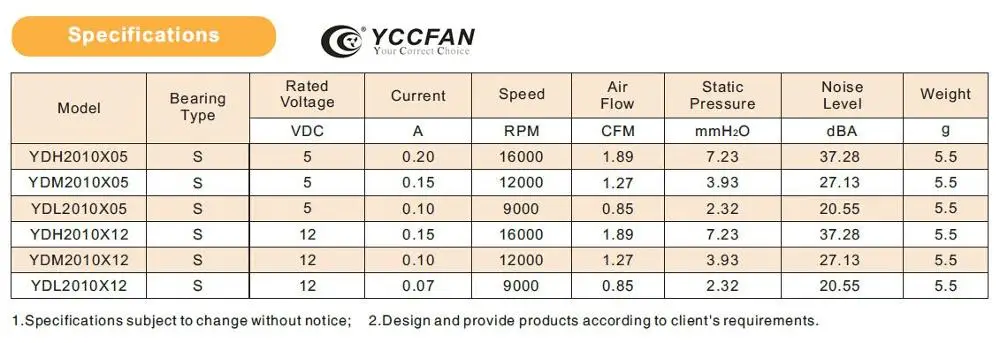

| Size | Material | Rated Voltage | Operating temperature | Length of lead wire | Terminal |
| 20 x 20 x 10 (mm) | Plastic ( UL 94 V-0 rating) | 5v, 8v 9v, 12v 14v 24v | -30 ℃ to + 75 ℃ for ball bearing -10 ℃ to+ 70 ℃ for sleeve bearing
| as customer's requirements | as customer's requirements |
RELATED MINI FAN
Rated voltage: 3v 5v 9v 12v 14v 24v according to customer's requirement
Air flow, air pressure, speed and rated voltage can be customized based on customer's requirement
Bearing: Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)
Yccfan ball bearing is Minebea NMB brand, it is imported from Japan
Company Information
Factory View
Founded in 2011,YCCFAN located in Shenzhen of China .
7000M2 plant , 300+ staff , 50000pcs daily capacity.
R&D equipment
Work shop
Prodution equipment
Since 2017,YCCFAN investes own injection factory.
Certificate:
Corporate certificates: ISO9001:2008 , ISO14001:2004 , IATF16949:2016
Product certificated: UL/CUL,CE,RoHS, SGS
Patents: CycleSeal bearing system
Client Recognition: Panasonic,Mitsubishi, Sony GP
trade show
Yccfan attend many exhibitions at home and abroad every year.
( HongKong, Guangzhou, Shanghai, South Korea, USA,Germany ,Alaska)
You are warmly welcome to come Yccfan company if you would like to visit our factory.

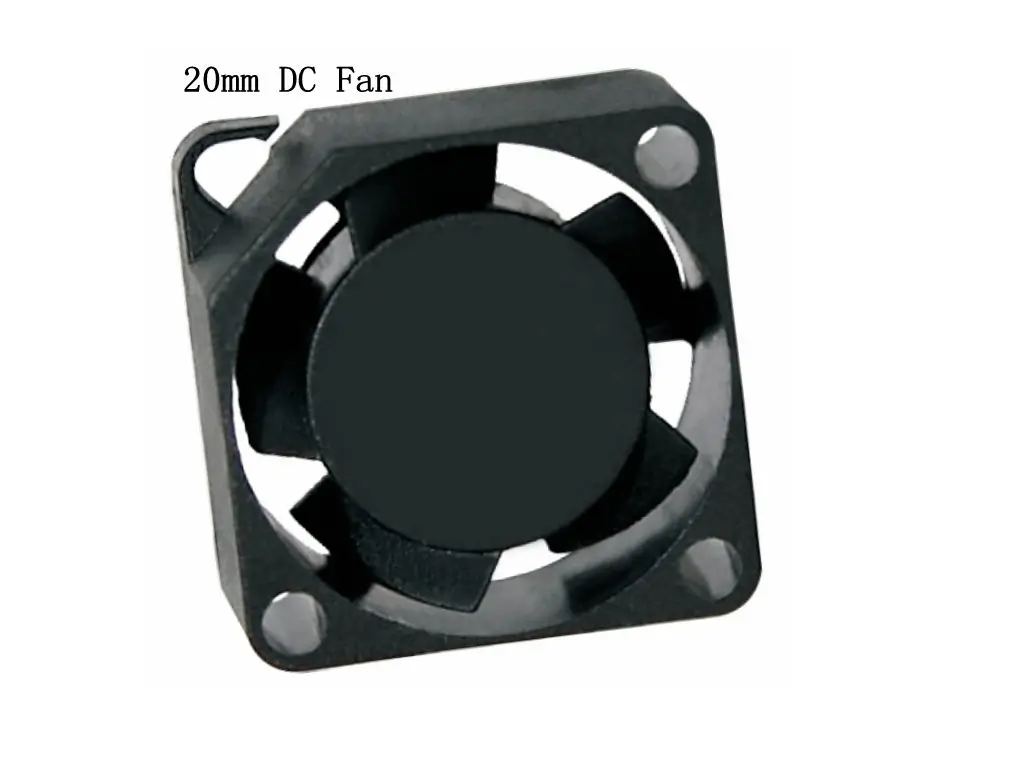

20mm 3.3v 5V dc cooling fan 20x20x10mm
inspection equipment
A & B manchine: temperature testing manchines
we can test the fan whether they can work in high temperature or low temperature by the fan is put into A or B manchine,
temperature range : -40 degree to 200 degree, and also test the fan lifetime under difference temperature, i.e: 85 degree
C Noise room
the noise level will be tested into this room, background less 20 dba
D Wind tunnel
precise air flow of fan and air pressure
E Vibrating equipment
testing vibration of fan
F Salt-flog testing equipment
G XRF-ROHS Inspection Instrument
20mm 3.3v 5V dc cooling fan 20x20x10mm
factory visiting
We have DC FAN & AC FAN production room, and our QC Group will choose the products
randomly from them and inspect products every day. It totally assure the product quality.
20mm 3.3v 5V dc cooling fan 20x20*10mm
Packaging & Shipping
Packing: carton box or as customer's requirements
Shipping:
1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.
2. Large Measure are shipped by ship or by air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
Our Services
1 : Customized Fan
YCCFAN provide cooling solution for cusomter's special product and requirement.
Application industry :
Thanks for all customers support,we will do better.
Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.
2 : Quality Assurance
a : 100 % testing before the fan leave our factory
b. Good after services to every customer
c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.
d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan
3 : Good Reputation & After-sales Service
Focus on customer , Grow together, YCCFAN always do the best.
If any requirement, pls mail Teresa directly via oversea02 at yccfan.com
Skype: teresa3573 Wechat : T1036693615
Tel : 86-13631613620
FAQ
Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.

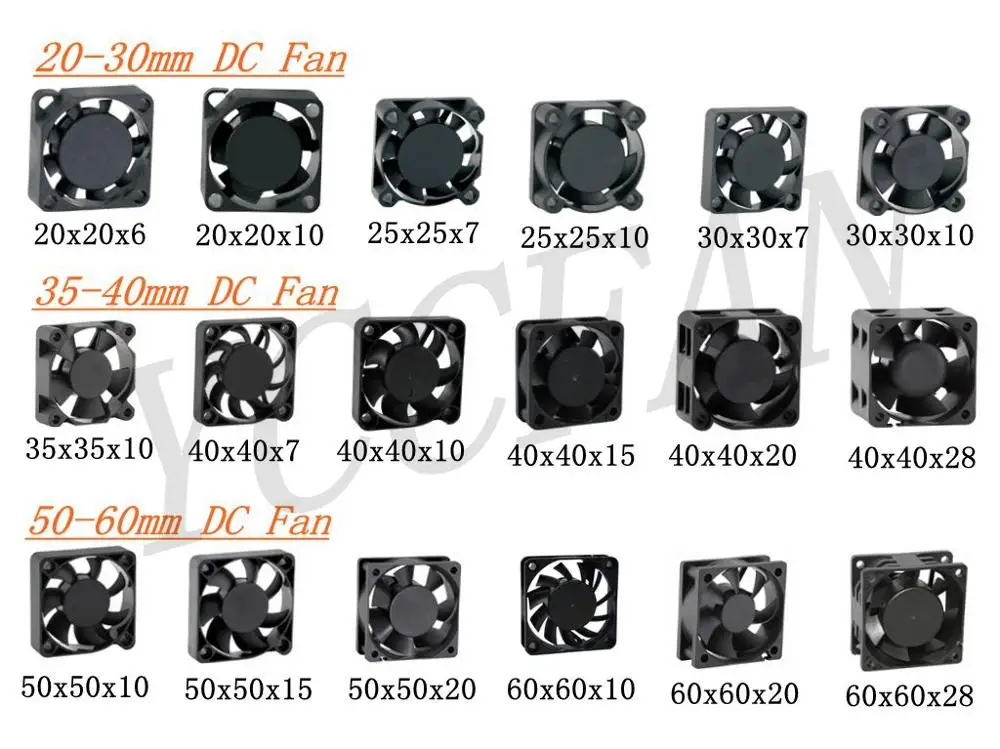

Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Teresa Yu to get more information.
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.
Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Teresa Yu to get more information.
