Product Overview

Description


Application

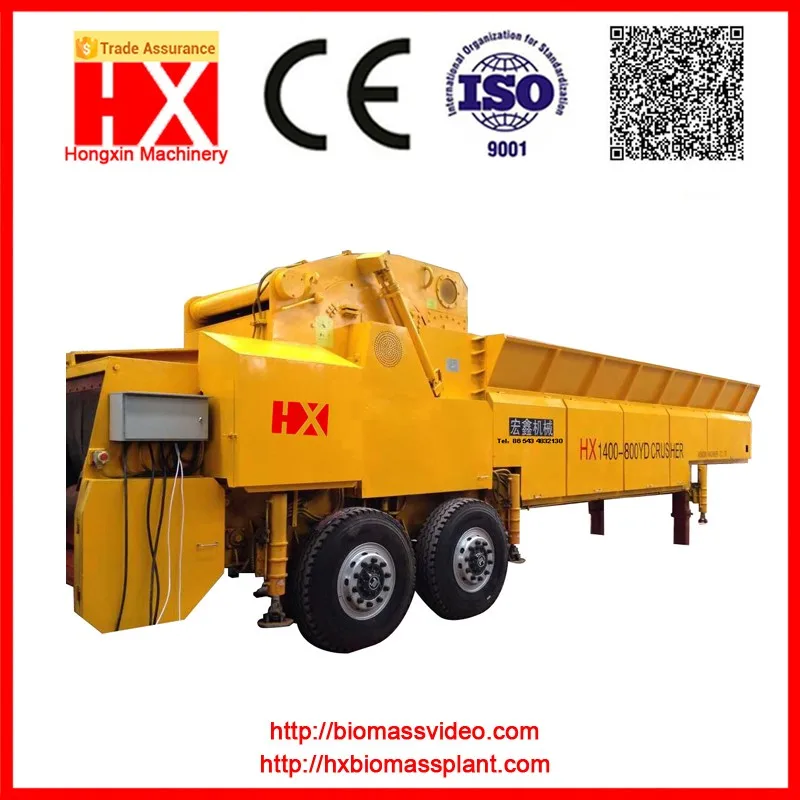

 Horizontal grinder is a kind of machine to shred the following raw materials
   1). All kinds of wood material, such as wood log, slab, batten, log core, tree, building templates, wood pallets, waste wood, wood waste etc
   2). All kinds of non-wood materials, such as straw, cotton rod, reed, hay etc.
for particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory, organic fertilizer plant etc.

   Feedstock

   Output

Specification
\t
Name
\t
Horizontal grinder
\t
Model
\t
HX1400-500
\t
HX1400-700
\t
HX1400-800
\t
rotor diamter (mm)
\t
800
\t
960
\t
1050
\t
cutter quantity (piece)
\t
2 or 24 or customize
\t
2 or 24 or customize
\t
2 or 24 or customize
\t


power (kw)
\t
feeding 11+7.5
\t
feeding 11+7.5
\t
feeding 11+7.5
\t
main 200
\t
main 200
\t
main 200
\t
discharge 11+4
\t
discharge 11+5.5
\t
discharge 11+5.5
\t
hydraulic 3
\t
hydraulic 4
\t
hydraulic 4
\t
input conveyor (mm)
\t
4
\t
6
\t
6
\t
output conveyor (mm)
\t
10
\t
10
\t
10
\t
input size (mm)
\t
1400-500
\t
1400-700
\t
1400-800
\t
capacity (TPH)
\t
15-20
\t
20-25
\t
20-30
\t
weight (ton)
\t
20
\t
22
\t
24
\t
dimension (m)
\t
7.3 x 2.6 x 2.6
\t
9.6 x 2.6 x 3.1
\t
9.9 x 3 x 3.3
Detailed Images

Name: feeding conveyor

Feature:

   link-joint type

   matrial is high manganese steel

   long service life



Name: Screen
Feature:
   high strength steel,
   stereoscopic welded,
   more durable


Name: Blade
Feature:
   material is H13,

   interchangeable,

   easy for change,

   long serive life


Name: hammer
Feature
   material  is alloy YT15,

   long service life

   easy for change



Name: Control cabinet

Feature
    high frequency control
   easy oepration
   high safety


Name: Hydraulic system

Function

   easy for checking and replacing of cutter, screen,etc

   adjust feeding roller to adopt wide range raw material

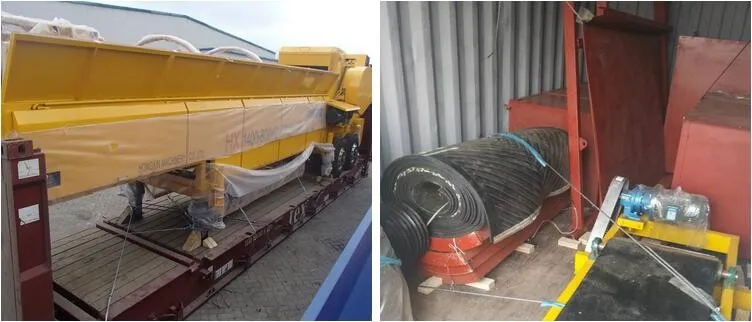

Packing & Delivery
    1x40'FR + 1x20'GP
