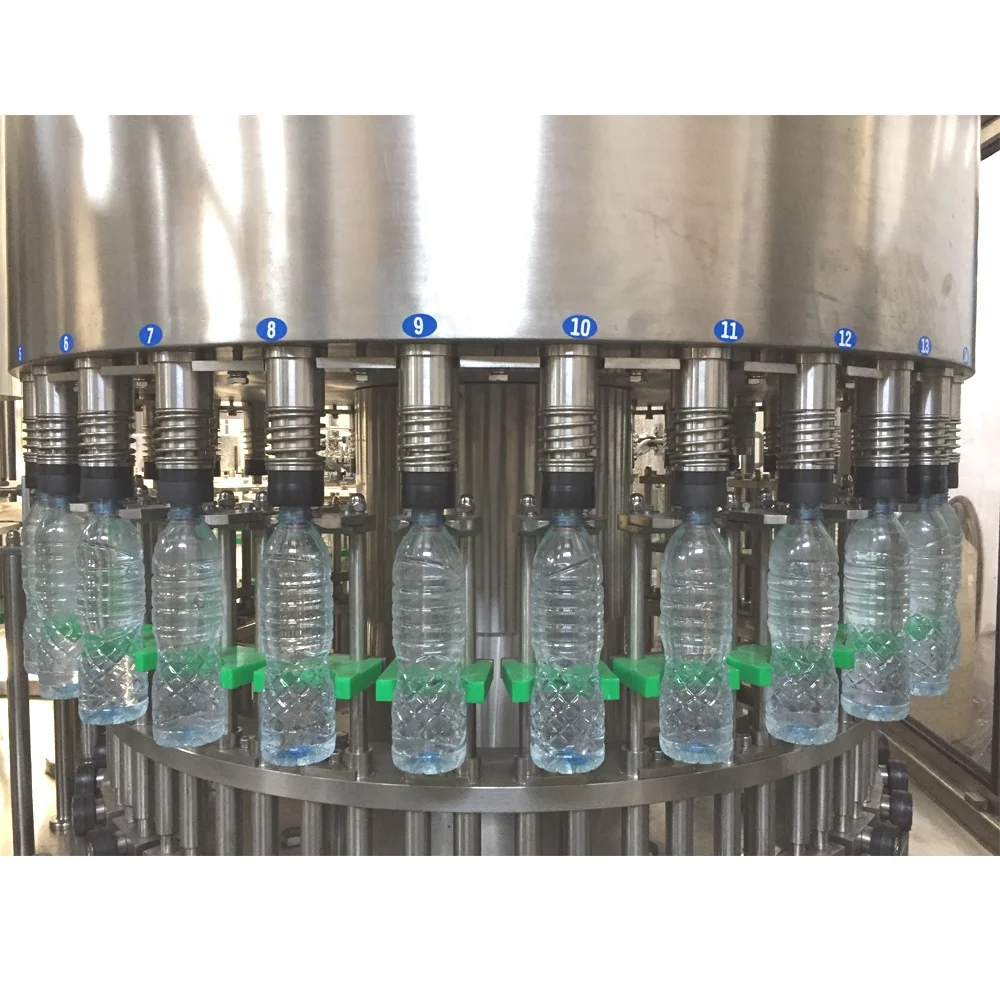

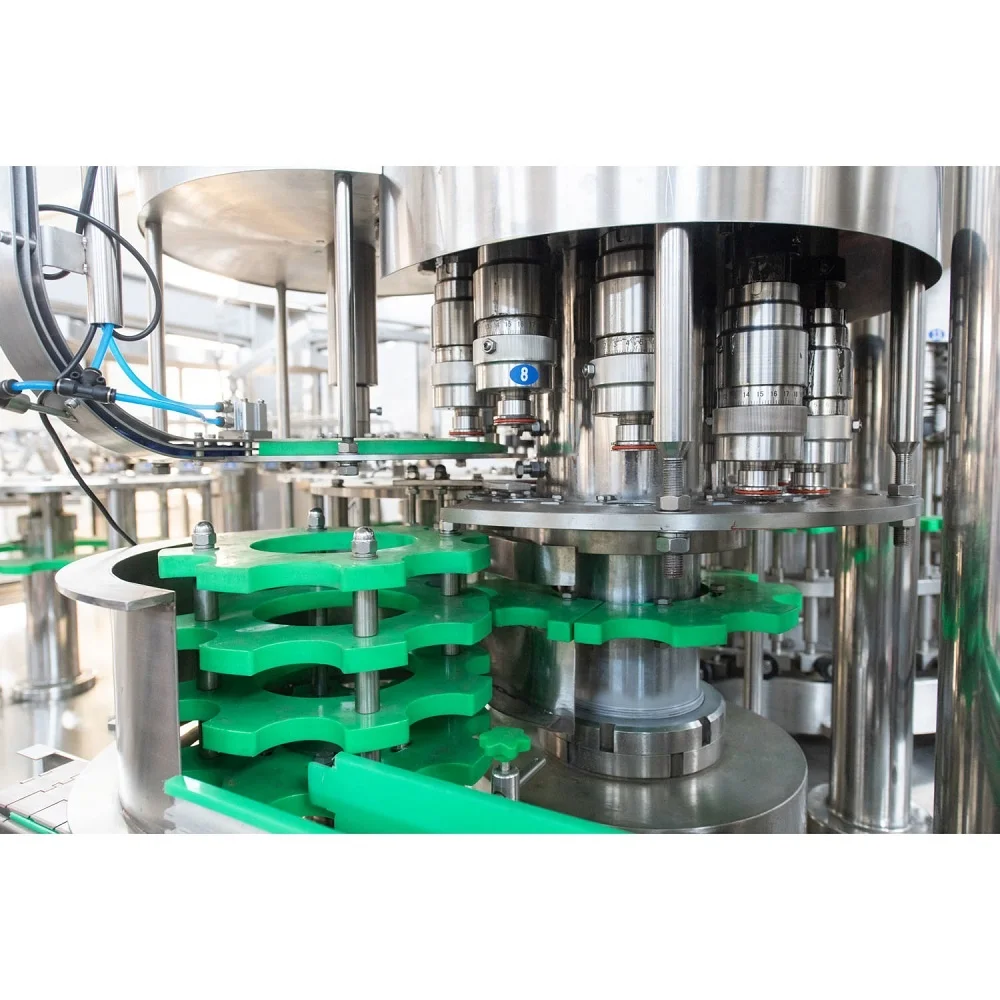

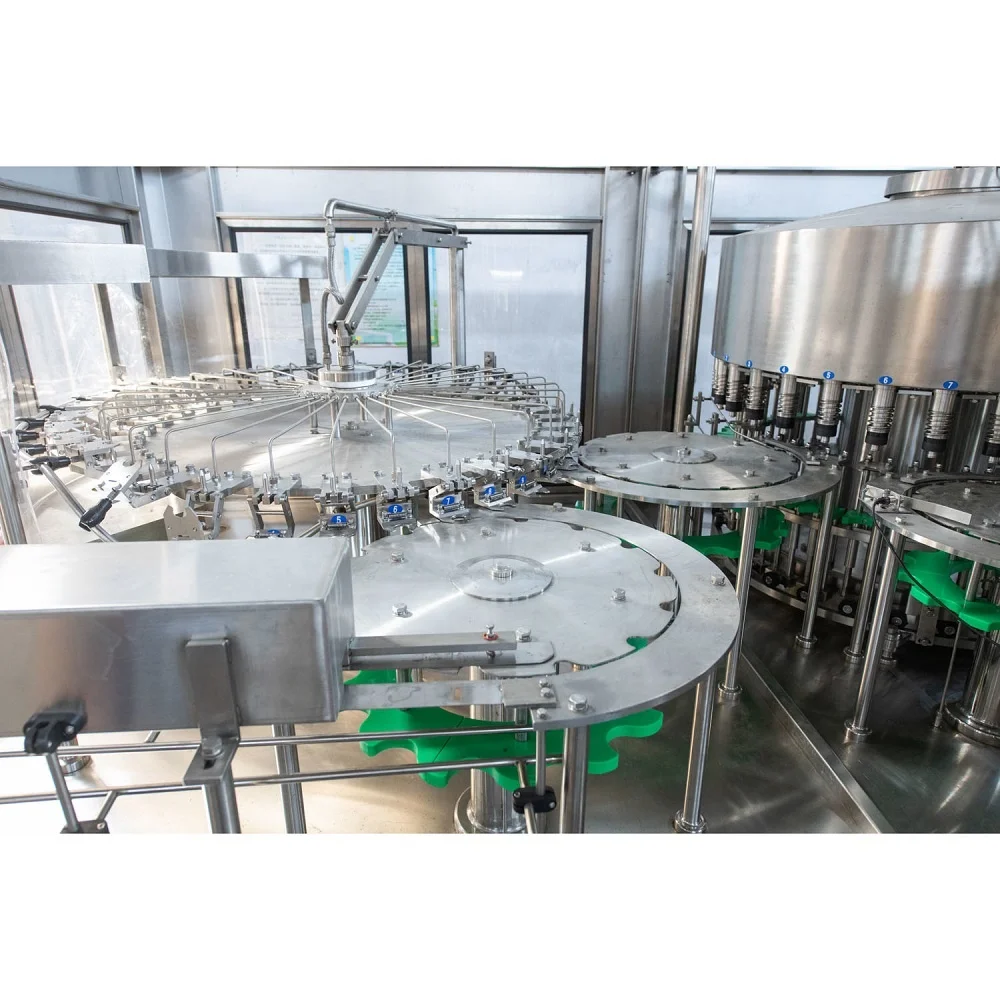

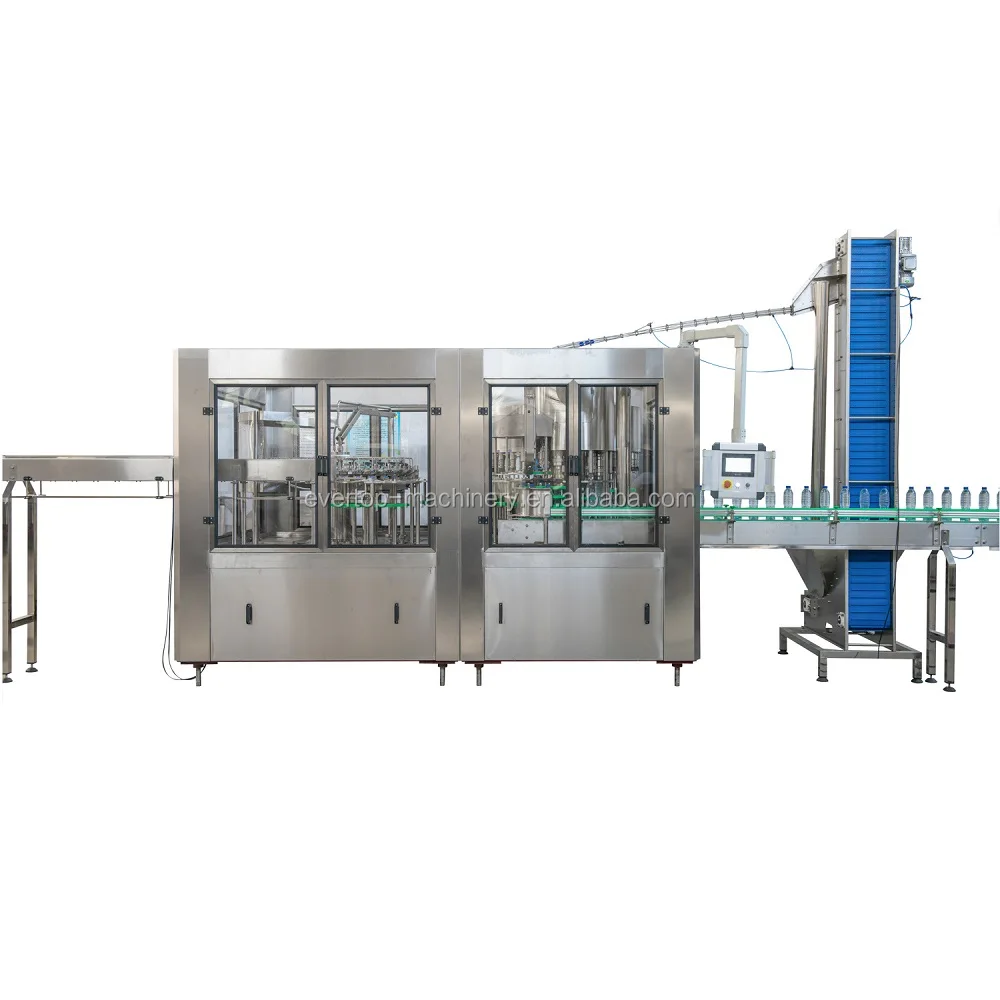

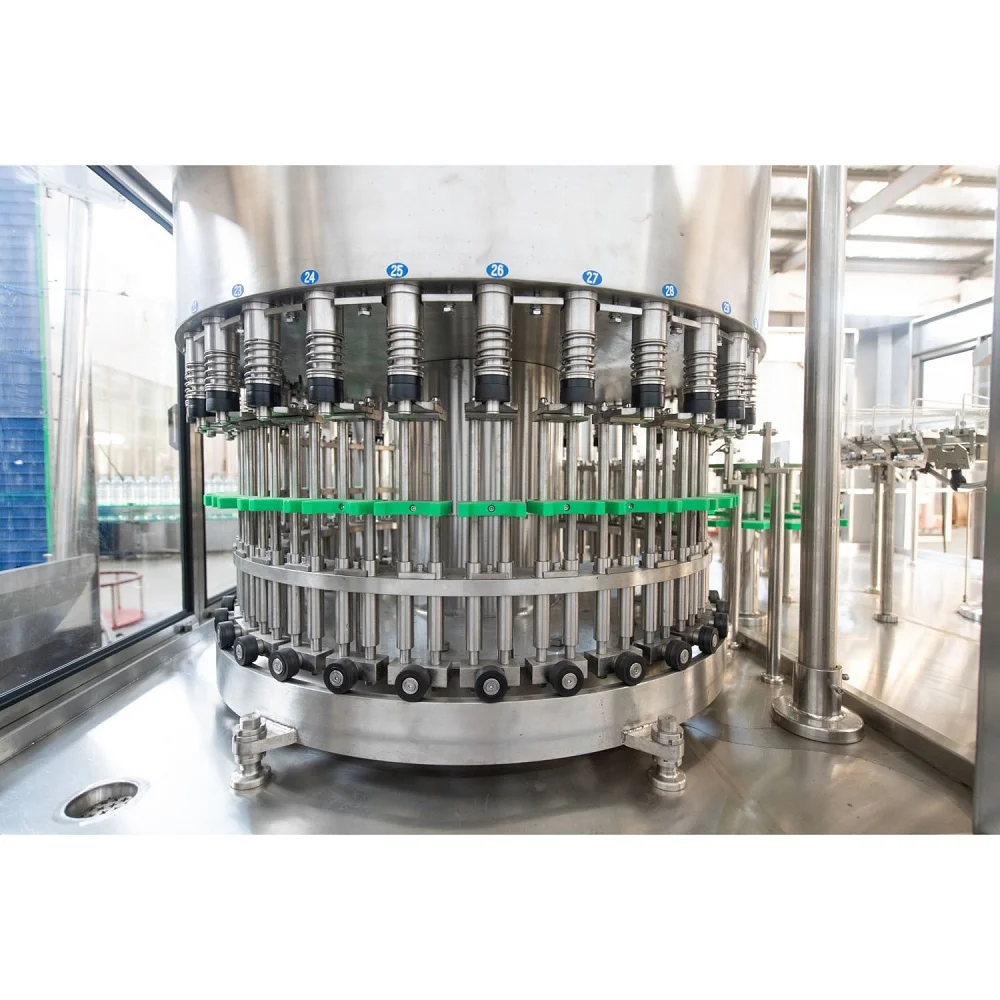

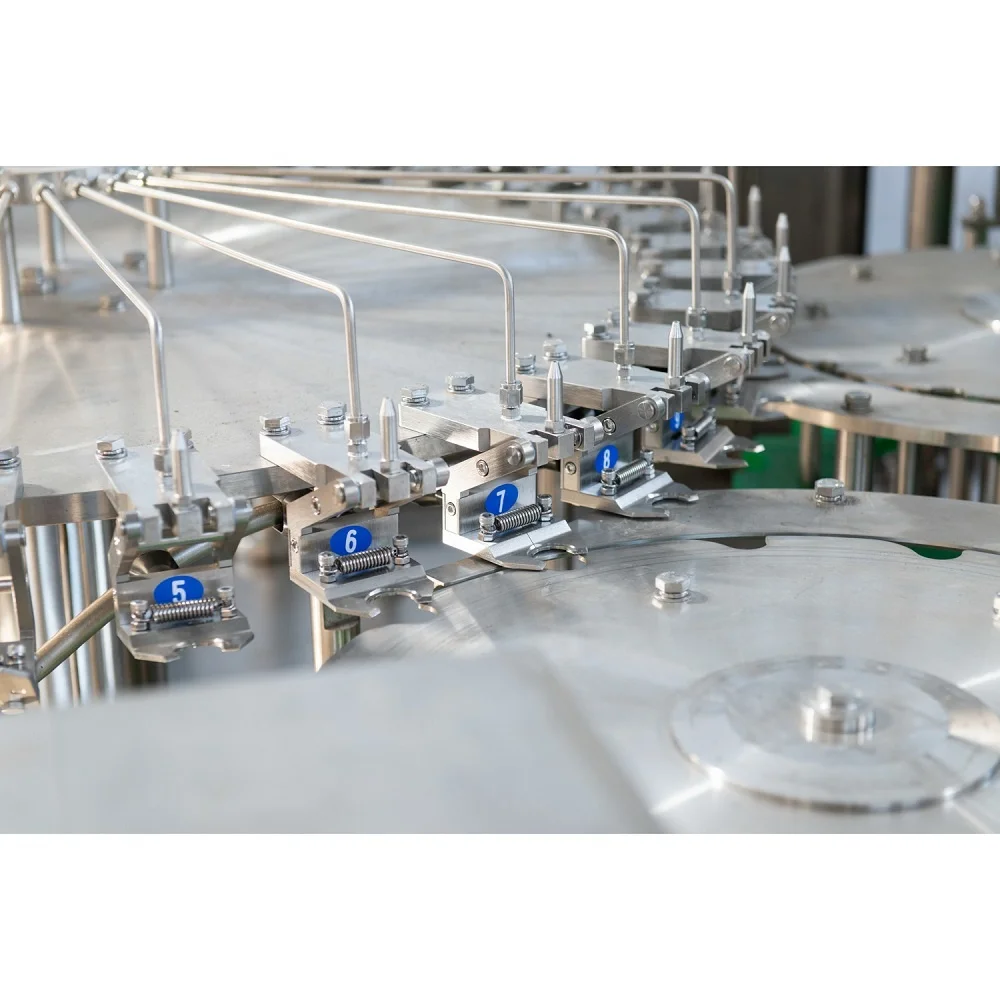

Automatic Bottled Water Filling Machine / Production Line
Product Description
1.This bottle filling machine is composed by washing machine, filling machine and capping machine
2.The bottle filling machine is fit 0.1-2L drinking water production line.
3.The bottle filling machine main parts adopts imported ones such as Omron Siemens
4.The bottle filling machine has good structure, using less area.It has high effective and stable
5.The bottle filling machine is high automatic type, easy operate and maintain.
Parameter:
Model
XGF16-12-6
XGF18-18-6
XGF24-24-8
XGF32-32-10
XGF40-40-12
XGF50-50-15
XGF60-60-15
Production capacity (b/h)
2000-4000
5000-6000
6000-10000
10000-13000
13000-15000
15000-20000
20000-24000
Bottle size (mm)
φ=50-110mm, H=170-310mm (Volume: 200-2000ml)
Main Motor power
4.0kw
4.2kw
5.2kw
6.2kw
7.5kw
8.2kw
9.5kw
Dimension (m, L x W x H)
2.23×1.63×2.25
2.6×1.965×2.25
2.9×2.2×2.25
3.88×2.2×2.25
3.7×3.0×2.35
4.5×3.5×2.35
5.5×4.5×2.35
Weight (Kg)
2500
3500
4200
6000
7000
7600
9800
Technological Flow Sheet (Drinking Water Production Line): 1. PET Preform Injection Molding System PET material→ Dehumidify→ Load material→ Injection machine→ Preform
2. PE/PP Cap Compression Molding System PE material→ Dehumidify→ Load material→ Compression machine→ Cap
3. PET Bottle Blowing System PET Preforms→ heat preform→ stretch→ blowing→ bottles
4. Water Purifying System Raw water→ Multistage centrifugal stainless pump→ Quartz sand filter→ Active carbon filter→ Water softner→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Pump
5. Water Filling, Labeling and Packing System Air conveyor→ Rinsing, Filling& Capping Mono-Block→ Lamp checker→ Conveyor→ Auto labeling machine→ Date printer→Auto packing machine→ Stock
Packaging & Shipping
Our Services
1. The plant layout To provide customers with pre-project planning workshop, design.
2. Commissioning services Send experienced engineers and technicians responsible for equipment installation and commissioning, to ensure normal production and customers.
3. Parts It comes with one year of wearing parts when the device is shipped. In addition, we prepare an adequate equipment spare parts as inventory, customer ever need spare parts repair and maintenance of equipment, can quickly provide.
4. Technical training To ensure that your technical staff to become familiar with the performance of the equipment, proper operation and maintenance procedures to master the equipment, provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.
Company Information
Zhangjiagang Evertop Machinery Co., Ltd., which has the function of research, development and manufacture, is specialized in beverage packaging machinery.
We are providing the following products: liquid filling machine (bottle water, juice/tea, carbonated drink, oil, milk, wine etc.), 3 to 5 gallons water filling production line, water treatment machine, labeling and packing machine, automatic/semi-automatic bottle blow molding machine, injection molding machine and automatic batching, mixing system, a variety of sterilization equipment etc.
Since foundation, we devote all the strength to the new field of beverage packaging machine technology and absorb the advanced technology from German and Italy. Company insists the management ideas of market-oriented, technology-first, quality of life, faith-based, service paramount, and has established perfect quality assurance system.
FAQ
Q What is your trade clause? A We mainly handle it by FOB, CFR, CIF, EXW, FCA. It depends on the client’s need.
Q What is your payment term? A 30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Q What is the valid of your price? A Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.
Q How could I know if your products' specification is suit for our country power? A All the machines are custom made. We will make suitable voltage and frequency products according to your need.
Q How long can you arrange delivery? A About 30 days after we received the deposit payment, all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running. Then you arrange the balance payment and we will pack the machines with wooden case and arrange the shippment by sea or by train.
