Hot Mix Asphalt Paving Contractors Plant Near Me
- Category: Asphalt Mixers >>>
- Supplier: Harbin Zephyr Trading Co. Ltd.
Share on (60587874736):
Product Overview
Description
Hot Mix Asphalt Paving Contractors Plant Near Me
Model | CSM180 | ||
Rated producing ability | 180t/h | ||
Installed Power(approx) | 370kw | ||
Cold feed system | Cold hopper | 15m³×4 | |
Belt feed capacity | 200t/h | ||
Adjusted mode | Via Frequency | ||
Drying and heating system | Drying capacity | 200t/h | |
Size(dia.×length) | 1.8m×8.5m | ||
Driver | 11kw×4 | ||
Burner(medium atomization) | 13.4MW | ||
Fuel | Diesel oil,heavy oil,coal tar | ||
Dust separation system | Total filter area | 505㎡ | |
Filer bag material | DuPont NOMEX | ||
Emission of dry particulate | ≤20mg/Nm³ | ||
Dust blackness | <ringelman one grade | ||
Mixing main tower | Total screening decks | 5 decks | |
Hot mineral storage capacity | 40 m³ | ||
Hot aggregate elevator | 200t/h | ||
Mixer rating capacity | 2500kg | ||
Mixing period | 45s | ||
Weighting Accuracy | Aggregate | <±0.5% | |
Filler | <±0.3% | ||
Bitumen | <±0.3% | ||
Control system | Full automatic computer controling (industry PC+PLC+one colorful monitor + laster printing +air conditioner) | ||
Bitumen heating system | Bitumen tank | 50t×2 | |
Diesel or heavy oil | 50t×1 | ||
Thermal oil boiler | 50-100 millio Kcal/h | ||

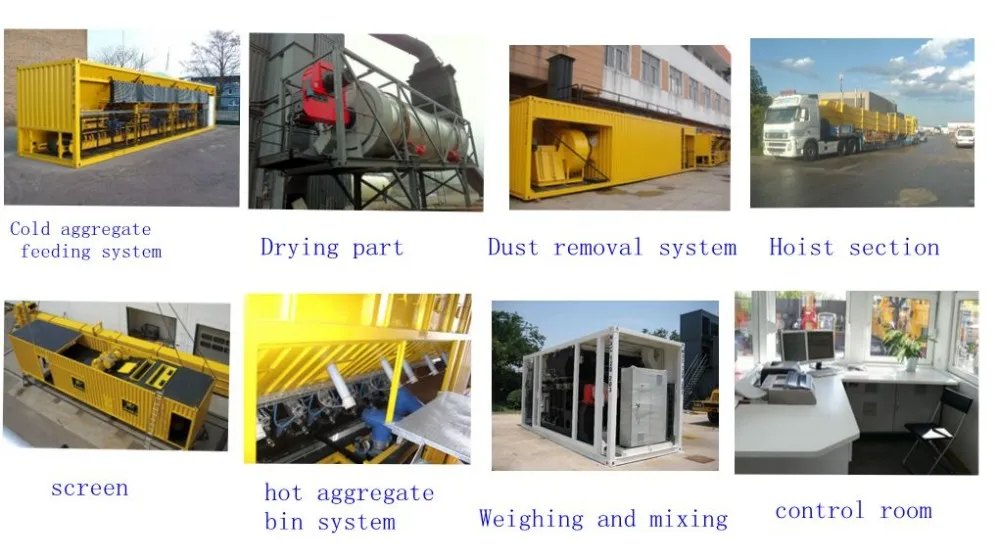

Detailed Images
Packing & Delivery
All the Components are Packaged in the Container & as usual or according to your request
Delivery within 35 days after receipt of the prepayment 30%.
Construction Case
Certifications
Our Service1.Effective communication:
2.In-time and reliable after sale service:
Warranty and after sale service:
1.Effective communication:
Any inquiry will be fast replied. Accurately convey customer's information. Help customer to control the goods quality.
2.In-time and reliable after sale service:
We have been keeping a very good cooperation relationship with factories. We can help customer to change the broken spare parts or send engineer to the local in-timely with low cost.
Warranty and after sale service:
1 year warranty. Engineer comes to the local for installation for free in the first month and free spare parts changing. If it is above 1 year, need customer charge the air tickets, visa and living expenses for the engineers to install in the local.
