24v self priming solar powered water pump for home

Share on (60587909150):


Price:$315.00

Quantity:


Product Overview

Description


24v self priming solar powered water pump for home

Warranty

 Water pump & Controller: 3 years

Solar panels: 25 years

You can buy solar panels from us or just buy solar water pump and controller .

If the controller and motor damaged within 3 years, we will send you a new controller or motor for replacement, shipping free.

If the screw is damaged within 3 years, we will send you spare screw for replacement, shipping free.

Product Description

Solar Water Pump System List:

1. MPPT Controller

2. Water level sensor or float switch: 10m cable (longer cable is available)

3. Cable for solar panel: 6m (longer cable is available)

4. Cable Connector

5. Solar panels are option

6. Installation Manual



Performance:

SQB performance.jpg

 Construction Features:

  • Pump body:     Cast iron
  • Impeller:    Brass
  • Bear:    NSK
  • Shaft pump side:    stainless steel

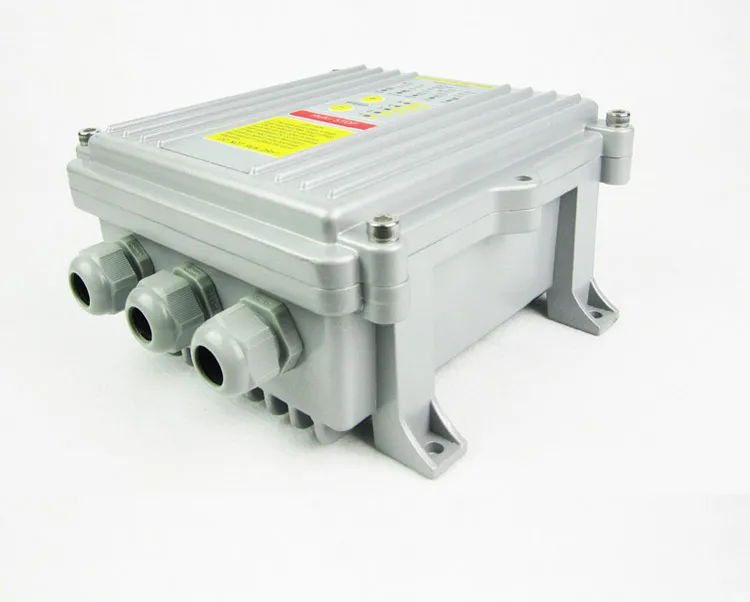

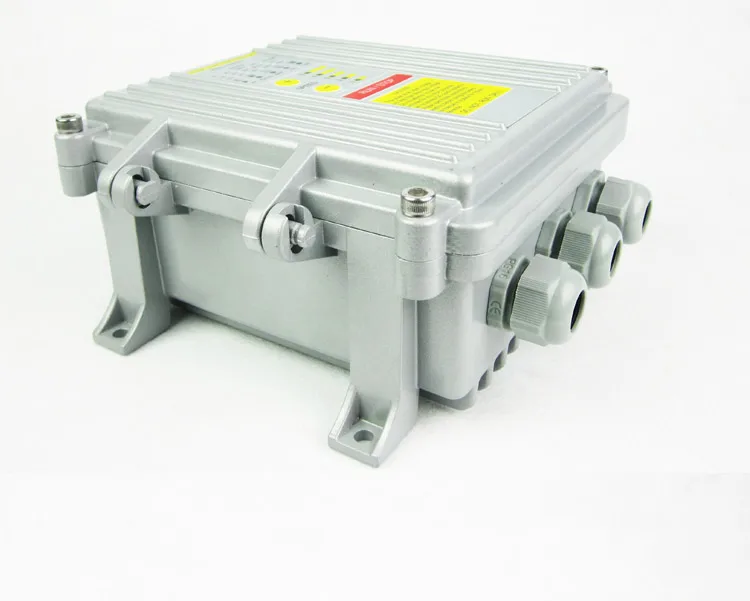

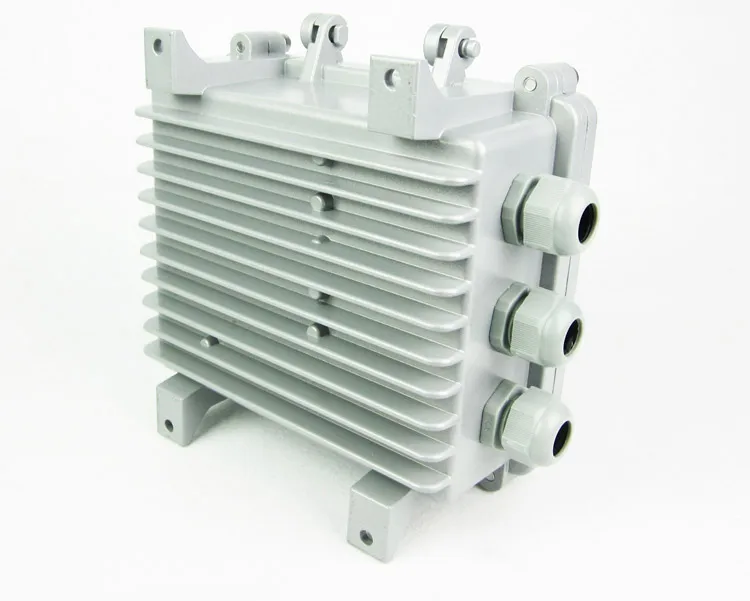

  • Controller shell:    die-cast aluminum

Motor:   Full Oil Permanent Magnet Brushless DC Motor (without hall)

Controller:   32 bit MCU & FOC & Sine Wave Current & MPPT

Installation
surface pump wiring diagram.jpg
  •  TL and TH short circuit, The pumps stop.
  • TL and TH open circuit, The pumps run.
  • WL and COM short circuit, The pumps stop.
  • WL and COM open circuit , The pumps run.
  • Note:when the WL and COM from short to Open, the pumps will delay 10min to run.
  • U V W Connect to Pumps.
  • Solar Energy Plate Connection Method.
FAQ


Factory

FACTORY.jpg address
