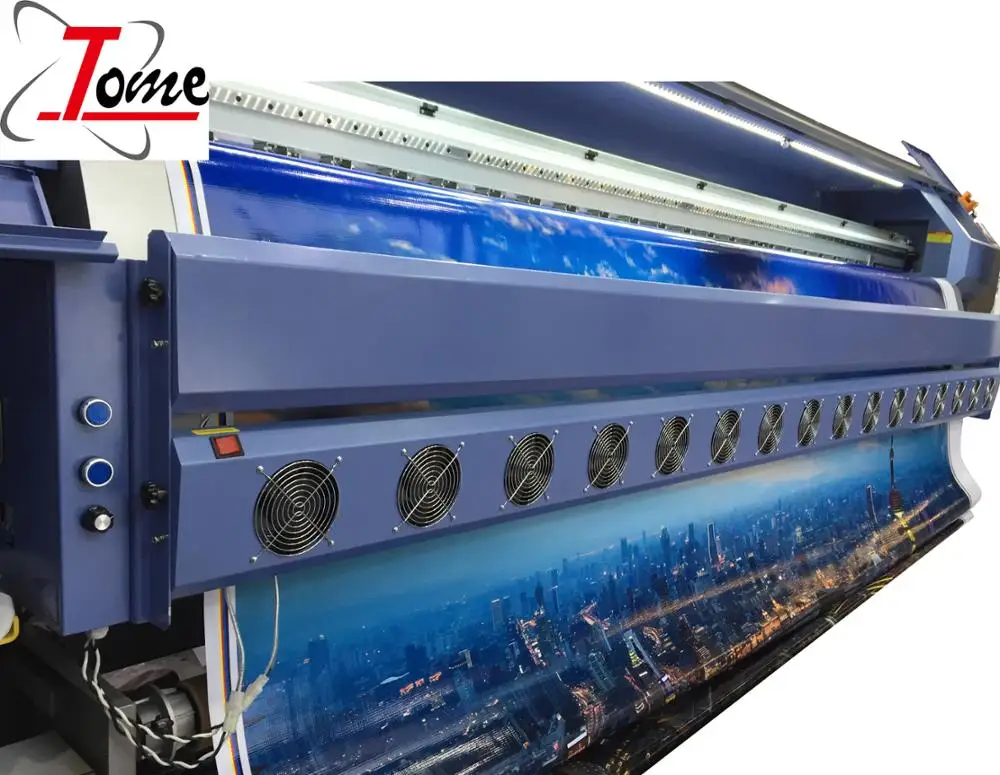

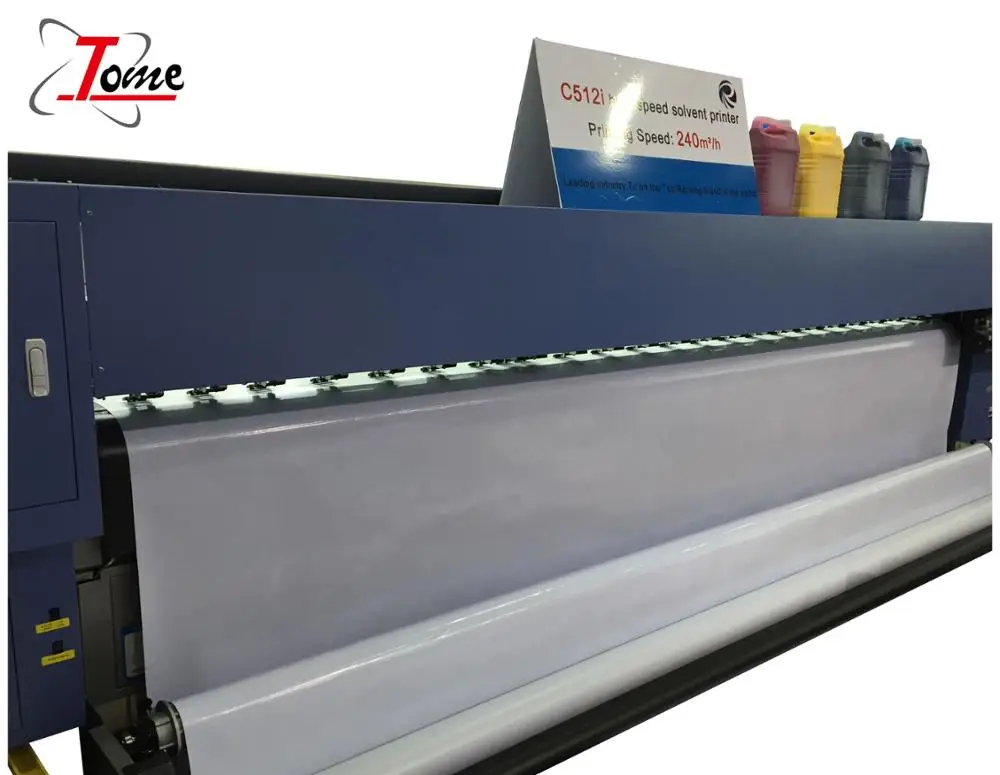

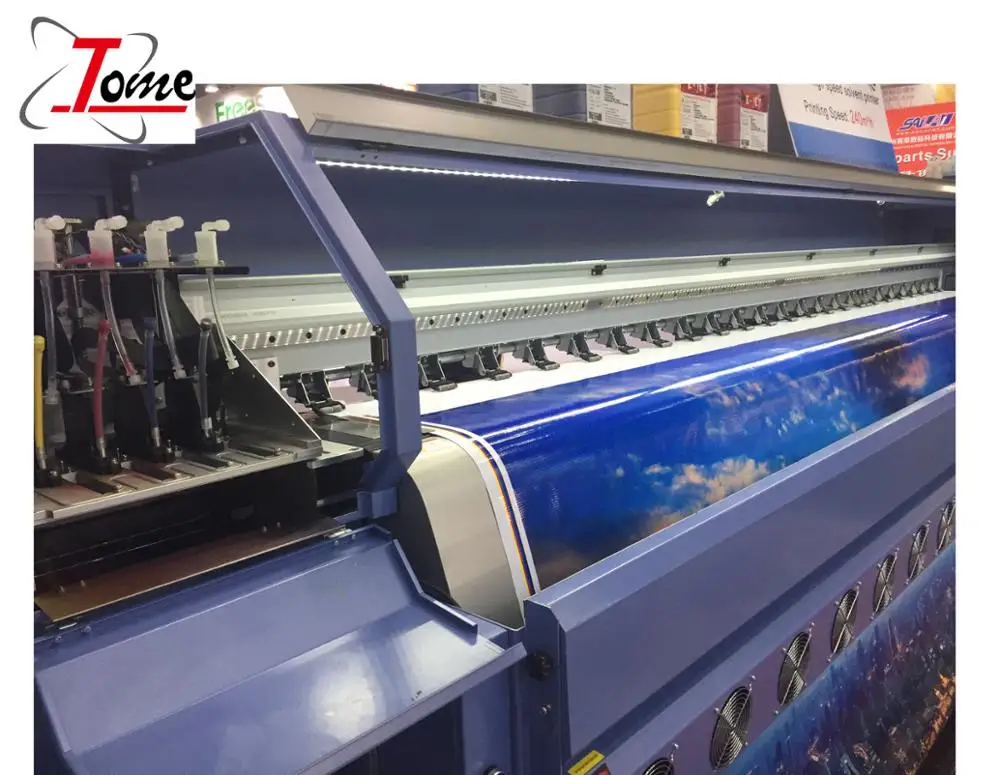

China 3.2M large format Konica 512i printhead panaflex printing machine / Fast speed plotter
Features
1. Adopt KM512i/30PL print head which can achieve high quality printing for short distance observation.
2. Optional for professional collecting system to achieve consistent printing quality and safety of print head in high-quality printing ;
3. Second ink tank,print head heating system,three stage adjustable temperature heater
for media
4. Adopt high power&intelligent infrared drying system and fan drying system to ensure immediate drying after printed.
5. Using panasonic drive system and THK high performance linear rail from Japan.
Parts of Machine

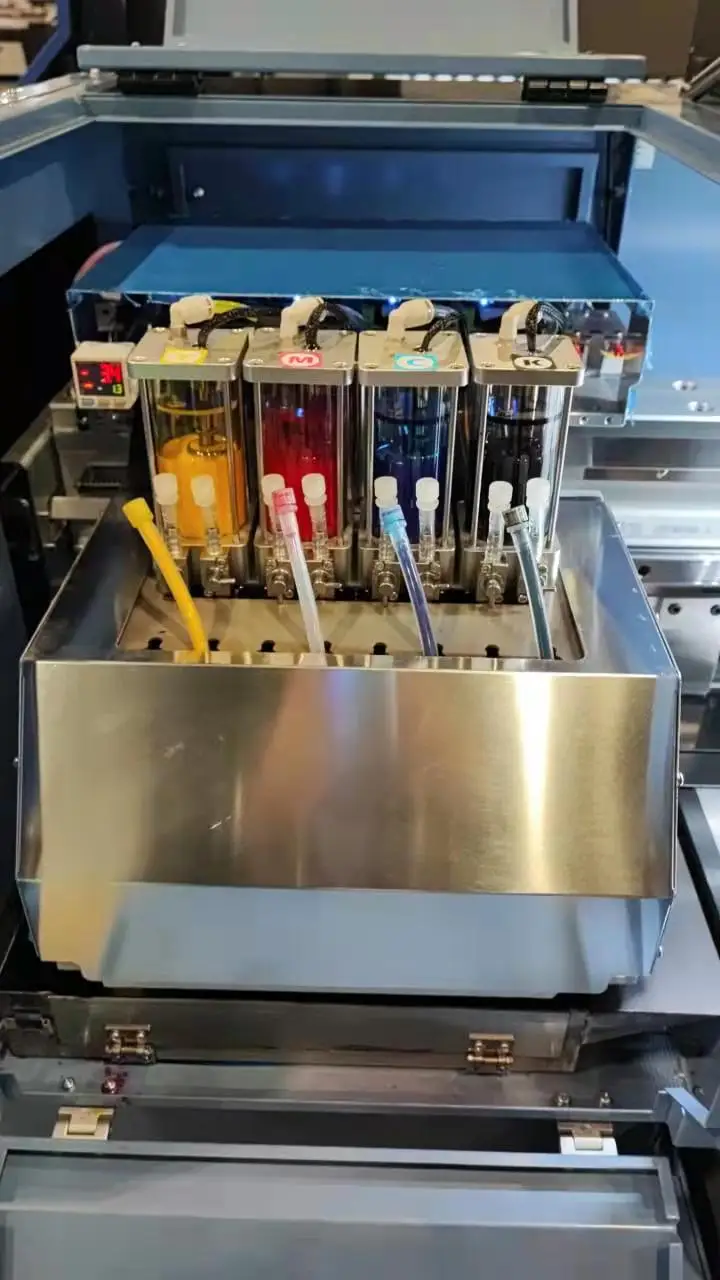

Ink Pump

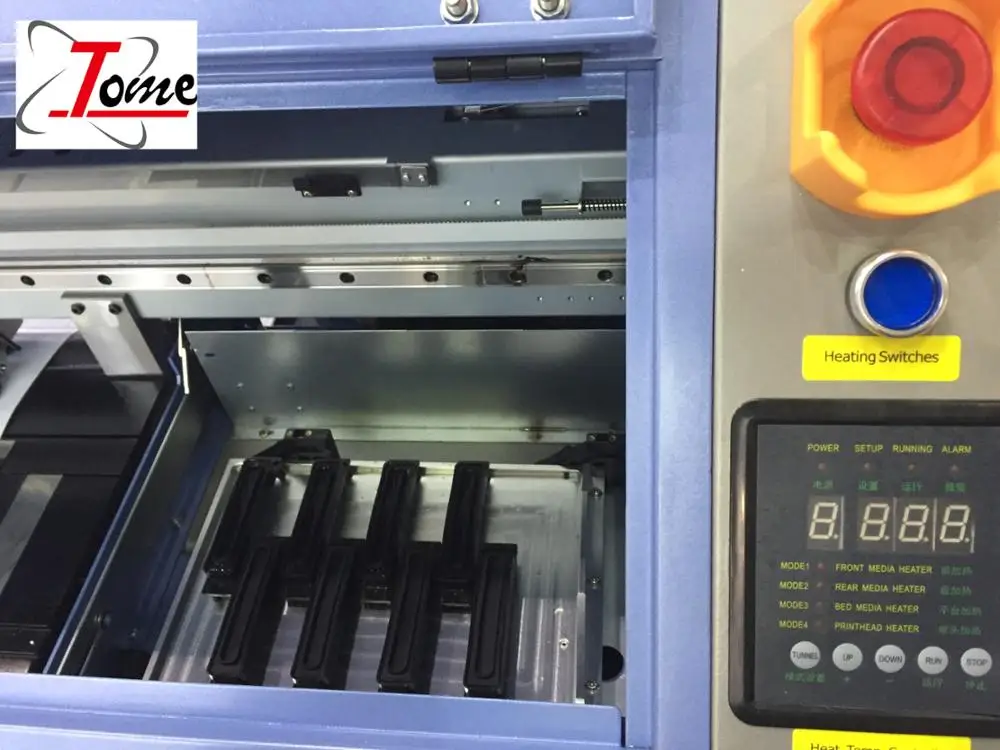

Print Head Part
Specification
| Machine Tyoe | C512i Digital Inkjet Printer | ||
| Print Head | 4 or 8 KONICA512i/30PL | ||
| Print Mode | 360*360 dpi/2P | 360*540 dpi/3P | 480*720 dpi/4P |
| Speed with 8 heads | 240sqm/h | 180sqm/h | 110sqm/h |
| Print Width | 3300 mm | ||
| Printer Interface | USB | ||
| Media Transmission | Roll to Roll | ||
| Data Transfer | Edge RIP while print / RIP post-print | ||
| RIP Software | ULTRAPRINT,PHOTOPRINT,MAINTOP | ||
| Heating System | Four-heating:Before printing,printing,printing post,Ink heating | ||
| Drying System | Infrared drying and fan-air dry | ||
| Cleaning System | Separation dual function of pressure and suction cleaning | ||
| Material Systems | (Sent/received)feeding standard to close material matching | ||
| Ink Types | C,M,Y,K four-color or C,M,Y,K,Lc,Lm 6-color solvent-based ink | ||
| Power Requirements | 220 VAC±10%,<4A, 50/60HZ 220 VAC±10%,<16A,50/60HZ | ||
| Working Environment | Temperature:20°C~30°C, Humidity:40%~70%RH | ||
| Media Type | Normal light box cloth,body perspective software,photo paper,etc. | ||
| Dimensions | 4700*1030*1570 mm(L*W*H) | ||
| NW/GW | 800KG/900KG | ||
Printing Sample

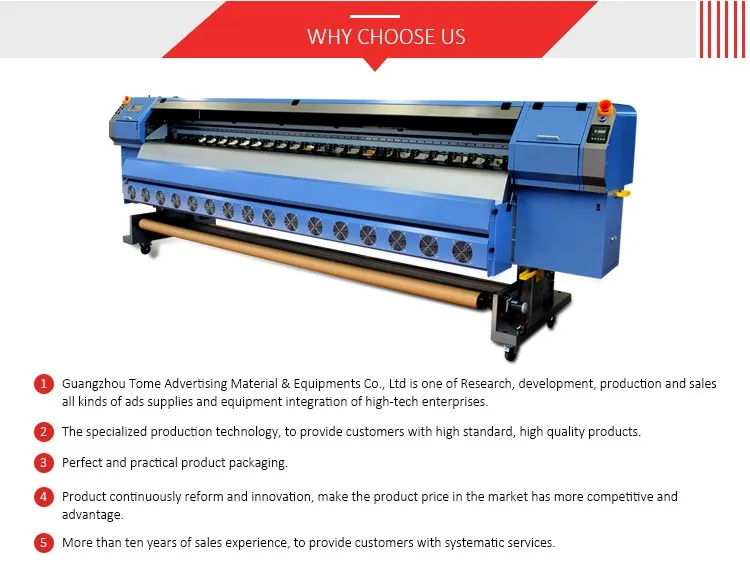

Why Choose Us
Certification

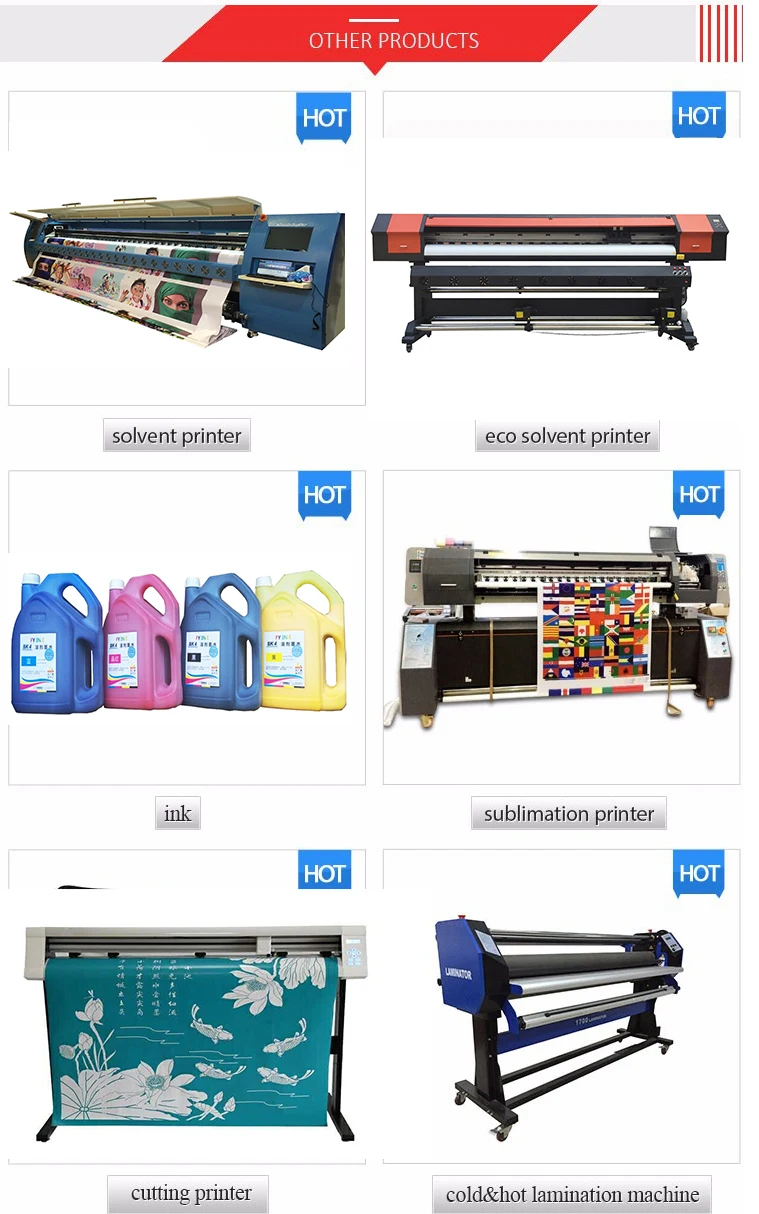

Our other products
1.Machinery
(1). Printing plotter such as solvent and eco solvent printers.
(2). Engraving and cutting macine such as CNC , laser cutting macine.
(3). Advertisement machine such as vacuum macine , beding machine.
2.Indoor media/Advertisement material
(1)Self adhensive PP paper.
(2)High glossy paper/RC photo paper,backlit PET film, Frontlit PET film.
(3)Cold lamination film,X frame PVC film.
(4)White/Oil/Cotton/Non-weaving/Art/Glossy oil/Sail canvas/Portrail fabric/Inkjet silk fabric/Double-side cotton canvas/Glossy Polyester canvas rainbow fabric/Photic tartan and so on.
3.Outdoor Media/Advertisement material
Self adhensive Vinyl/Knife coated fabric reflective banner/Diaphanous cloths/Perforated film/Mesh fabric/Frontlit Film and so on.
