auto nail making machine/iron wire drawing machine with best service
- Category: >>>
- Supplier: Wuxi Wandeshun Machine Co. Ltd.
Share on (60588287050):
Product Overview
Description
Wuxi Wandeshun Machine Co., Ltd (we are professional factory)
our Transaction level is as follows:
1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Turkey and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
My contact way
My mobile: 86-13921534531
Whatsapp: 86-13921534531
jeaquline zou
market manager
Skype: jeaqueline998
trademanager: wxwds
Email:sales(at)wxwds.com
QQ:349791577
Product Details
auto nail making machine/iron wire drawing machine with best service
1-6 inch nail making machine
Z94C series High speed ,low noise nail making machine usually used to make normal nail,concrete nail,steeless nail,D shape and T shape nail.
This type equipment is consist of lubricating systerm and driving systerm.
The driving systerm include wire feeding,wire clamping ,wire cutting and stamping.
Process
Wire-Rod → Wires-Drawing → Nail-Making → Polishing → Packing → Delivery
Characteristics
1) High Speed
2) Low Noise
3) Less Impact
4) Good Continuity
5) Main components are made of quality steel, such as shaft, cams and gear.
6) It adopts plunger and oil pipe lubricating structure.
7) It can make the high quality of asphalt felt nails and other special nails used for high speed coil nail welder and coil nailers.

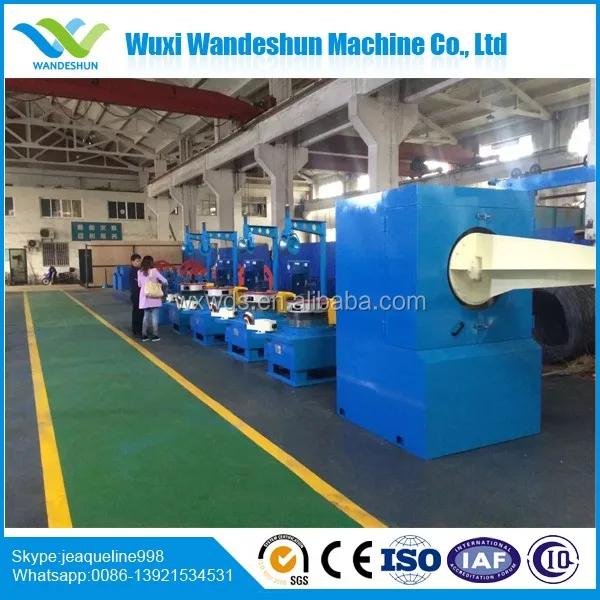

First step: wire drawing machine is used to draw the wire to the fine dia we need.
we also make all kinds of pulley wire drawing machine

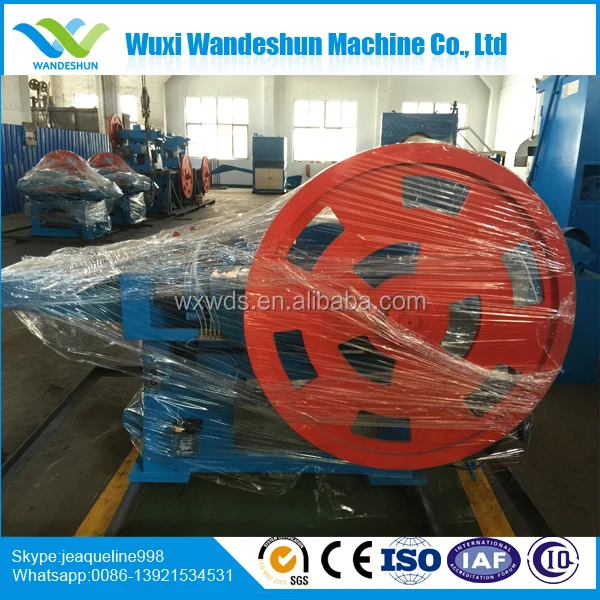

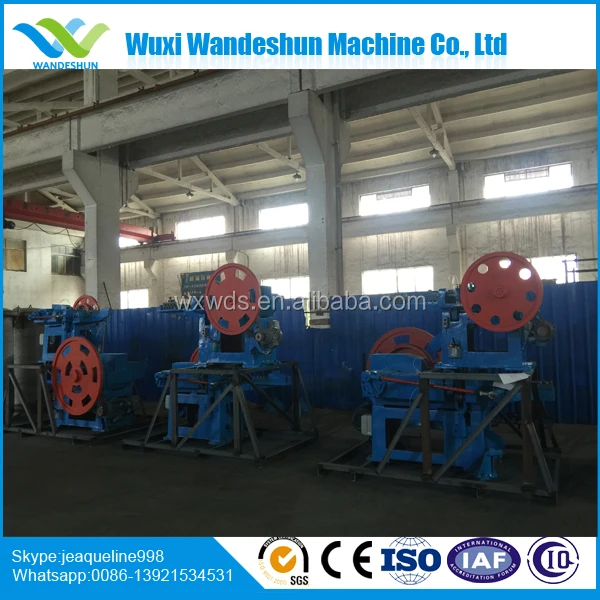

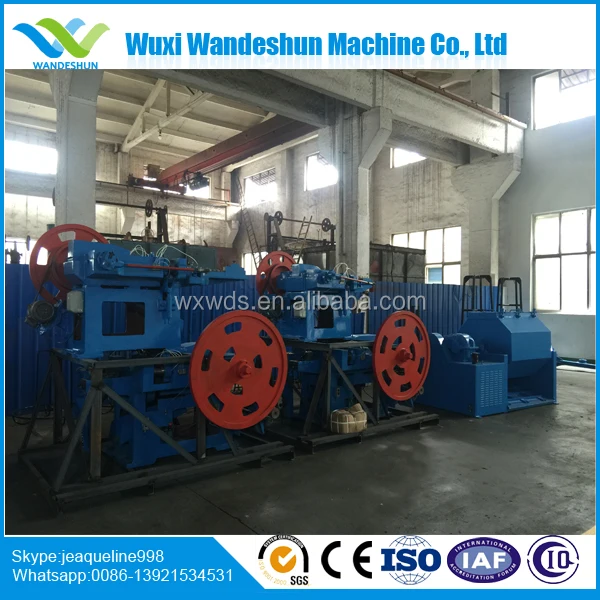

Second step: nail making machine is used to make nails. we just need to put the fine dia wire into the entrance of the nail making machine. It will finish nail making fully automatic.
Technica | Unit | Z94-4C | Z94-3C | Z94-2C | Z94-1C | Z94-5.5C | Z94-6A |
Max diam | mm | 4.5 | 3.4 | 2.8 | 1.6 | 5.5 | 6.0 |
Min diam | mm | 2.8 | 1.8 | 1.2 | 0.9 | 4.1 | 4.1 |
Max length | mm | 100 | 75 | 50 | 25 | 150 | 180 |
Min length | mm | 50 | 25 | 16 | 9 | 100 | 100 |
Desiged output | Pcs/min | 260 | 280 | 300 | 450 | 220 | 220 |
Motor power | kw | 4 | 3 | 2.2 | 1.5 | 5.5 | 11 |
Weight | kg | 1900 | 1200 | 950 | 750 | 2500 | 6000 |
Third step: nail polihsing machine is used to make the nail brighening.
Grinder which is used to make the nail knives more sharp.
Pointing rolling machine is used to make the point of the wire smaller so that it can get through the wire drawing dies before drawing.

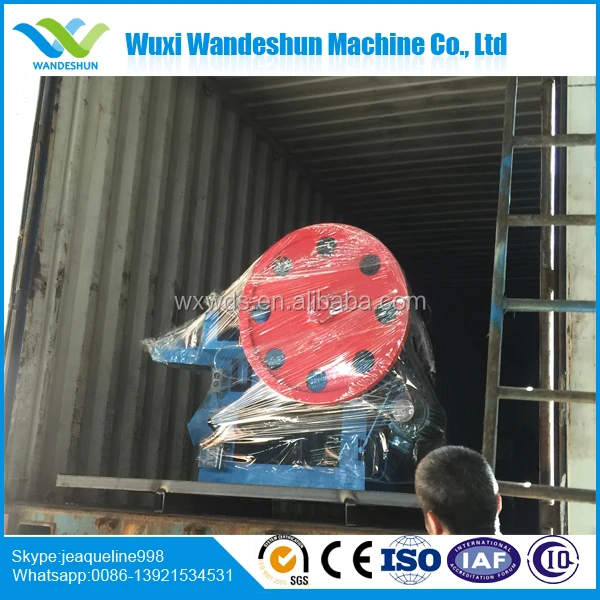

our loading and shipment photos
