china precast concrete making plant/hollow core slab machine
This prestressed concrete forming machine can produce hollow core or solid floor slabs consecutively. The length can be cut as per the special construction design. With low labor force, high efficiency, neat appearance,accurate dimension and high intensity, the products satisfied the related technical requirements.
Technical parameters:
HTY Hollow core slab machine | Motor Power (kw) | Motor Vibrator Power (kw) | Inner vibrator power | Forming speed (m/min) | Holes no. | Hole shape | Weight (kg) |
200x900 | 11 | 3.6 | 0.8 | 1-1.2 | 6 | Peach | 2600 |
250x900 | 11 | 4.7 | 0.8 | 1-1.2 | 6 | Peach | 3700 |
300x900 | 11 | 4.7 | 1.1 | 1-1.2 | 5 | Peach | 4500 |
200x1200 | 11 | 11 | 1.1 | 1-1.2 | 8 | Peach | 3100 |
250x1200 | 15 | 11 | 1.1 | 1-1.2 | 8 | Peach | 4500 |
300x1200 | 18.5 | 15 | 1.5 | 1-1.2 | 6 | Peach | 5100 |
Specification
Product Names | Types | Moding Speed | Holes | Holes Diameters |
Hollow Core Slabs Molding Machine | 120x600 | 1.2---1.4m/min | 5 | Φ76 |
Hollow Core Slabs Molding Machine | 50x500 | 1.2---1.4m/min | 8 | Φ25 |
Hollow Core Slabs Molding Machine | 50x500+80x500 | 1.2---1.4m/min | 6 | Φ25(Φ42) |
Hollow Core Slabs Molding Machine | 100x600 | 1.2---1.4m/min | 6 | Φ60 |
Hollow Core Slabs Molding Machine | 90x600 | 1.2---1.4m/min | 6 | Φ50 |
Hollow Core Slabs Molding Machine | 60x500+80x500 | 1.2---1.4m/min | 7 | Φ25(Φ42) |
Hollow Core Slabs Molding Machine | 120x900 | 1.2---1.4m/min | 8 | Φ76 |
Hollow Core Slabs Molding Machine | 120x1200 | 1.2---1.4m/min | 11 | Φ76 |

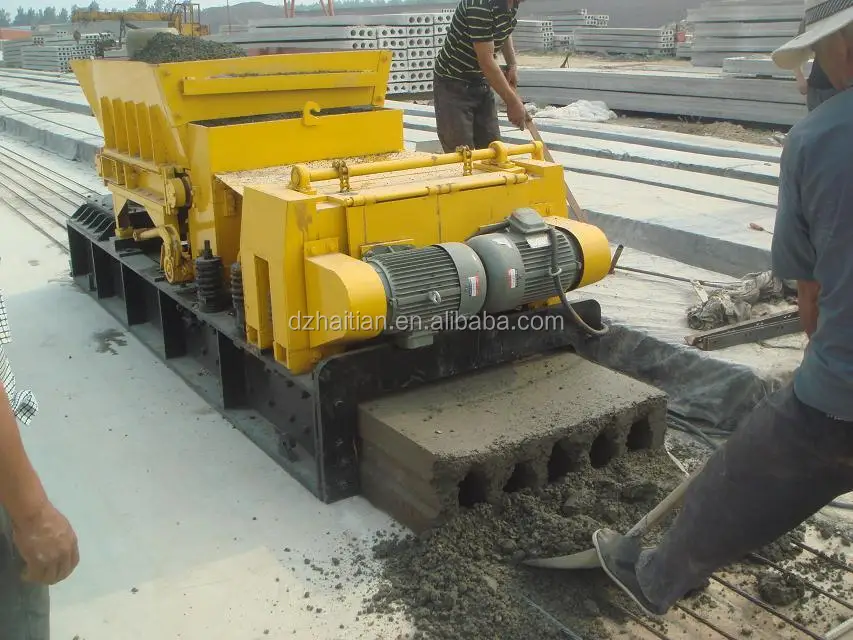

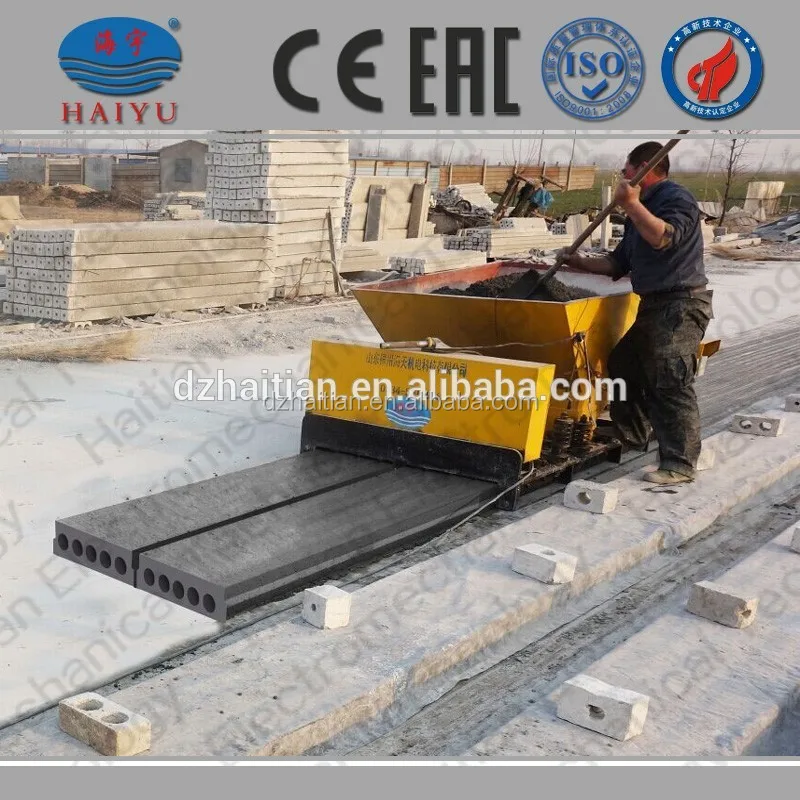

Machine details

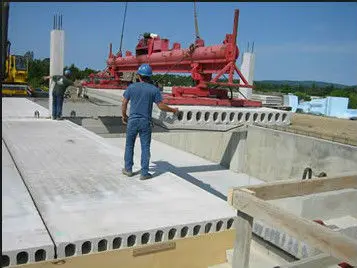

Working site
Application:

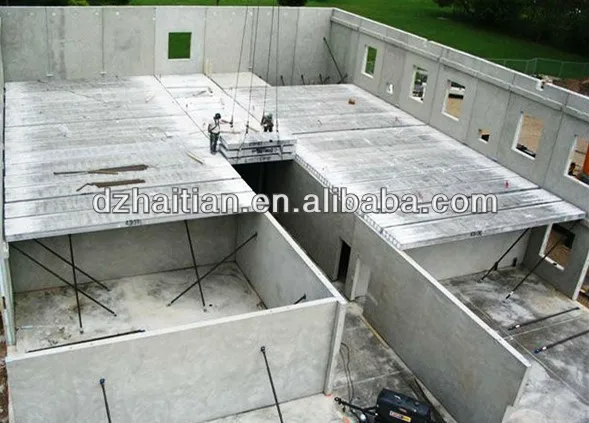

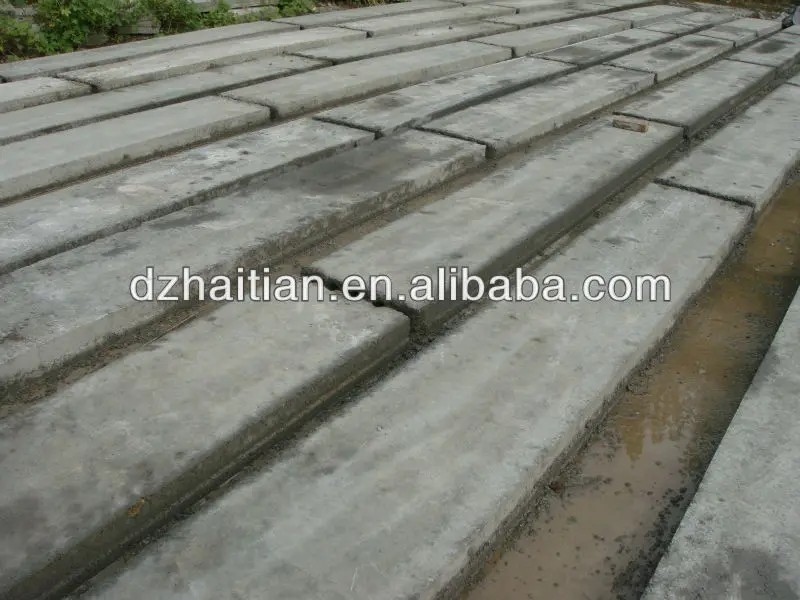

light weight concrete roofing, roof slab, floor slab.
Company Information
Dezhou Haitian was founded in 1997. We have obtained 20 China national patents, products approved ISO9001:2008 certificate, CE certificate and EU Customs Union CU-TR certificate. For the past several years Haitian has been rated "AAA grade quality and integrity of Chinese brands". We are also the Vice President Enterprises of “China National Precast Concrete and Cement Products Association”
Our main products:
1. Multi-functional Slip former production line
2. Precast concrete formwork production line (formwork for wall panel, staircase, column, beam, etc)
3. Pushing vibration type hollow core slab machine
4. Precast fence post machine
5. Precast concrete beam/lintel machine
6. Precast concrete t beam/H beam machine
7. Precast concrete boundary wall panel machine
8. Extruder wall panel machine
9.HLJ Vertical type Wall Panel Molding Machine
10. HFJ Composite insulation Wall Panel/ Insulation block production line
Welcome to visit our factory!
