Energy saving manganese iron powder ball press machine cast ore powder briquetting make machine/briquette making machine

Product Overview

Description

Energy saving manganese iron powder ball press machine cast ore powder briquetting make machine/briquette making machine

Using Area of Manganese Iron Powder Ball Press Machine

Energy saving manganese iron powder ball press machine cast ore powder briquetting make machine/briquette making machine  is widely used in coal industry and metallurgy industry. briquettes can be designed of oval shape, egg shape, pillow shape etc.



This machine is used for making coal fines, coke fines, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, cast iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder, ferrosilicon powder, and phospho gypsum powder into briquettes.



Main Technical Parameter

Model	Roll diameter (MM)	Powder (KW)	Capacity (T/H)	Briquettes shape and size
ZKBM290	290	5.5	1-3	Defined by users
ZKBM360	360	11/15	4-6
ZKBM430	430	18.5	6-8
ZKBM500	500	18.5/37/55	8-12
ZKBM500-3	500	37	5-8
ZKBM500-4	500	55	8-12
ZKBM650	650	37/45	10-15
ZKBM750	750	75/90/110	15-20
ZKBM850	850	90/110	20-25
ZKBM1000	1000	90/110/132	25-30



Advantages of our briquetting machine

• We will try to understand your needs, efforts to provide you with a to meet the requirements of all your products
• Inform detail shipping information for you in time.
• Easy to operater and simple to maintain.
• When installation, give detail instruction. Clear operation manual.
• Excellent after sales service. Reply your confusion in time



Working Principle of Manganese Iron Powder Ball Press Machine

1)Through reducer, charcoal ball machine simultaneously transmitted the power to two pressure rollers and made them rotated in opposite directions.
2)In two pressure rollers rotation, materials naturally enter into the ball molds on pressure roller and materials pressure vary from small to large with the rotation of the pressure roller.
3)When the material is rotated to two rollers line contact points, materials pressure has reached a peak.,
4)Under enormous pressure, the powder materials are suppressed into finished ball.

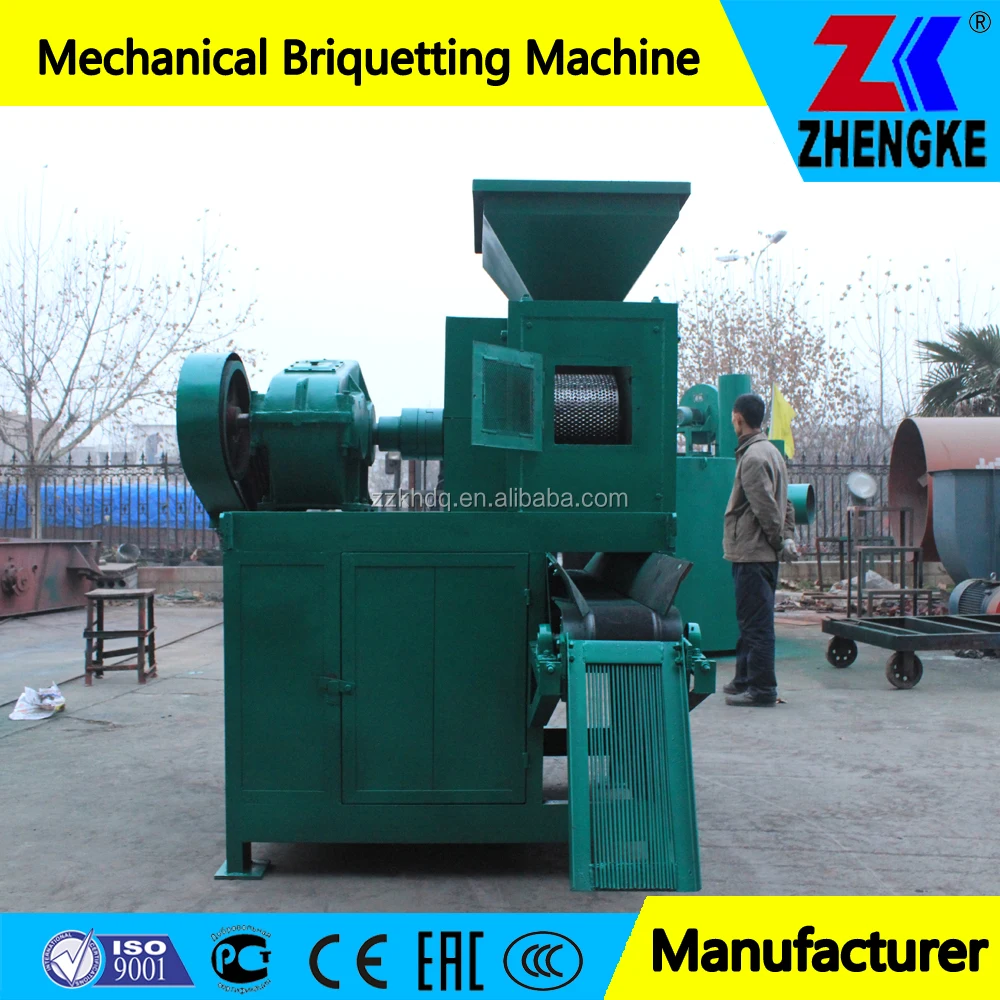

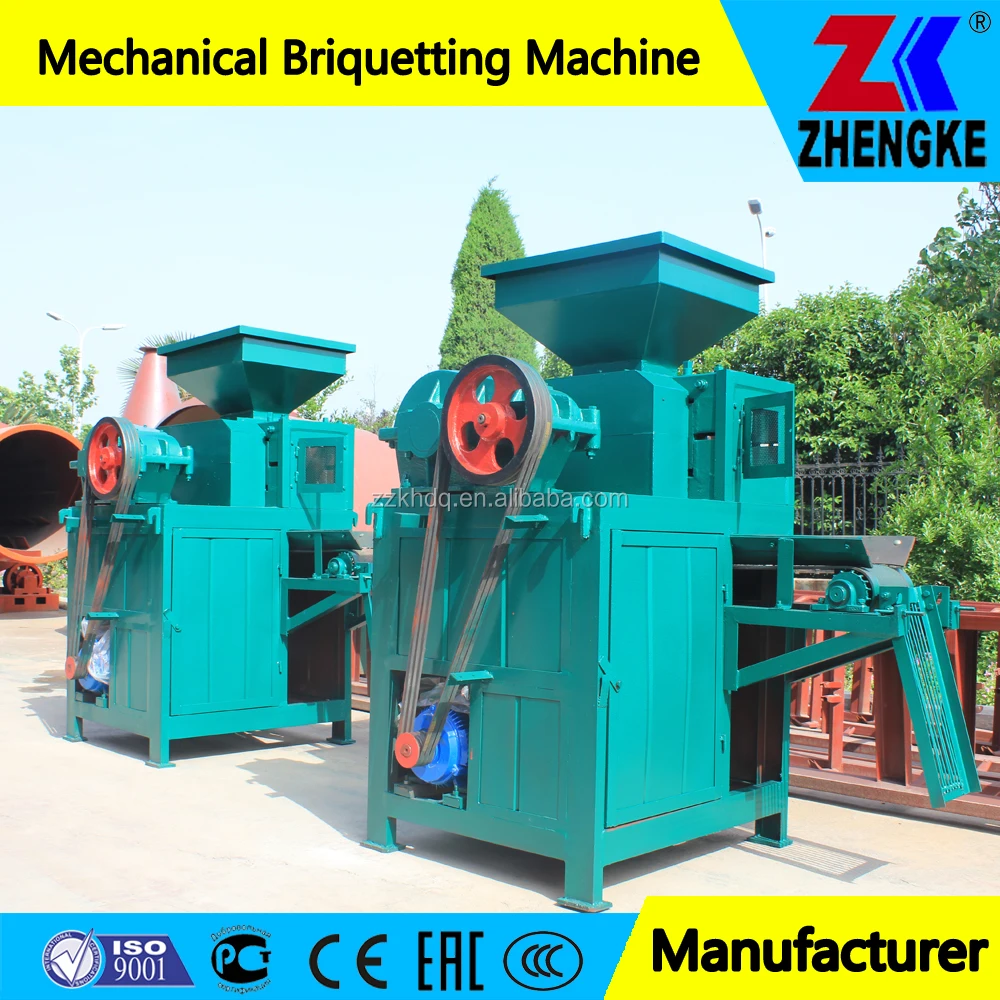

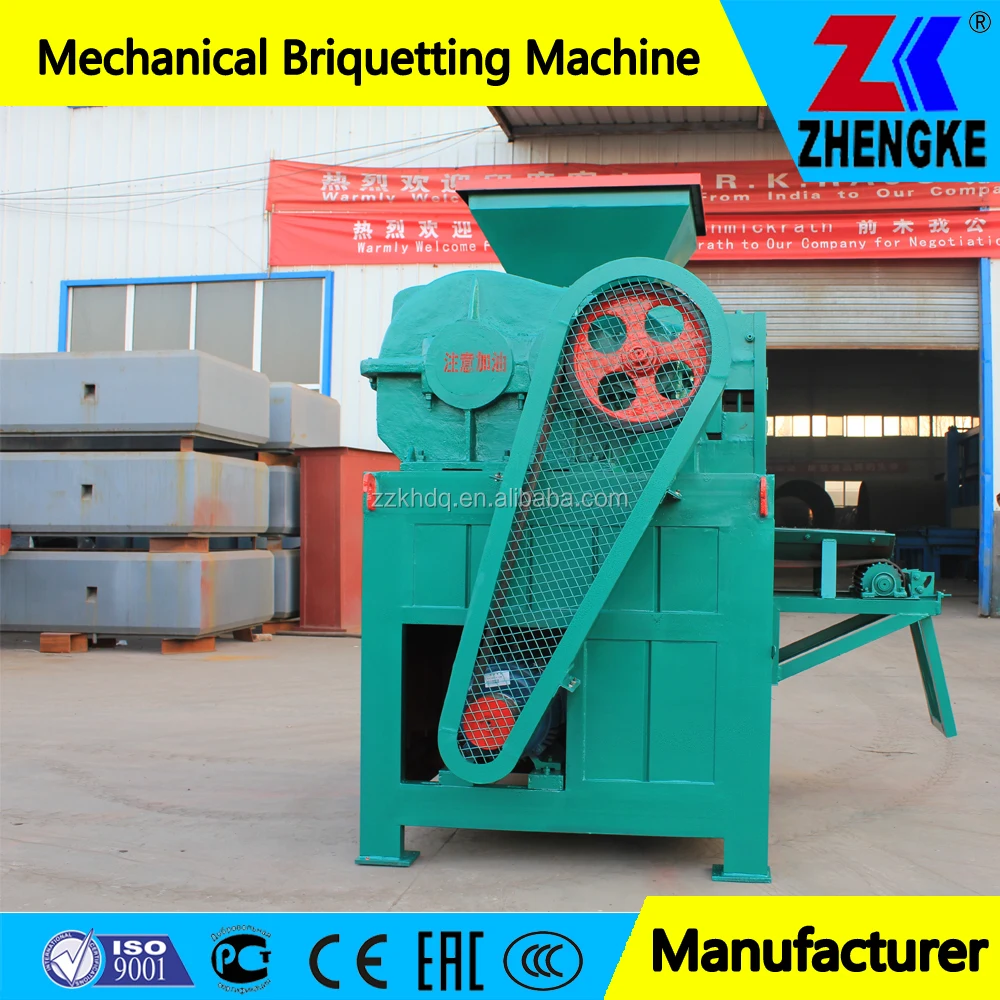

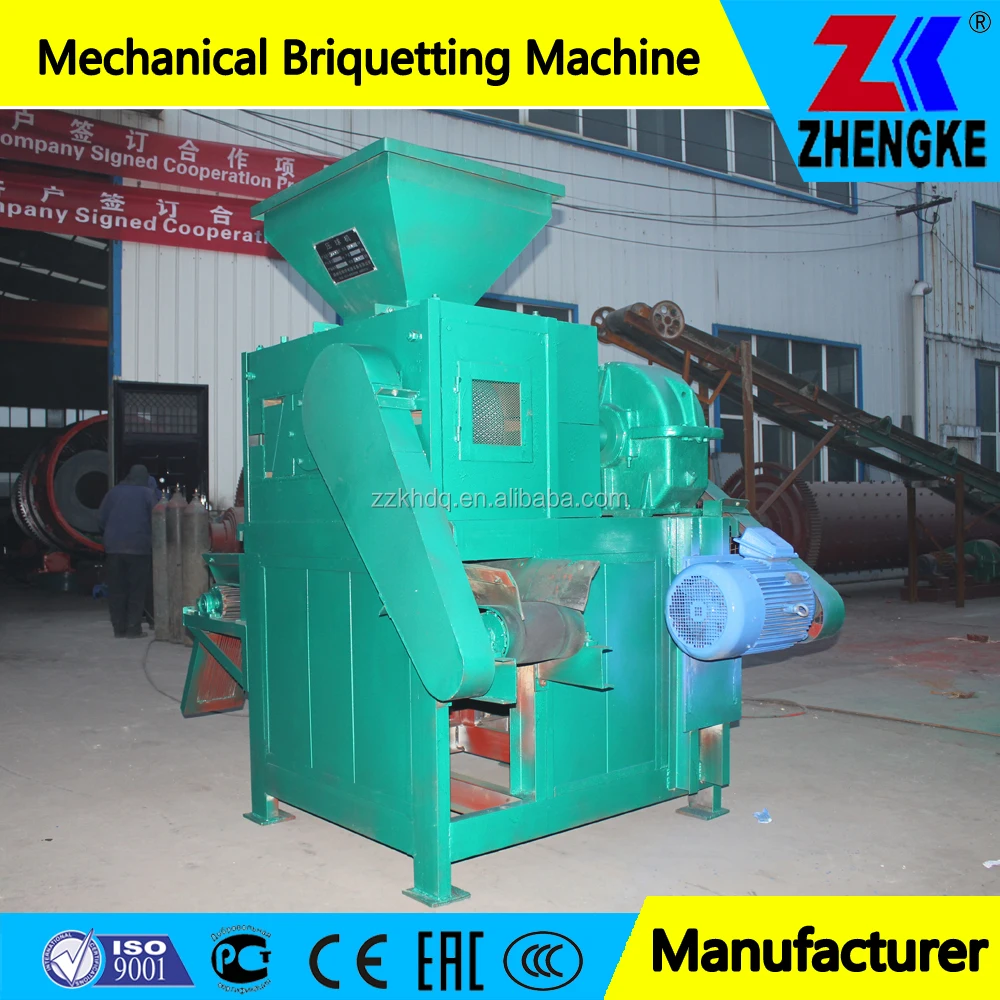

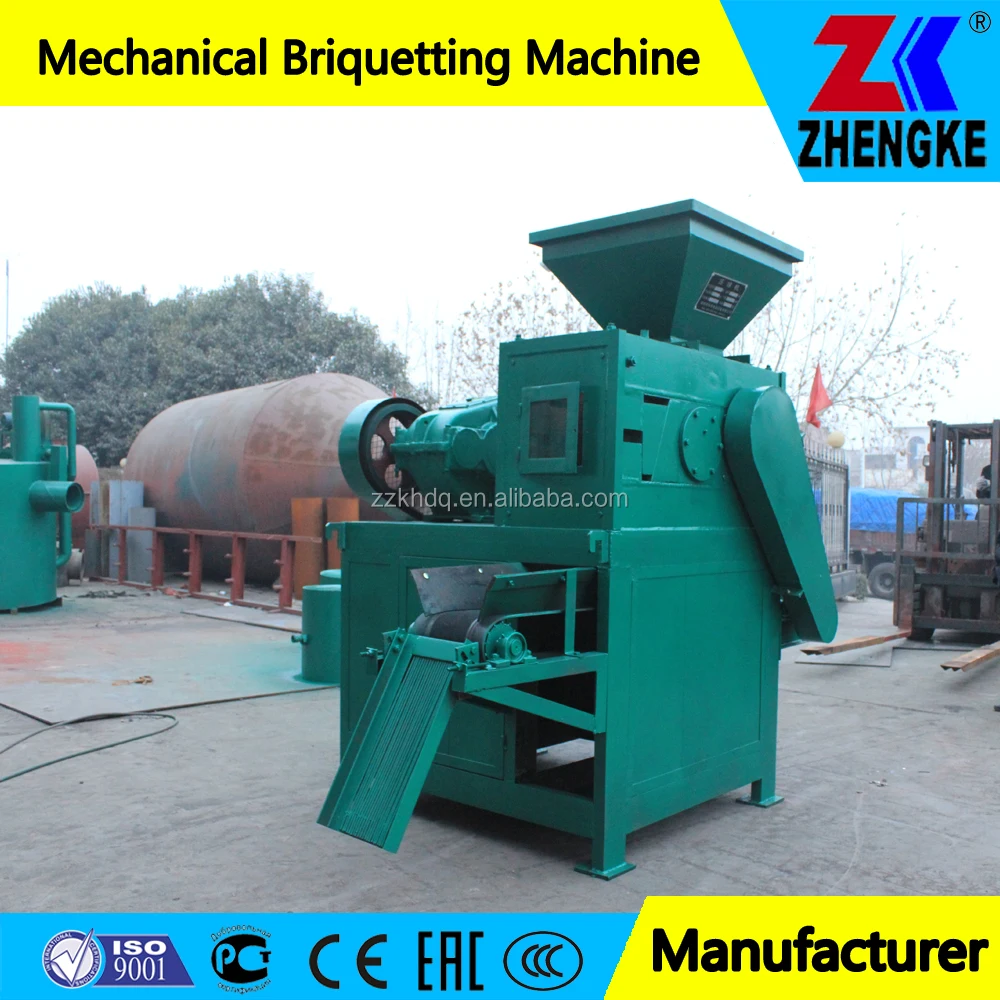

Main Photos About Charcoal Manganese Iron Powder Ball Press Machine







Company Introduction

Zhengzhou kehua industrial equipment co., ltd, which is a professional manufacture of complete set of briquetting equipment, series briquetting machine/briquetting press, briquetting drying machine, rotary dryer, vertical dryer, mesh belt dryer, chain plate dryer and other machines.



If you are interested in our product, please contact me at any. We also welcome to visti to our factory.

Zhengzhou kehua industrial equipment co., ltd

Address: Heluo Road, Gongyi, Zhengzhou City, Henan Province, China

Tel:86-371-69576958
