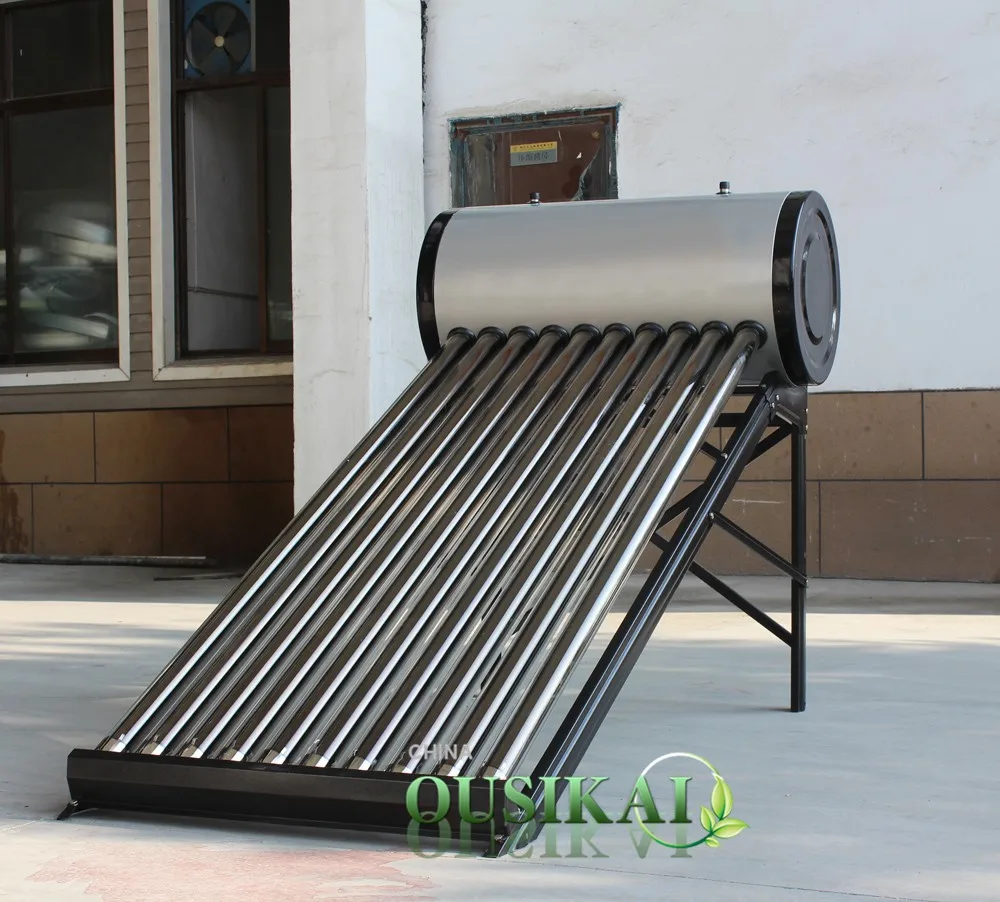

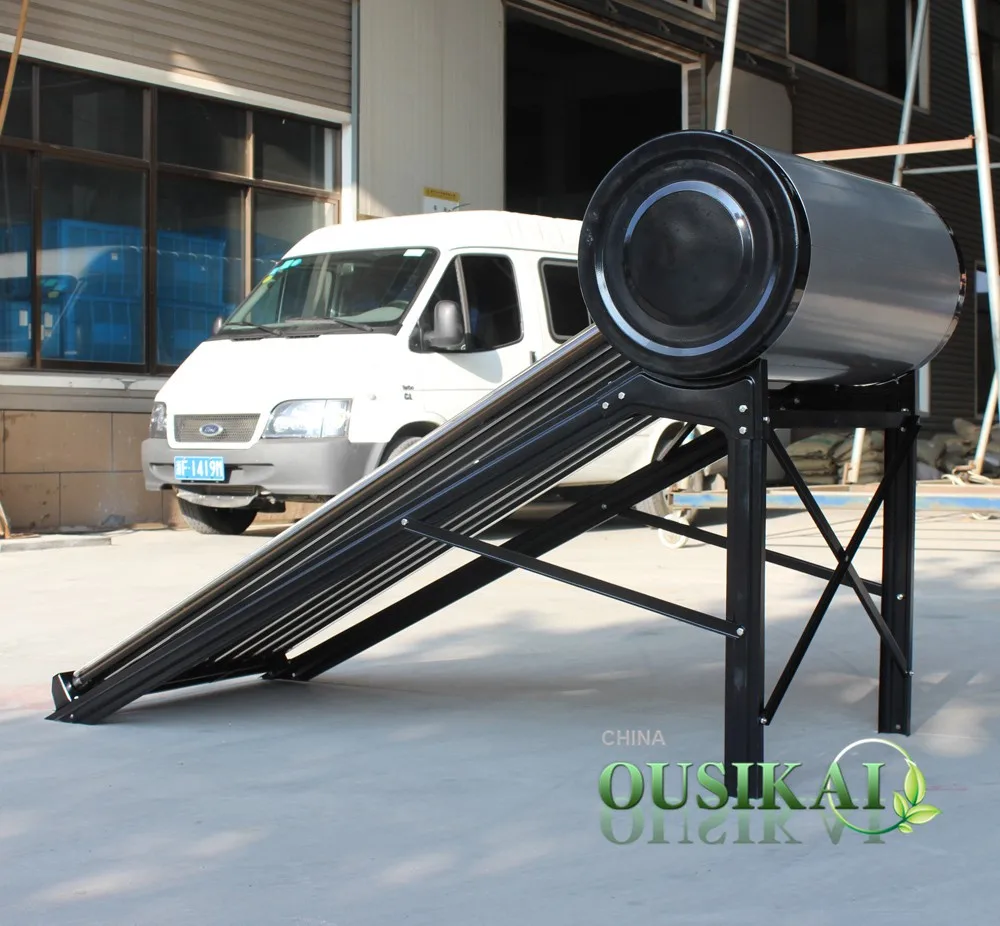

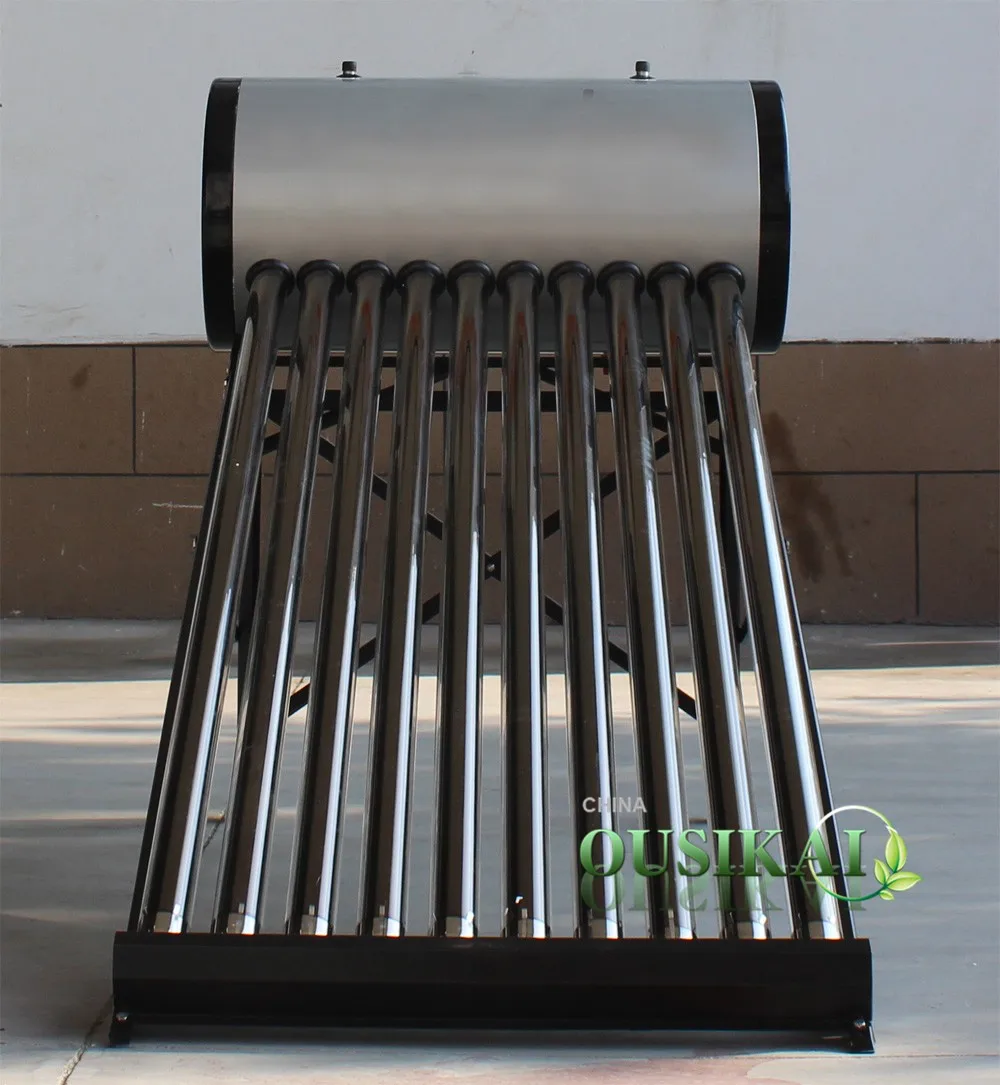

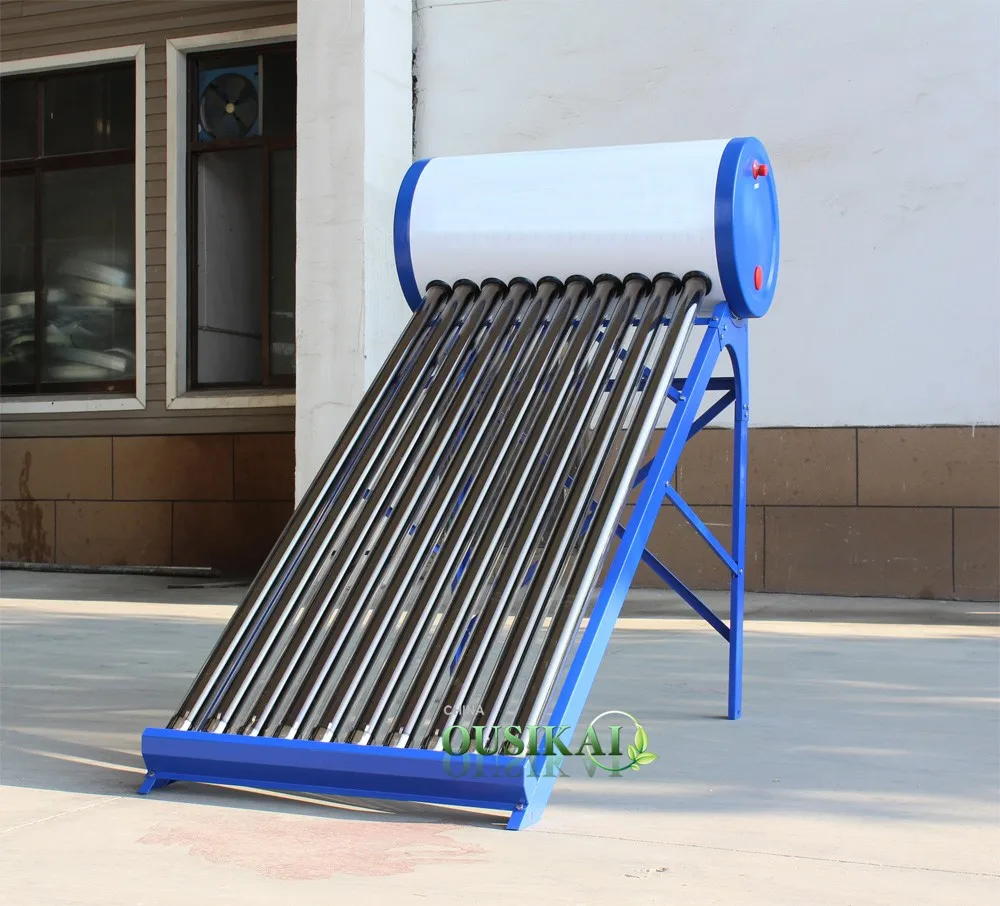

Solar Water Heater 100 liters

Share on:

Price in USD:Details


Product Overview


Product Description

Features and advantages.

1. High efficient and economical system.
2. Especially suitable for projects.
3. Designed for commercial solar water heating applications.
4. Reliable and efficient with twin-glass solar tubes.
5. Polyurethane insulation ensures a good heating performance and minimal heat loss.
6. Easy plug-in installation.
7. Can be connected in series to increase water heating capacity.

Mainly for family shower/bath

Popular market.

How to choose.
Choose the item according to the capacity, and choose the capacity according to the people quantity in your family, one adult shower need about 50 L water.

Working principle.
1. Non-pressure solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.

Detailed Images

OUSIKAI catalogue of vacuum tubes solar water heater.

Normally,30-50 liters is only for one person's taking a shower.

Tube Quantity
Loading quantity for 40HQ

Material specification:

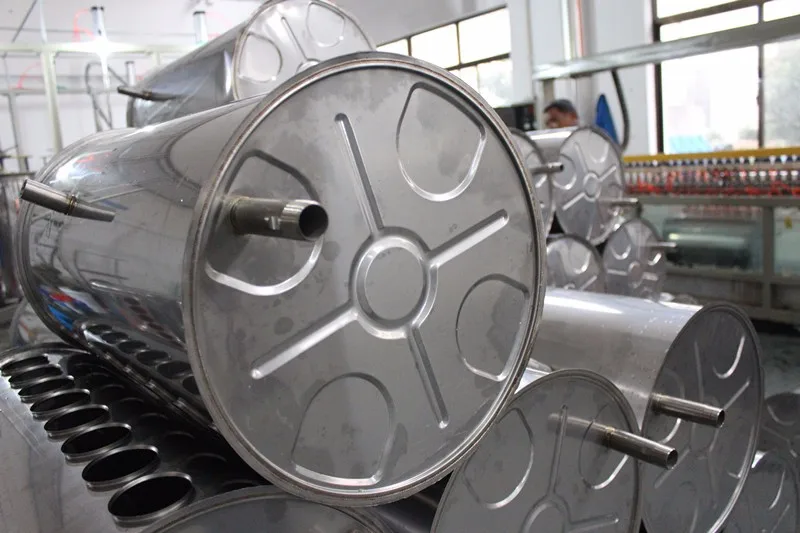

1. Inner tank
Material: Food grade SUS304-2B stainless steel
Diameter: Normally 360mm

2. Outer tank
Material: SUS201 stainless steel or painted steel
Diameter:Normally 460mm

3. Insulation layer
Material:High density polyurethane foam
Thickness :50-65mm
Heat preservation :72 hours

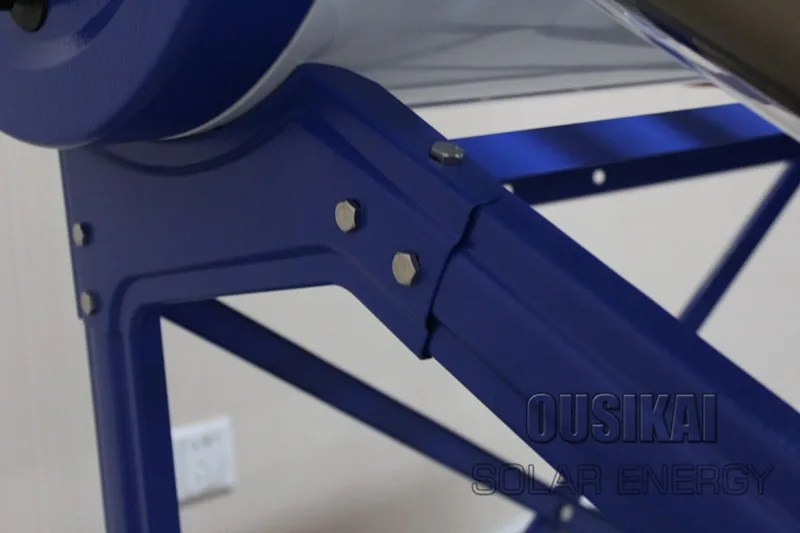

4. Frame
Material: SUS201 stainless steel or painted steel or aluminium alloy
Angle:0-45 degree

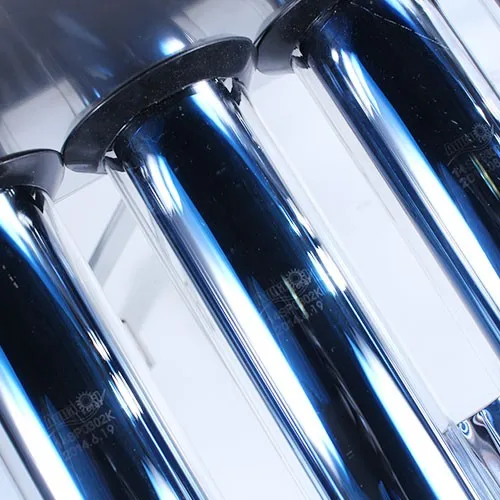

5. Vacuum tubes
Material:high borocilicate 3.3 glass tube
Thickness: 1.6mm

6. Optional accessories
Electric heater, magnesium bar, intelligent controller

7. Warranty
Wholesystem:10 years

Packing & Delivery

Tank packing box.

Standard packing with carton box

OEM order: print your logo on the water tank and carton boxes based on one container.

Tubes packing boxes.

Standard packing in carton box with foam

If it's LCL,vacuum tubes will be packed in plywood boxes.

Factory Show

OUSIKAI company.

Haining Ousikai Industrial And Trading Co.,Ltd. is a professonal manufacturer of solar water heater with big scale which specializes in research and development of solar enrgy application.

The main products of our company.
Non-pressurized solar water heater;
Heat pipe solar water heater;
Separate pressurized solar waer heater;
Heat pipe solar collector;
Non-pressurized solar collector;
Pool solar collector system;
Solar hot water system;
Supporting solar energy.
Welcome to OUSIKAI solar!
