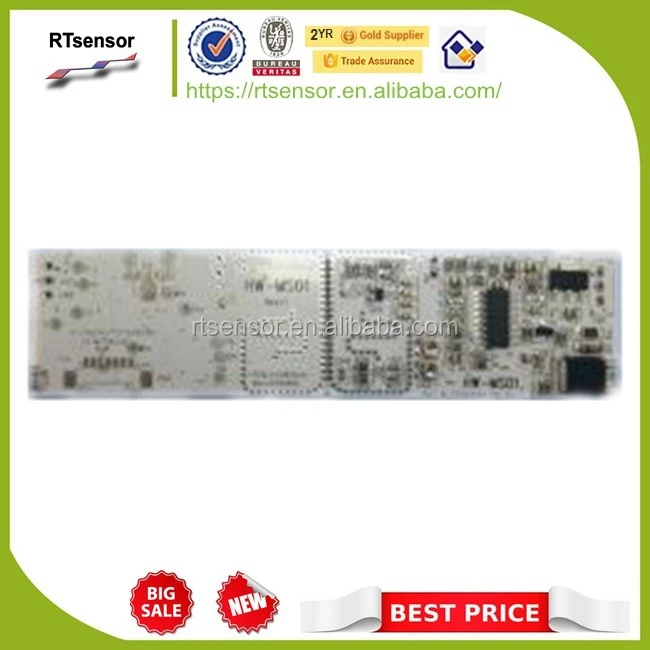

HW - MS01 is our company newly developed MS series in a single PCB microwave sensor module.The product is particularly suited to ultra-thin design of intelligent household appliances, security products, lighting products and other electronics. This unique circuit structure design, function expansion, the strength of the strong compatibility and high cost performance advantages, is the leading the market advantage of the single panel module. Built-in LDO functions: Set aside IC-7550/7533 of the application of bonding pad on the back of PCB, convenient transform DC3.7V ~ 24V and DC24V ~ 60V, which is easy to meet customers different requirements to order;
Two kinds of output modes: 1, the default output mode: on/cut, namely low level effectively. 2, customize output way: high level effective model (Vout≈Vcc).
Single PCB module,simplifies the making process, economize the make time and cost, and reduce the product of bad hidden trouble, improve the quality. so, the products have demonstrated the superior market competitiveness. |
| External distance and time adjusted function: easy to external application of secondary development, MCU is used to analyse the distance&time adjusted; |
| 1. Note: 1.Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an electric shock 2, Avoid installed in the hot sun rain, to prevent damage or affect the lifetime. 3: Better install far away from the place of the magnetic field or the conductor to avoid wrong actions. 2.Technical parameters: | NO. | Items of parameter | Specifications of parameter | remarks | | 01 | P/S.input range | 24V ~ 60VDC;3.7V~24VDC(by custom) | Custom-able | | 02 | operating voltage | Vcc=+5.0V; Vcc=+3.3V(by custom) | stabili-volt inside, Custom-able:Vcc=+5.0V or +3.3V | | 03 | operating current | Static Iin≤7mA;Srends Iin≤8mA | basic standard | | 04 | Output mode | on/cut:Load≤5A/60V
Vout:H≈Vcc/L=0 | Output mode:Custom-able | | 03 | Sensor distance | Default:10m(indoor test) | adjustable | | 04 | Delay-time for output | Default:2sec. | adjustable | | 05 | frequency range | FT=2.5GHz-5.8GHz | design by standards | | 06 | Outline size | single-PCB:51X26mm | PCB surface white oil |
Other Model Microwave motion sensor doppler radar module:
Kindly noted distance and time can be customized.
Product Photos S01
S03
Wiring diagram
|
| Oour customized packing is available . | Packing | Bulk; 100pcs/small package, 1000pcs/ big package | | Shipping | By express ; <100KG By Air : >100KG By Sea : >300KG |
|
