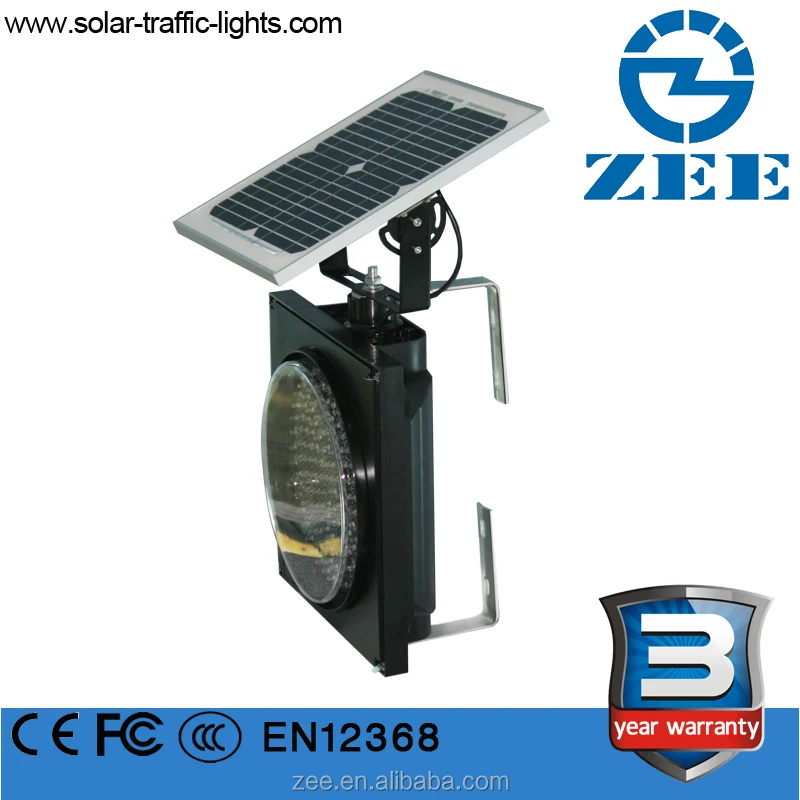

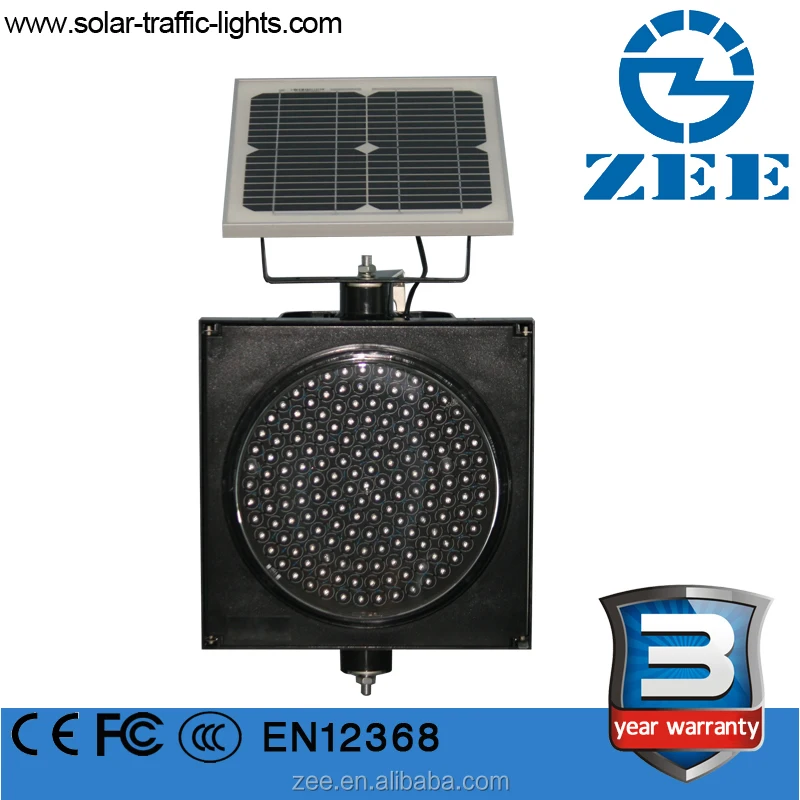

Flashing 300mm solar traffic light with custom traffic signs

1. Powered by up to 17% efficiency mono-crystalline silicon solar panel
2. Built-in deep cycle lead-acid battery
3. 168pcs high intensity Φ5mm yellow LEDs luminous surface visible from long distance 300 to 500mm
4. UV-proof polycarbonate enclosure to prevent fragileness after long-term exposure under sunshine
5. 5 days lasting days even in rainy and cloudy days
6. Fully equipped with anti-corrosion accessories
7. Built-in intelligent charging and discharging controlled unit
8. IP65 dust and water protection

Feature Presentation

Technical Parameters

Component	Diameter	LED Qty.	Intensity	Wavelength	Power	Enclosure
Traffic  singal	300mm	168pcs	≥400cd	590±5nm	<10W	UV-proof polycarbonate

Component	Power	Vmp	Efficiency	Service Life	Protection	Type
Solar panel	10W	17V	>17%	15yrs	IP67	Mono-crystalline silicon

Component	Capacity	Voltage	Lasting days	Service Life	Efficiency	Type
Battery	9Ah	12Vdc	5days	2yrs	70%	Deep cycle lead-acid battery

Dimension

Custom Components

Diameter	LED Colors	LED Layouts	Solar panel	Battery	Voltage	Flashing Frequency
200mm	Red, green, blue	Arrow or others	5W to 20W	7Ah	100-240Vac	Custom
