Taidacent subwoofer NE5532 front panel front panel low pass filter board non amplifier single power NE5532 pre finished board
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60588743887):
Product Overview
Description

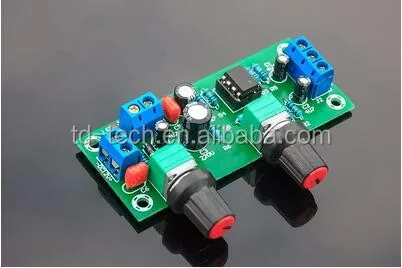

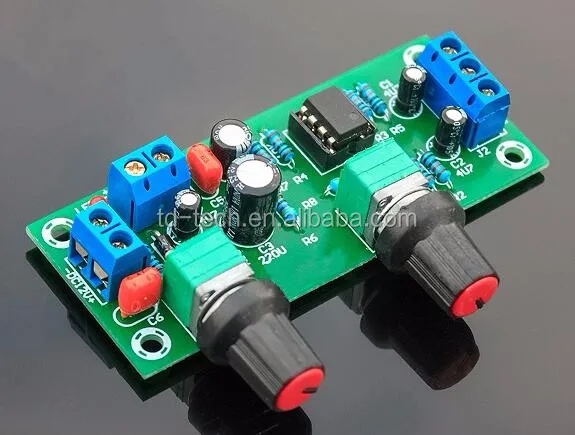

Taidacent subwoofer NE5532 front panel front panel low pass filter board non-amplifier single power NE5532 pre-finished board
1. All components are selected as the new first-class products. The frequency adjustment capacitors are made of the original Philips CBB capacitors. The adjustment potentiometers are made of fully sealed type. The input and output terminals are made of pure copper terminals. The wiring is very convenient.
2. The NE5532 is selected for the op amp. The IC seat can be soldered at any time to change the op amp, and the effect brought by different op amps can be improved.
3, designed with LED indicators to monitor the power status in real time.
4. The PCB design of the board is simple and beautiful, and the wiring is reasonable, which makes the board have a very high signal-to-noise ratio and strong anti-interference ability. There is almost no noise near the horn when there is no signal input
2. The NE5532 is selected for the op amp. The IC seat can be soldered at any time to change the op amp, and the effect brought by different op amps can be improved.
3, designed with LED indicators to monitor the power status in real time.
4. The PCB design of the board is simple and beautiful, and the wiring is reasonable, which makes the board have a very high signal-to-noise ratio and strong anti-interference ability. There is almost no noise near the horn when there is no signal input
Parameter
Power supply voltage: DC10-24V single power supply DC
Frequency range: 22Hz-300Hz
Audio input: mono or dual channel
Audio output: mono
PCB specification: 78x32mm, thickness: 1.6mm
PCB material: super hardness FR-4 fiberglass board
Finished board net weight: 30g
Plate fixing hole center spacing: 70x24mm, hole diameter: 3.2mm
Potentiometer shaft center distance: 32.5mm
Equivalent Input Noise Voltage:
5 nV/√Hz Typ at 1 kHz
Unity-Gain Bandwidth: 10 MHz Typ
Common-Mode Rejection Ratio: 100 dB Typ
High DC Voltage Gain: 100 V/mV Typ
Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 ohn
High Slew Rate: 9 V/μs Typ
Frequency range: 22Hz-300Hz
Audio input: mono or dual channel
Audio output: mono
PCB specification: 78x32mm, thickness: 1.6mm
PCB material: super hardness FR-4 fiberglass board
Finished board net weight: 30g
Plate fixing hole center spacing: 70x24mm, hole diameter: 3.2mm
Potentiometer shaft center distance: 32.5mm
Equivalent Input Noise Voltage:
5 nV/√Hz Typ at 1 kHz
Unity-Gain Bandwidth: 10 MHz Typ
Common-Mode Rejection Ratio: 100 dB Typ
High DC Voltage Gain: 100 V/mV Typ
Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 ohn
High Slew Rate: 9 V/μs Typ
Product Description
Specification
item | value |
Brand Name | Taidacent |
Model Number | NE5532 |
Type | Mini Amplifier |
Channels | 2 (2.0) |
Place of Origin | Other Country |
1.5W | 2 |
interface | 3P terminal |
Packing & Delivery
box package
