Good quality high precision display 115v 400hz ac power supply
Good quality high precision display 115v 400hz ac power supply
Good quality high precision display 115v 400hz ac power supply
Good quality high precision display 115v 400hz ac power supply
Good quality high precision display 115v 400hz ac power supply

Good quality high precision display 115v 400hz ac power supply

Share on (60588819345):


Price:$2,500.00

Quantity:


Product Overview

Description



Overview

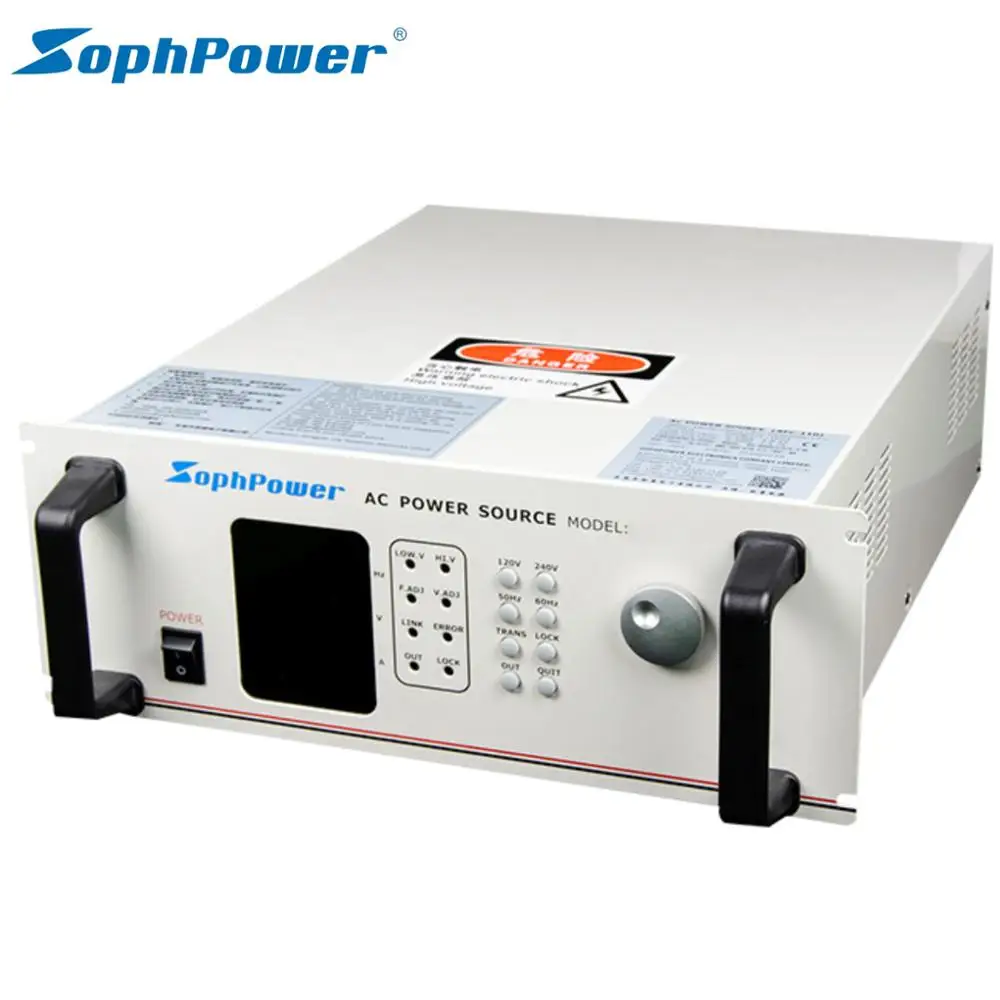

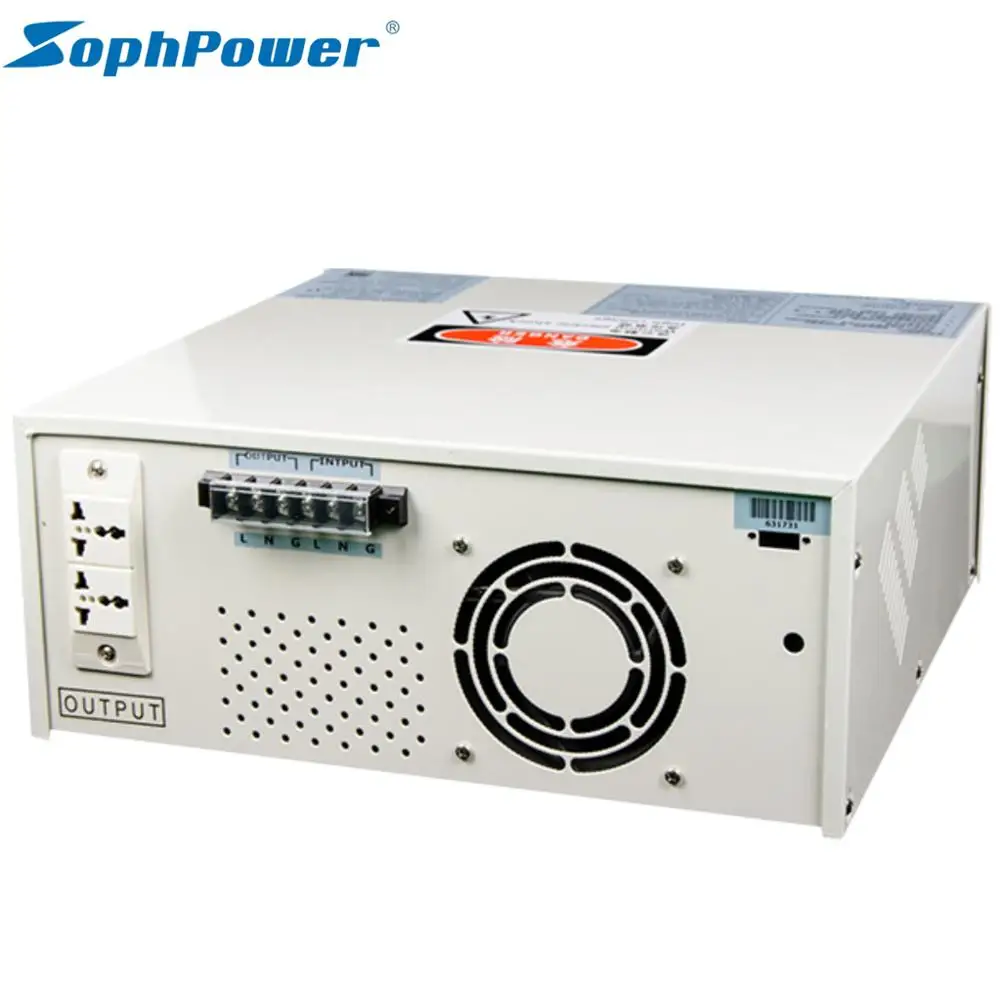

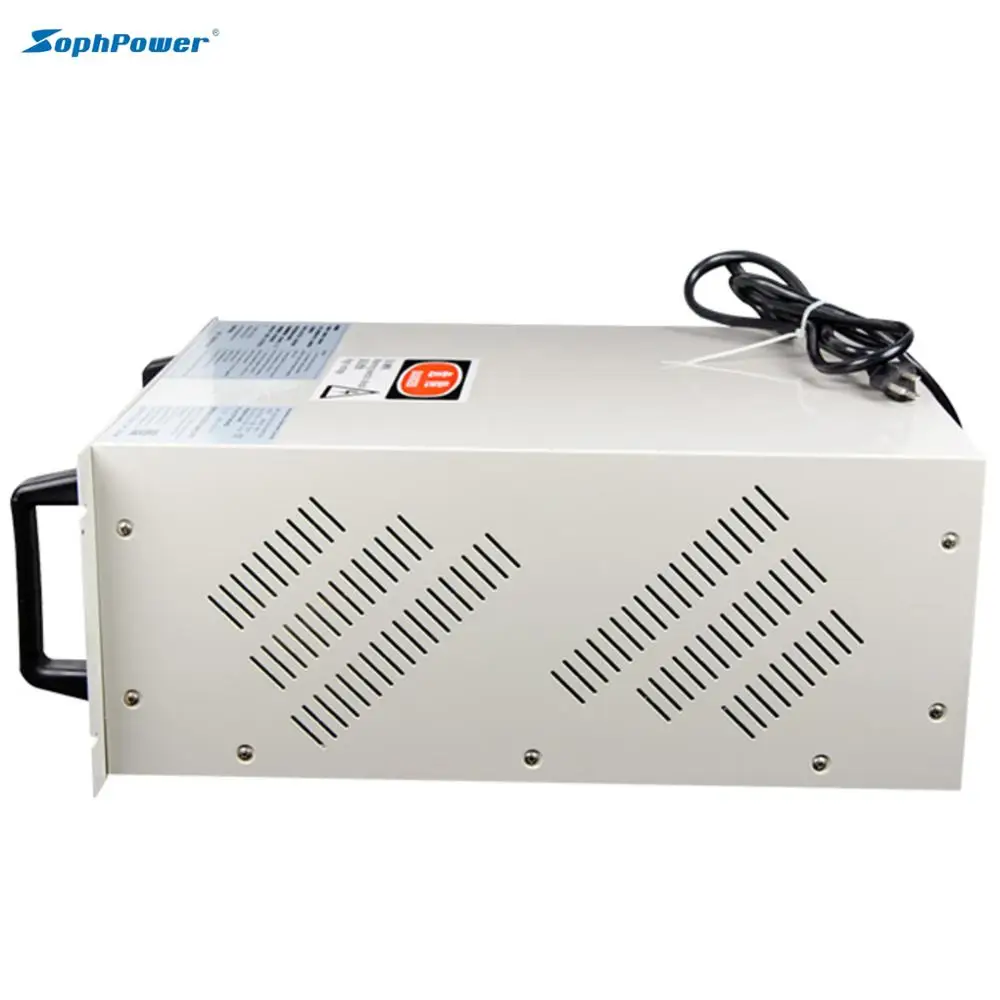

The AFC Series single phase AC power source are compact and cost effective units that offer excellent performance and ease of use. Using model IGBT/SPWM switch mode technology for efficient operation, these units come in power levels from 500VA to 1000kVA.
The AFC Series are ideally suited for burn-in and test of large industrial equipment. The frequency can also be adjusted to 400 Hertz for applications such as the testing of military/avionics equipment or for the operation of 400 Hz electronics that are onboard an aircraft or a military vessel. The adjustable frequency band of 45 to 400 Hz in conjunction with the dual voltage ranges of 0-150 volts or 0-300 volts provides full capabilities for testing and operating electronics.



Key Features




Applications




Specs


Model
AFC-120
AFC-130
AFC-150
INPUT SPECIFICATIONS
Phases
1Ø2W + Ground
Voltage
110V/220V±10%
Frequency
50/60Hz±5%
OUTPUT SPECIFICATIONS
Rated Power
2KVA
3KVA
5KVA
Max Current
150V Range
16.8A
25A
42A
300V Range
8.4A
12.5A
21A
Phases
Voltage
Low Range
0-150V
High Range
0-300V
Resolution
0.1V
Frequency
Range
50，60，45-500Hz(Optional)
Resolution
0.1 Hz
Harmonic Distortion
≤ 1% ( Full Load 2% )
Crest Factor
≥ 3 : 1
Load Regulation
≤ 1%
Protection
Over Current, Short Circuit, Over Temperature，Over Load ,Phase Deficient, Low-voltage Protection, Alarms
Efficiency
≥ 85% ( at full load )
ENVIRONMENTAL
Operating Temperature
0° - 40° C / 32° - 104° F
Relative Humidity
10-90%,non-condensing
DISPLAYS AND CONTROLS
3 Digit LED Meters
Voltage, Current, Frequency,Power or Power factor(Optional)
Interface
RS-485 or RS-232(Optional)
MECHANICAL SPECIFICATIONS
Dimensions(W*H*D)(mm)
510*195*431
Weights(Kg)
30
35
45


Photos
