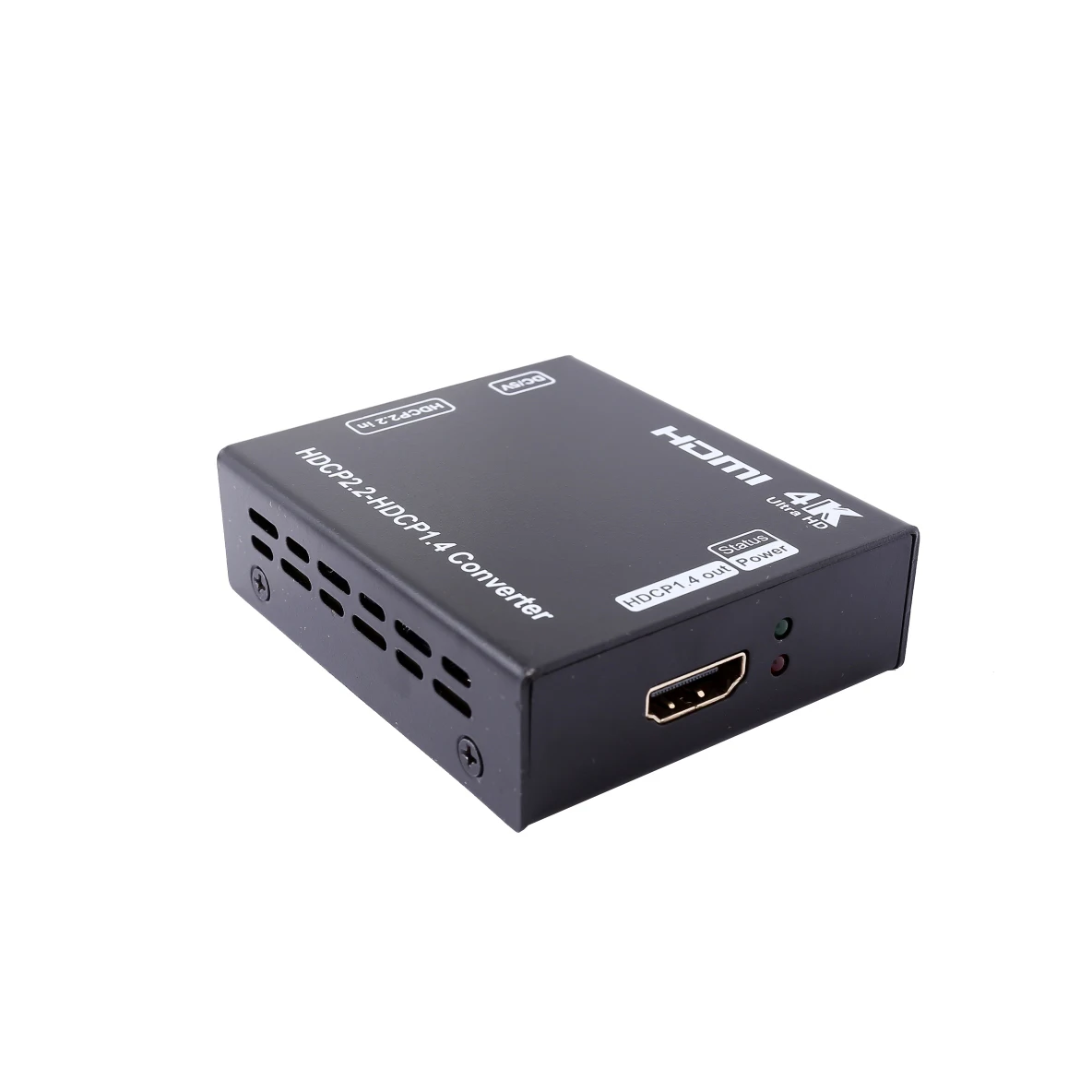

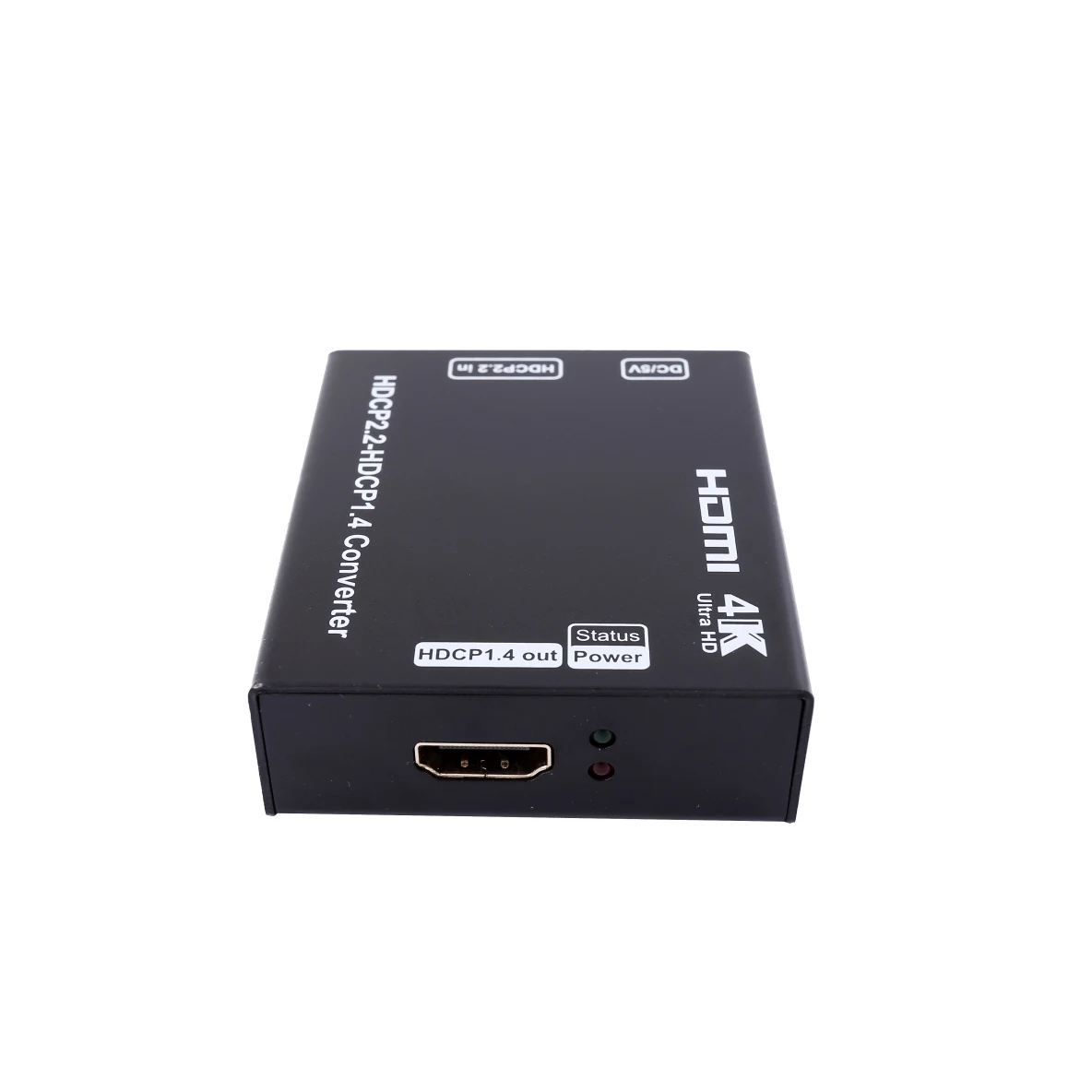

Foxun SX HDCP01 Ultra HD 4k@60hz YUV420 HDCP 2.2 to 1.4 hdcp hdmi converter
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (60589054719):
Product Overview
Description
HDCP2.2 to HDCP1.4 Converter
Features
HDMI IN, HDMI OUT, compliant HDMI 1.4B.
Converter HDCP 2.2 to HDCP1.4.
Support 4Kx2K@60HZ, YUV 4:2:0.
Support audio format Dolby, DTS, LPCM.
Support 3D, CEC.
Support 5V 1A.
Converter HDCP 2.2 to HDCP1.4.
Support 4Kx2K@60HZ, YUV 4:2:0.
Support audio format Dolby, DTS, LPCM.
Support 3D, CEC.
Support 5V 1A.
Operating Temperature Range | -5 to +35℃(+23 to +95℉) | |||||
Operating Humidity Range | 5 to 90%RH (No Condensation) | |||||
HDMI input | HDCP2.2 | |||||
HDMI output | HDCP1.4 | |||||
Video Format Supported | DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K 3D video support | |||||
Maximum video Format | 4Kx2K@60Hz, YUV 4:2:0 | |||||
HDMI input | 1xHDMI (Standard Type A connector) | |||||
HDMI output | 1xHDMI (Standard Type A connector) | |||||
Support Video Color Format | xv-YCC/deep color 36bit | |||||
Support Audio Format | DTS-HD Master Audio, Dolby true-HD. LPCM | |||||
Power consumption | 1.5 watts(Maximum) | |||||
Dimension (L×W×H) | 70.2*60.2*21.1mm | |||||
Net Weight | 120g(pcs) | |||||

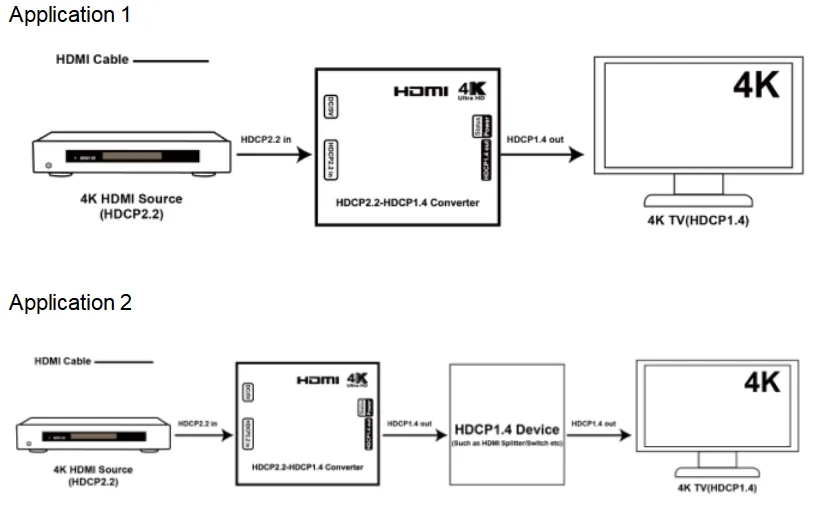

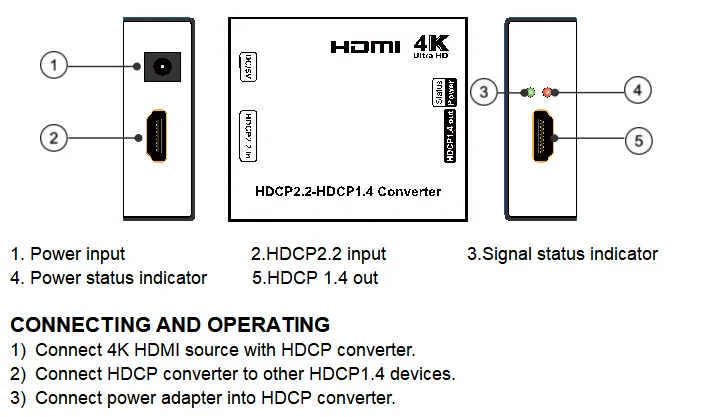

Wiring Diagram
Certifications
Packing & Delivery
PACKING CONTENTS
* Main Unit: HDCPConverter
* DC 5V 1Ax1PCS
* OperatingInstructions
* Main Unit: HDCPConverter
* DC 5V 1Ax1PCS
* OperatingInstructions
