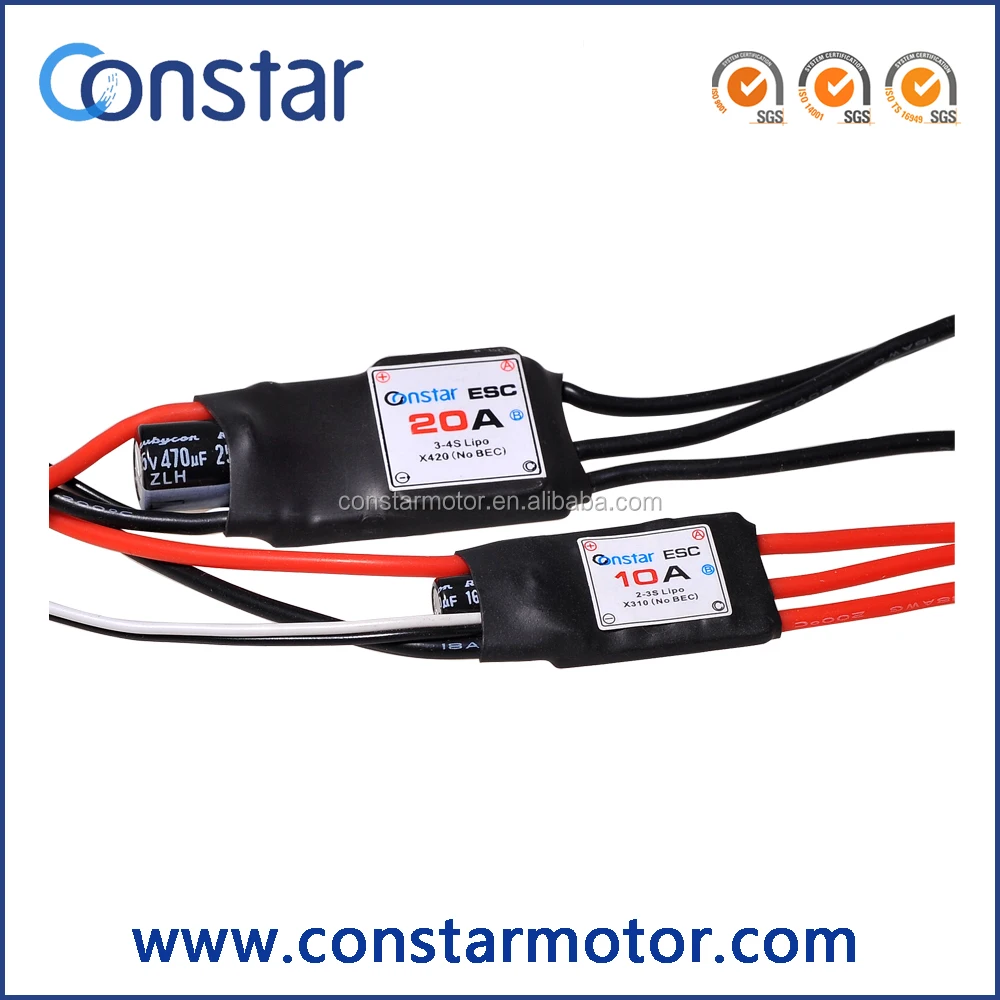

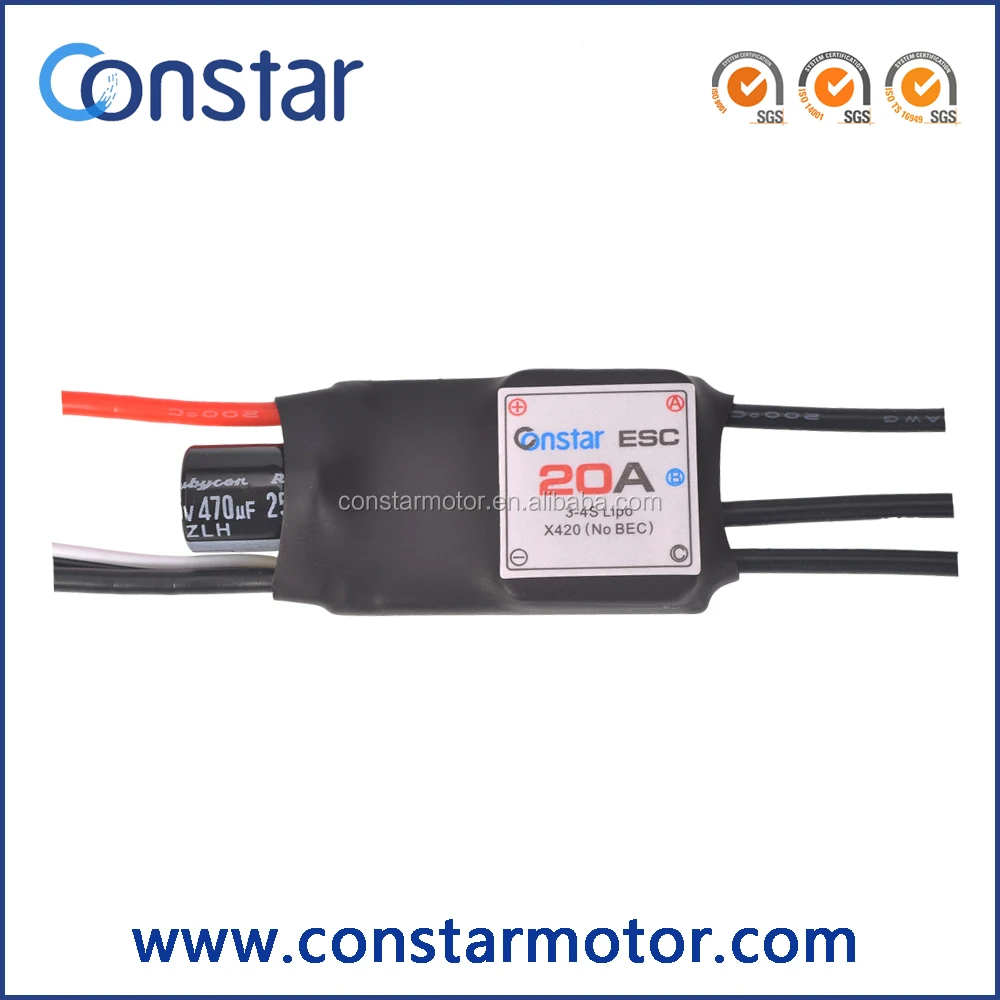

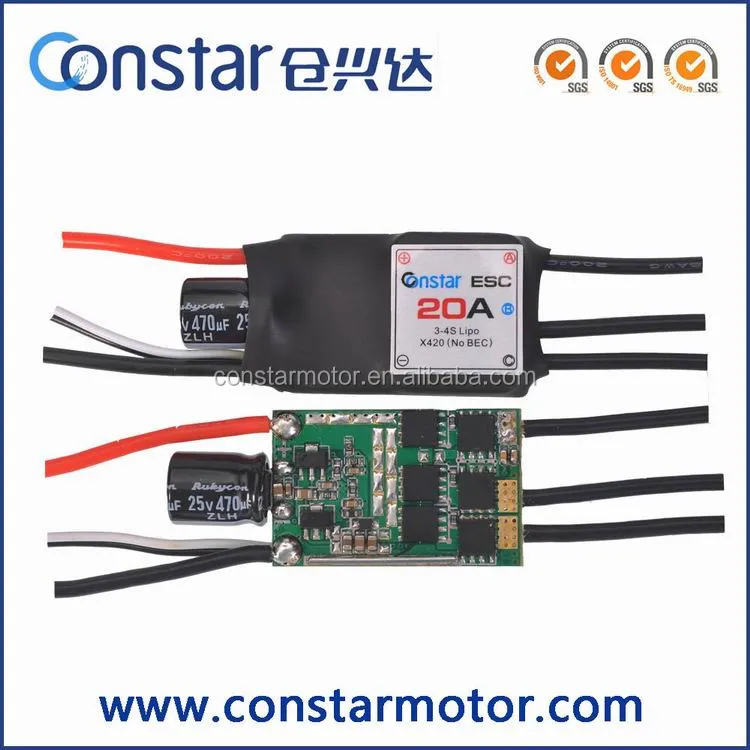

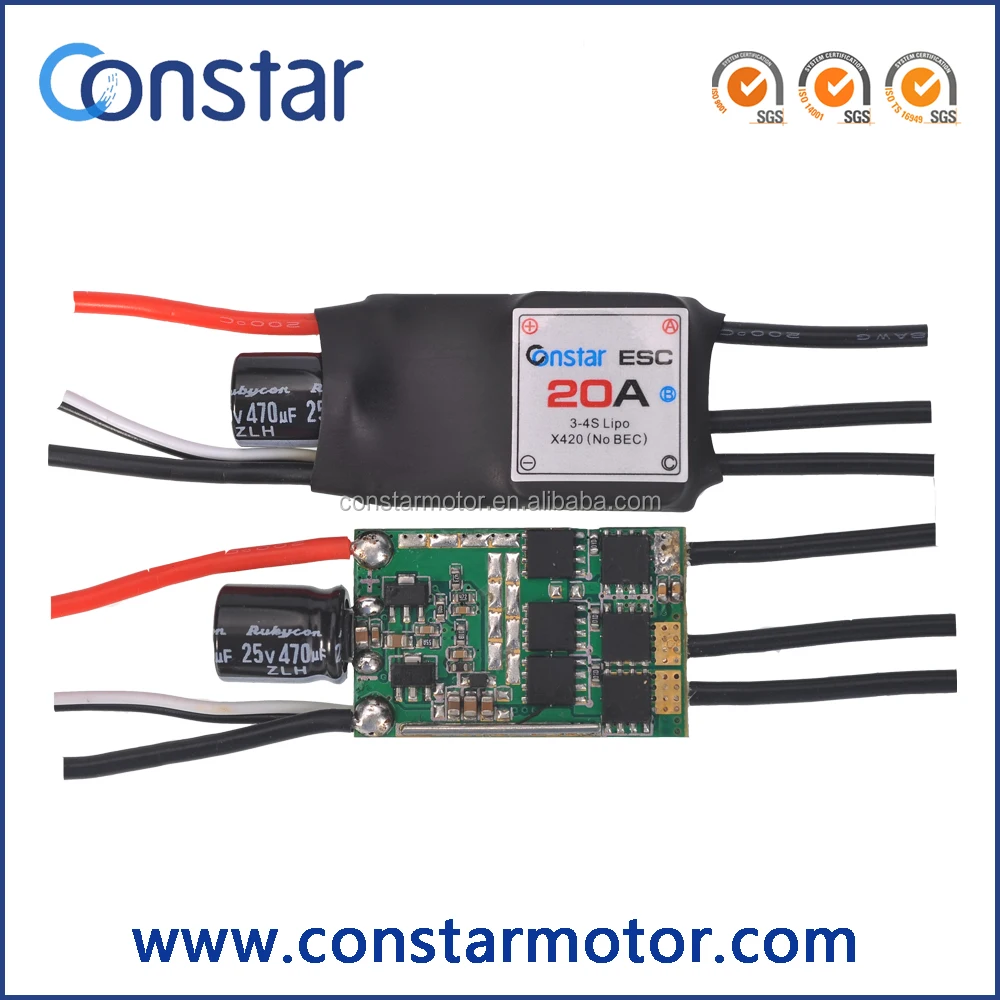

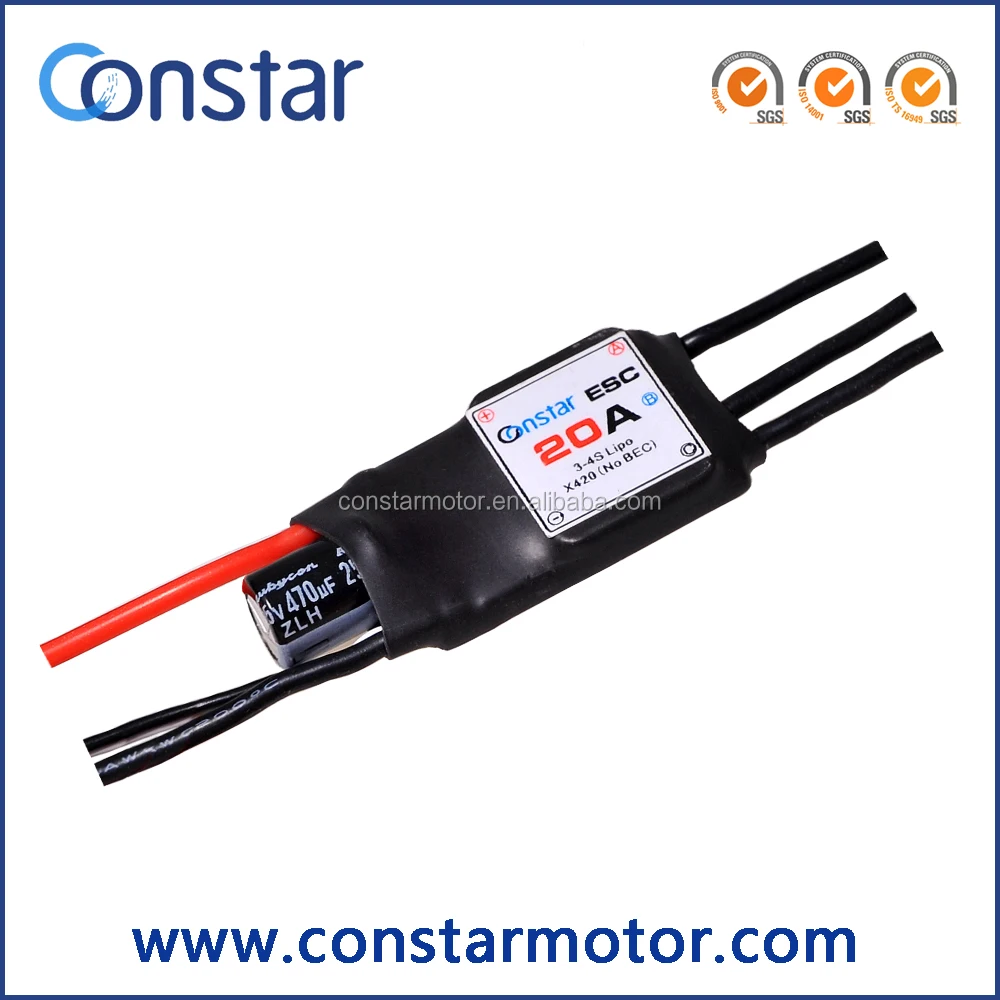

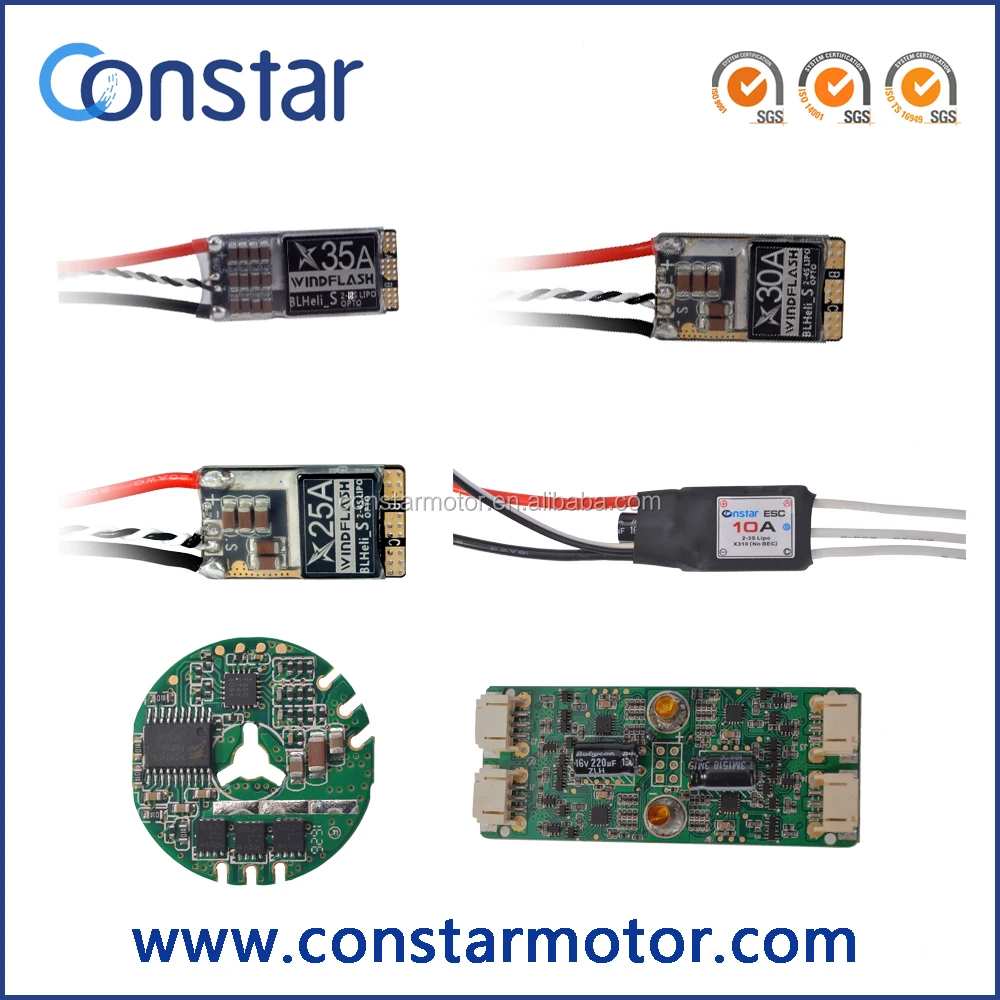

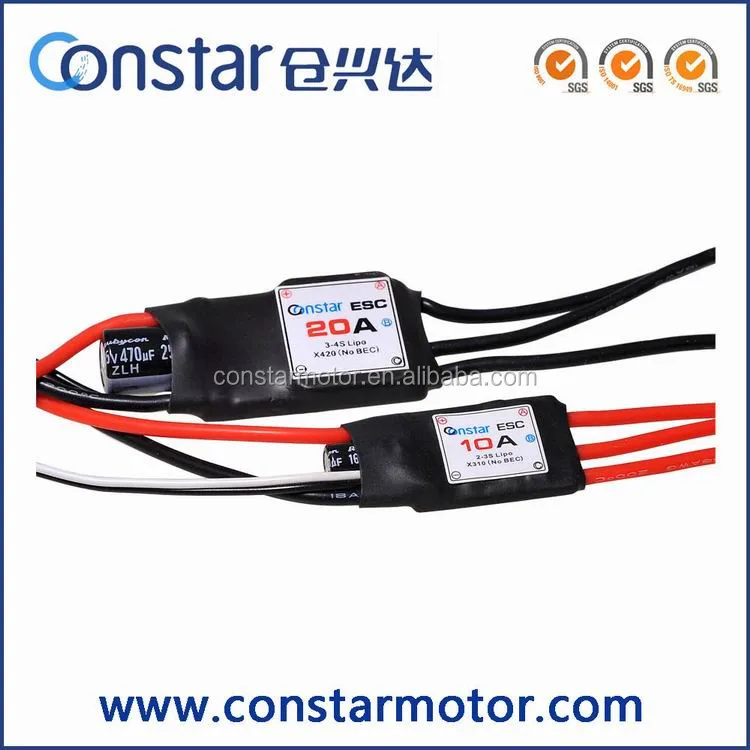

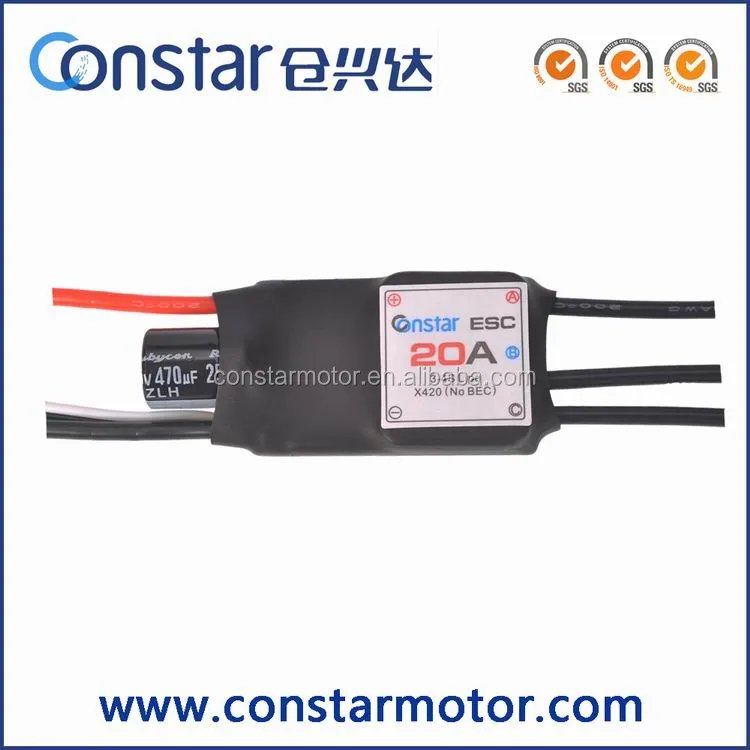

20A 25A 30A 35A brushless eletronic speed controller ESC

Product Overview

Description

    20A 25A 30A 35A eletronic speed controller for Multi-Rotor

Constar electronic speed controller has exquisitely designed software and hardware, and uses high-quality original materials and parts. It is a smart product that is easy to operate. It has high efficiency, low temperature rising, and low interference. It has been specially optimized according to our motors, to ensure greater compatibility. It’s widely applied in UAVs, blowers, pumps and so on.



Multi-Rotor



			X310	X420	X310-C01	X415-C06	1X310
1	Contant Current	A	10	20	7	15	10*4
2	Peak Current(10s)	A	20	30	12	25	15*4
3	LiPo		2-3S	2-4S	2-3S	2-4S	2-3S
4	BEC		No	No	No	No	No
5	Weight	g	<8.2	<18.2	<2	<2	<11.5
6	PCB Size(mm)	mm	16.5*28	22*32	24	14.5*21.5	29*70





eries	Constant Current (A)	Peak Current(10s) (A)	Lipo	BEC	Weight (g)	PCB Size (mm)
BL_S 20A	20	30	2-4S	NO	<5.1	14.6*26
BL_S 25A	25	35	2-4S	NO	<5.8	14.6*26
BL_S 30A	30	40	2-4S	NO	<5.8	14.6*26
BL_S 35A	35	45	2-6S	NO	<9.5	16*36.5
X310	10	20	2-3S	NO	<8.2	16.5*28
X420	20	30	3-4S	NO	<18.2	22*32
X310-C01	7	12	2-3S	NO	<2	24
X415-C06	15	25	3-4S	NO	<2	14.5*21.5
1X310	10*4	15*4	2-3S	NO	<11.5	29*70



                           20A 25A 30A 35A eletronic speed controller for Multi-Rotor
