Favorable Price!! Pvc U Pvc Composited Pipe Production Line

Product Overview

Description

Favorable Price!! Pvc-U Pvc Composited Pipe Production Line

Description of this PVC pipe production line:

This PVC pipe production line is widely used for producing PVC water supply pipe, drainage pipe and high voltage cable protection pipe. With C-PVC/U-PVC pipe mold, it could also produce C-PVC/U-PVC pipes. It is consisted of conical twin-screw extruder, vacuum forming equipment, haul-off machine, cutting machine, stacker and other components. It can produce pvc pipe from mixed powder directly.

The PVC pipe production line uses special designed screw and mould, which makes it easy forming, even plasticization, high capacity, stable running and easy operation.

Main technical parameter:

Diameter Scope(mm)	16-40 Double	20-63 Double	20-63	50-160	63-200	160-315	315-630
Conical Extruder	SJSZ 51/105	SJSZ 65/132	SJSZ 51/105	SJSZ 65/132	SJSZ 65/132	SJSZ 80/156	SJSZ 92/188
Extruder Powder(KW)	18.5AC	37AC	18.5AC	37AC	37AC	55AC	110AC
Max. Capacity(KG)	120	250	120	250	250	350	650
Max. Lineal Speed(m/min)	10	15	15	8	3.5	3	1.2

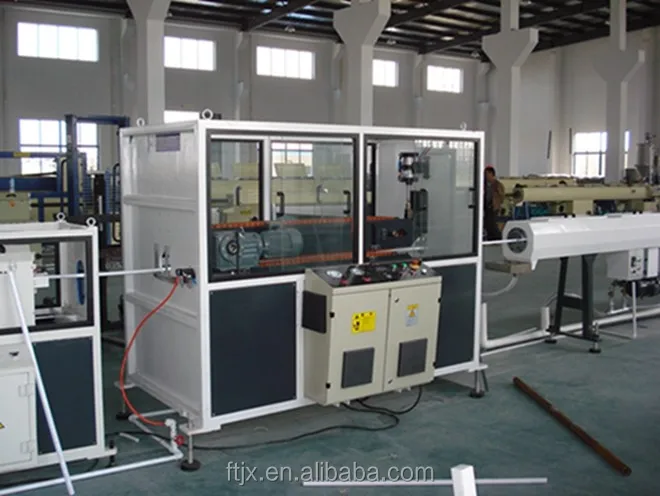

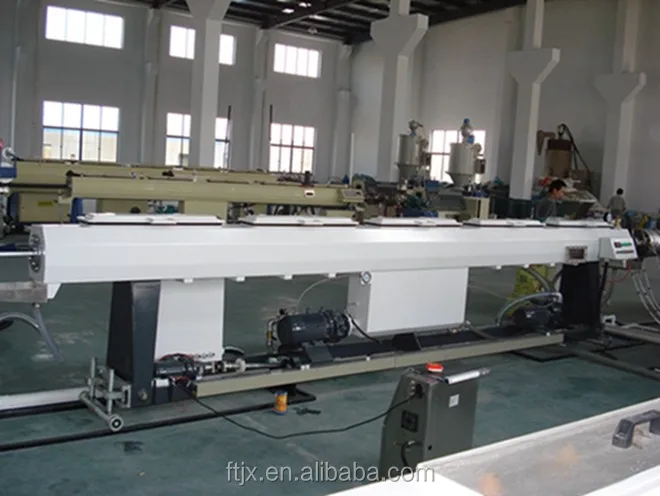

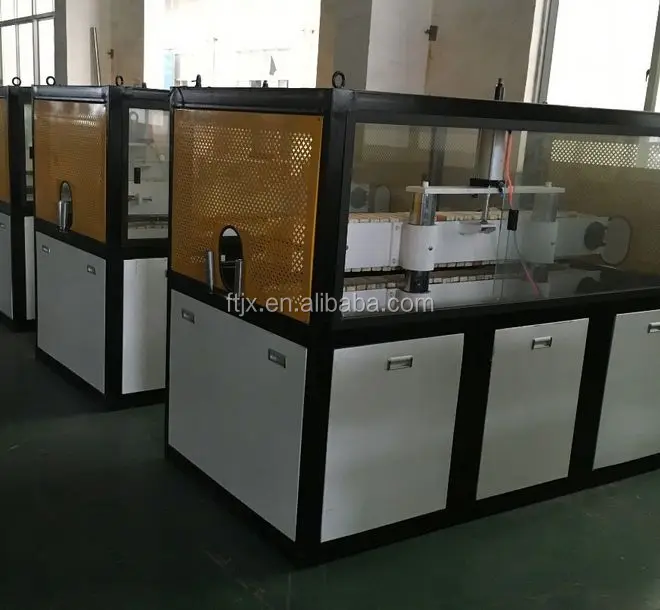

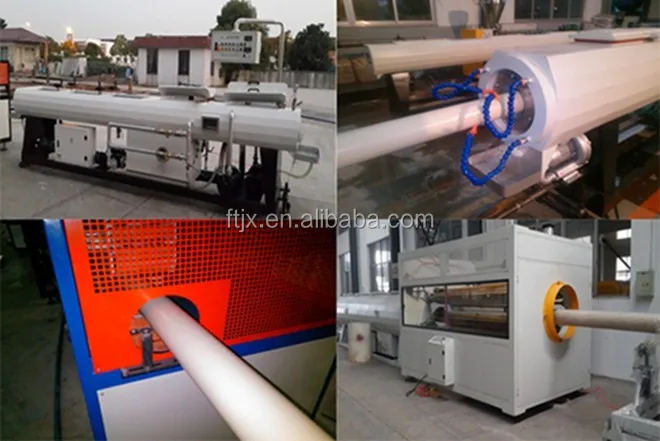

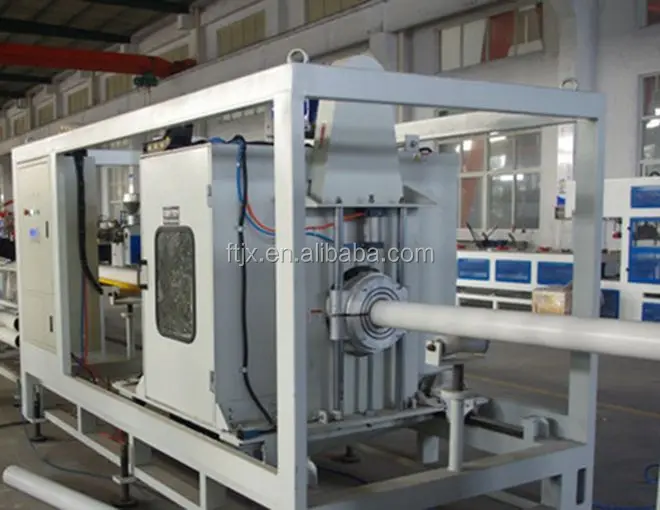

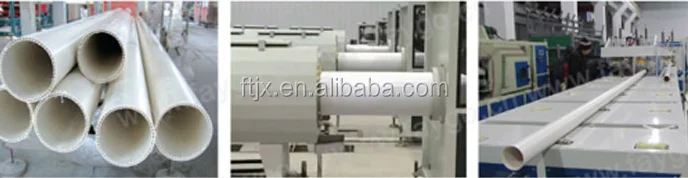

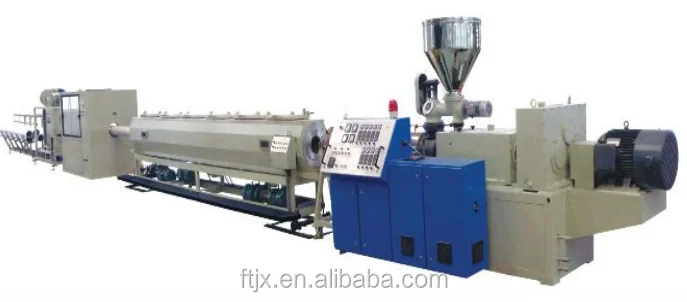

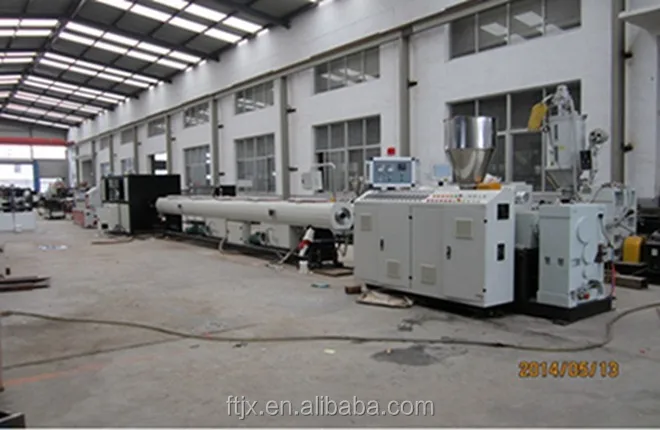

Photos Show:

Favorable Price!! Pvc-U Pvc Composited Pipe Production Line

Certifications:

Our Service:

Turn key project

Technical documents

We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.

Arrangement for inspection, installation and testing work

After being informed machines ready for inspection, customer can send engineers to our factory.

After the machines are delivered to customer’s factory, we will send one or two technicians to the factory after preparation work is completed. Technicians will be responsible for guide on-site installation and testing machines.

Meanwhile technicians will give free training lessons to labors in customer’s factory.

After one year quality guarantee period, we will provide after-sell service for all the life.

Company Information:

Zhangjiagang City Futian Machinery CO.,Ltd. is located in Zhangjiagang city, Jiangsu province, China. It’s a high-tech manufacturer specializing in research&development and producing plastic extrusion equipment. The main products are including: plastic pipe extrusion lines, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling line, PP/PE film washing recycling line, PVC/PP/ PE pelletizing line and auxiliary machinery(mixer unit, crusher and shredder, belling machine, etc.).

We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeastern Asia, South America and Europe.

We sincerely hope to cooperate with customers from all over the world.

Our factory is near shanghai, about 130km. Welcome you to visit our factory.

Running machines can be showed at any time!
