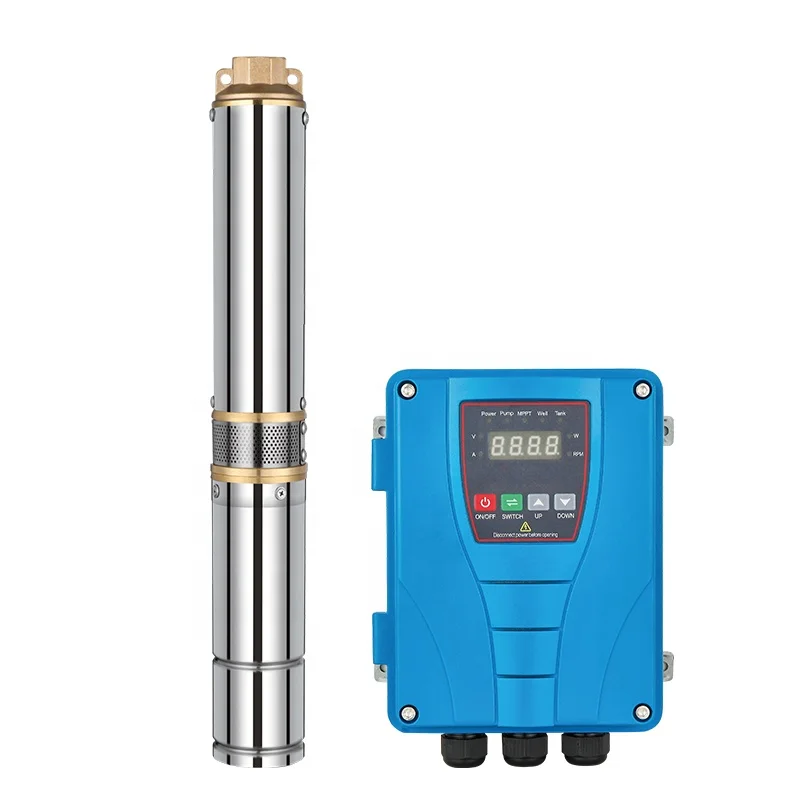

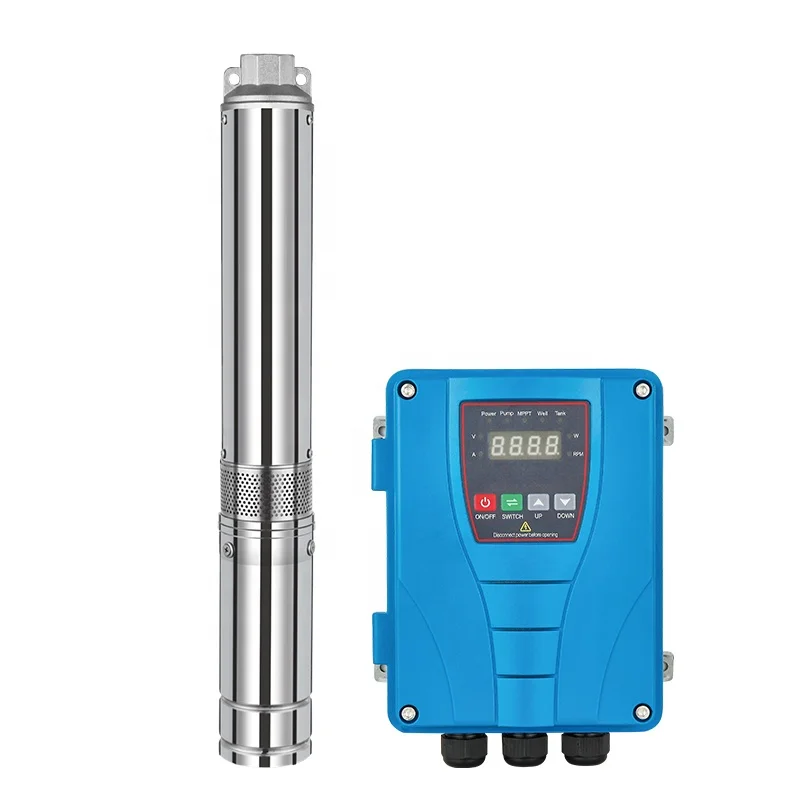

4 inches 1HP 72V large flow rate stainless steel dc submersible solar water pump for irrigation
- Category: >>>
- Supplier: Ningbo Chuheng Electric Co. Ltd.
Share on (60589319637):
Product Overview
Description
Why Choose Us
Same quality, Low price
Same price, High quality
SAY NO TO THE INFERIOR PRODUCT.
Same price, High quality
SAY NO TO THE INFERIOR PRODUCT.
Product Description
Solar deep well pump is designed for the lack of electricity area, mainly used for household water supply and agricultural irrigation water pump. It has high head, low noise and long life. Especially suitable for large farms and remote areas， such as hills and mountains, long distance, high pressure water supply demand.
Specification
Model | 4SRD6-56/D72-750 |
Pump Power | 750W |
Pump Voltage | 72Vdc |
Input Voltage Range | 90-120Vdc |
Max flow | 6m3/h (1585gal per hour) |
Max head | 56m (183ft) |
Outlet | 1.25 inches |

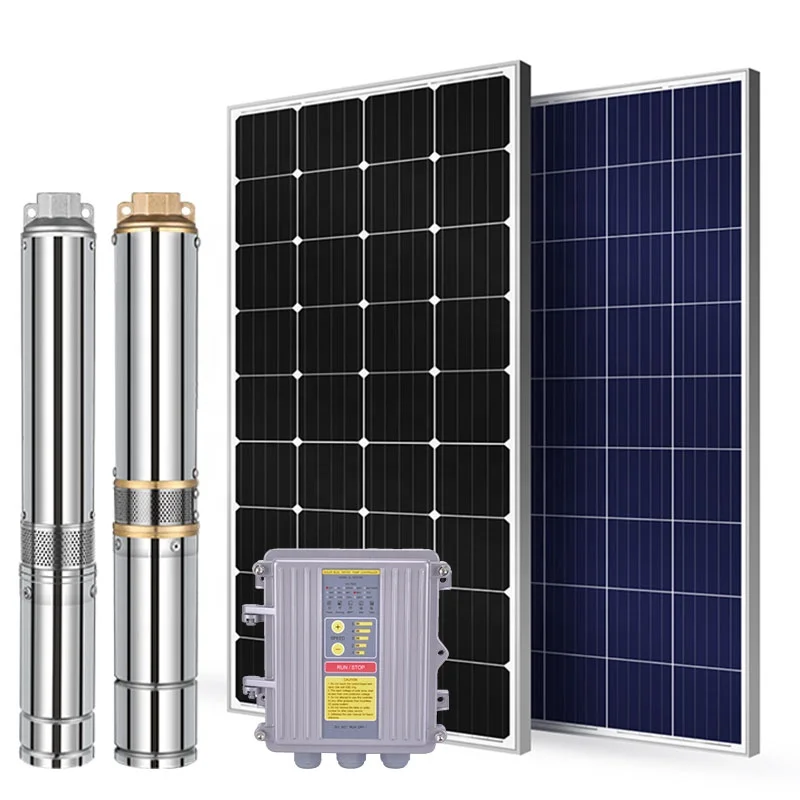

Solar Panels Power | 1200W (3pcs of 400W/36Vdc solar panels in series) |
Motor | DC brushless motor, oil-filled |
Protection grade | IP68 for pump, IP65 for solar control |
MPPT | MPPT tracking algorithm > 99.5% |
Over-voltage protection | Yes |
Low-voltage protection | Yes |
Over-current protection | Yes |
Open-phase protection | Yes |
Short-circuit protection | Yes |
Water shortage protection | Yes |
Over-temperature protection | Yes |
Model | Voltage | Voltage range | Power | Max flow | Max head | Discharge |
4SRD6-42/D48-600 | 48Vdc | 60-80Vdc | 600W | 6m3/h | 42m | 1.25" |
4SRD6-56/D72-750 | 72Vdc | 90-120Vdc | 750W | 6m3/h | 56m | 1.25" |
4SRD6-84/D72-1100 | 72Vdc | 90-120Vdc | 1100W | 6m3/h | 84m | 1.25" |
4SRD6-112/D110-1300 | 110Vdc | 110-160Vdc | 1300W | 6m3/h | 112m | 1.25" |
4SRD6-135/D110-1500 | 110Vdc | 110-160Vdc | 1500W | 6m3/h | 135m | 1.25" |
4SRD9-45/D72-750 | 72Vdc | 90-120Vdc | 750W | 9m3/h | 45m | 2" |
4SRD9-58/D72-1100 | 72Vdc | 90-120Vdc | 1100W | 9m3/h | 58m | 2" |
4SRD9-71/D110-1300 | 110Vdc | 110-160Vdc | 1300W | 9m3/h | 71m | 2" |
4SRD9-85/D110-1500 | 110Vdc | 110-160Vdc | 1500W | 9m3/h | 85m | 2" |
4SRD13-36/D72-750 | 72Vdc | 90-120Vdc | 750W | 13m3/h | 36m | 2" |
4SRD13-49/D72-1100 | 72Vdc | 90-120Vdc | 1100W | 13m3/h | 49m | 2" |
4SRD13-54/D110-1300 | 110Vdc | 110-160Vdc | 1300W | 13m3/h | 54m | 2" |
4SRD13-60/D110-1500 | 110Vdc | 110-160Vdc | 1500W | 13m3/h | 60m | 2" |
4SRD17-48/D110-1500 | 110Vdc | 110-160Vdc | 1500W | 17m3/h | 48m | 2" |
4SRD20-35/D110-1500 | 110Vdc | 110-160Vdc | 1500W | 20m3/h | 35m | 2" |
Details Images

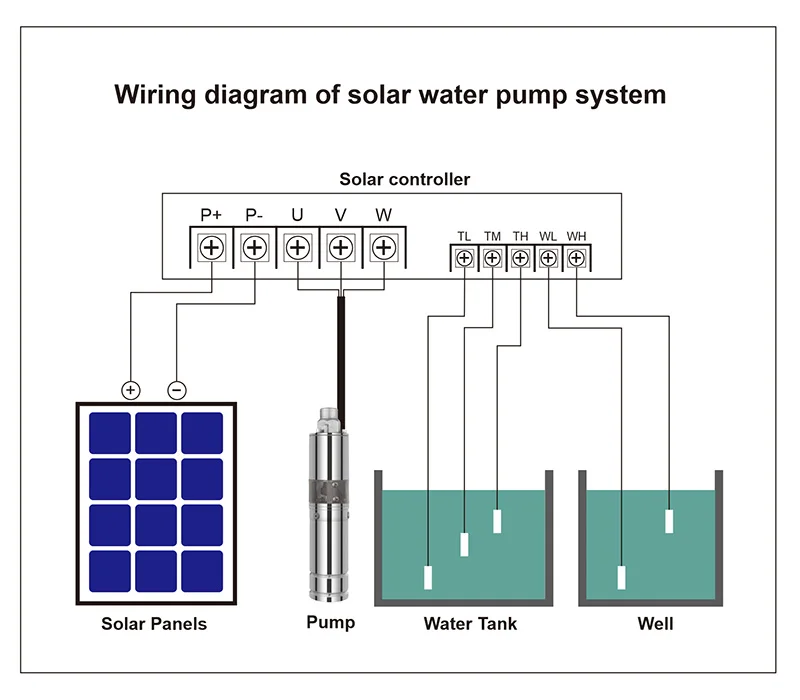

Installation Instructions
1. U V W: Connect with the U V W wires of pump
2. P+ & P- : Connect with PV+ PV- of solar panles.
3. WL & WH: Connect with well water level sensor.
4. TL & TM & TH: Connect with tank water level sensor.
3. WL & WH: Connect with well water level sensor.
4. TL & TM & TH: Connect with tank water level sensor.
Packing & Delivery

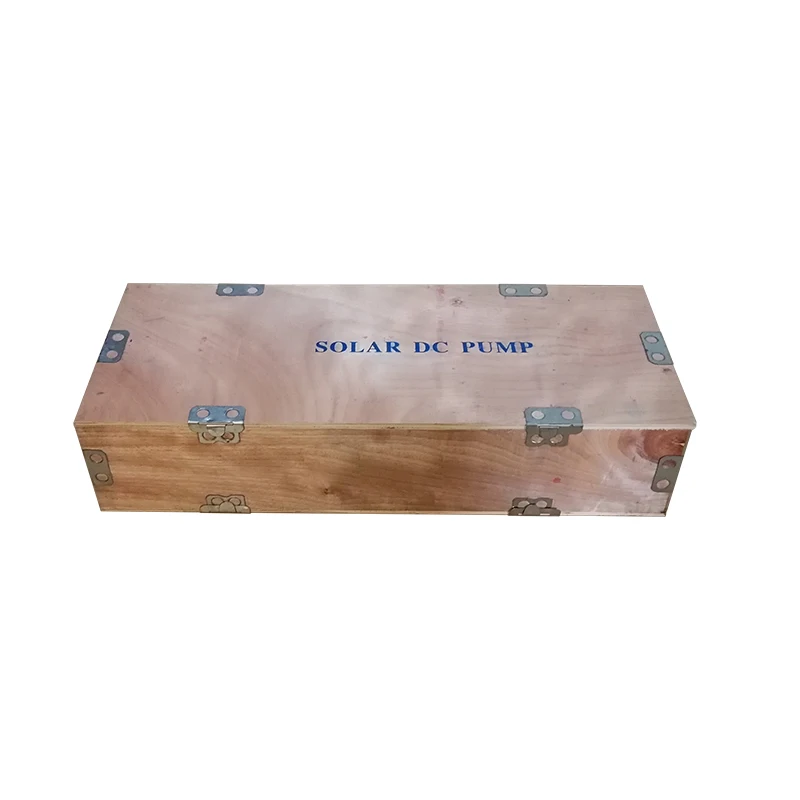

Each one is packed in a wooden case.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install and use the product.
* Technology support.
* Spare parts service.
* Warranty for 24 months.
* Technology support.
* Spare parts service.
* Warranty for 24 months.
FAQ
1. Are you a manufacturer?
Of course, we are. Our factory is located in Fu'an, Fujian.
2. How about the warranty?
We warrant the product against defects in materials and workmanship for 13 months from the date of the bill of lading. We do not warrant against normal wear and tear, nor damage casused by accident or abuse.
3. What are the payment terms?
For new clients, if the amount is less than US$10,000, 30% deposit by T/T, the rest will be paid before shipment. If the amount exceeds than US$10,000, 30% deposit by T/T, the rest will be paid as per the copy of the bill of lading. We can also accept the payment term of LC if the amount exceeds US$20,000.
4. What is the MOQ?
For a 220-240V/50Hz pump - Peripheral pumps - 200PCS Submersible pumps- 100PCS
Of course, we are. Our factory is located in Fu'an, Fujian.
2. How about the warranty?
We warrant the product against defects in materials and workmanship for 13 months from the date of the bill of lading. We do not warrant against normal wear and tear, nor damage casused by accident or abuse.
3. What are the payment terms?
For new clients, if the amount is less than US$10,000, 30% deposit by T/T, the rest will be paid before shipment. If the amount exceeds than US$10,000, 30% deposit by T/T, the rest will be paid as per the copy of the bill of lading. We can also accept the payment term of LC if the amount exceeds US$20,000.
4. What is the MOQ?
For a 220-240V/50Hz pump - Peripheral pumps - 200PCS Submersible pumps- 100PCS
For other voltage and frequency pumps - 200PCS
For solar water pump - 1PC
5. How about the lead time?
The goods will be ready within 45-60 days after receiving the deposit.
For solar water pump - 1PC
5. How about the lead time?
The goods will be ready within 45-60 days after receiving the deposit.
