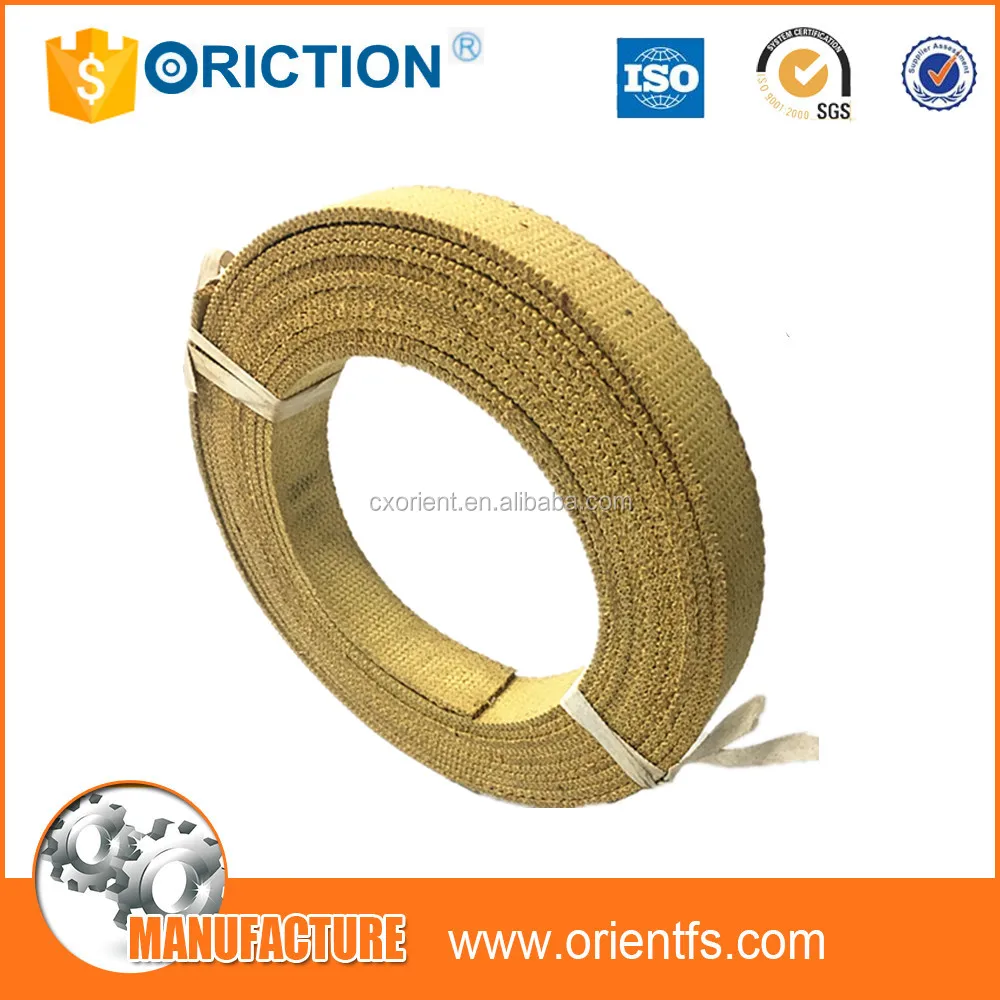

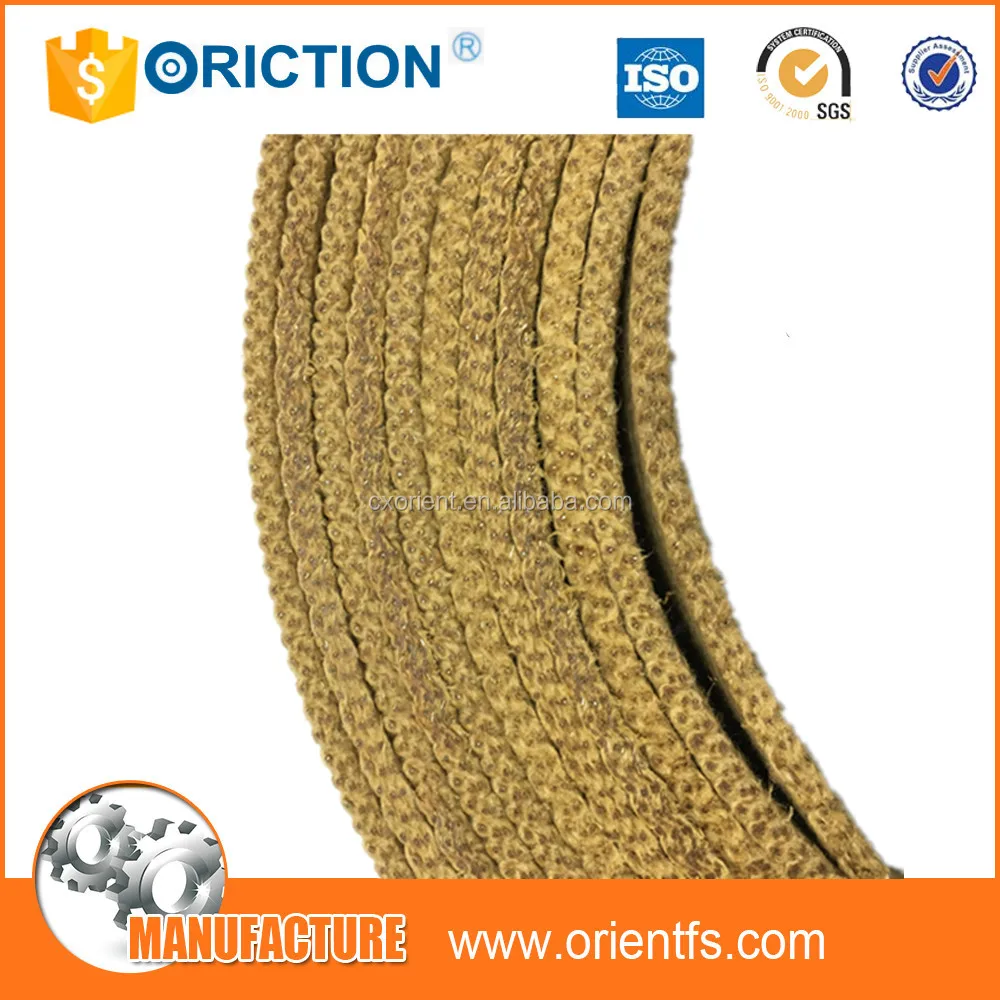

Description of Woven Resin Brake Lining In Roll:

Orient non asbestos woven brake lining in rolls use the new international composite fiber that is wear resisting and heat resisting, woven by advanced equipment, infused in macro molecule resin, finalizing the shape by technology of high and low temperature. Widely used different working environment for braking and dynamic transfer of high power machines, such as marine anchor, port hoist, drilling machine and lift etc.

Data Sheets of Woven Resin Brake Lining In Roll :

\t
Property
\t
Description
\t
Non Asbestos Woven Resin
Brake Lining Roll
\t
ORIENT Type
\t
Type yellow
\t
Type brown
\t
Coefficient of Friction
\t
at 100℃
\t
0.40-0.65
\t
0.40-0.65
\t
at 150℃
\t
0.35-0.65
\t
0.35-0.65
\t
at 200℃
\t
0.30-0.60
\t
0.30-0.60
\t
Wear Rate
(cm3/N.m)
\t
at 100℃
\t
0.3 X 10-7
\t
0.3 X 10-7
\t
at 150℃
\t
0.5 X 10-7
\t
0.5 X 10-7
\t
at 200℃
\t
0.7 X 10-7
\t
0.7 X 10-7
\t
Temp Resistance
\t
Working Temp
\t
200℃
\t
Max Temp
\t
325℃
\t
 Tensile Strength
\t
  21 Mpa
\t
Normal
  Size
\t
Thickness
\t
5-30mm ( 3/16- 1 1/4 inch)
\t
Width
\t
  500mm (20 inch)
\t
Length
\t
10m, 15m, 20m (25feet)
\t
 Material
\t
Viscose fiber, glass fiber, copper wire,melamine resin
\t
Viscose fiber, glass fiber, copper wire, cashew nut oil resin


Note: Other Size, Color, and Material can be manufactured according to your request.


Features of Woven Resin Brake Lining In Roll:


  1.   Stable friction coefficient
  2.   Low wear rate
  3.   High tensile strength
  4.   Good flexibly
