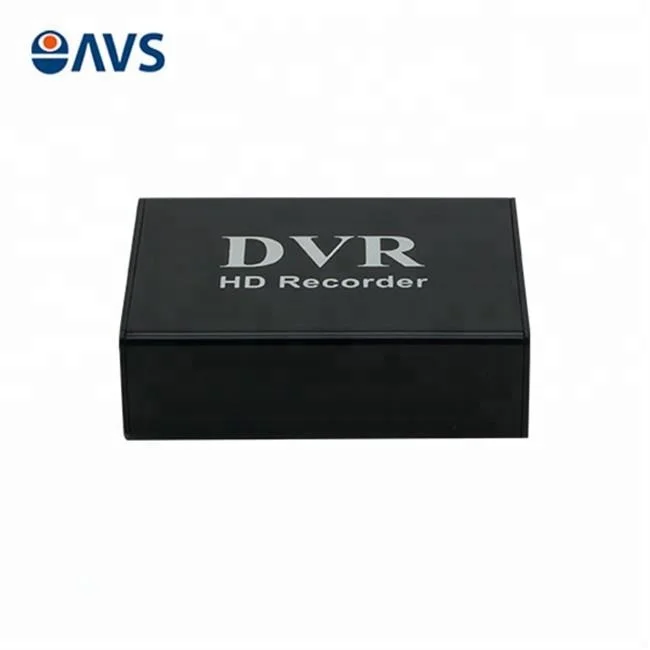

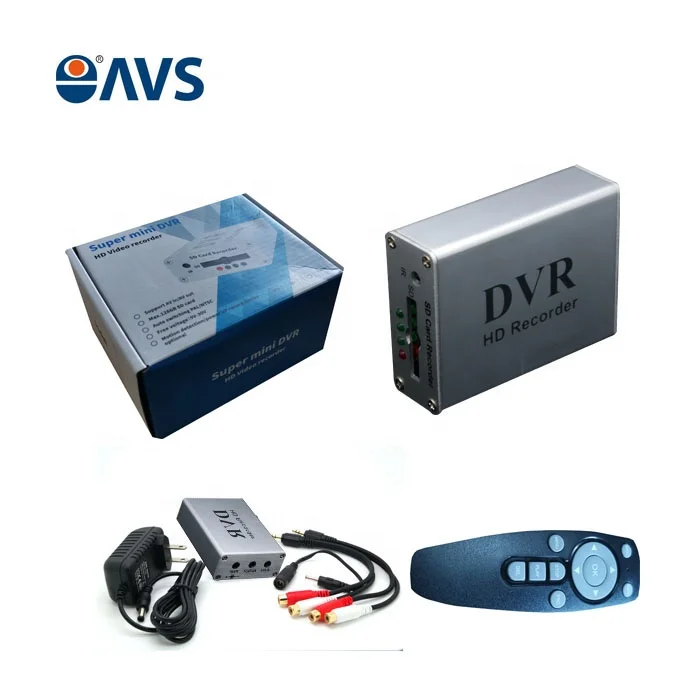

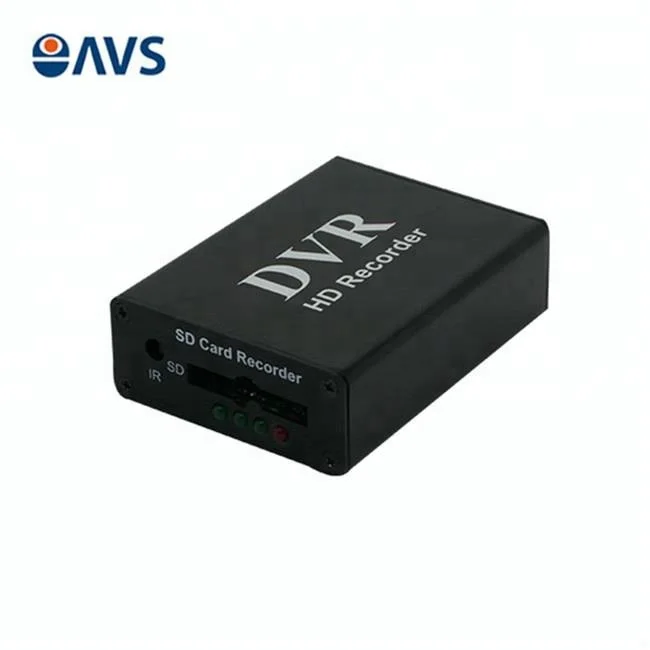

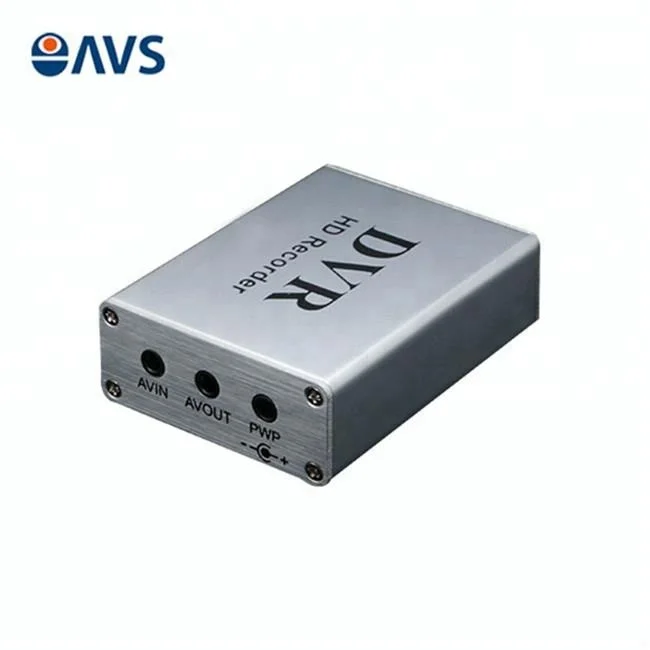

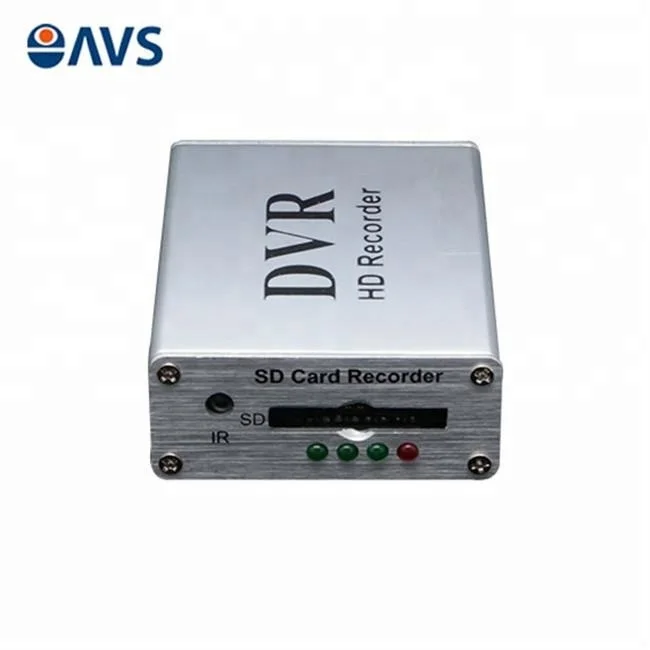

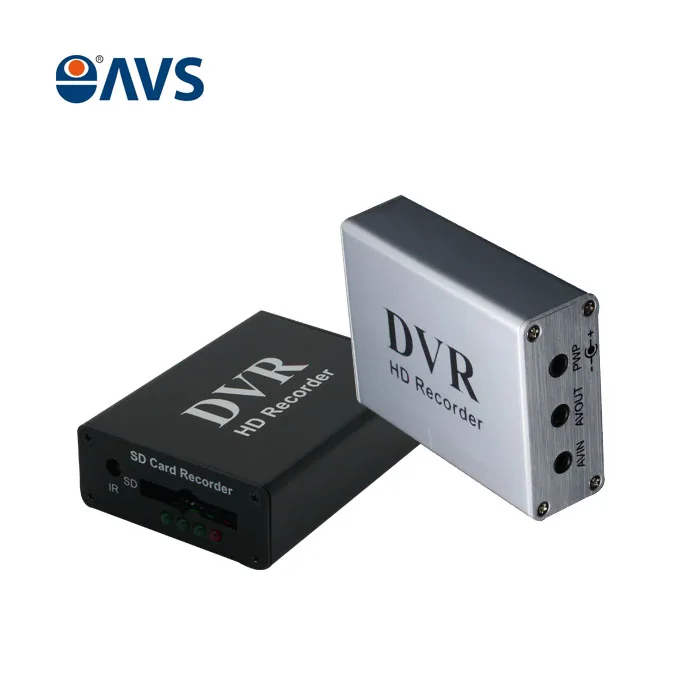

Small DVR 1CH Mini Portable MDVR Mobile DVR for Analog Car Cameras
- Category: >>>
- Supplier: Shenzhen Avs Technology Co. Ltd.
Share on (60589617408):
Product Overview
Description
Product Description
1CH Mini Portable MDVR Mobile DVR for Analog Car Cameras
This 1ch SD card dvr is a high-performance HD digital video recorder. It adopts MPEG-4 video compression technology, single channel high definition up to D1 (704 x576) pixels, max up to 30 FPS @ D1. It’s a true real-time, high-resolution, low power consumption, easy operation, subminiature professional digital video recorders. Besides, it supports multiple video/photo modes such as switch-on video, motion detecting video, booking video, manual video/photographing, external triggering video/photograghing… It also supports SD card max up to 512GB for recording. The video files will be directly stored in the SD card. Users can view the video on TV, the monitor in real time and can also store the videos & images from SD card back to computer.
Characteristics:
*MPEG-4 compressed format;
*D1 video resolution: 704X576@30FPS
*Video compression format: MPEG-4/ASF; Audio compression format: MP3
*Video time display options(display or not)
*Manual video, motion detecting video, booking video, switch-on video, manual photographing, external triggering video
*DVR audio compression: 8KHZ/ADPCM
*Frame rate: 5FPS, 15FPS, 30FPS optional
*Optional video time period: 5min, 10min, 15min, 20min, 30min & 60min optional
*4 groups for booking video (Everyday or Every week optional)
*Support SD card max up to 512GB
*1ch video & audio input; 1ch video & audio output at the same time
*Simultaneous operation of remote & keyboard
*Support RS232 interface, external GPS
*Wide range of 5-30V voltage input
*Support USB connection with computer to read files from SD card
*Support remote control for on-off
*Information retention when power off
Product Details
Model | MD102 | ||||
Voltage | DC5V-30V | ||||
Current | 180mA (for host) | ||||
Working Temperature | 0°C~+50°C | ||||
Power Output (for camera) | DC5-30V, less than 200MA | ||||
Input Signal | Video+audio（1ch input & 1ch output） | ||||
Storage Capability | Support max up to 512GB SD card | ||||
Video Format | ASF | ||||
Compression Mode | MPEG-4 | ||||
Video Resolution | D1/VGA/QVGA | ||||
Video Frame Rate | 5FPS,15FPS,30FPS optional | ||||
Video Time Period | 5min, 10min, 15min, 20min, 30min, 60min optional | ||||
Image Quanlity | High/Middle/Low optional | ||||
Video | Manual video, motion detecting video, booking video, switch-on video, manual photographing, external triggering video... | ||||
Storage Modes | Stop or automatic coverage of full recording | ||||
Input Impedance | 75Ω Typ-p | ||||
Output Impedance | 75Ω Typ-p | ||||
Operation | Remote control or keyboard | ||||
Language | English, traditional Chinese, simplified Chinese | ||||
Application:
It’s for automatic real-time loop video under different environment such as household, commercial, mobile system.. It adopts SD card storage, manual video, motion detecting video, booking video, switch-on video, manual photographing, external triggering video… D1/VGA/QVGA, 5/FPS15FPS/30 FPS, various modes of video frame can be choosen. It can satisfy different customers’ needs under different environmental.
Packing & Delivery
FAQ
Q: What's your MOQ ?
A: MOQ: 1pcs.
Q: What kind of the packing can you offer ?
A: We have 2 kinds of packing: neutral color box packing and customized packing.
Q: What can I do if got damaged goods?
A: Damages not caused by the item itself and during the delivery process, we can resend in your next order or refund.
Q: Do you offer free shipping items?
A: No, we don't. And normally we don't bear buyers' customs clearance and taxes.
