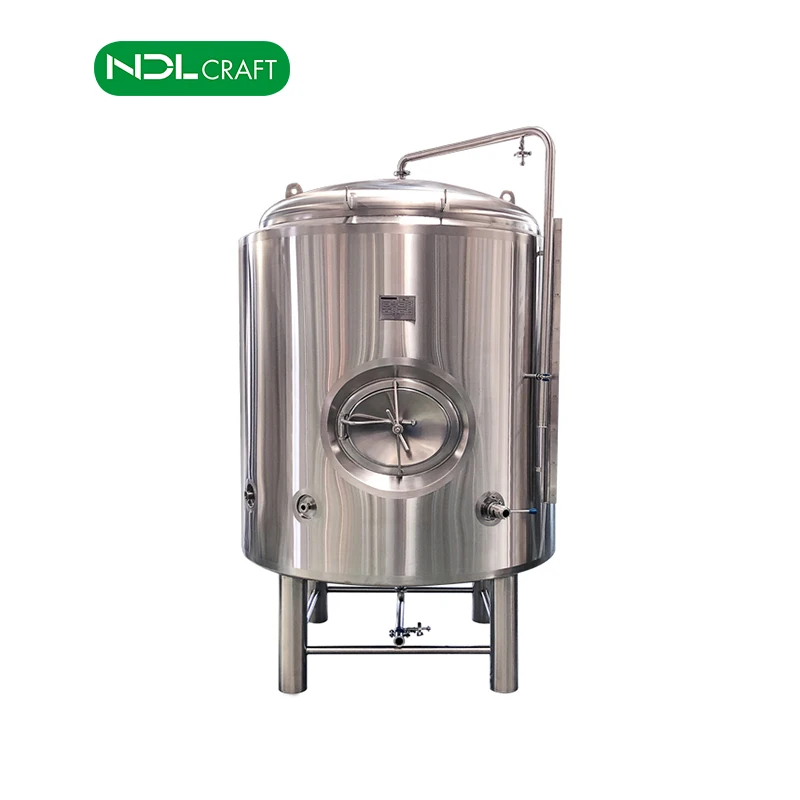

500L beer used micro stainless steel Double wall brite tank with jacket

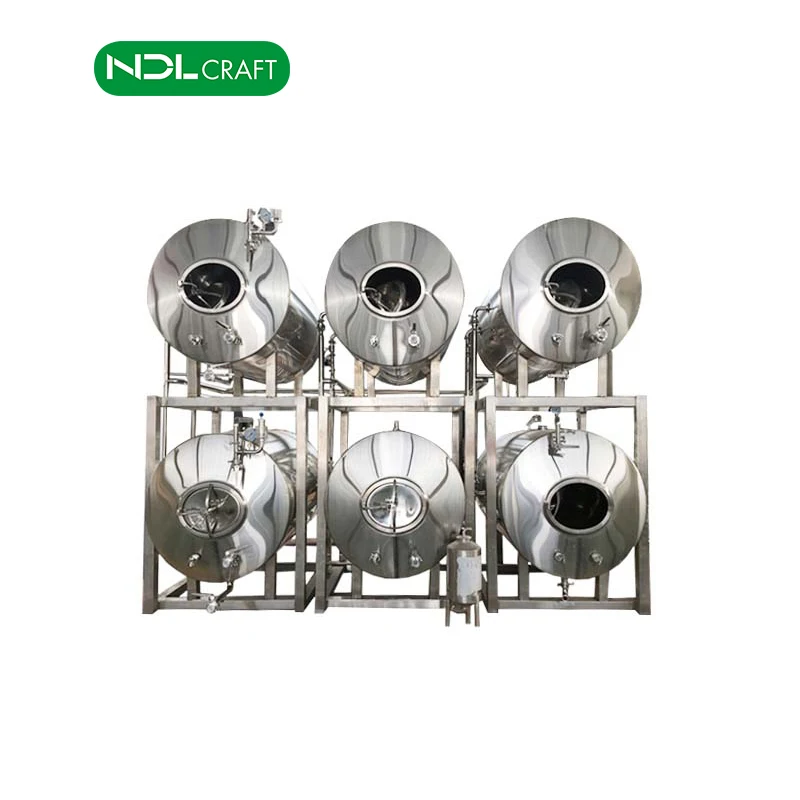

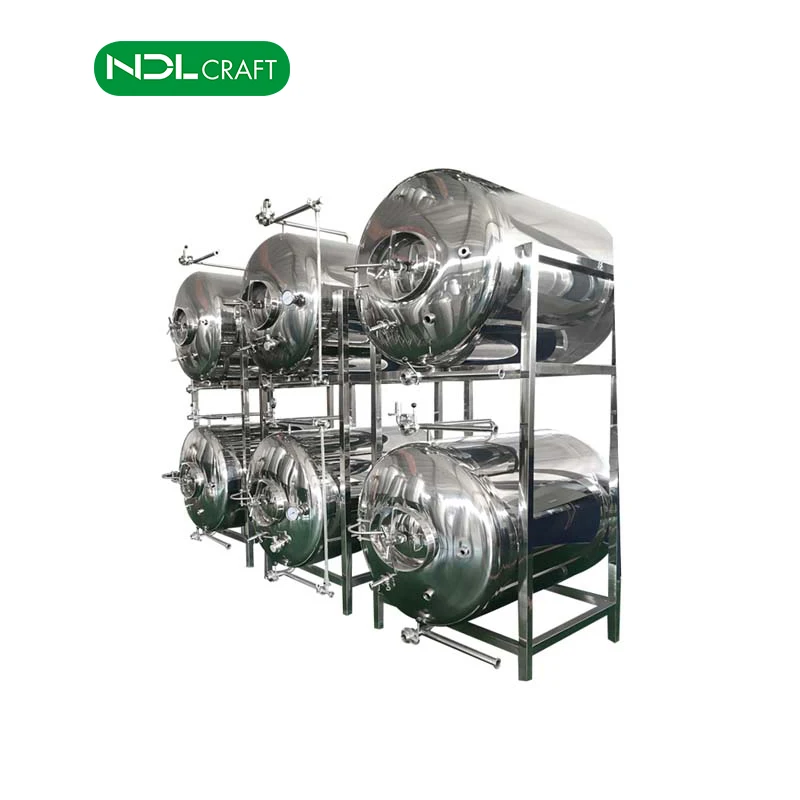

Vertical or horizontal bright beer tank or brite or BBT Configuration

·Butterfly valves, sample valve, PRV

·Clamps and gaskets, pressure gauge

·Stainless steel legs with stainless leveling footpads

·Interior shell:304 stainless steel, thickness 3mm

·Exterior shell:304 stainless steel, thickness 2mm

·Interior and exterior finish polished to mirror finish

·Fully welded exterior shell

·dish cone bottom, with an average of 10% head space

·Side manway door, shadowless

·80mm Polyurethane insulation

·CIP arm and spray ball

·Sanitary tri-clamp connections

·Dry hop port 4-6''

Related product :

Brewhouse:

Configuration:

 · 1 x mash/lauter tank with lauter rakes & grain out plows

 · 1 x brewkettle/whirlpool tank(steam/electric heated, or direct fire)

 · 1 x hot liquor tank

Accessories: Sanitary wort pump with variable speed control(VFD); hot liquor pump(VFD); Sanitary heat exchanger; wort aeration system; 1 x SS work platform with sanitary process piping & sanitary valves; SUS 304 construction

OPTIONS:

· Separated control cabinet

· Separated mash tun with mash mixer

· Separated lauter tun

· Separated brewkettle

· Separated whirlpool

· Grist Hydrator

· Grist hopper/flex auger/Wort grant/hopback

· Cladding: red copper

 Accessories:

Quality Control

Brewery Processing Equipment

Advantages

1. All the brewing equipments are made of qualified stainless steel, all the inner surface of tanks and pipelines is mirror finishing, free of hygienic blind pot, meeting with GMP standard;
2. Low temperature fermentation, the 5000L beer equipment beer produced containing active yeast, is direct sell.
3. Full-auto or semi-auto is customized to customers’ requirements, is easy to operate;
4. Plate-type cooling system, ensure the quality of the beer;
5. Excellent after service provides professional installation and commissioning servie.

NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.

We have established an ERP management system and have passed quality audits for internationally recognized certifications.

ISO 9001: Certification for the Quality Management System

ISO 14001: Certification for the Environmental Management System

ISO 18001: Certification for the Occupational Healthland Safety Management System

CE: Certification of Compliance

PED(TUV): Certification of Compliance, Certification of Conformity

SGS: Gold Plus Supplier Assessment Certificate

NDL Craft attend the Exhibition all over the world, such as USA, Franch, Germany, Brazil, Australia etc, hope to see you at the Exhibition, dear all!

NDL Craft is a brewing equipment manufacturer and brewing technology engineering company that provides turnkey projects throughout the world.

What Can NDL Craft do for you?

New design: the company can design according to CE PED standards and ASME design codes

Localized after service: the company has set up three overseas branches located in the United States, the United Kingdom and Canada, as well as localized technology, sales and operation teams in Europe and the United States

New production: the company deploys a series of advanced production and testing equipment, modern production workshop of nearly 30,000 square meters, which organize production according to European and American technical and quality standards.

New Function: Programing system to achieve automatic control
