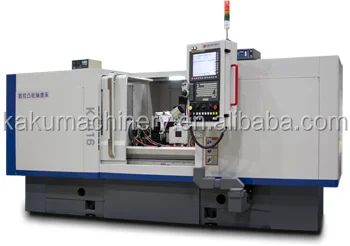

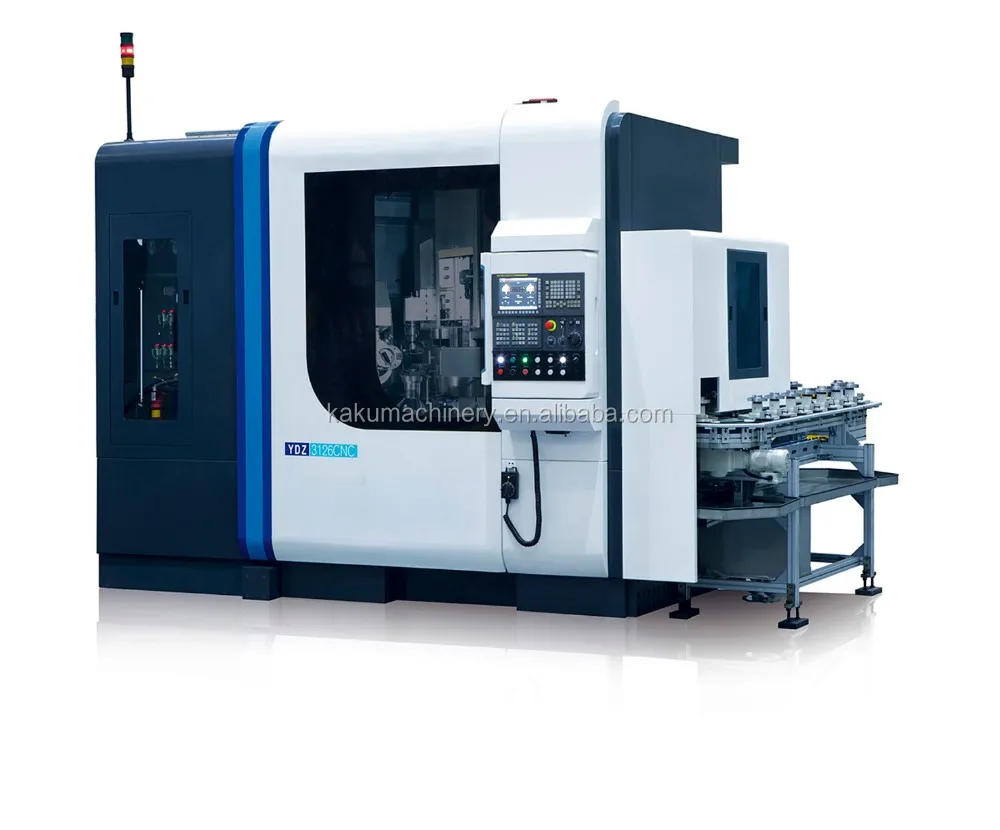

K1016 CNC camshaft grinding machine

K1016-type CNC camshaft grinding machine is designed by our company, developed for high-end camshaft grinding CNC machine tools. The machine tool uses the design method of CNC grinding machine and numerical control non-circular grinding technology to realize the cam surface NC linkage grinding, the processing flexibility is strong, the operation is simple and reliable, and has the characteristics of high rigidity, high efficiency and high reliability, Level.

The machine adopts NC two-axis interpolation linkage, which controls the wheel's feed axis (X axis) and the workpiece's rotary axis (C axis) with closed-loop feedback control, which realizes NC precise positioning movement of cam non-circular surface, completely solving the traditional mode- Poor flexibility of machining, mold processing is difficult to maintain the complex shortcomings. CBN wheel linear speed 120m / s, C-axis and X-axis are using the international advanced direct drive technology, mainly used for internal combustion engine camshaft parts cam surface of large quantities of precision machining, machine front side of the vertical plane without any adjustment Link, suitable for the installation of parts logistics transmission line, without mutual interference, is suitable for the production line of the preferred equipment. Machine tools in the relevant safety, environmental protection, ergonomics, and other aspects in line with relevant national standards and international standards.

Mechanical and electrical integration structure layout, the overall protection, easy maintenance ergonomic requirements.

CBN grinding wheel is driven by static pressure electric spindle, which has the characteristics of high precision, good maintainability and strong rigidity. CBN wheel speed up to 120m / s, and is equipped with built-in dynamic balance system.

(C-axis) is directly driven by the torque motor with a positioning accuracy of 0.002 degree. The grinding wheel frame (X-axis) is directly driven by linear motor. The dynamic response is good, and the maximum speed is up to 40 m / min. , The work table (Z axis) is driven by the servo motor, the minimum setting unit is 0.1μm, the maximum fast-forward speed can reach 20m / min.

120m / s CBN grinding wheel with diamond roller rest, equipped with sonar detectors, to ensure trace accurate rest, extend the life of CBN wheel; wheel directly driven by the spindle.

Imported advanced numerical control system, with the grinding process transformation, workpiece quality management, machine condition monitoring, fault diagnosis and abnormal alarm and other comprehensive control functions, menu-based interface input is simple.
