well test separator skid mounted oil gas water three phase separator equipment
- Category: >>>
- Supplier: Luoyang Runcheng Petrochemical Equipment Co. Ltd.
Share on (60589907629):
Product Overview
Description
well test separator skid-mounted oil gas water three phase separator equipment
Product Description
LRC skid-mounted oil gas water three phase separator is a three phase separator oil and gas well testing and gathering pretreatment of special equipment. It is mainly used for wellhead products of oil gas water separation and accurate measurement. According to its structure can be divided into separation and one-split.Split type is mainly composed by heating furnace and separator. Integrated is mainly composed by whole heating, separation, metering and control units.
The device adopts many advanced technology such as the highly efficient separation,built-in throttling,automatic control,integrated anticorrosion, device prizing optimization.The equipment has a good separation effect, large elasticity of operation,strong adaptability,a high degree of automation, high measuring accuracy,detailed data, etc. Its main technical performance occupy advanced level both in domestic and international.
Technical Parameter
| The Highest Inlet Pressure | ≤ 35MPa |
| The Max Working Pressure of Separator | ≤ 8.5MPa |
| The Max Processing fluid volume One Day | ≤ 160×104m3n/d |
| Natural Gas Flow Metering Accuracy | ± 1% |
| Liquid Content after Separation | ≤ 50mg/m3n |
Specification Table
| Type | NG Treated Amount (×104 NM3/d) | Fluid Treated Amount (M3/d) | Structure style | Monitor method | Overall Dimensions (m) | Equipment Gross Weight (T) |
| LRC25/50 | 25 | 50 | Integral | Tested and controlled by industrial Control Computer | 7.2×2.2×2.4 | 11.2 |
| LRC 25/100 | 25 | 100 | Integral | 7.4×2.2×2.4 | 11.5 | |
| LRC30/50 | 30 | 50 | Integral | 7.5×2.2×2.4 | 12.1 | |
| LRC30/100 | 30 | 100 | Integral | 7.6×2.2×2.4 | 12.5 | |
| LRC50/50 | 50 | 50 | Integral | 8.1×2.2×2.4 | 13.5 | |
| LRC50/100 | 50 | 100 | Integral | 8.6×2.2×2.4 | 13.8 | |
| LRCF30/2B | 30 | 200 | Split type | 14.9 | ||
| LRCF50/2B | 50 | 200 | Split type | 15.8 | ||
| LRCF30/3B | 30 | 300 | Split type | 16.4 | ||
| LRCF50/3B | 50 | 300 | Split type | 17.9 | ||
| LRCF-X | <30 | >300 | Split type | Special Designed | ||
Detailed Images

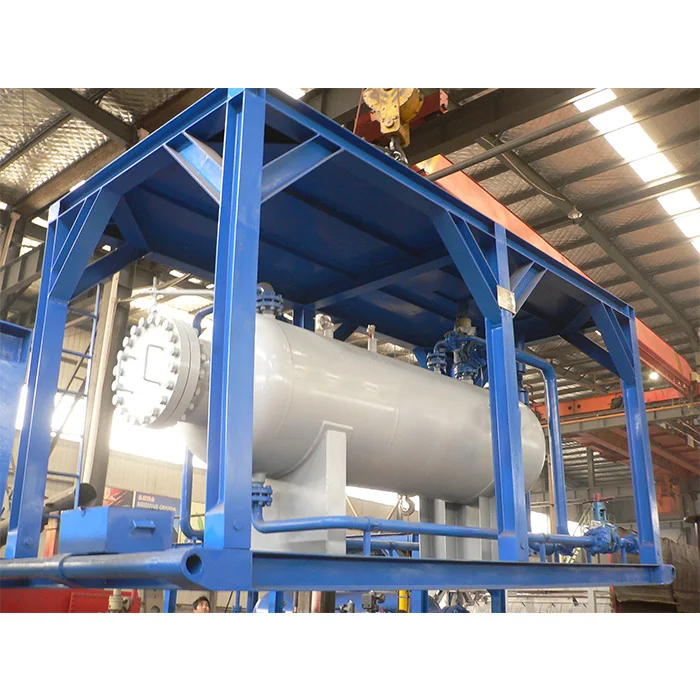

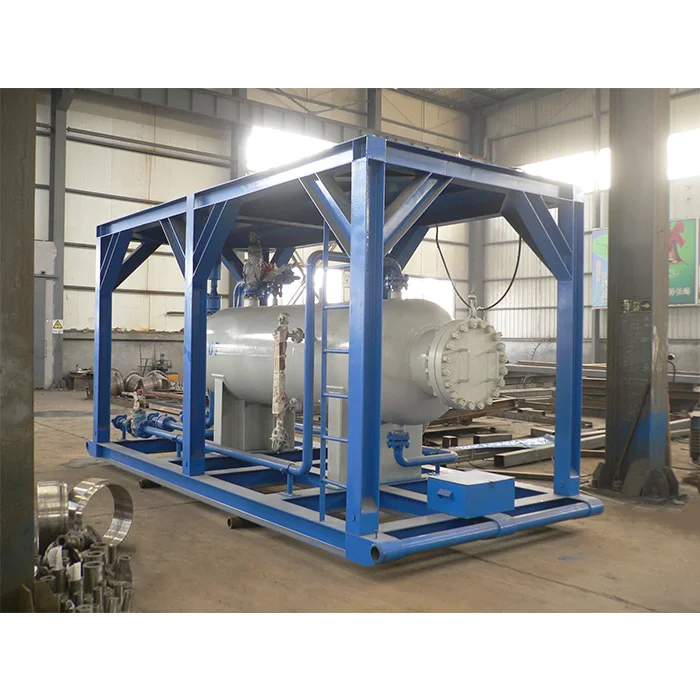

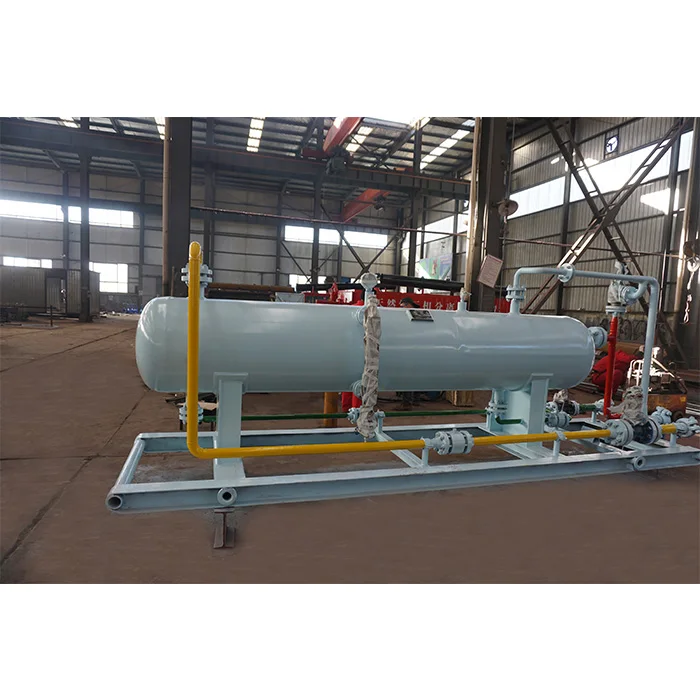

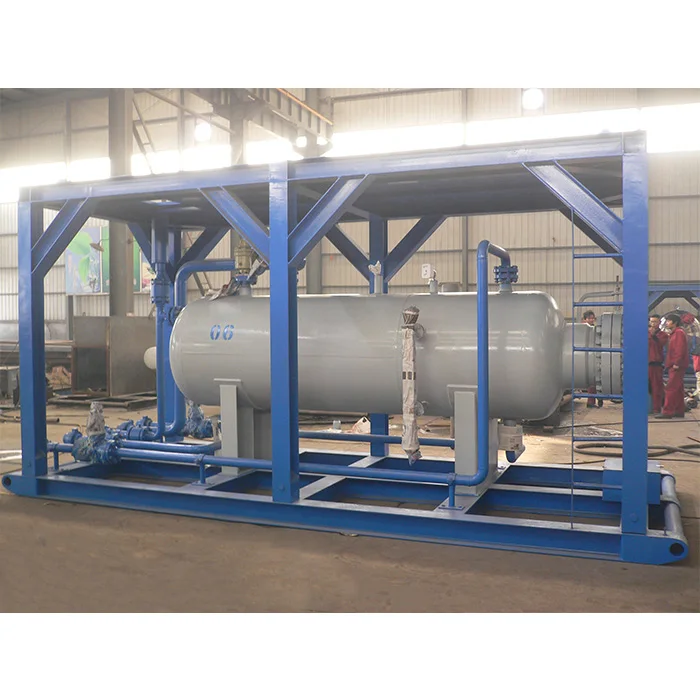

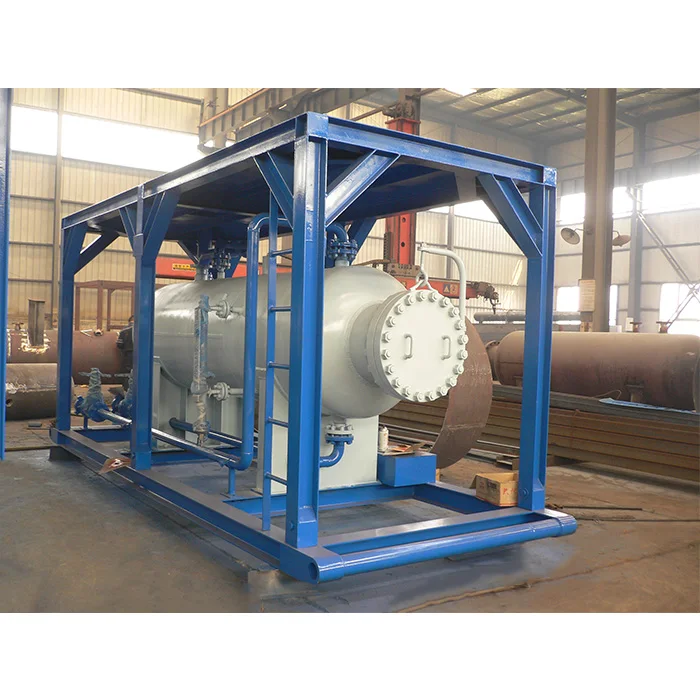

well test separator skid-mounted oil gas water three phase separator equipment
Certifications
well test separator skid-mounted oil gas water three phase separator equipment
Advantages
1.Heating and separation are integrated, greatly reduce the ground installation work;
2. Adopt computer control technology, improve the degree of automation, reduce the labor intensity.
3. Adopt computer automatic detection, calculation and all kinds of report generation.Provides detailed, reliable, high precision of test data.
4. Multilevel security measures to ensure safe and reliable operation of the device;
5. Small volume, light weight, simple operation,convenient use and low operation cost;
6. skid-mounted oil gas water three phase separator is used for oil and gas fields of natural conditions area use.
Application
well test separator skid-mounted oil gas water three phase separator equipment
After ten years of research, development, LRC series three-phase separator metering device currently has more than a dozen varieties, to meet the various requirements for oil and gas fields of test and production.
The device since 1993 and put into use in the Changqing gas field has been successfully operated for nearly ten year.Currently, there are more than 40 sets of equipment in Changqing, Dagang, Jilin, Qinghai, Daqing oil field application, and achieved good economic and social benefits.
Contact us
Any question or interest about our well test separator skid-mounted oil gas water three phase separator equipment, please don't hesitate to contact with us. It's our honor to help and support your business.
