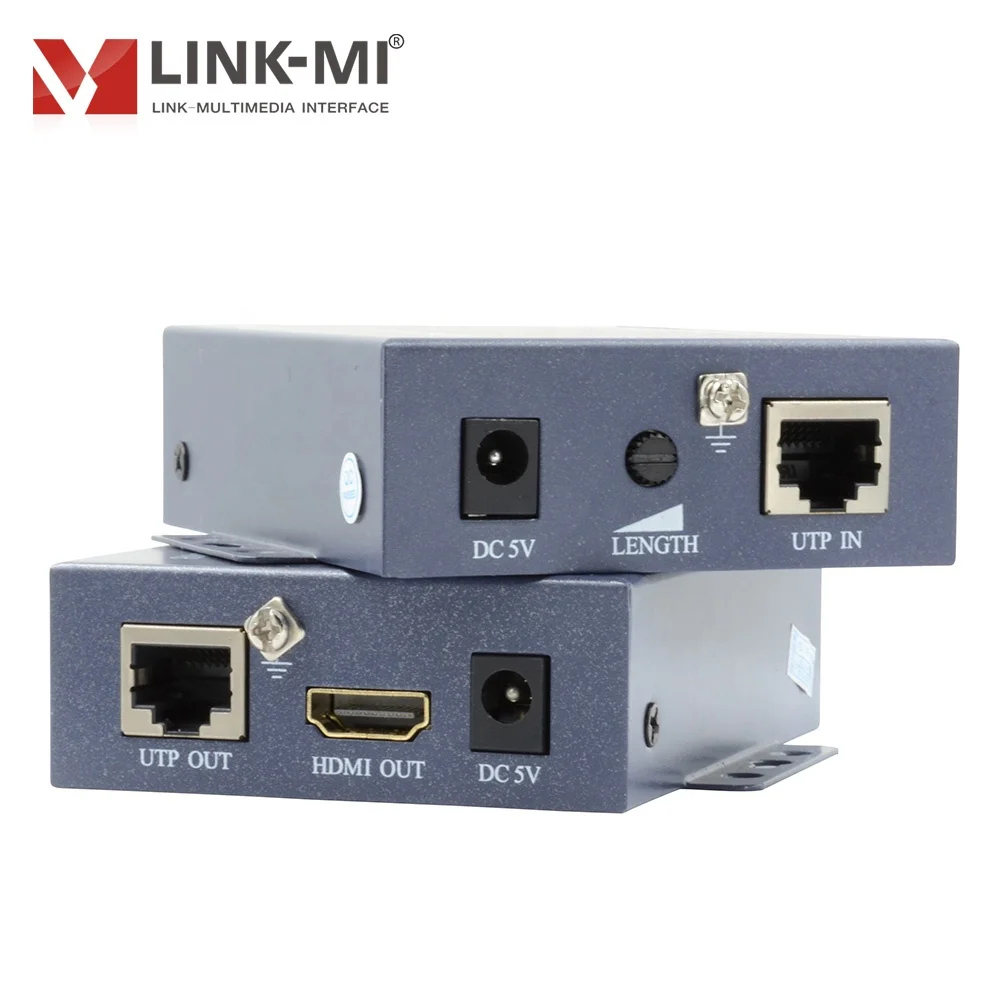

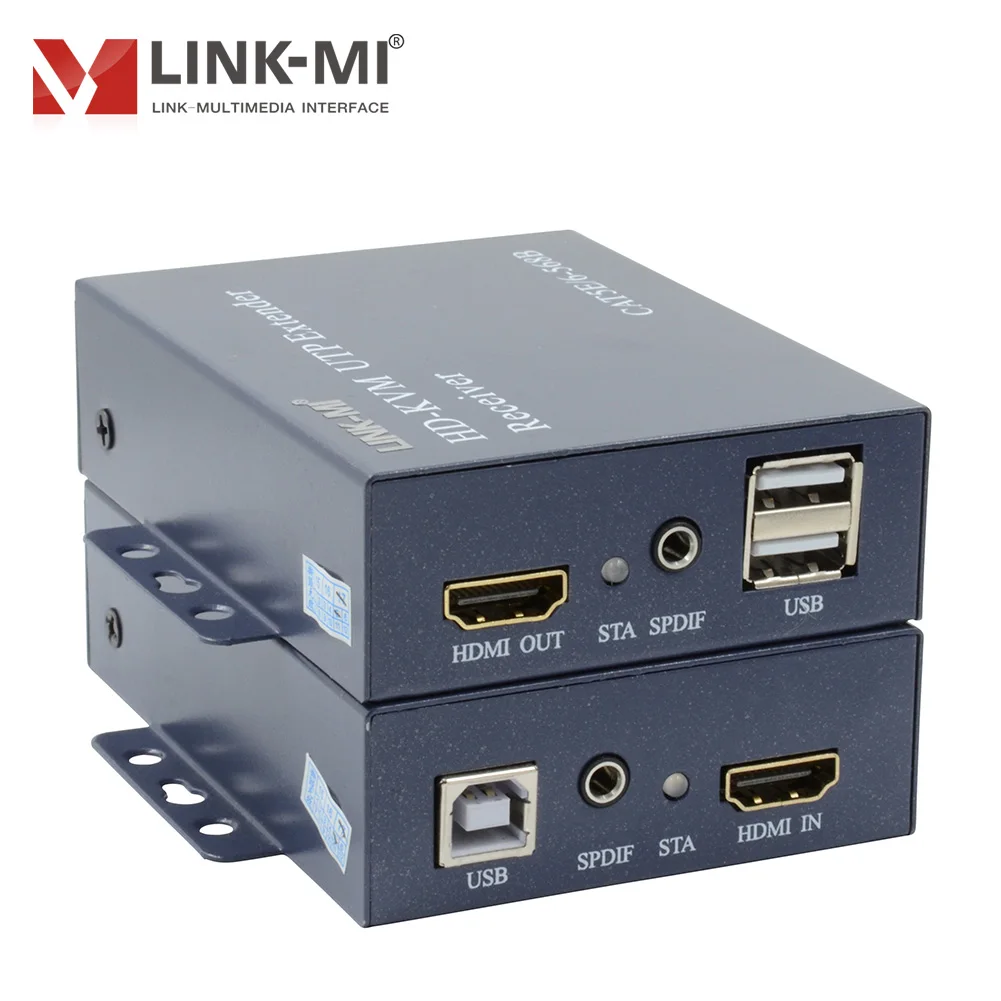

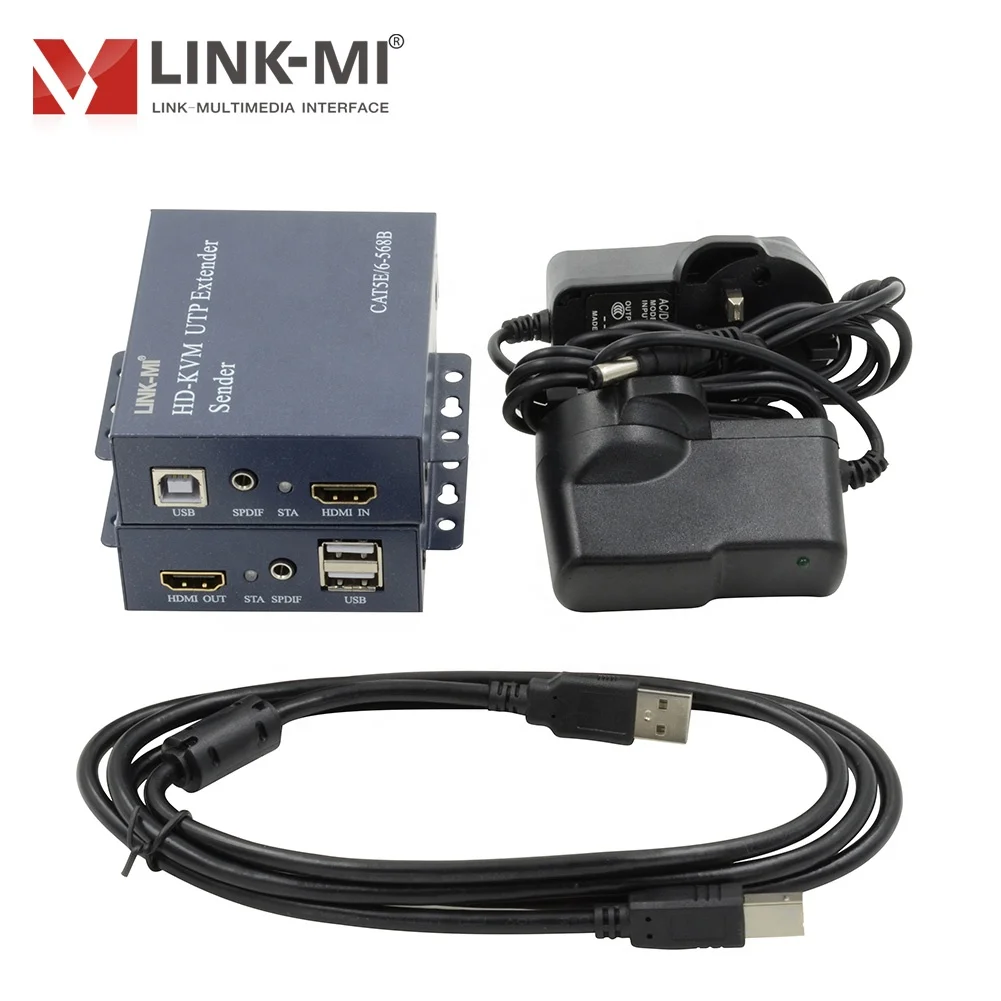

100M/328FT KVM HDMI Extender over Single CAT5e/6 Cable 3D 1920x1080@60HZ USB Mouse and Keyboard HDCP 1.2

1^st Introduction

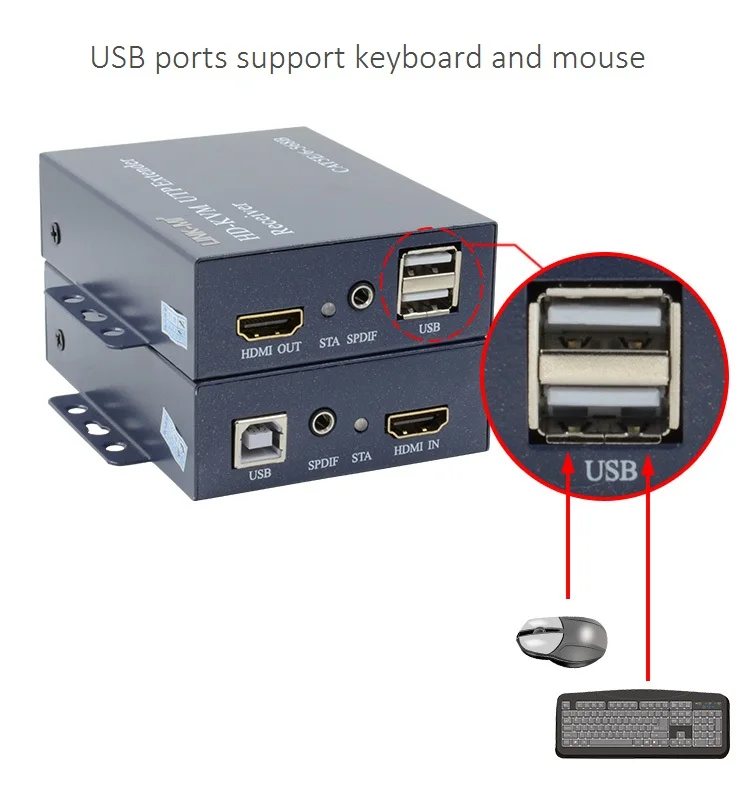

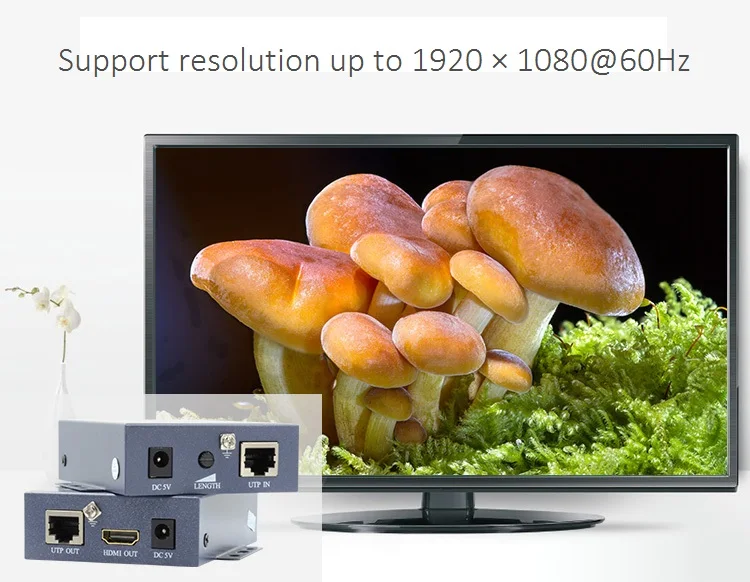

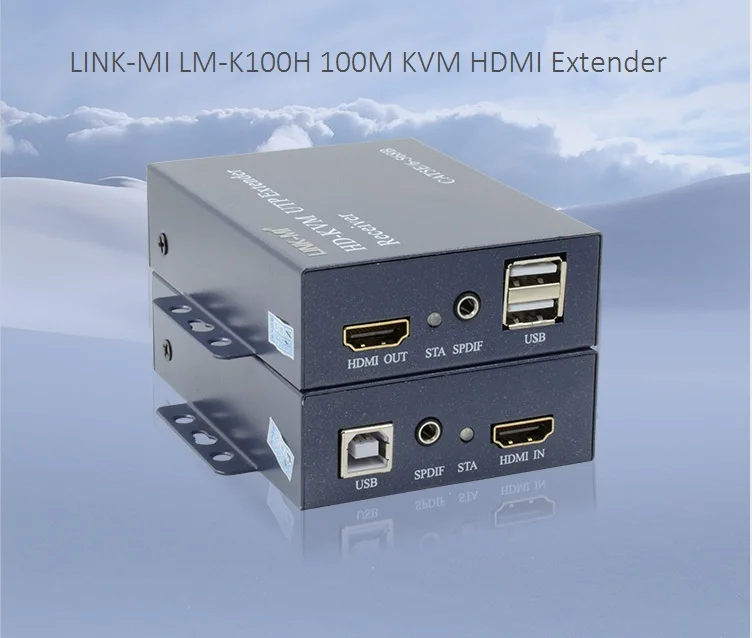

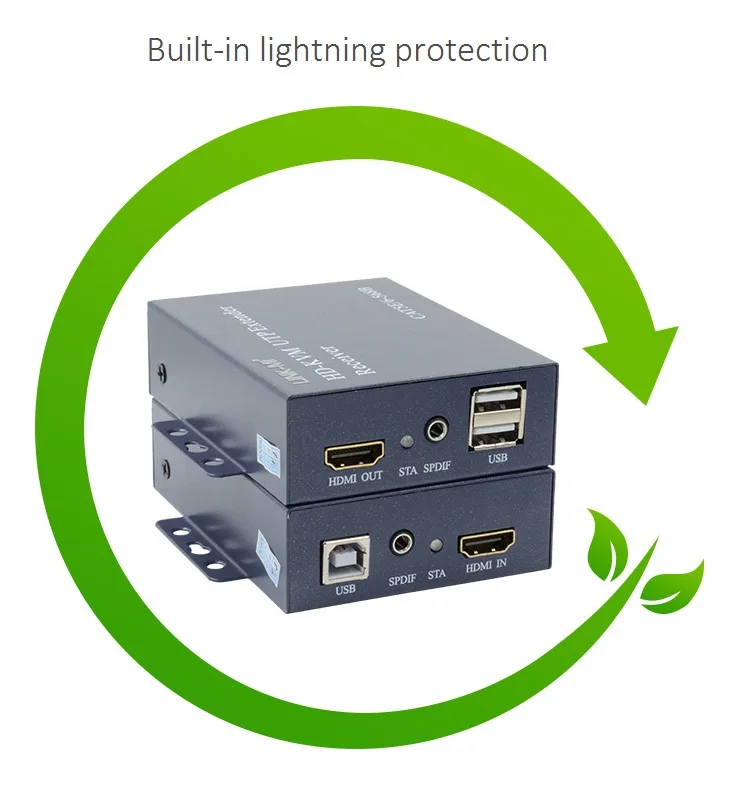

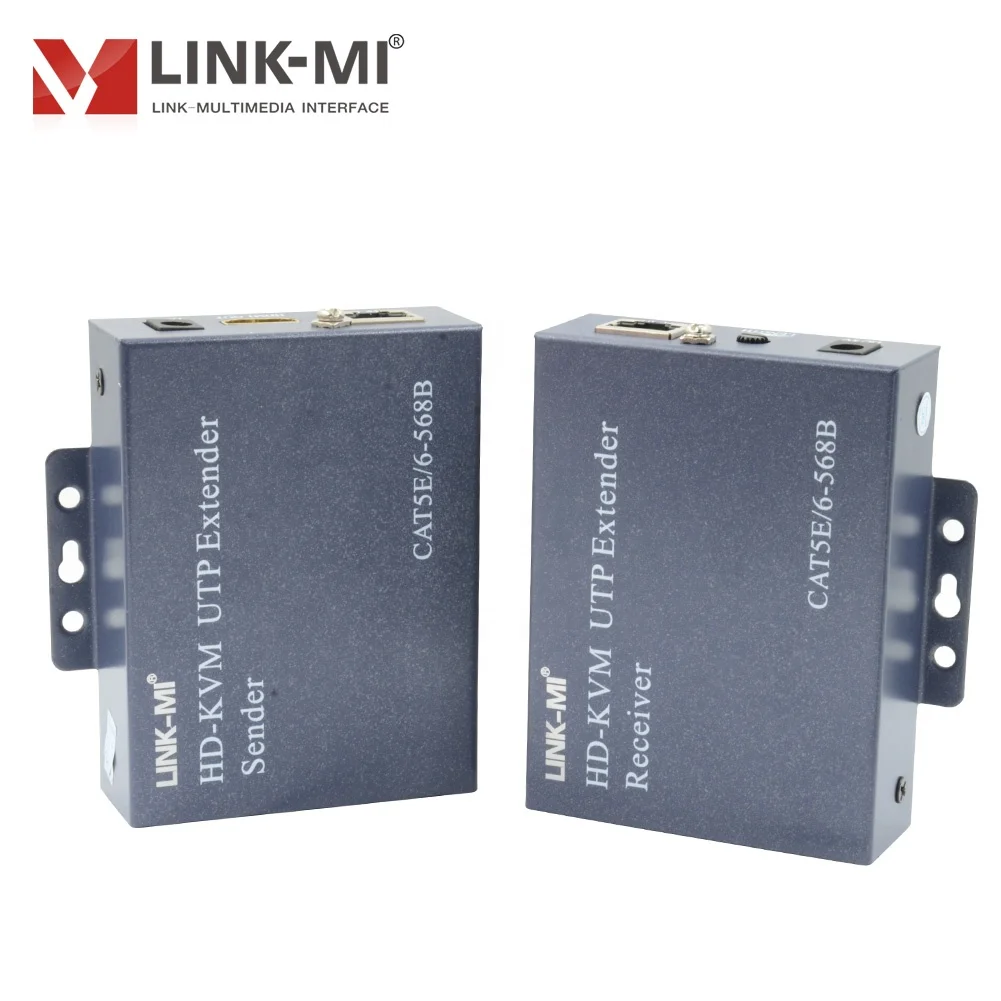

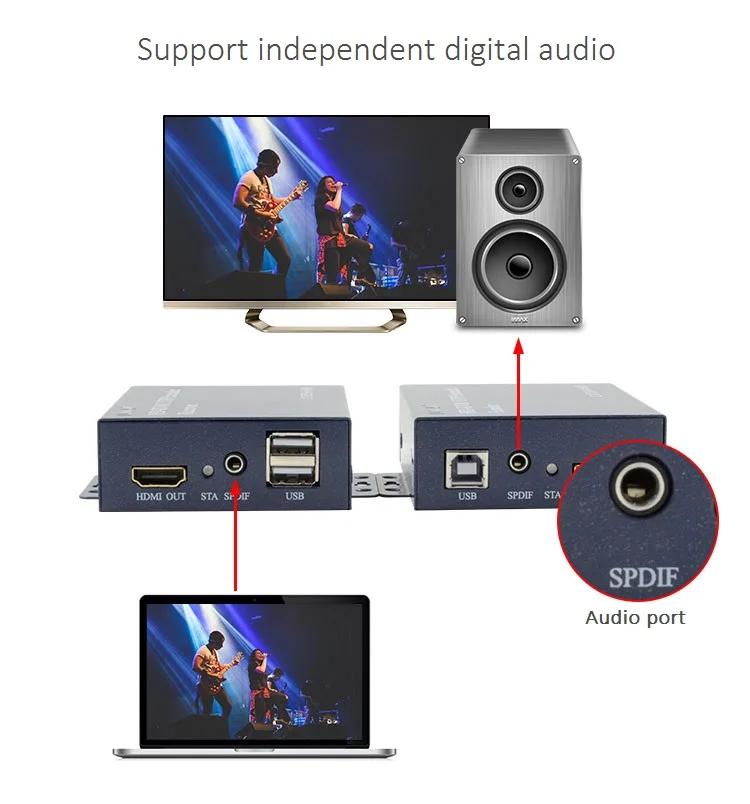

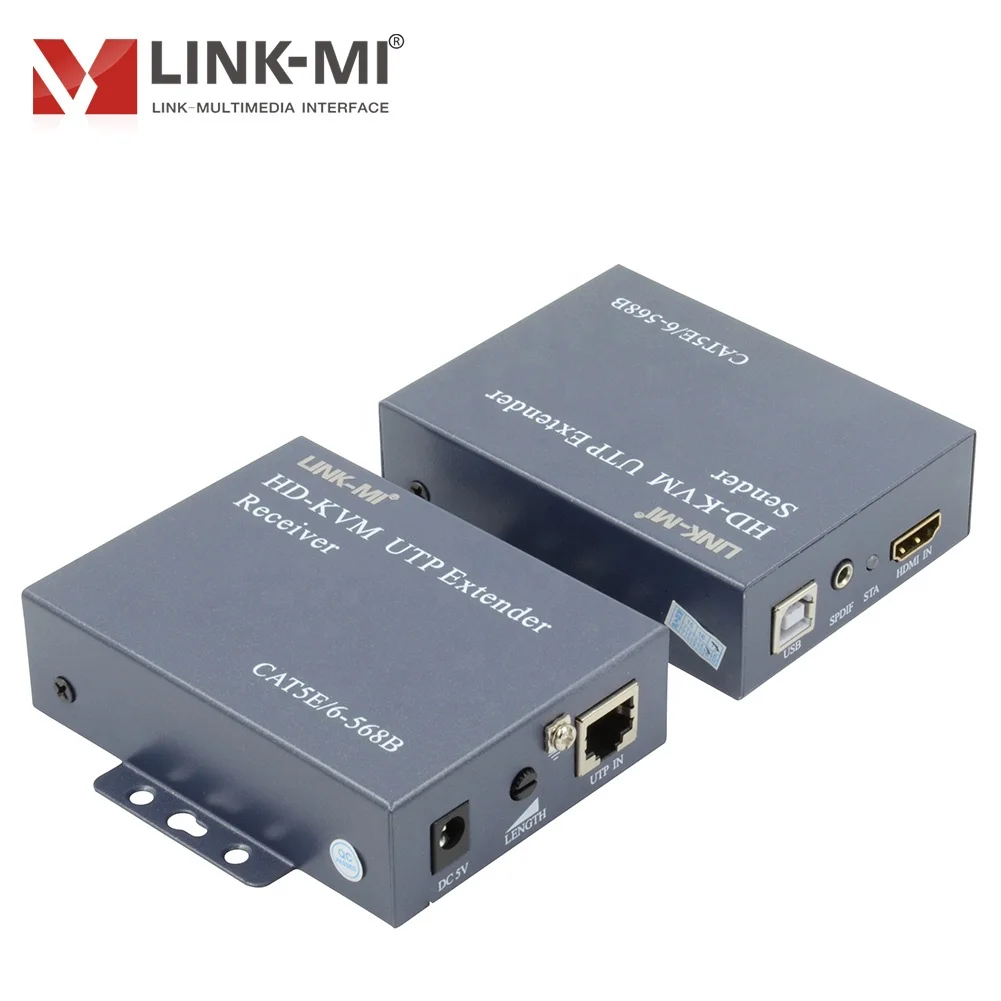

LINK-MI LM-K100H The HD-KVW extender, used for HD and non-condensed signal up to 100 meters, consists of a sender and a receiver. This product through a CAT5/5e or above Copper twisted pair (line sequence: white w/orange . orange. white w/green . blue . white w/blue. green. white w/brown . brown) extends those up to 1920 * 1080 @ 60HZ range resolution HD video, independent audio, USB mouse keyboard to the remote, as far as 100 meters, in the meantime, the transmitter provides a HDMI output port for local display. Different with conventional TCP/IP protocol 100 meters extender is this product image is a zero delay transmission, without image compression reduction is better; the products imported by the United States, real-time transmission of video and audio fidelity, USB mouse and keyboard signal, anti-interference circuit built-in lightning protection, which greatly improves the stability of products already working life. This product is widely used in the field of computer, home theater, monitoring, education, bank securities system etc..

2^nd Features

3^rd Panel Description

4^th Connection Diagram

5^th Specification

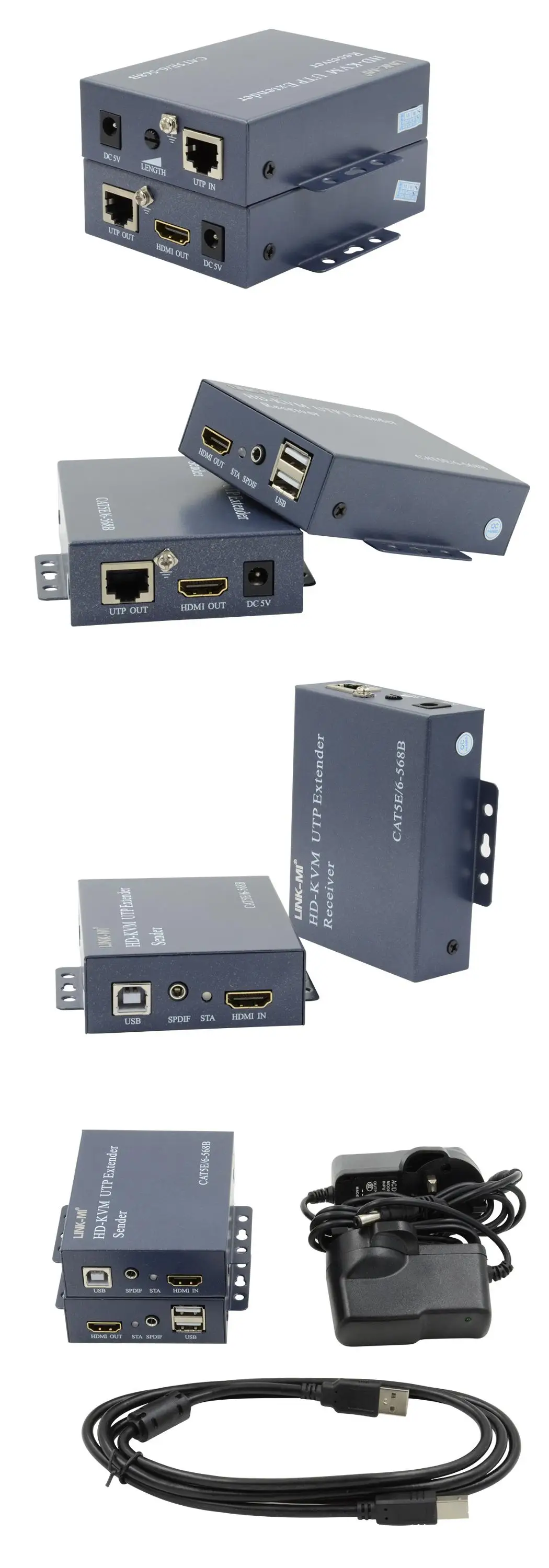

6^th Product Overview
