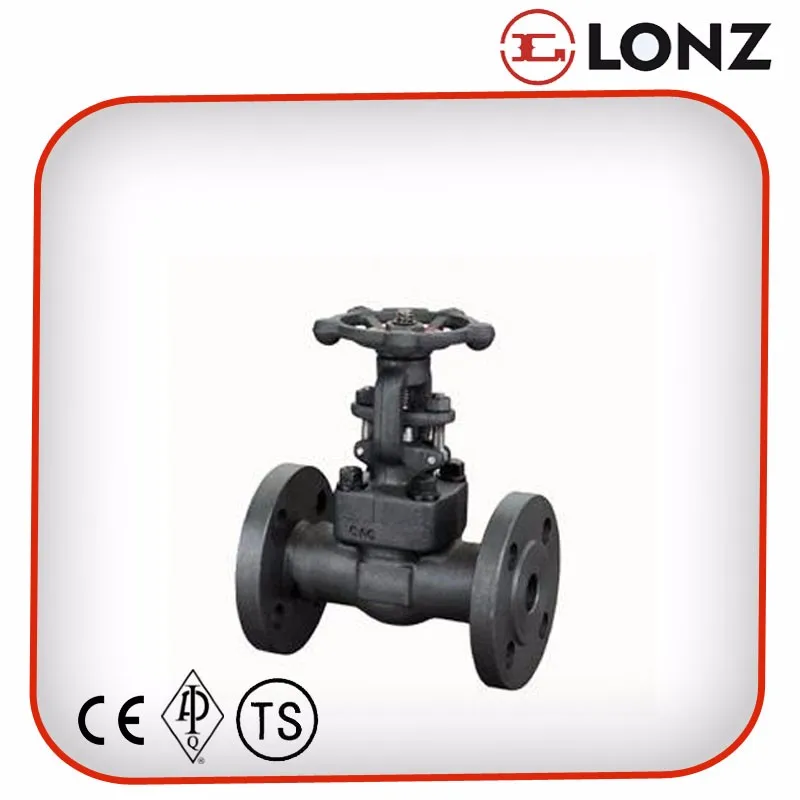

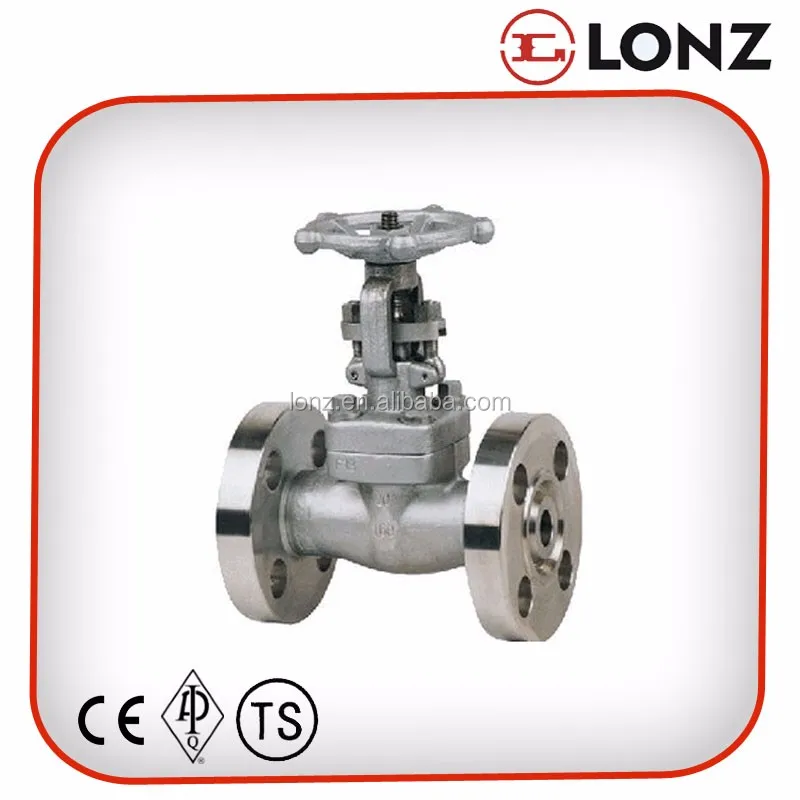

A105 800LB OS&Y Flanged Gate Valve 1 Inch
A105 800LB OS&Y Flanged Gate Valve 1 Inch
A105 800LB OS&Y Flanged Gate Valve 1 Inch

A105 800LB OS&Y Flanged Gate Valve 1 Inch

Share on (60589936025):


Price:RUB 18,954.50 - RUB 379,090.00

Quantity:


Product Overview

Description

1. Materials:  A105, A105N,F304,F316,F316L,F22,LF2...

2. Size: 1/2"~2"

3. Pressure: Class 150LB ~ Class 2500LB

4. Reduced or Full Port

5. BB & WB, OS&Y

6. Certification: API...

Product Name

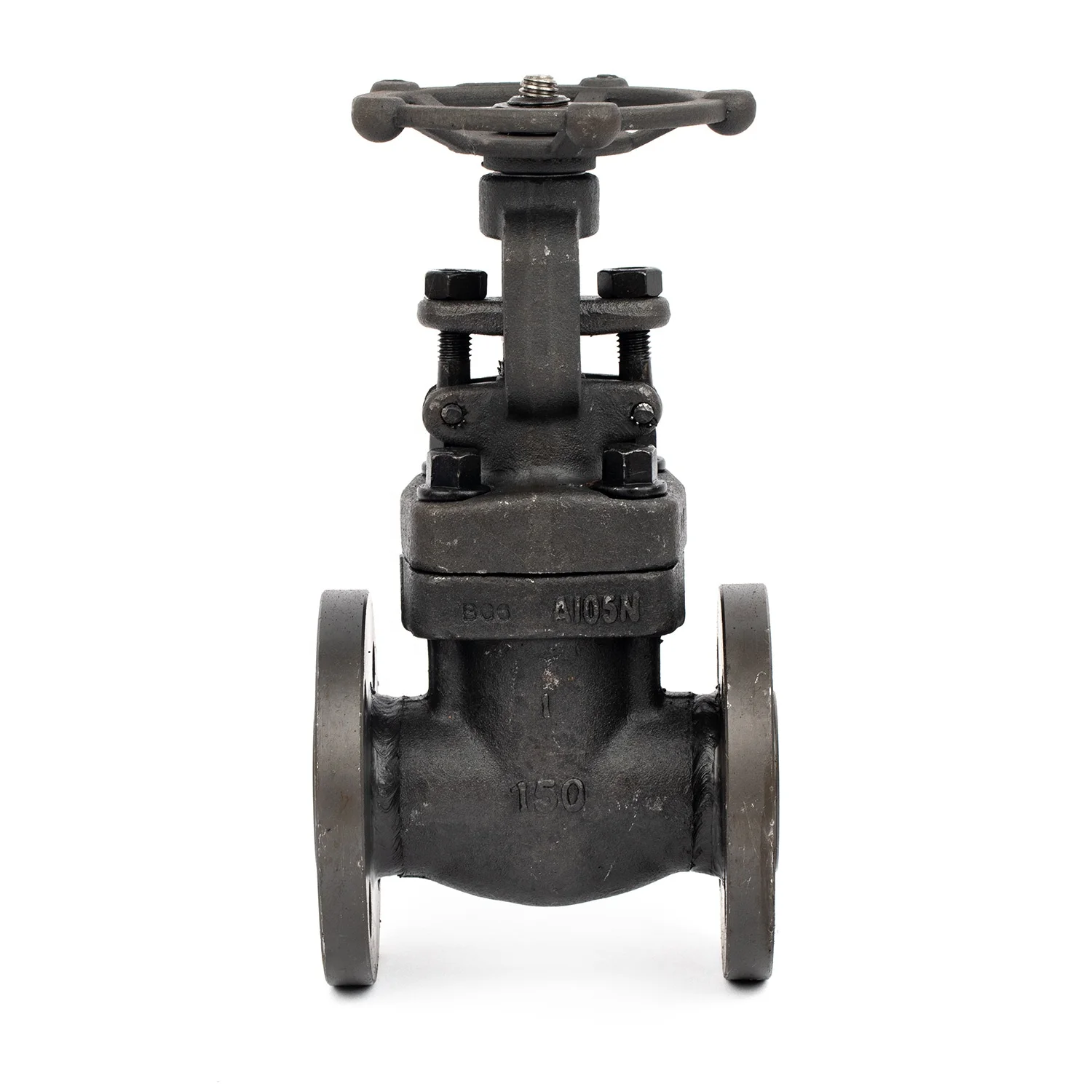

A105 800LB OS&Y Flanged Gate Valve 1 Inch
Material
A105,A105N,F304,F316,F316L,F22,LF2...
Design Standard
API 602 & ANSI B16.34
Socket Weld End
ANSI B16.11
Thread/ Screw End
ANSI B1.20.1
Butt Weld End
ANSI B16.25
Inspect & Test
API 598
Connection
RF, BW,SW

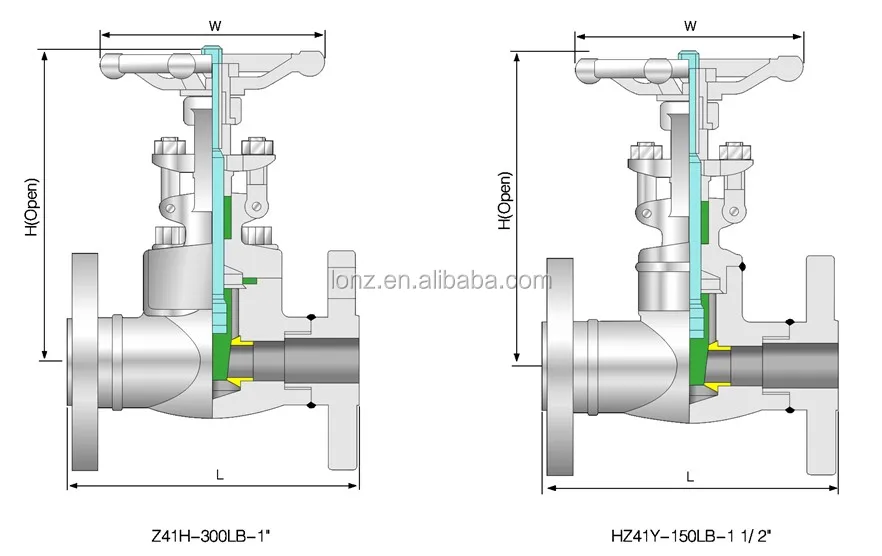

Products Show

No.

Part
Materials
A105
LF2
F5
F11
F22
F304
F304L
F316
1
Body
A105
LF2
F5
F11
F22
F304
F304L
F316
2
Seat Ring
A276-420+STL
F304+STL
F304+STL
F316+STL
3
Wedge
A276-420
F304+STL
F304+STL
F316+STL
4
Stem
A276-410
304
304L
316
5
Gasket
304+Graphite
316+Graphite
6
Bonnet
A105
LF2
F5
F11
F22
F304
F304L
F316
7
Packing
Graphite
PTFE
8
Bolt
B7
L7
B16
B8/B8M
9
Pin
A276 410
A276 304
10
Bushing
A276 410
A276 304
A276 316
11
Gland
A105
F304
12
Bolt
B7
L7
B16
B8/B8M
13
Nut
2H
A194 - 4
A194- 8
14
Gasket
A276- 410
15
Nut
A108-1045
16
Name Plate
Aluminum
17
Retaining Nut
A108-1020
18
Handwheel
A47
