LED Making Machine SMT Assembly Line

Product Overview

Description

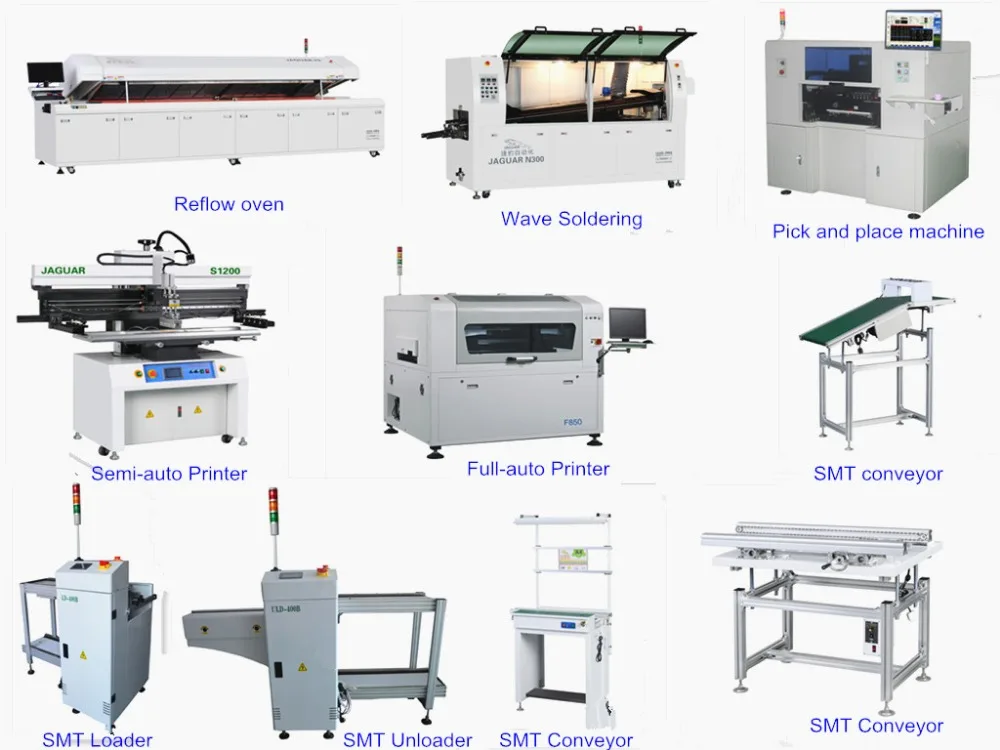

LED Making Machine JAGUAR SMT Assembly Line

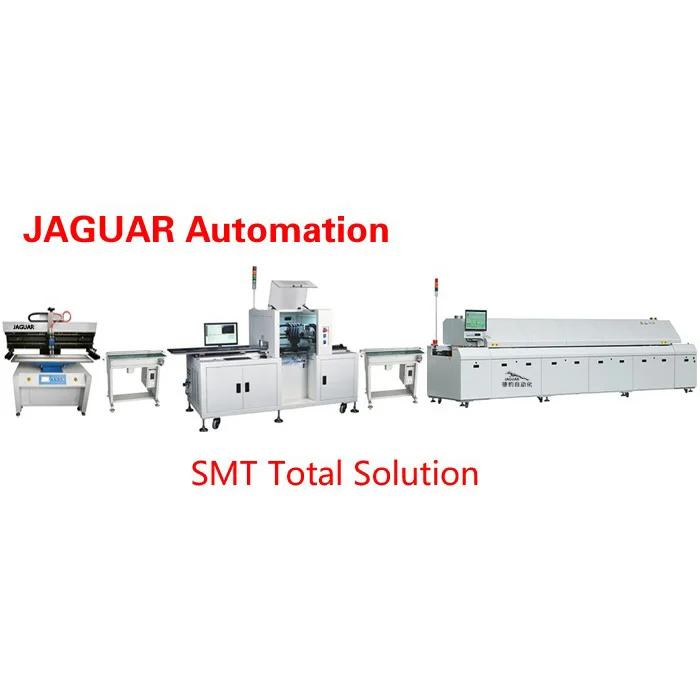

Semi-auto solder paste printer-Conveyor-4 heads pick and place machine-Conveyor-6 zones Reflow oven

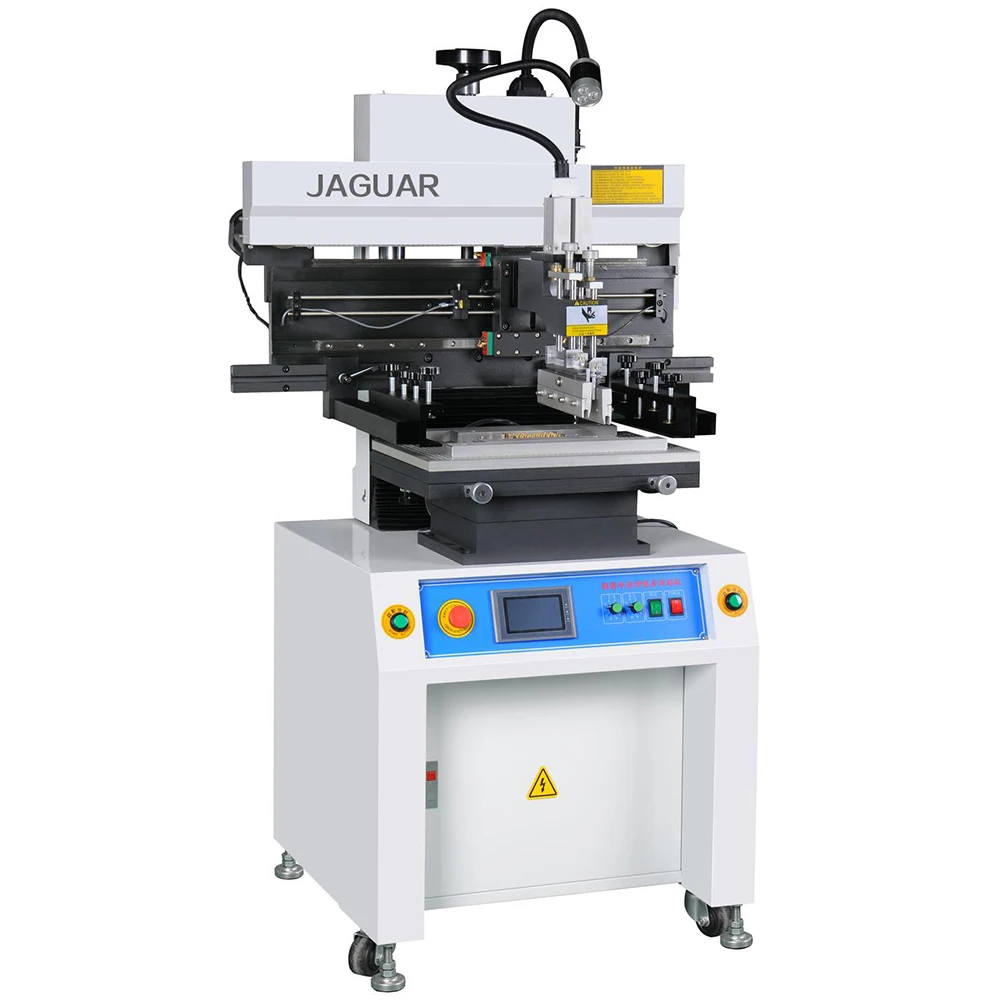

Feature:

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.

10.Printing speed display, can be adjusted.

Specifications:

Model	JAGUAR S1200
Dimensions	2000×720×1650mm
Platform size	300×1250mm
PCB size	250×1200mm
Printing speed	0-8000mm/min
PCB thickness	0.2-2.0mm
PCB fine tuning range	Front/side±10mm
Power supply	1PAC220V 50/60HZ
Platform height	850±20mm
Repeating precision	±0.01mm
Printing Accuracy	±0.02mm
Positioning mode	Outside/Reference hole
Weight	Approx.380Kg

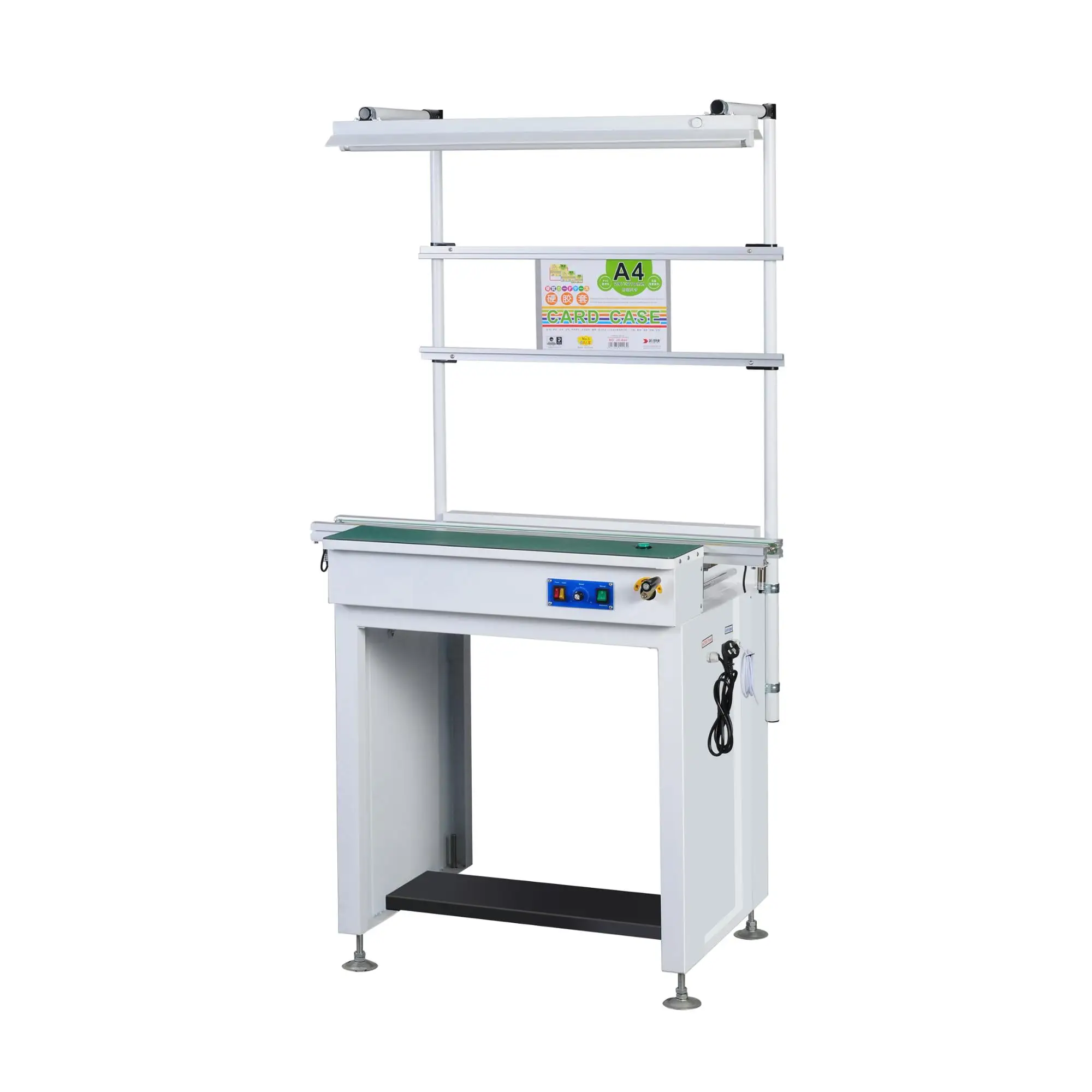

Features:

1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.

2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.

3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.

4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.

5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.

6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.

7.Increasing weight at the bottom to make machine uneasy to be moved, make connection more smoothly.

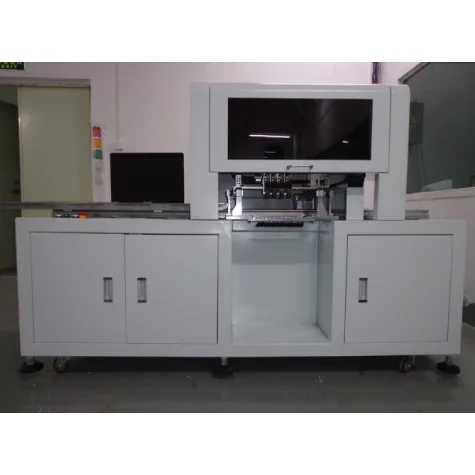

Futures:

1. SMT pick and place machine adopts Panasonic servo motor, imported railway to ensure it is stable and accuracy

2. SMT pick and place machine X.Y.Table axis adopts Panasonic servo drive, cooperated with imported liner railway ensures its accuracy and speed

3. Four mounting heads work simultaneously, much faster. SMT pick and place machine nozzle above and down adopts  imported railway with high precision and durable lifetime

4. Easy operate program,much more convenient,automatic vision makes position fixing more accurate and convenient

5. SMT pick and place machine have mutil-feeder optional,can meet different kinds of LED mounting.

6. Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.

7.Software adopts data system, and store different types of pcb for convenient adjustment,just need to programming one time for new products to use forever

8. Platform:Y axis, X axis can be moved manually,speed adjustable,can achieve arbitrary point manual arrived,convenient programming.

9. LED pick and place machine use imported vacuum detection system,it can check the suction accurately to prevent material leakage and throwing effectively

10. Internal negative pressure system: use imported vacuum pump

11. Optional:8mm,12mm,16mm,24mm automatic feeder,different nozzle,industrial pump,air compressor.

12. <![endif]>New function :added camera automatic recognition fidicul mark,however,automatic offset all coordinates position.

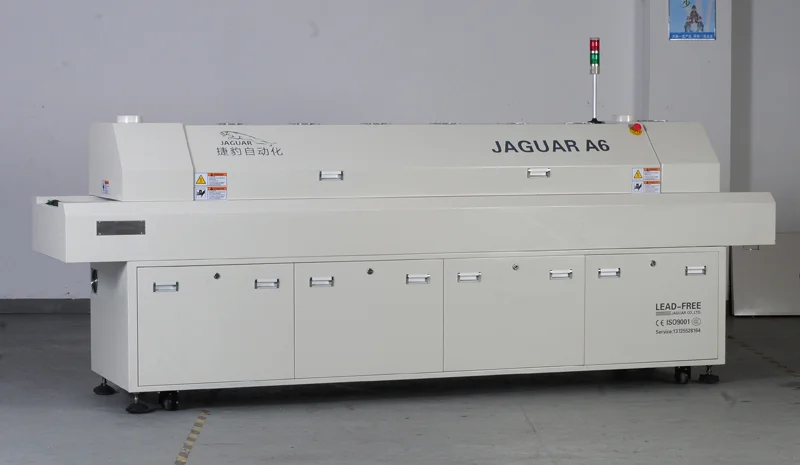

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .

3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .

4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside

No.2 Smooth and reliable transmission system

1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1000mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .

2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .

3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .

4. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.

5. Failure diagnosis and sound light alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.
