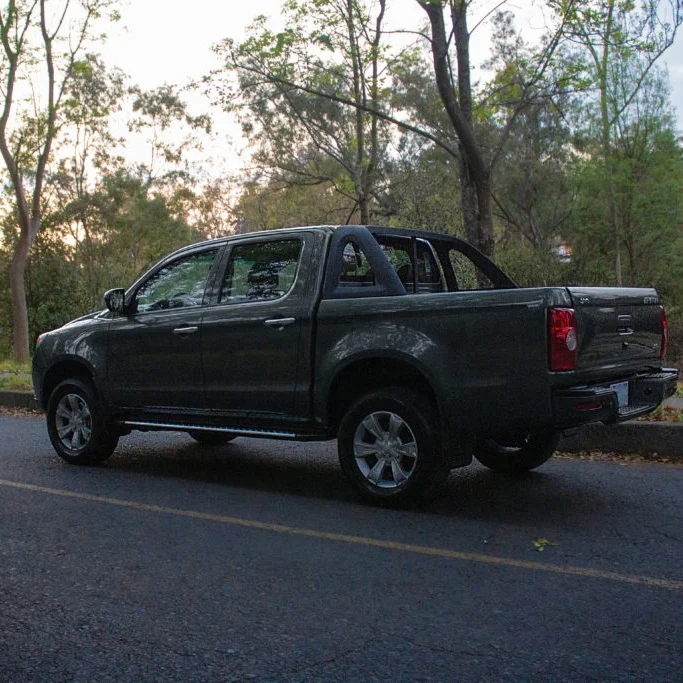

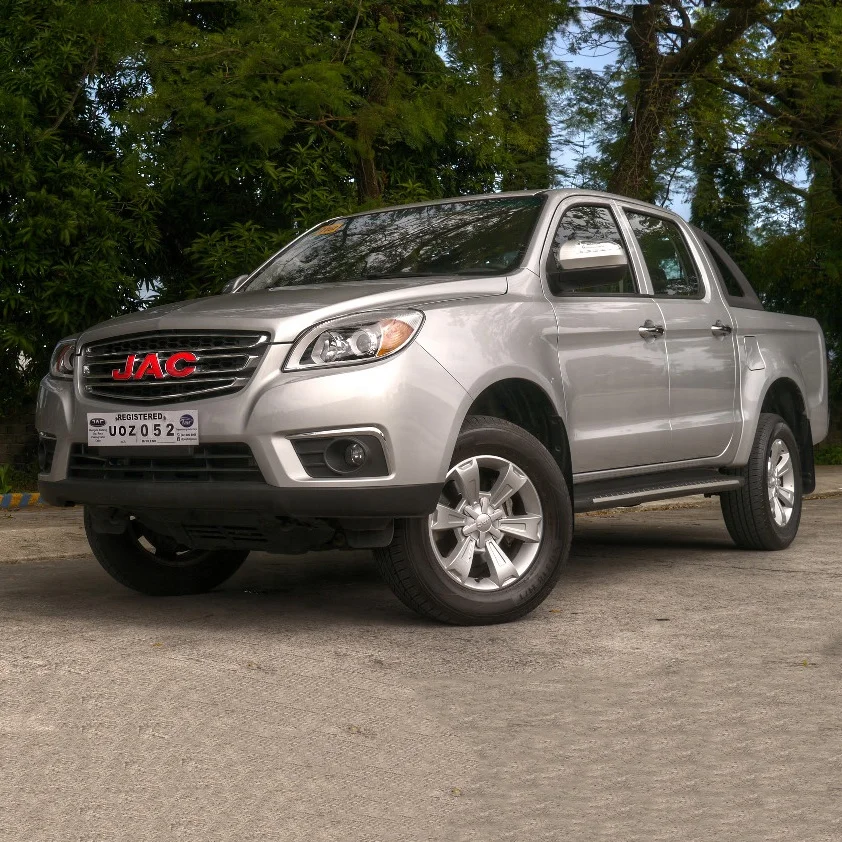

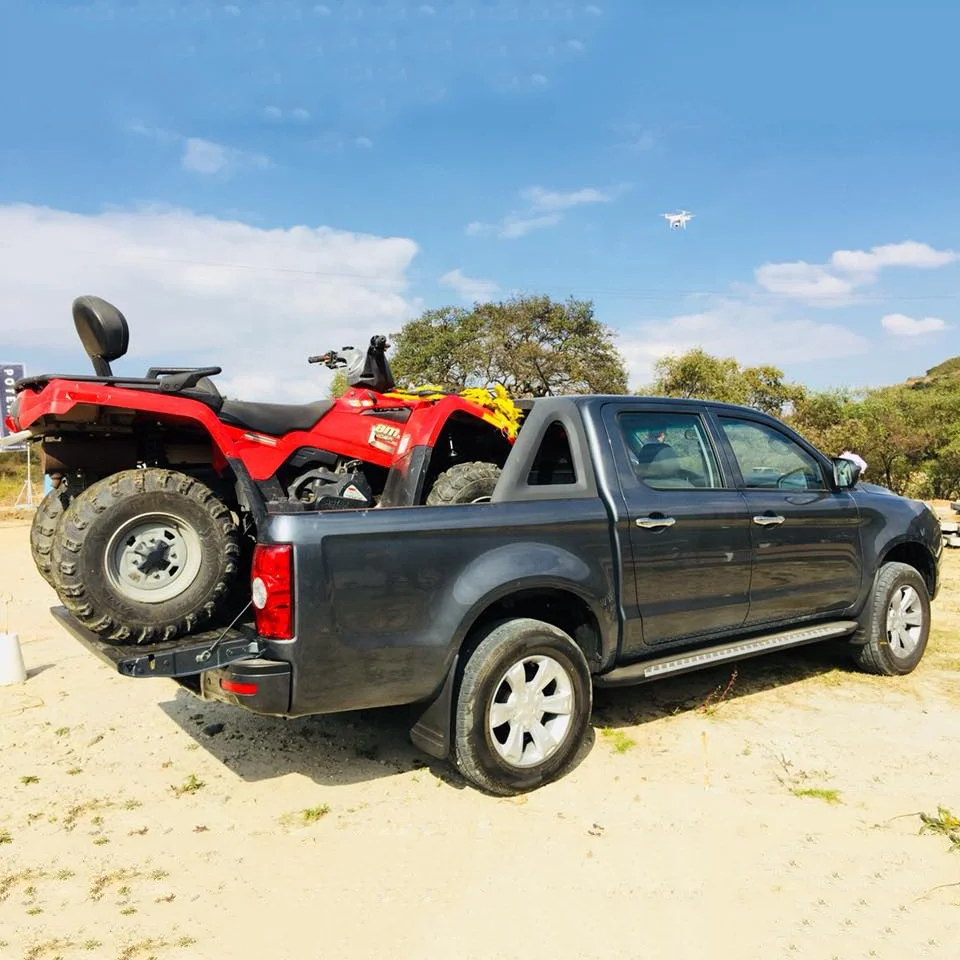

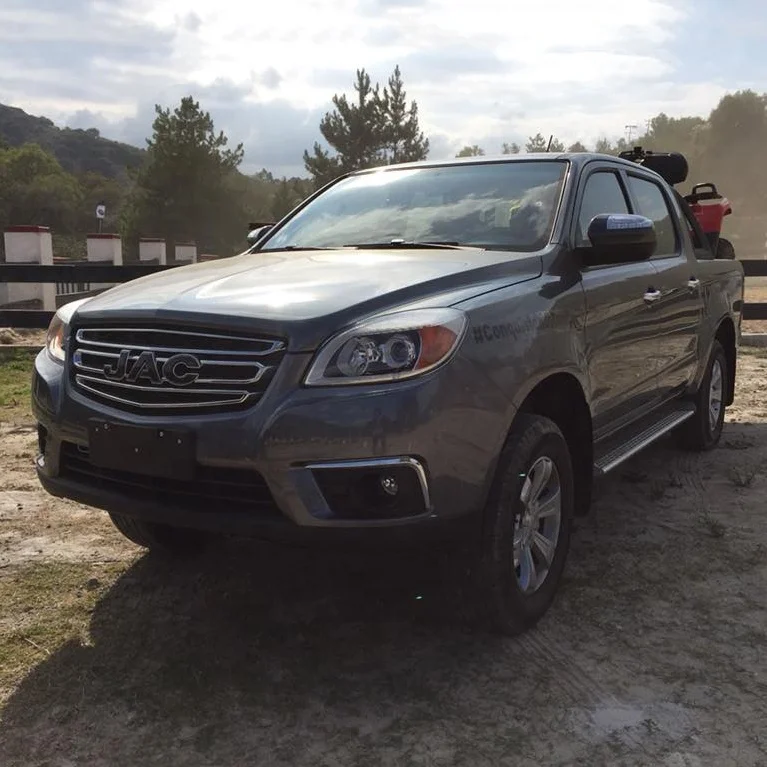

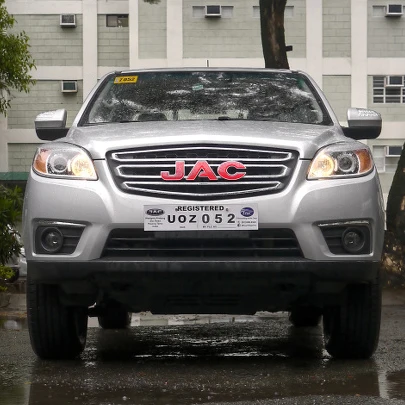

Chinese JAC Double Cab 4x2 LHD Pickup Truck for Sale
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (60590109460):
Product Overview
Description
| Double Cabin 4X2 Pick-up Specifications | |||
| Version | 4x2 Diesel Standard | 4x2 Diesel Luxury | |
| (L/R) | Left | Left | |
| Cabin | DOUBLE CABIN | DOUBLE CABIN | |
| Dimensional parameter | Overrall Dimensions(L×W×H)(mm) | 5315*1830*1815 | 5315*1830*1815 |
| Rear body size (inner) | 1520*1520*470 | 1520*1520*470 | |
| Wheelbase(mm) | 3090 | 3090 | |
| Tread (front / rear )FT/RT (mm) | 1540/1540 | 1540/1540 | |
| GVW (kg) | 2715 | 2715 | |
| Curb Weight(kg) | 1815 | 1815 | |
| Payload(kg) | 900 | 900 | |
| Passenger Capacity | 2+3 | 2+3 | |
| Mini Ground Clearance(mm) | 197 | 197 | |
| FF/RF (mm) | 945/1280 | 945/1280 | |
| Max Gradeability(%) | 30 | 30 | |
| Min Turing Radius(m) | 6.2 | 6.2 | |
| Approach / Departure Angle | 29.6/22.4 | 29.6/22.4 | |
| Power performance | Drive Mode | 4*2 | 4*2 |
| Engine | HFC4DA1-1 | HFC4DA1-1 | |
| Engine Type | in line-4, int-cooler turbocharged, diesel | in line-4, int-cooler turbocharged, diesel | |
| Displacement (cc) | 2771 | 2771 | |
| Max Power (KW/r/min) | 68/3600 | 68/3600 | |
| Max Torque (Nm/r/min) | 216/1800-2000 | 216/1800-2000 | |
| Emission Standard | II | II | |
| Transmission | LC5T80 | LC5T80 | |
| Gear Ratio | 4.271;2.283;1.414;1; 0.813;R:3.814 | 4.271;2.283;1.414;1; 0.813;R:3.814 | |
| Rear Axel Ratio | 3.909 | 3.909 | |

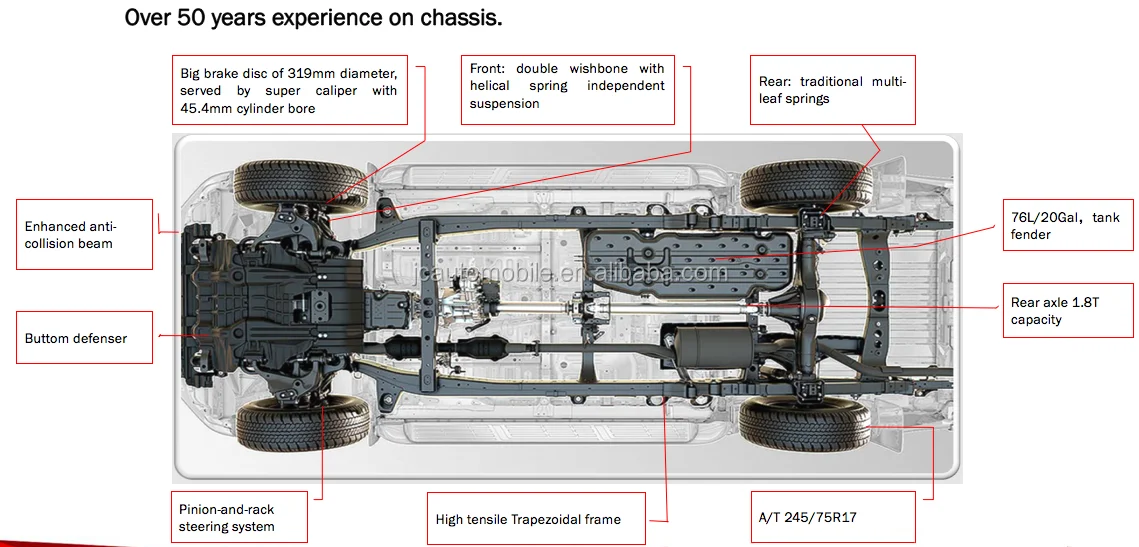

| Chassis & Steering | Front suspension | Double wishbone independent suspension with spiral spring | Double wishbone independent suspension with spiral spring |
| Rear suspension | Non-independent rear leaf spring suspension | Non-independent rear leaf spring suspension | |
| Steering | Hydraulic power steering | Hydraulic power steering | |
| Wheel & Brake | Front brake | Disc | Disc |
| Rear brake | Drum | Drum | |
| Parking brake | Ratchet type cable remote operation, acting on the rear drum brakes | Ratchet type cable remote operation, acting on the rear drum brakes | |
| Tire size | 245/65R17 | 245/65R17 | |
| Safety equipment | ABS | YES | YES |
| EBD | YES | YES | |
| Double Airbag | NO | YES | |
| Front Seat Seat Belt Height adjustable | YES | YES | |
| Driver seat belt with alarm system | YES | YES | |
| Front seat headrest | YES | YES | |
| Rear seat headrest | YES | YES | |
| Central door locking | YES | YES | |
| Power window lock function | YES | YES | |
| Auto Lock | YES | YES | |
| Remote Control | YES | YES | |
| Center High Mounted Stop Light( CHMSL) | NO | YES | |
| Child safety lock | YES | YES | |
| Rear parking sensor | YES | YES | |

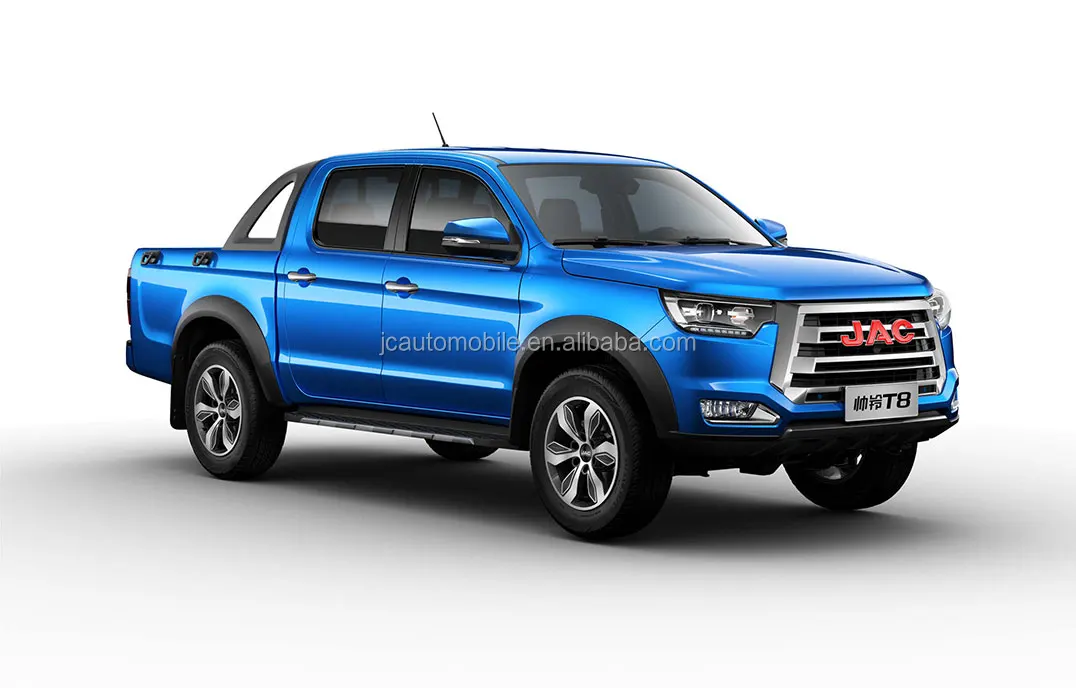

We have also a high-end model T8 available for you and please kindly click below:
JAC Pickup
