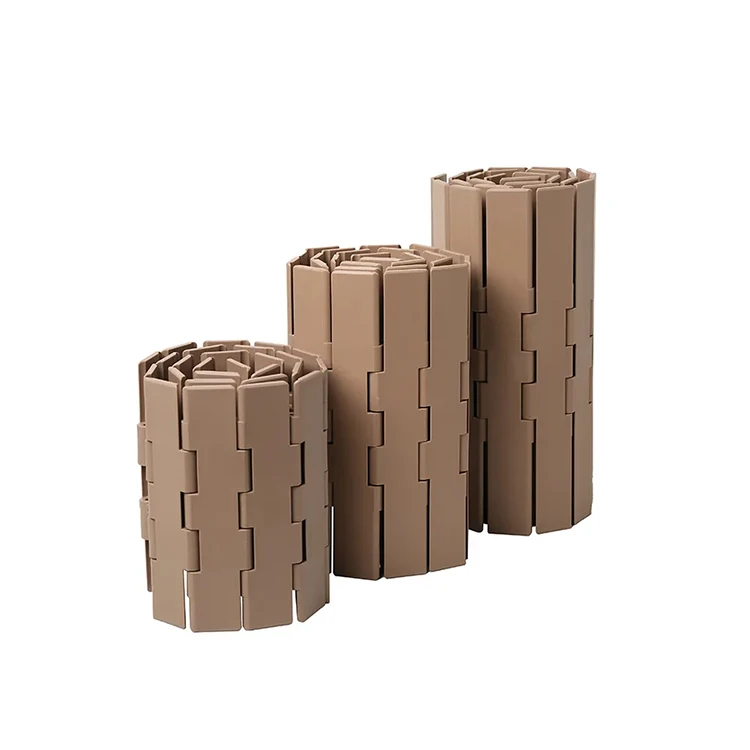

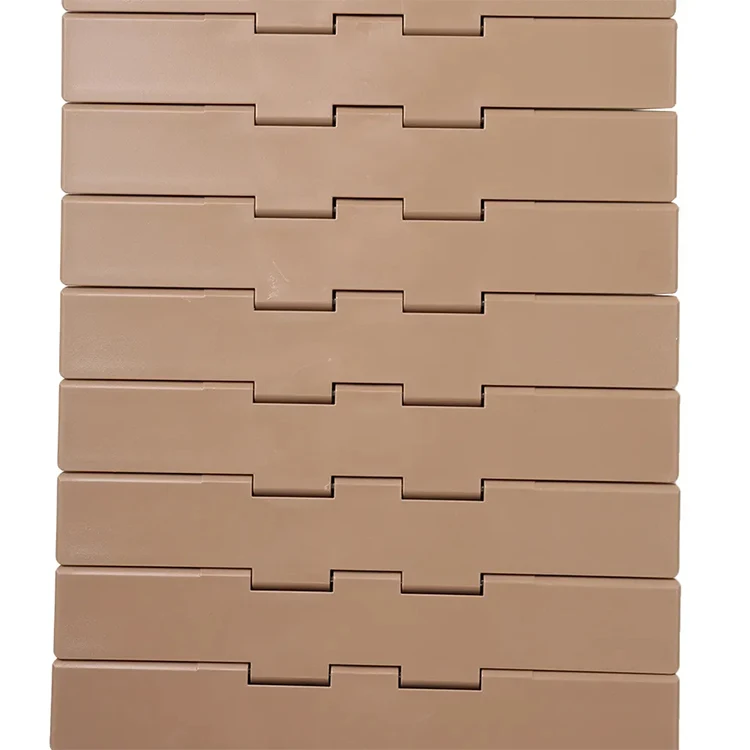

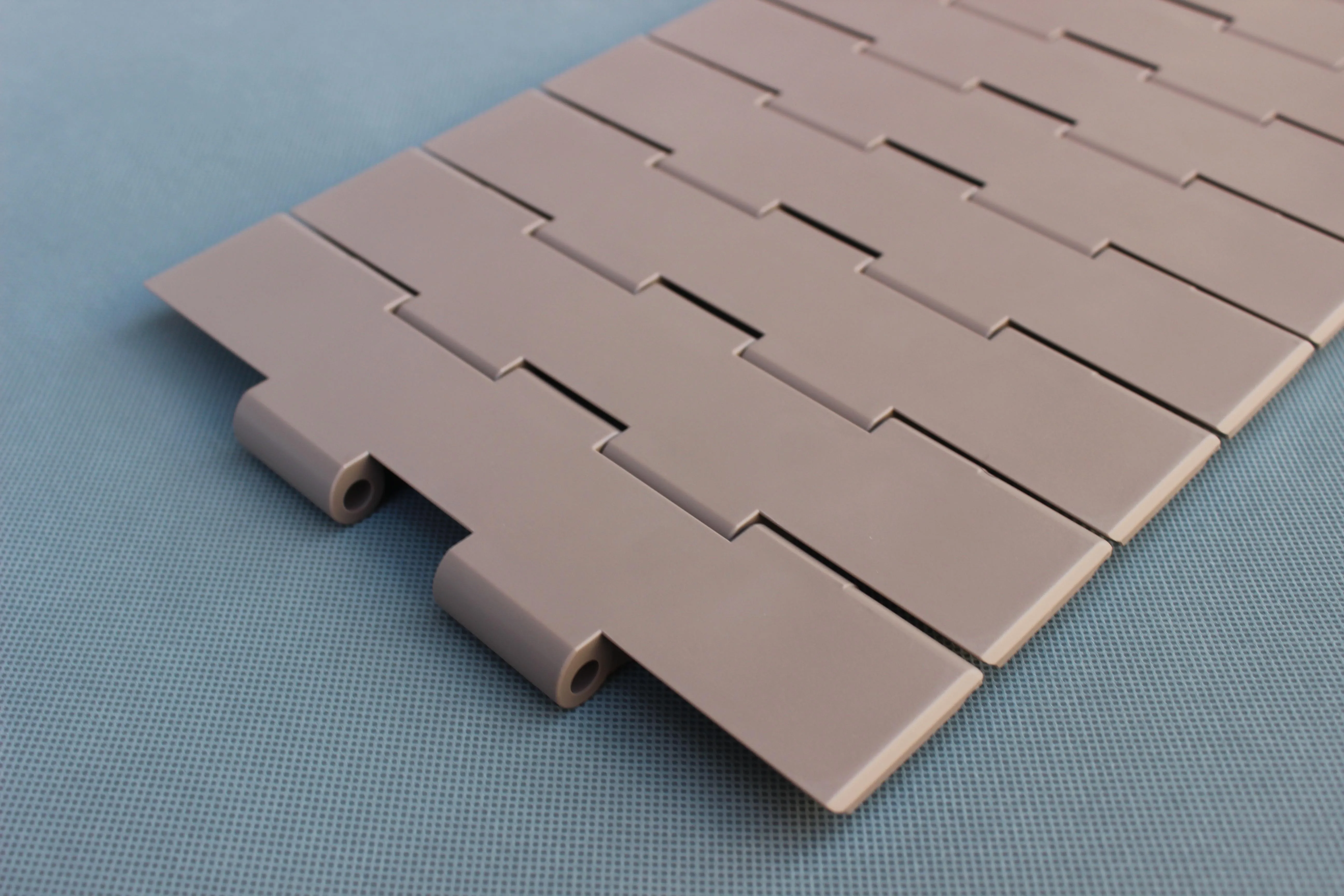

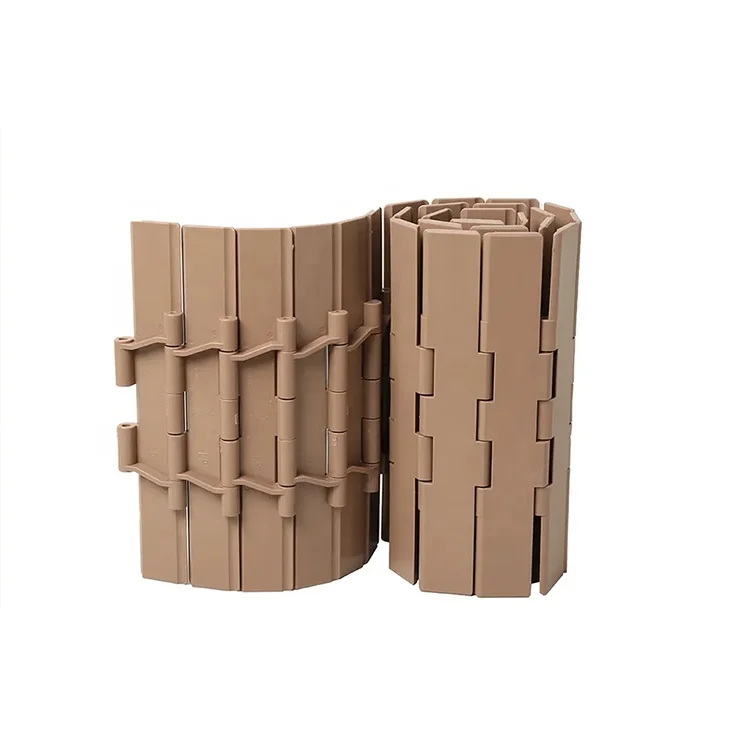

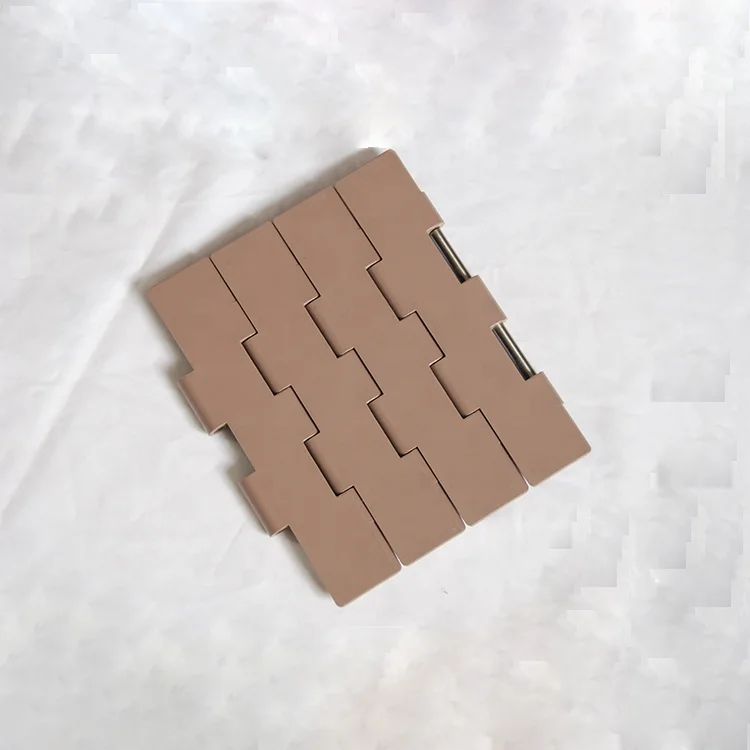

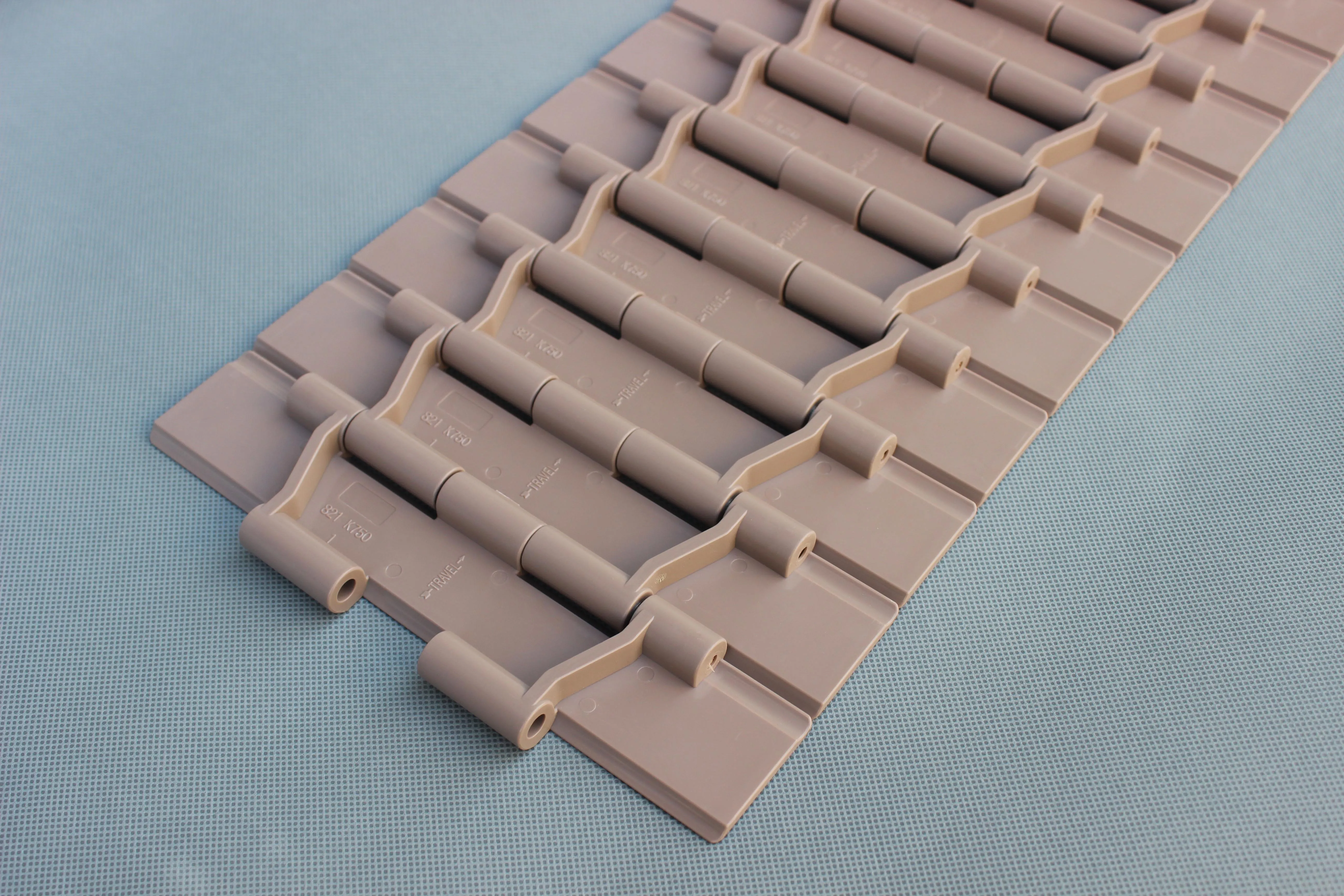

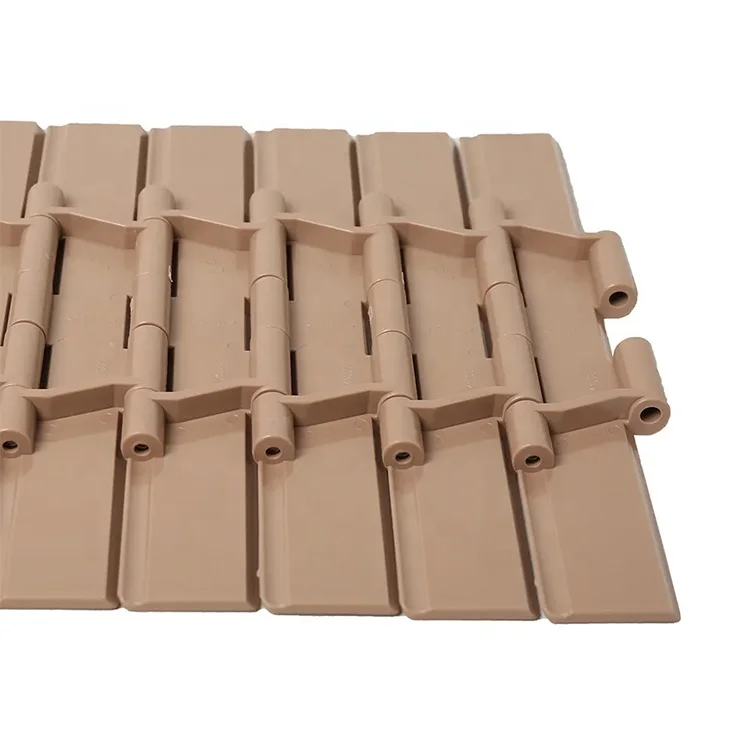

Factory wholesale 821 K1000 double hinge plastic straight chains flat table top conveyor chains
- Category: >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (60590177348):
Product Overview
Description
Short Description
Mainly used for all kindly of food industry,such as beverage, bottle,can and other conveyors.

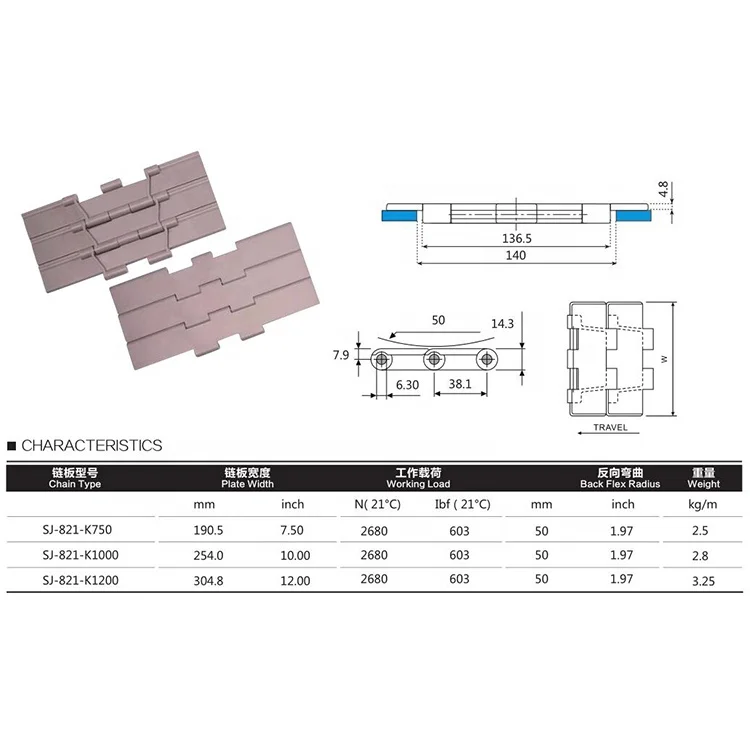

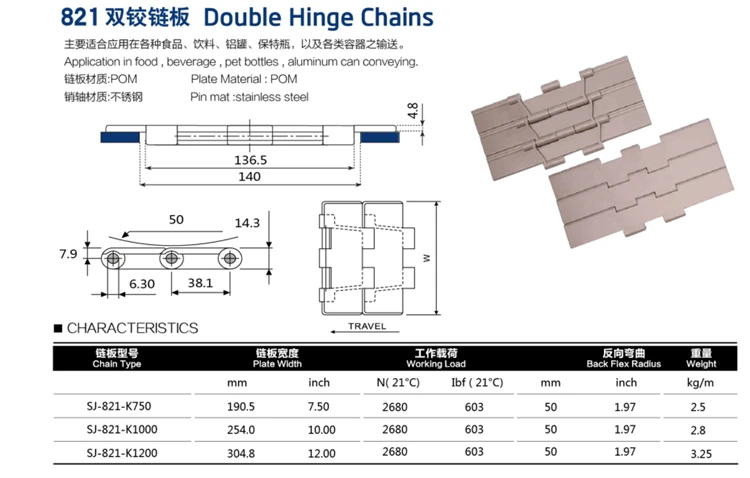

Product Parameters
Chain Type | Plate Width | Working Load | Back Flex Radius(min) | Weight | ||||||
mm | inch | N(21℃) | Ibf(21℃) | mm | inch | Kg/m | ||||
821-K750 | 190.5 | 7.5 | 2680 | 603 | 50 | 1.97 | 2.5 | |||
821-K1000 | 254.0 | 10.00 | 2.8 | |||||||
821-K1200 | 304.8 | 12.0 | 3.25 | |||||||

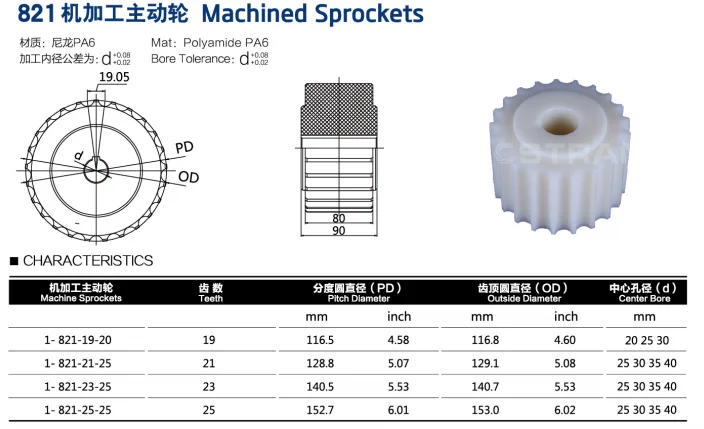

Machined Sprockets
Machined Sprockets | Teeth | PD(mm) | OD(mm) | D(mm) |
1-821-19-20 | 19 | 116.5 | 116.8 | 20 25 30 |
1-821-21-25 | 21 | 128.8 | 129.1 | 25 30 35 40 |
1-821-23-25 | 23 | 140.5 | 140.7 | 25 30 35 40 |
1-801-25-25 | 25 | 152.7 | 153.0 | 25 30 35 40 |
Advantage
It is suitable for single channel or multi-channel straight line transportation of
bottles, cans, box frames and other products.
The conveying line is easy to clean and convenient to install.
Hinge pin shaft connection, can add replacement chain joint.
Sprockets and idlers of SS802, 821, 822 chain plate are universal .
bottles, cans, box frames and other products.
The conveying line is easy to clean and convenient to install.
Hinge pin shaft connection, can add replacement chain joint.
Sprockets and idlers of SS802, 821, 822 chain plate are universal .
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
ABOUT US
What we do
With 17 years of production and R&D experience in the conveyor industry, We have 10 R&D teams and nearly 500 existing molds set.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
History of the company
exhibition
Cooperative enterprise
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
