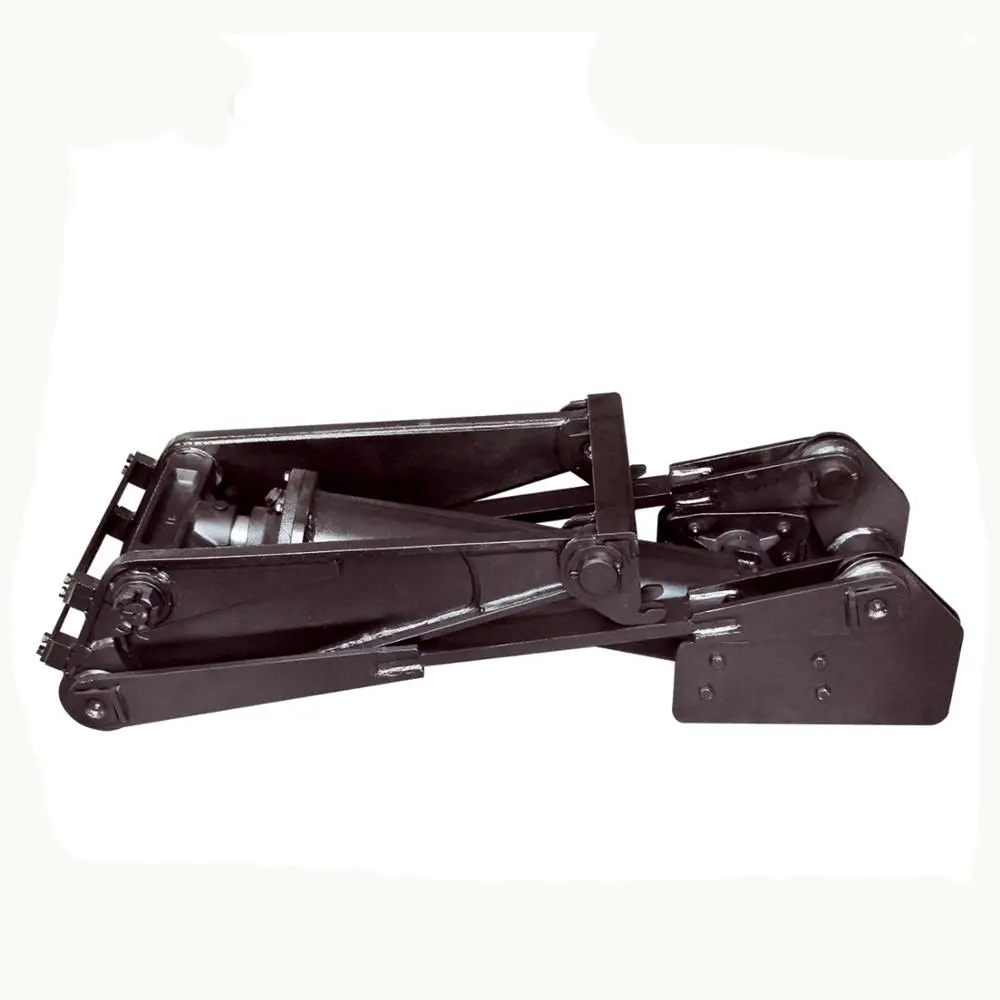

Brand new Krm167/146 Hoist dump truck hidrolic hoist with low price
- Category: >>>
- Supplier: Jiangsu Fangrui Machinery Co. Ltd.
Share on (60590233299):
Product Overview
Description
Product Description

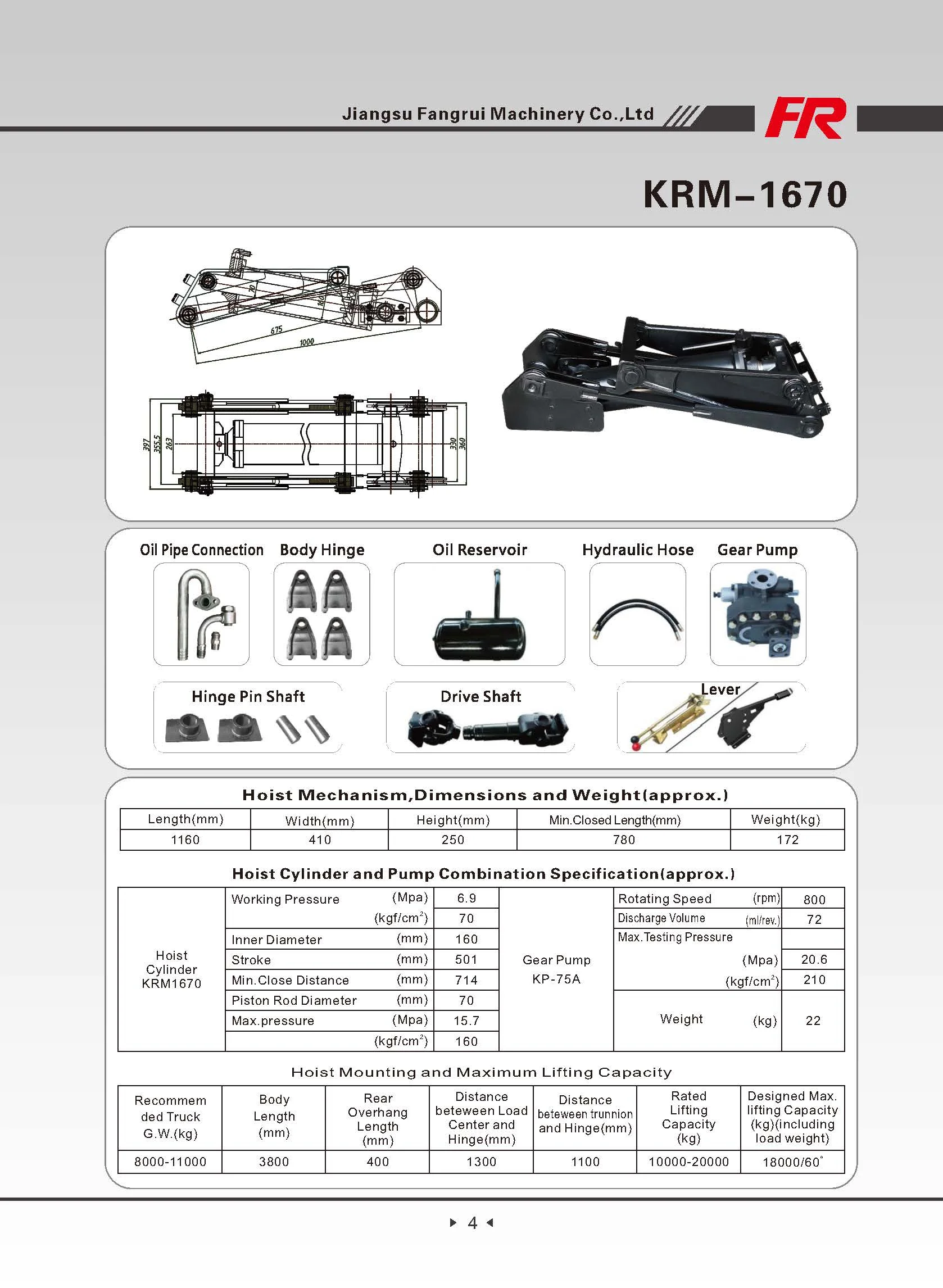

Cylinder specification
| Model | Piston rod diameter (mm) | Cylinder Inner diameter (mm) | Stroke (mm) | Weight (kg) | Working pressure (Mpa) | Min.Close distance (mm) |
| KRM-167 | 70 | 160 | 501 | 70 | 6.9 | 714 |
Hoist Mechanism,Dimensions and Weight (approx.)
| Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
| 1160 | 410 | 250 | 780 | 170 |
Gear pump specification
| Model | Rotating speed (rpm) | Discharge Volume (ml/rev.) | Max.Testing pressure(Mpa) | Weight(kg) |
| KP-75A | 800 | 72 | 20.6 | 22 |
Hoist Mounting and Maximum Lifting Capacity
| Recommend -ed Truck G.W (kg) | Body length (mm) | Rear Overhang Length(mm) | Distance between trunnion and hinge (mm) | Distance between Load Center and hinge (mm) | Rated Lifing Capacity (Kg) | Designed Max.Lifing Capacity including load weight (kg) |
| 8000-11000 | 3800 | 400 | 1100 | 1300 | 10000-20000 | 18000/60° |
