New Type SCB 114 Edge Milling Machine Tube Deburring Machine
- Category: >>>
- Supplier: Shanghai Taole Machine Co. Ltd.
Share on (60590536051):
Product Overview
Description
Product Name:
New Type SCB-114 Edge Milling Machine Tube Deburring Machine
Specifications:
| Model | Working range | Thickness | Speed | Weight |
| ESCB-63 | Dia. 14~63mm | ≤15mm | 30~120r/min | 13 Kgs |
| ESCB-114 | Dia. 57~114mm | ≤15mm | 30~120r/min | 16 Kgs |
Characteristic:
- Drive Options: Pneumatic, Hydraulic, and Electric
- Air requirement: 1500L-3000L Per minute 0.6/0.7Mpa
- Hydraulic requirement: 2-60L per minute 12.5Mpa
- Electric requirement:220-240V 1PH 50/60HZ
- Feed mode: Star wheel, automatically
- Feed rate: Fixed 0.08mm per circle
- Packaging: Plywood case
Order Guide:
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed

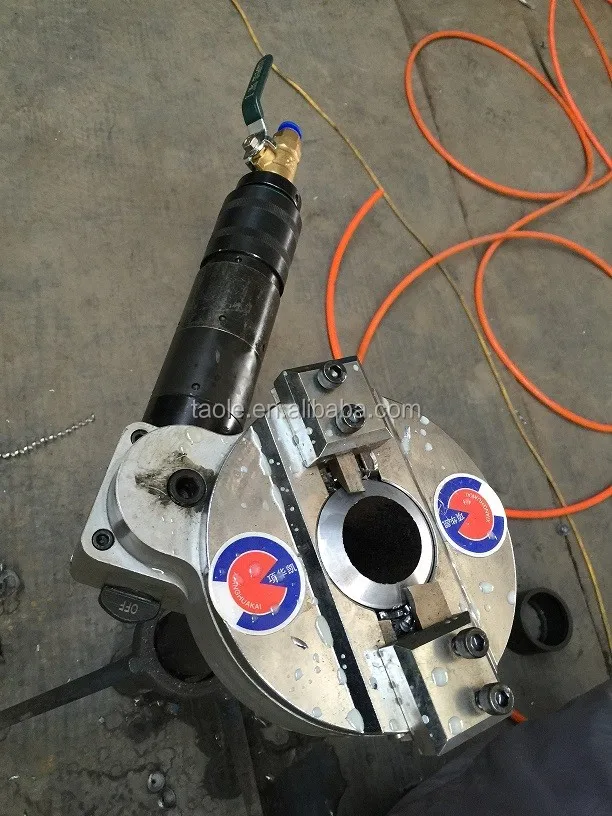

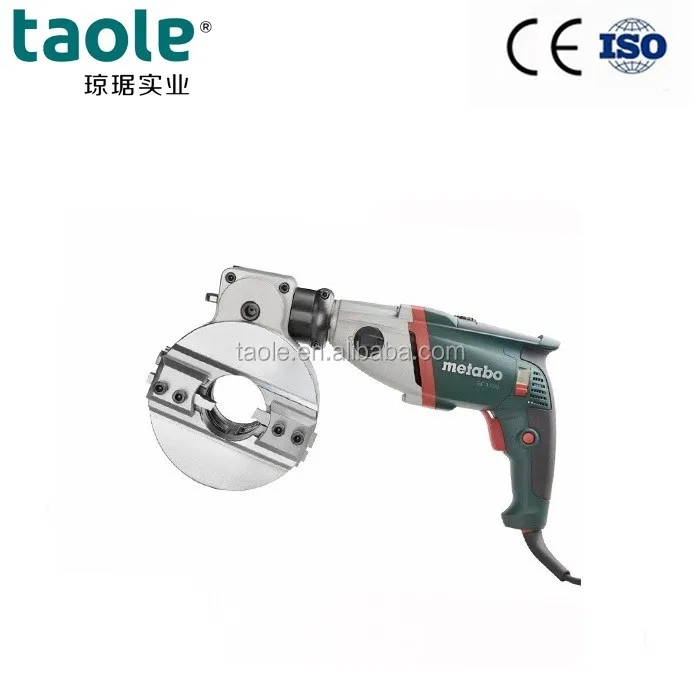

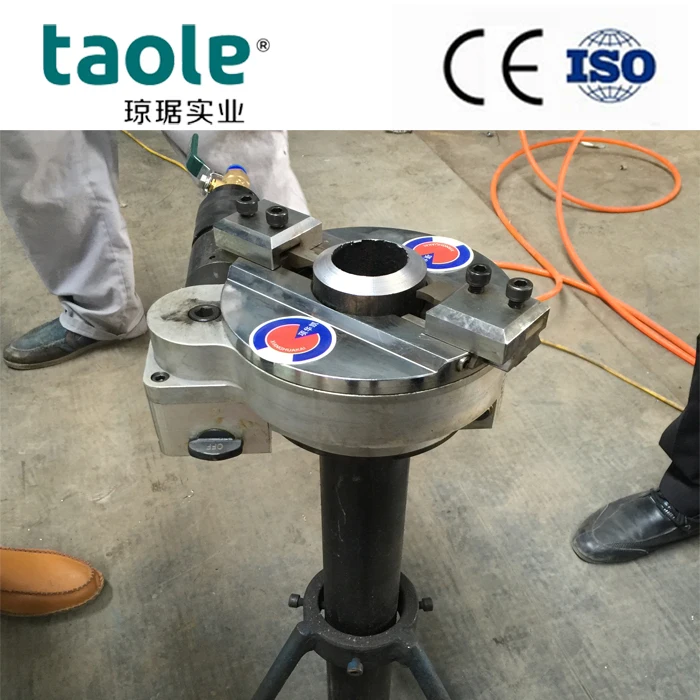

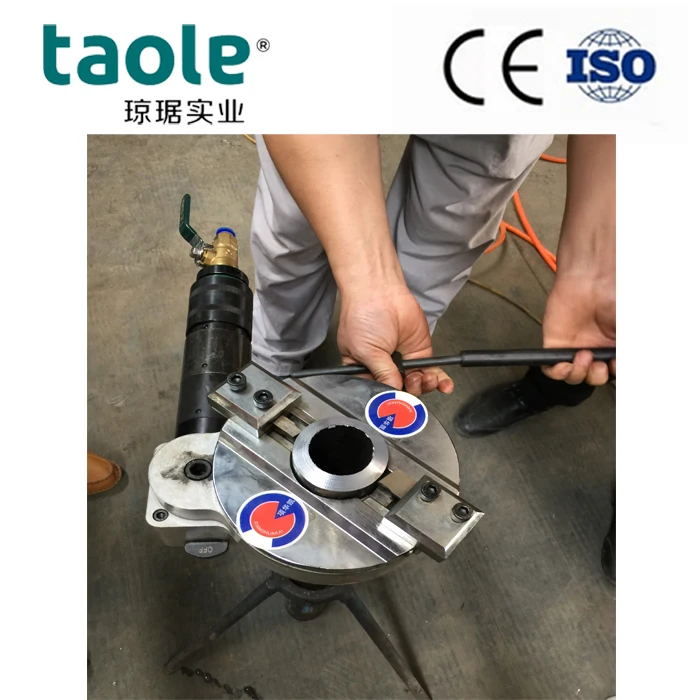

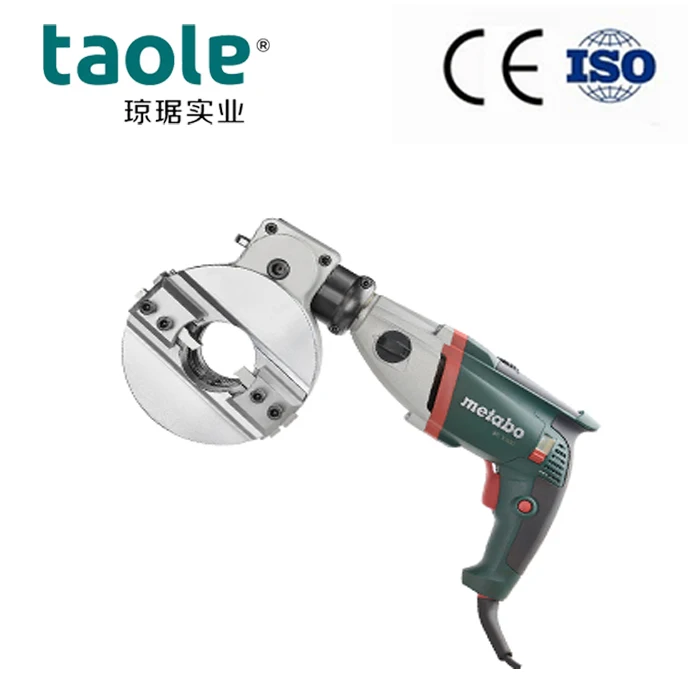

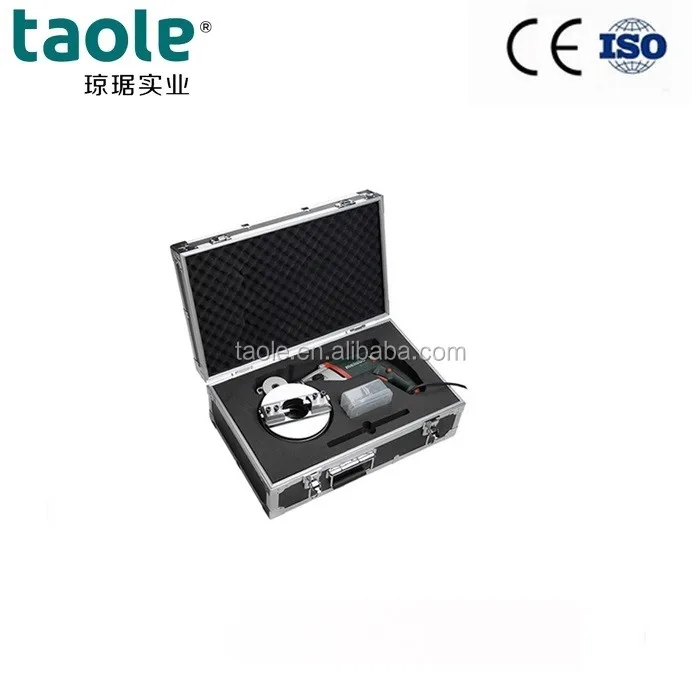

Real Pictures:
Company Information
Shanghai Taole machinery Co., Ltd. provides high quality Metal Processing Machines like metal plate edge beveling & milling machines, Pipe cutting & beveling machines. We have more than 12 years' service and technical experience in the welding industry, we are one integrated industrial company who owns professional team from Designing, Production, Sales, Aftersales Service.
