Product Overview
Description
Torch Height Controller cnc cutting machine mini gantry cnc plasma/flame cutting machine
Product Description

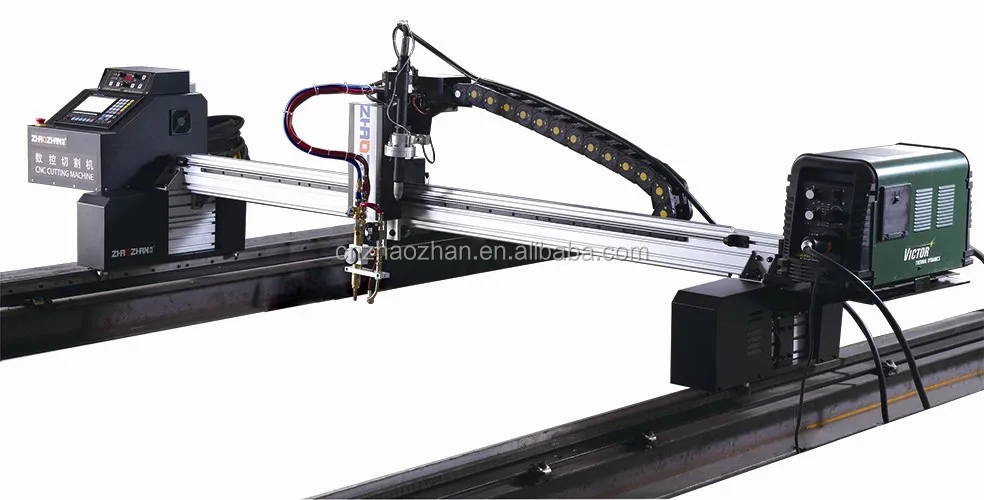

MINI GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE
Mini Gantry Style CNC Flame Plasma Cutting Machine is launched by SHANGHAI ZHAOZHAN AUTOMATION EQUIPMENT CO.LTD,
ZZ-Lcollection with economical and convenient advantages enjoys broader cutting range, thick plate cutting and high applicability, high
-intensity, labor-saving and space-saving features which further utilize the performance of the equipment. Machine tool and beam are
of good quality aluminum alloy which is anti-deformed, durable, economical and decent after the disposal of stress relieving and surface
oxidation.It is a kind of CNC cutting equipment with high efficiency and high precision,and can reduce labor intensity. It is widely used in
the process of cutting metal plate in machinery manufacturing industry, and can cut steel, stainless steel, aluminum, coppper and many
kinds of non-ferrous metal.
1.The beam has double-layer special aluminum alloy structure, and the aluminum alloy has been processed by stress relief treatment
and surface oxidation process which enables its high rigidity, high intensity and corrosion resisting and guarantees the precision of
operation.
2. Lengthways used double drive style to move so as to keep cutting smooth and with good precision.
3. Lengthways used T rail especially for high precision rack. Its working surface has been made by grinding process, which makes
machine work with stability and high precision.
Specification:
| Name | MINI GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE | ||||
| Model | ZZ-2040G-ST | ZZ-2540G-ST | ZZ-2040G-ST2 | ZZ-2540G-ST2 | ZZ-3040G-ST2 |
| Motor Style | Dual Drive of 57 Series Step Motors + Reduce Gear Boxes | Dual Drive of 86 Series Step Motors + Reduce Gear Boxes | |||
| Effective Cutting Range for each Tool X*Y | 1500*3000mm | 2000*3000mm | 1500*3000mm | 2000*3000mm | 2500*3000mm |
| Customizing | Track length (effective cutting length Y axis) can be customized for extending cutting length | Track length (effective cutting length Y axis) can be customized for extending cutting length | |||
| Tracks Between Distance | 2000mm | 2500mm | 2000mm | 2500mm | 3000mm |
| Track length | 4000mm | 4000mm | 4000mm | 4000mm | 4000mm |
| Tool Quantity | One Tool | One Tool | |||
| Torch Height Control Style | Flame THC : Optional / Plasma THC: Optional | Flame THC : Optional / Plasma THC: Optional | |||
| One Tool only can support one Flame THC or one Plasma THC | |||||
| Max.Cutting Torch Quantity | 2 sets, as plasma and flame torches replaceable | 2 sets, as plasma and flame torches replaceable | |||
| Optional Torch Style (Plasma:P Flame:F) | P / F / P+F | P / F / P+F | |||
| Moving Speed | 0-4000mm/min | 0-6000mm/min | |||
| Input Power | Single Phase AC 220V | Single Phase AC 220V | |||
| Approximately 600W | Approximately 1000W | ||||
| Cutting Modes | Plasma Cutting (Working with plasma generator) / Flame Cutting / Plasma Cutting + Flame Cutting | ||||
| Transmission Style | Rack And Gear | ||||
| Torch Lifting Distance (Z) | ≤90mm | ||||
| Working Precision | ± 0.2 mm / meter | ||||
| Flame (Gas) Cutting Thickness | Piercing Capacity: 5 - 60 mm Edge Start: 5 - 120mm | ||||
| Plasma Cutting Thickness | Depends on the cutting capacity of the Plasma Generator | ||||
| Flame Auto Igniter | Include in Flame Device | ||||
| Gas Pressure | Acetylene Gas or Propane Gas Max 0.1Mpa | ||||
| Oxygen Pressure | Oxygen Gas Max 0.8Mpa | ||||
| Cutting Table And Base | We will supply drawings of cutting table. Base (H-beam) and cutting table are not supplied. | ||||

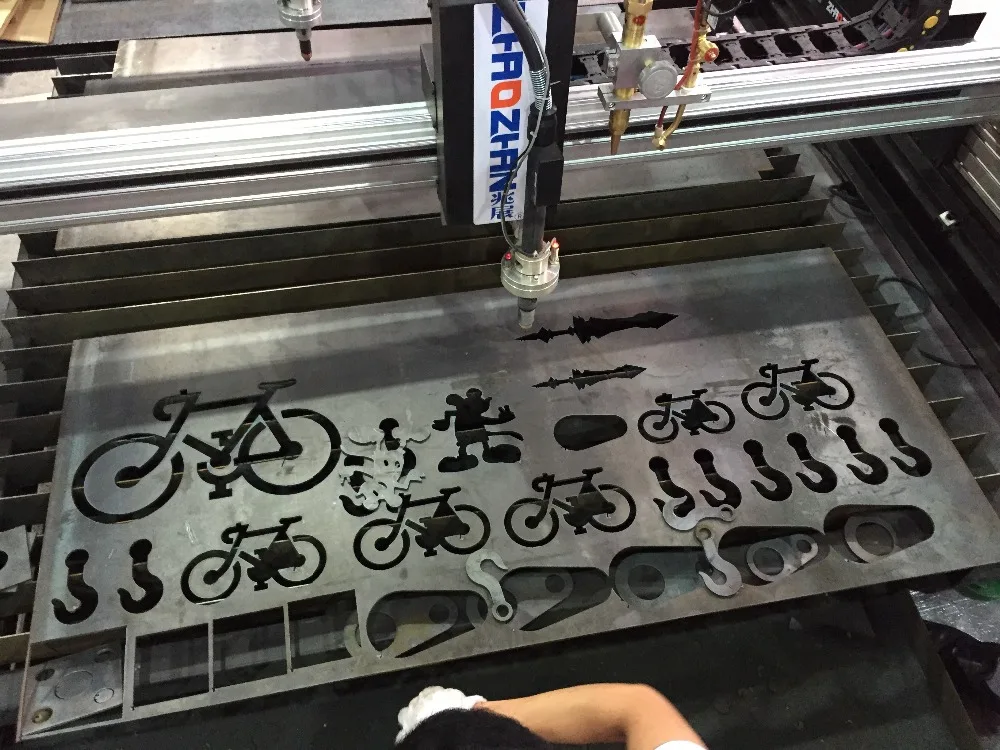

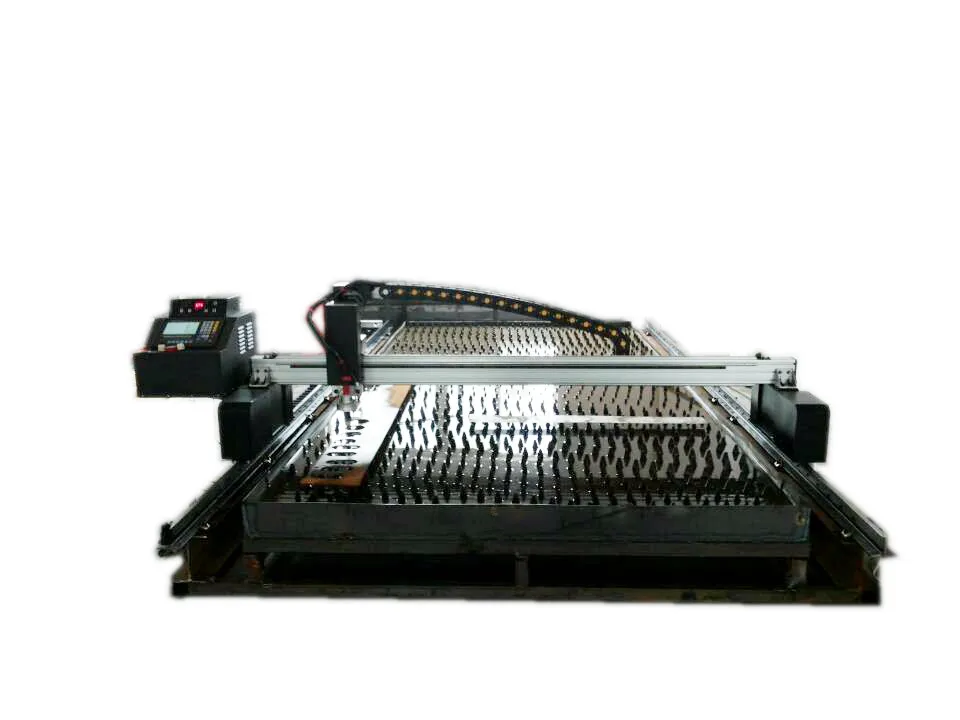

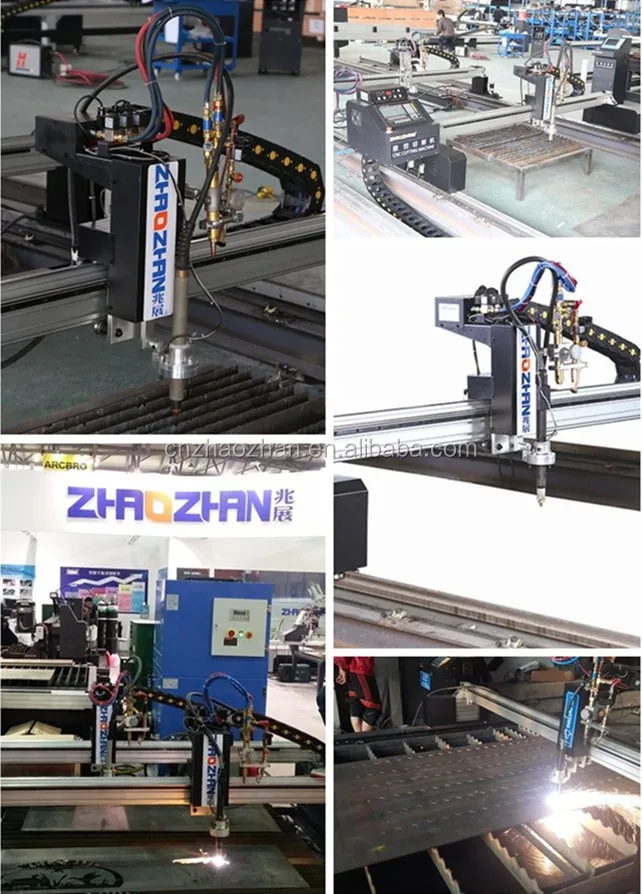

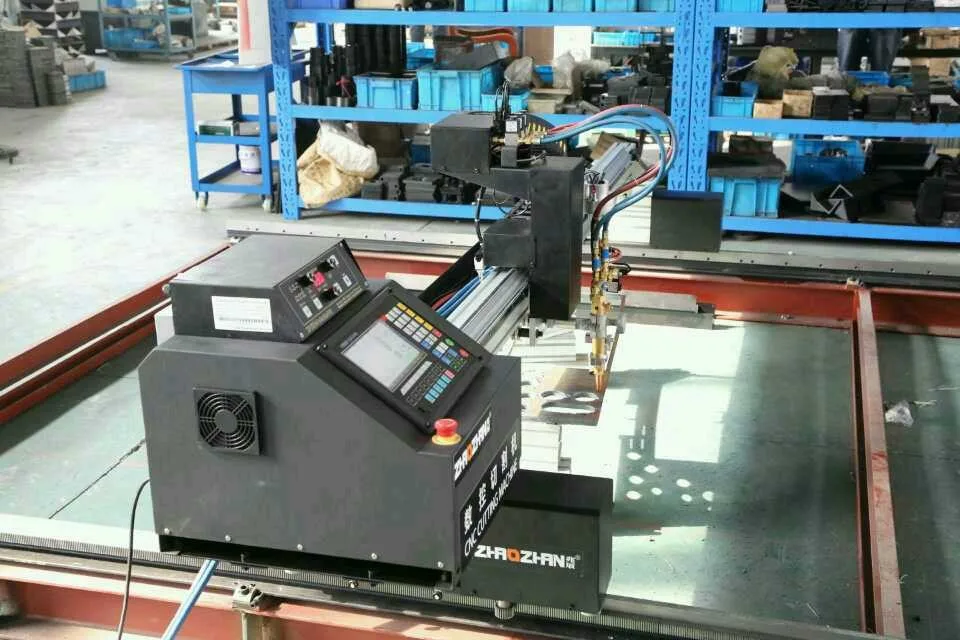

PICTURES :
Torch Height Controller cnc cutting machine mini gantry cnc plasma/flame cutting machine
Packaging & Shipping
Company Information
Shanghai ZHAOZHAN Automation Equipment Co.,Ltd specializes in design, manufacture and sale of numerical controlled equipments.Our company has
scientific management idea, adopts advanced technology, and specializes in the research and production of CNC cutting machines. Since the company
has been established, we insist on high technology. In order to improve our technical level and service level, we have hired several technical personnel,
and have established good cooperative relationship with several domestic research organizations. On the basis of our tenet: “Quality-oriented, honesty
-centered, Scientific management, harmonious development”,we warmly welcome all customers both from home and abroad. Zhaozhan will supply you
with good service and support your business with might doubled.
Our Services
WHY CHOOSE US?
1.We are manufacturer and export CNC cutting machine over 7 years,very familiar with whole
shipping process,so can lose a lot risks.
2.Experienced technology&quality team,our engineers have over 15 years working experience
in the fields to ensure stable performance and excellent design.Also we can give you best solu-
tions if appearing problems after-sale.
3.We only choose high quality and famous materials parts for our machines.
4.Quick response:our customer service is professional and efficient to ensure your questions are
replied within 12 hours.
5.Warranty :1 year warranty from B/L issue date,during the period of time if it appears wrongs in
normal operation,will be repaired or replaced free of charge.
