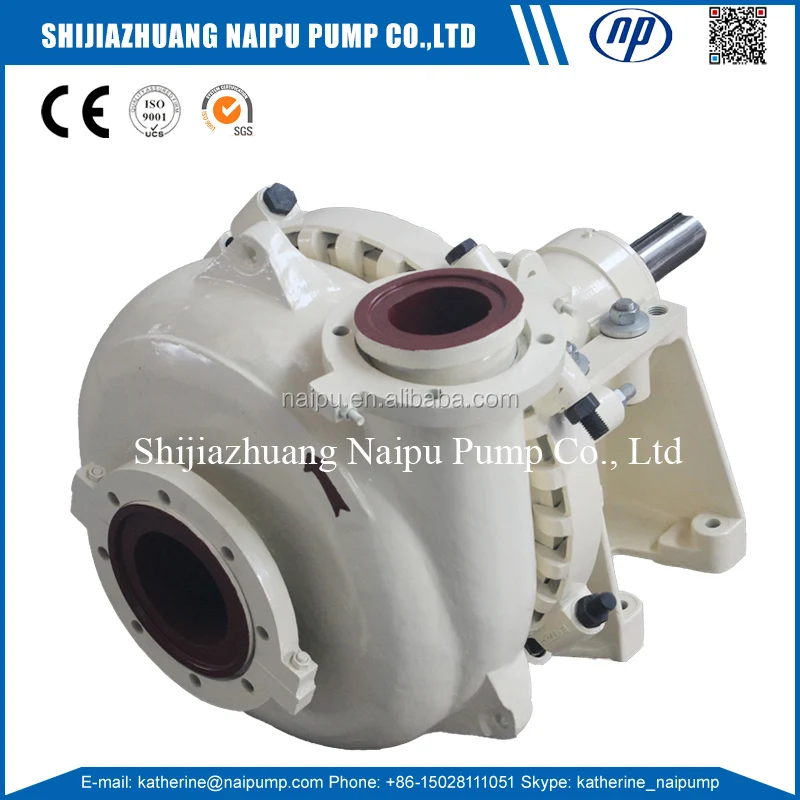

6X4 D G River Suction Sand Dredge Pump for River Sand Extraction
- Category: >>>
- Supplier: Shijiazhuang Naipu Pump Co. Ltd.
Share on (60590732616):
Product Overview
Description

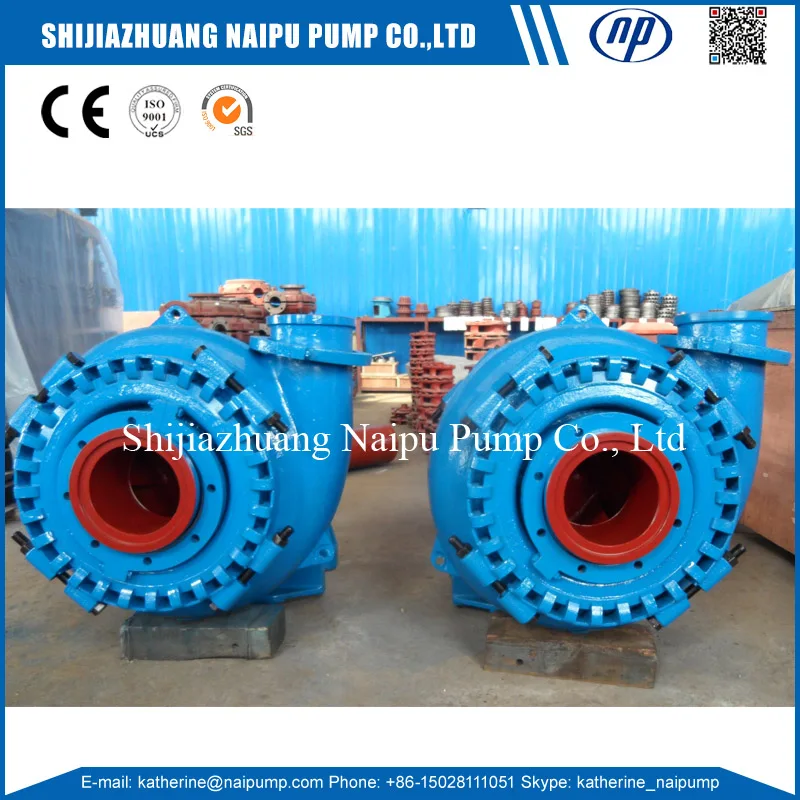

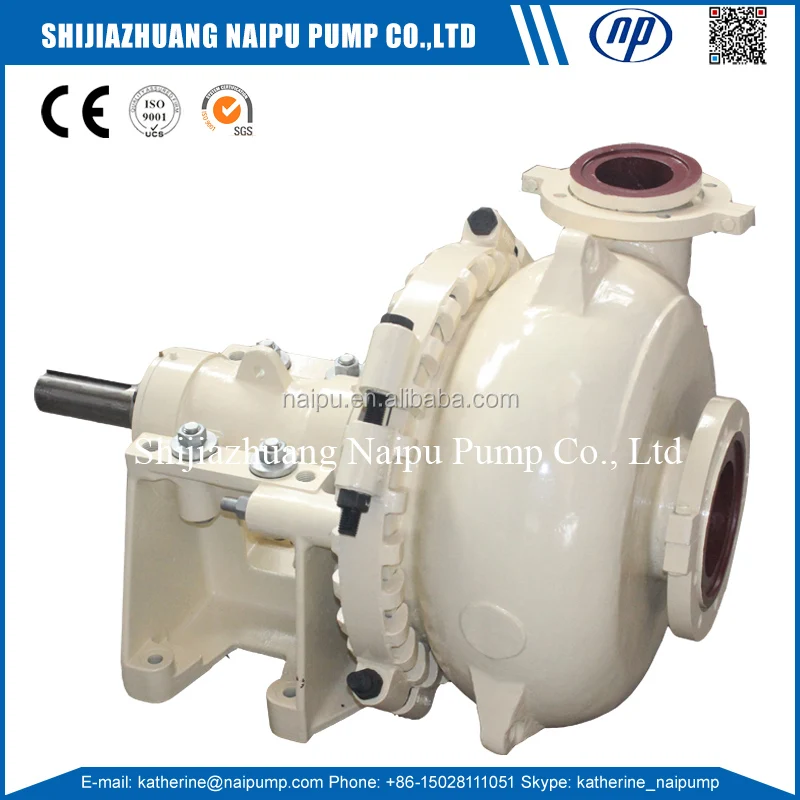

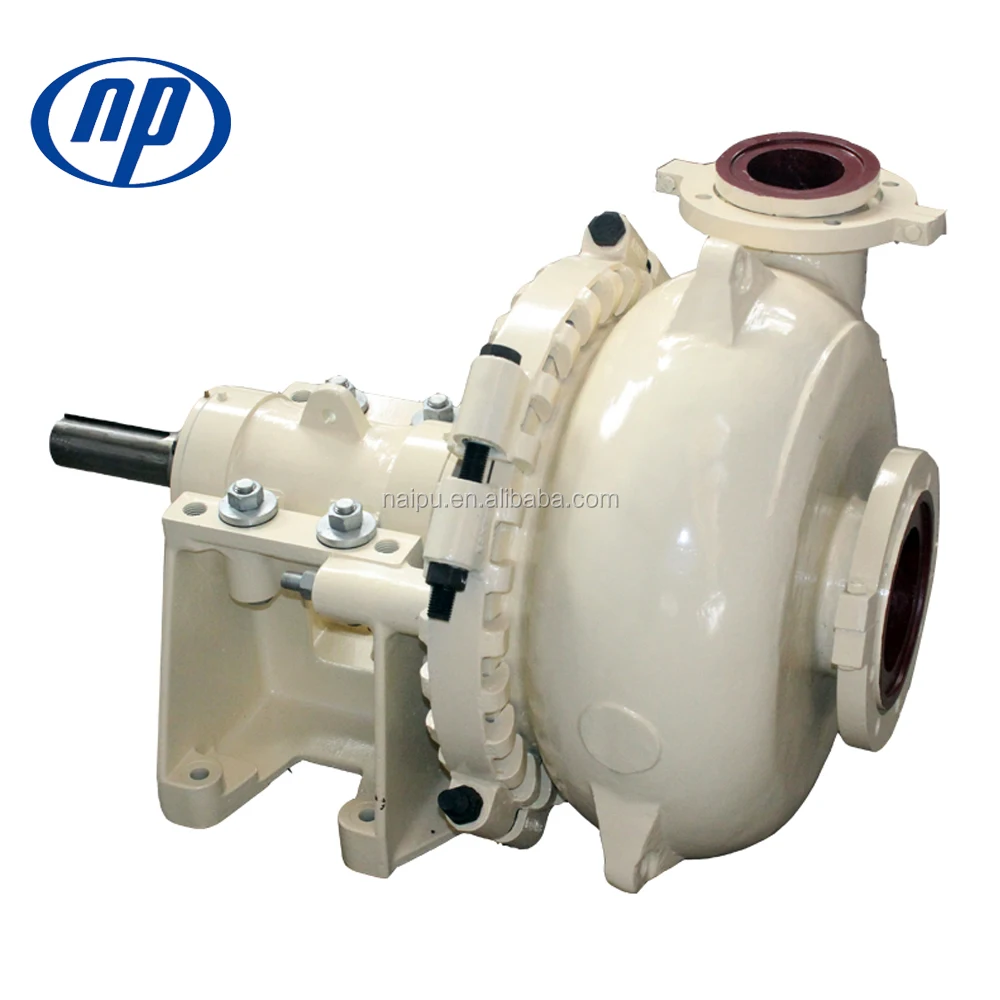

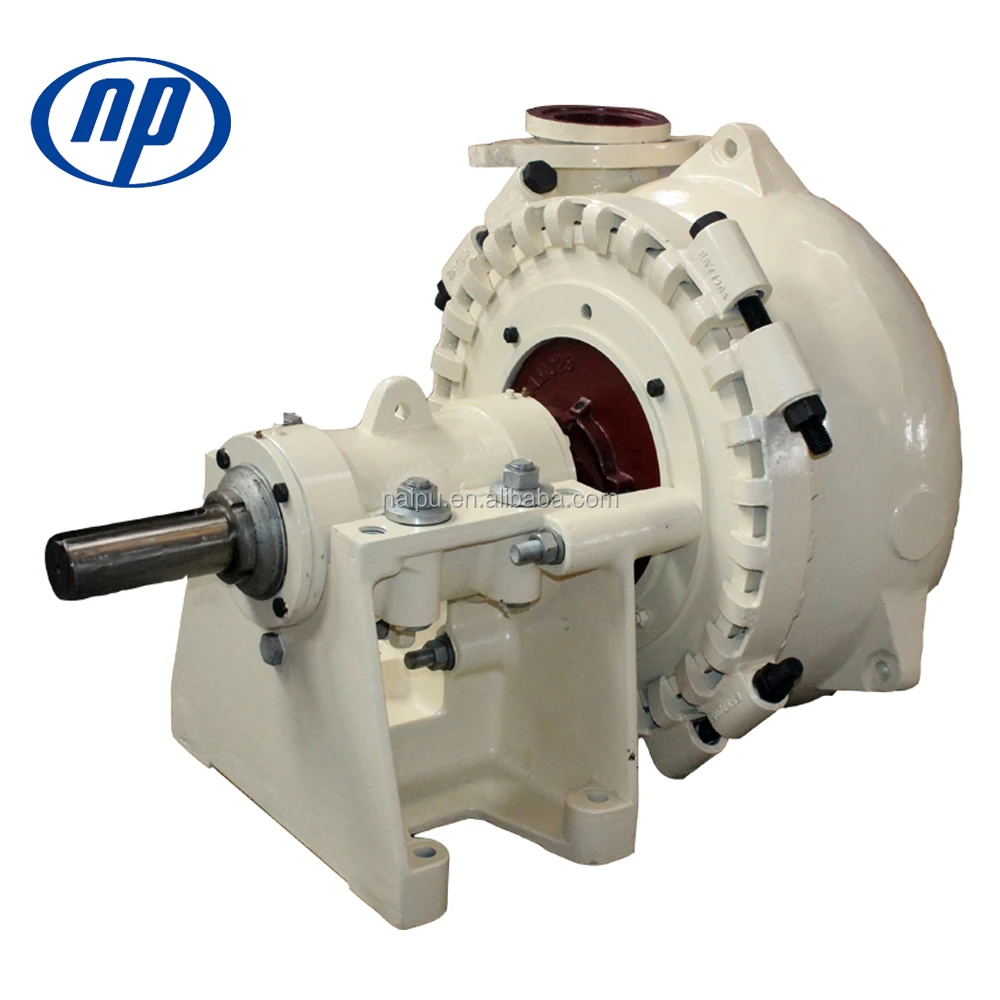

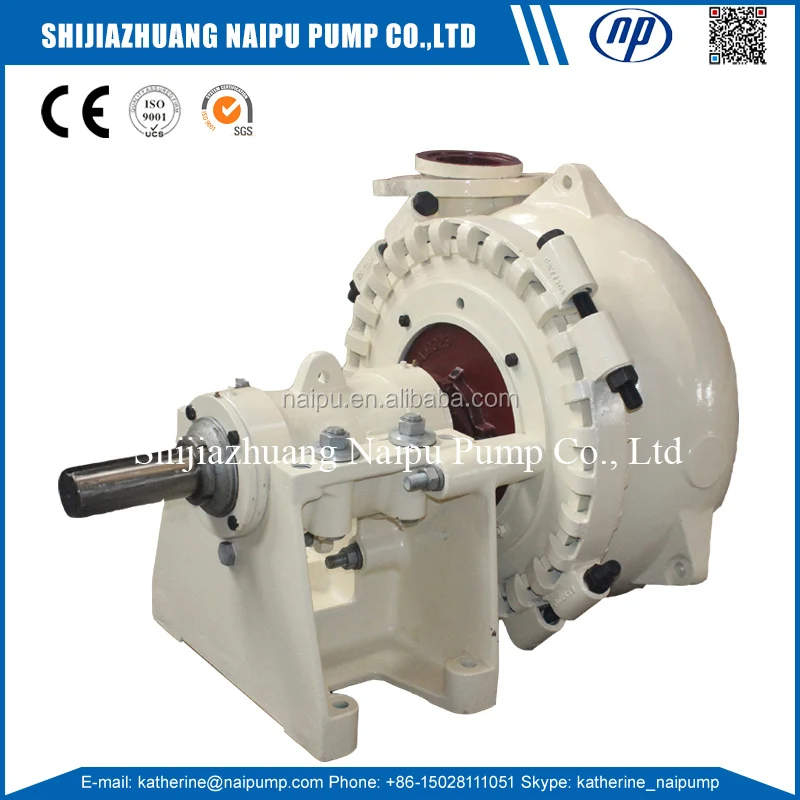

6 X 4 River Suction Sand Dredge Pump for River Sand Extraction
Pump Description
Naipu® NP-G
series of Dredge and Gravel pumps is designed specifically for continuous pumping of extremely aggressive slurries, feature larger impellers and heavier casing construction, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life. Sizes range from 100mm up to 600mm.
Slurry Pump Parts
Casing, shaft, throat bush, wear plate, case, cover, stuffing box, lantern restrictor, cover plate bolt, volute, throat bush, shaft sleeve, cover plate liner, frame plate liner
Pump Parameters

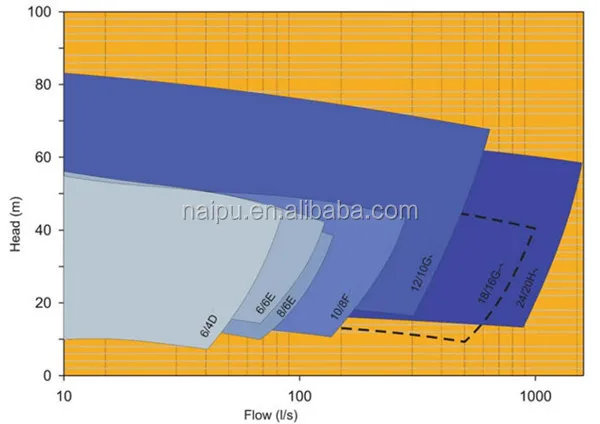

G sand pump selection chart
( Note: Approximate performance for clear water,to be used for primary selection only.)
Pump performance parameters

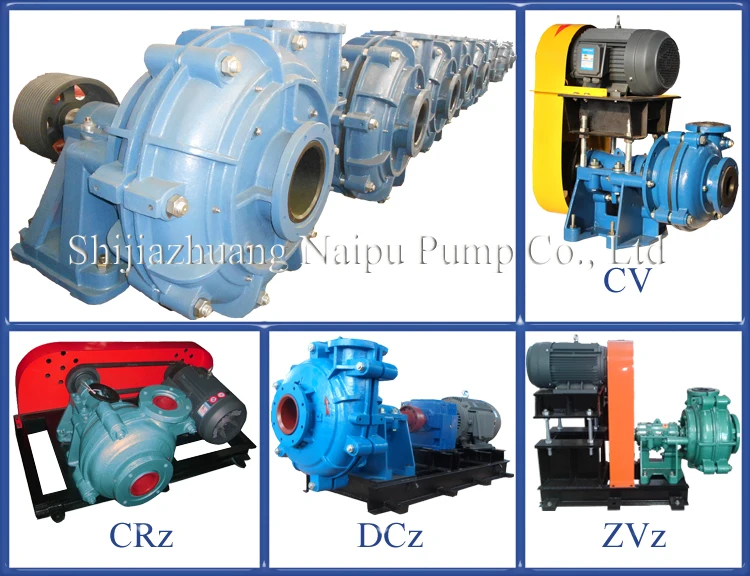

Model | Flow (m3/h) | Head (m) | Speed (r/min) | Efficiency (%) | Motor (kw) | Drive type
| |
6X4 D-G | 187-36 | 7-51 | 1400-600 | 30-58 | 52-3 | CV.CR.DC | -Slag Granulation |
8X6 E-G | 576-133 | 10-48 | 1400-800 | 60-54 | 88-11 | CV.CR.DC | -Suction Hopper Dredging |
10X8 F-G | 930-216 | 11-44 | 940-500 | 65-34 | 147-22 | CR.DC | -Sand Reclamation |
12X10 G-G | 1512-360 | 11-58 | 850-400 | 70-50 | 305-24 | CR.DC | -Barge Loading |
14X12 G-G | 3168-522 | 9.5-66 | 700-300 | 68-60 | 643-29 | CR.DC | -Sand Reclamation |
16X14 TU-G | 3024-900 | 14-45 | 500-300 | 70-50 | 459-78 | CR.DC | -Sugar Beet |
8X6 F-GH | 648-126 | 15-77 | 1050-500 | 71-50 | 177-12 | CR.DC | -Dredging |
10X8 F-GH | 1091-324 | 19.2-56.5 | 800-500 | 72-60 | 205-32.4 | CR.DC | -Constructional Material |
12X10 G-GH | 2232-612 | 28-77 | 700-450 | 73-60 | 558-89 | CR.DC | -Sand gravel processing |
16X14 TU-GH | 3450-1000 | 72-25 | 500-300 | 78-65 | 2-8 | CR.DC | |
18X16 TU-G | 3600-1050 | 42-12 | 250-450 | 60-72 | 2-8 | CR.DC | |
18X16 TU-GH | 4300-1350 | 70-18 | 250-500 | 60-70 | 2.5-8 | CR.DC |
Product Construction
1. Sand pump construction drawing
2. Main part number at the drawing
| 003: Base 005: Bearing Assembly 132: Intake Joint Discharge Joint 130: Discharge Flange Intake Flange 013: Cover Plate | 131: Bowl 137: Impeller 041: Back Liner 135: Door Clamp Ring 134: Adapter Plate Clamp Ring 124: Volute Cover Seal |
3. Materials of construction
| VOLUTE | IMPELLERS | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
| Standard | High Chrome Alloy | High Chrome Alloy | Cast Iron | High Chrome Alloy or SG Iron | High Chrome Alloy or SG Iron | SG Iron | Natural Rubber |
| Options | SG Iron | SG Iron | Mild Steel Fabricated | SG Iron | SG Iron | EN56C Ferralium Hasteloy C Ceramic Stellite Chrome Oxide | Nordel Neoprene Viton Butyl EPDM |
Related Products
Naipu pump produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
 |  |

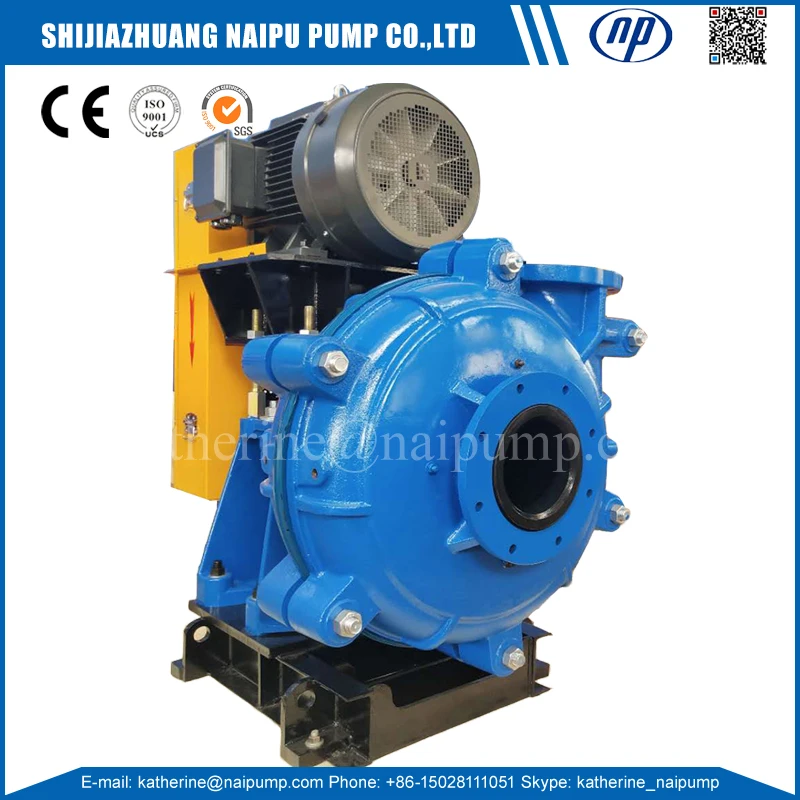

| Rubber Liner Slurry Pump for Mining | HH High Head Slurry Pump for Tailings |
 |  |

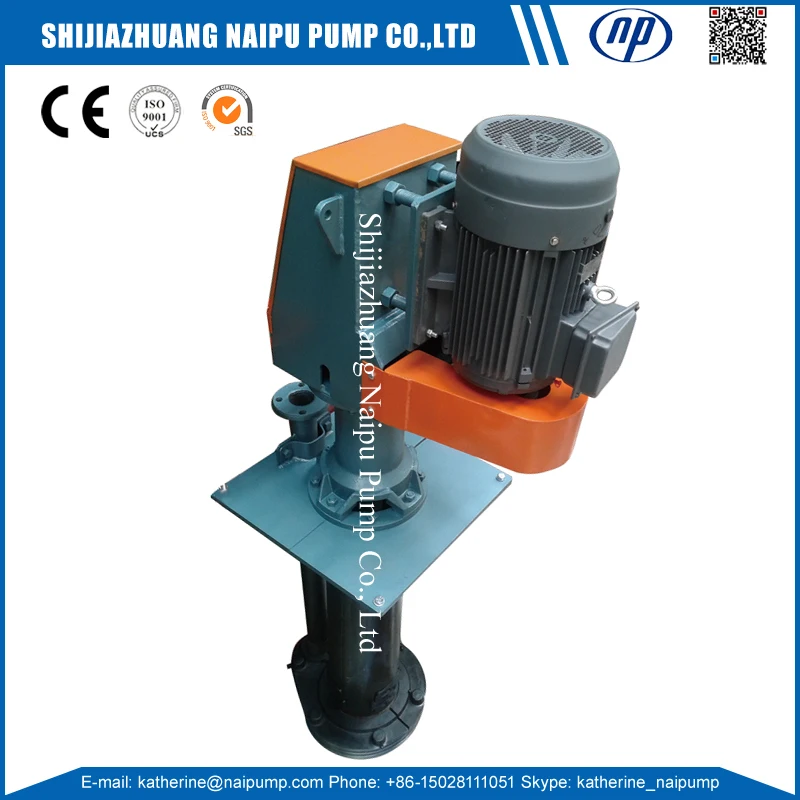

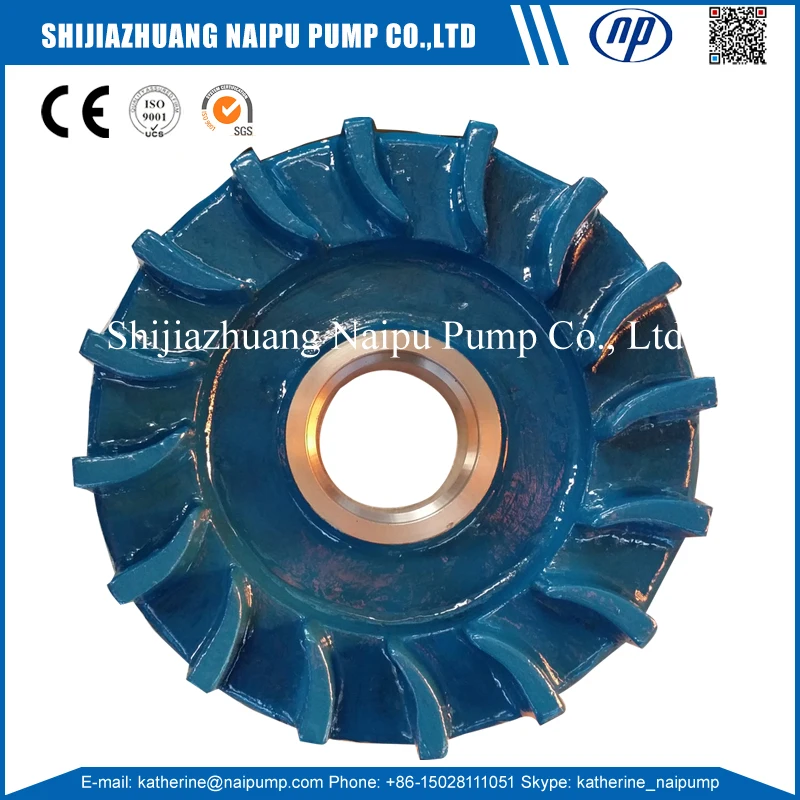

| Vertical slurry pump for drain | Expeller seal type pump parts |
Our Services
What service of Shijiazhuang Naipu?
| OEM service | Produce the pump and spare parts according to client's drawing or sample. |
| Pump slection | Help customers select the type, size and operating speed of pumps that will perform at the lowest cost. |
| Using service | Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service. |
| Quality control | Pay more attention to the quality in every process with different instruments. |
| Material service | Interchangeable metal design allow best material choice for any application. |
| After-sales service | Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts. |
| Guarantee | One year guarantee for whole machine except of the wet end parts. |
Certifications
CE, SGS, ISO9001 Certification
NaiPu Main Pump Model
AH(R) | L(R), M | HH | SP(R) | G | AF Series |
1.5/1B-AH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
2/1.5B-AH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
3/2C-AH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
4/3C-AH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
6/4D-AH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G |
|
6/4E-AH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G |
|
8/6E-AH(R) | 10/8 R-M | 6S-H |
| 14/12T-G |
|
8/6R-AH(R) | 10/8 E-M | 8/6S-H |
| 16/14 G-G |
|
10/8F-AH(R) |
| 8/6X-H |
| 16/14TU-GH |
|
10/8X-AH(R) |
| 6S-HP |
| 16/14H-GH |
|
12/10ST-AH(R) |
| 8/6S-HP |
| 18/16G-G |
|
14/12ST-AH(R) |
| 8/6X-HP |
| 18/16TU-GH |
|
16/14TU-AH(R) |
|
|
|
|
|
20/18G(TU)-AH(R) |
|
|
|
|
|
Contact Katherine
Katherine Hou
Cellphone/ WeChat/ WhatsApp: +86-15028111051 Skype: katherine_naipump Email: katherine at naipump dot com
Company Information
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps and spare parts. Which own Mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop.
Various requirement for materials in the market, Naipu offering wet end part material as following. Metal A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, NR55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy
Naipu is willing to undertake any OEM(Original Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.
