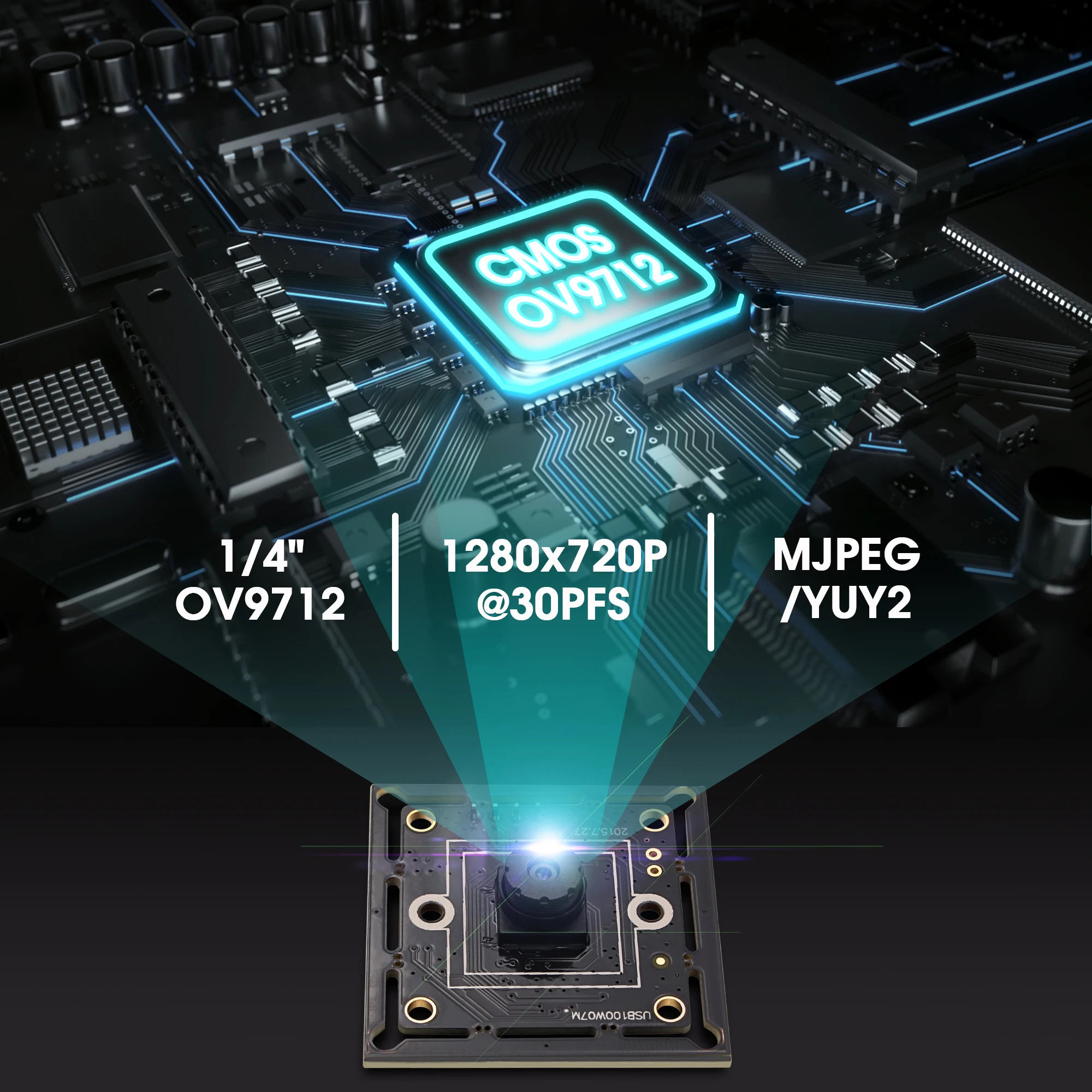

ELP OV9712 1Megapixel 1280*720 30fps USB2.0 Mini Digital Camera Module USB with 45 degree M7 lens
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60590794620):
Product Overview
Description
ELP OV9712 1Megapixel 1280*720 30fps USB2.0 Mini Digital Camera Module USB with 45 degree M7 lens
Product Description

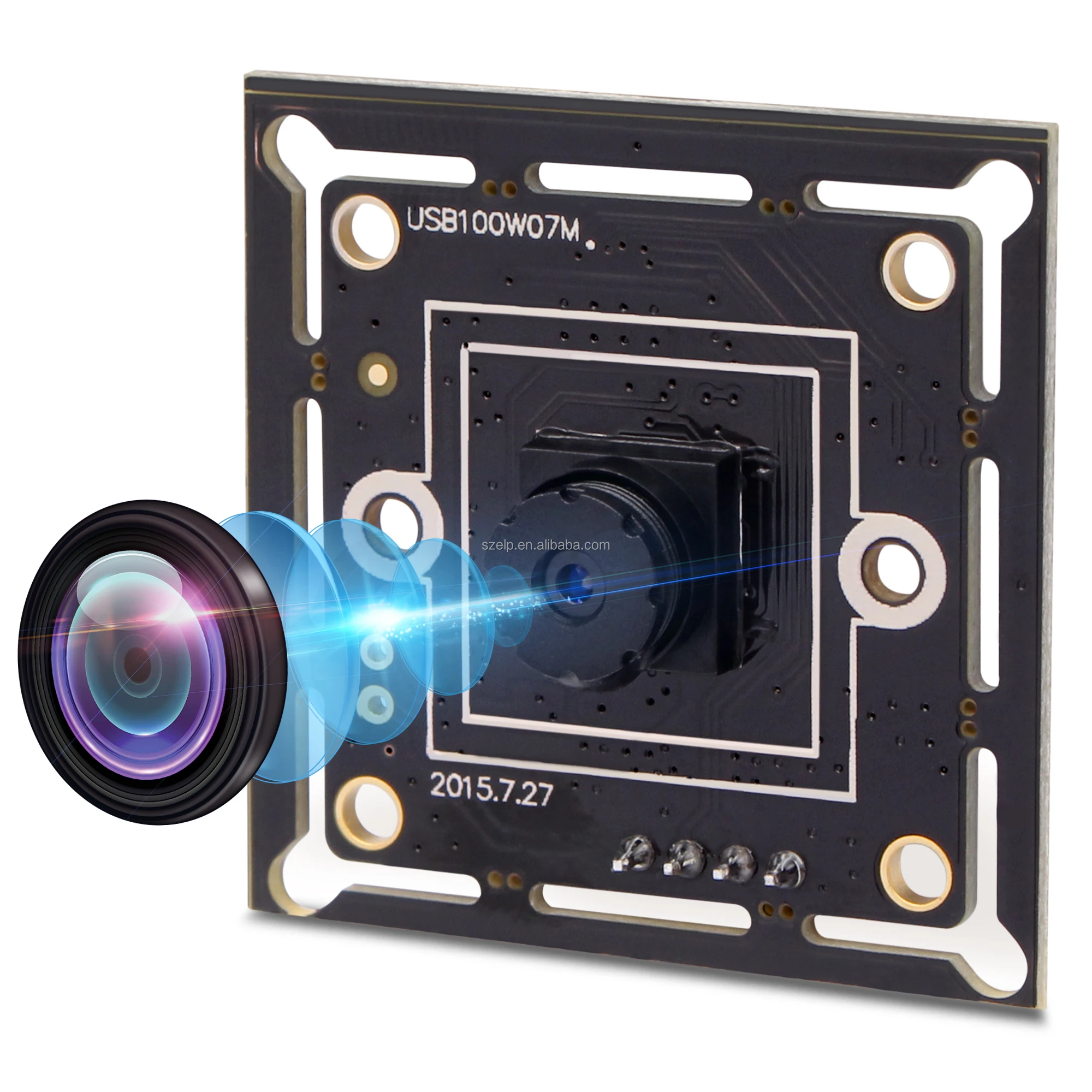

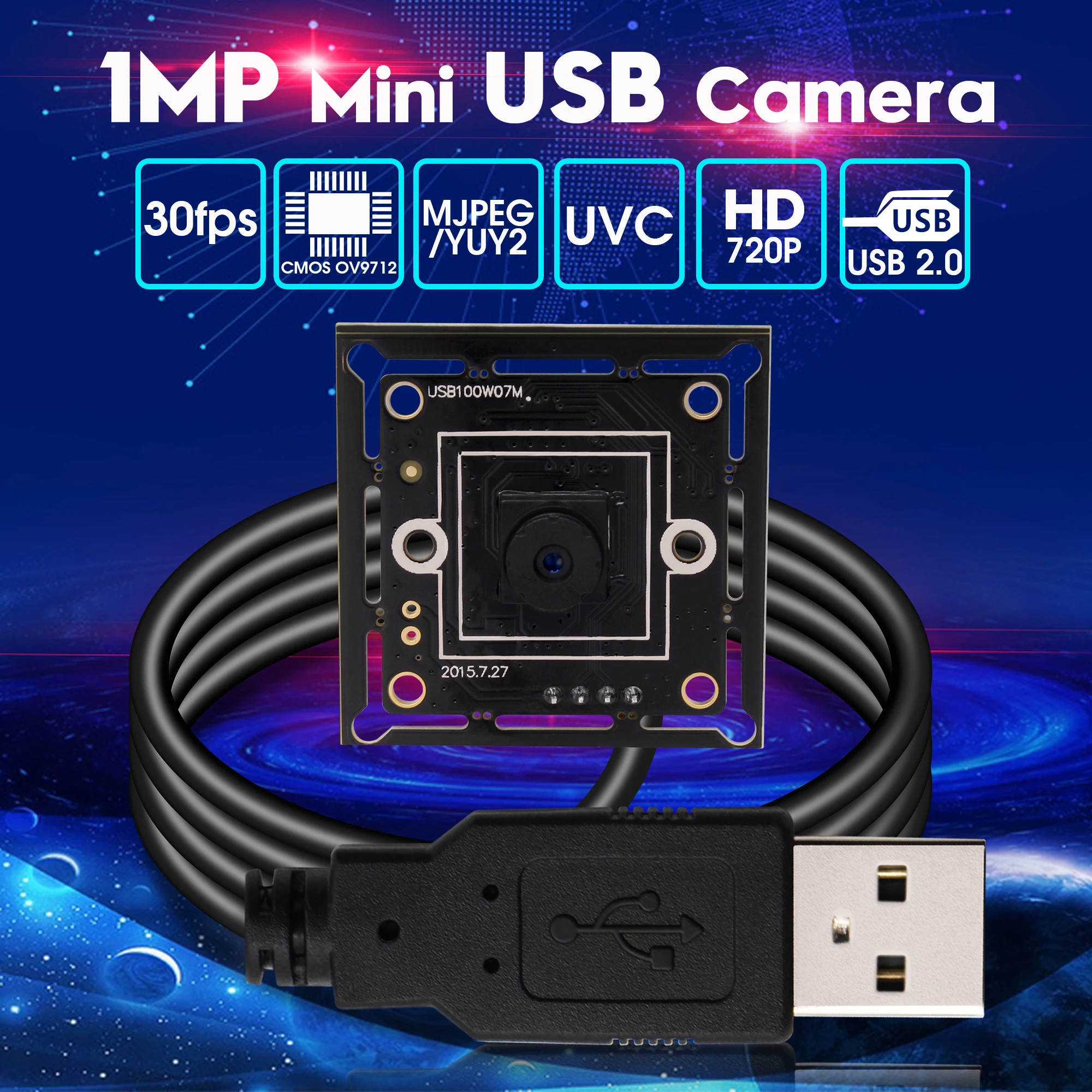

The HD 720P USB CMOS board camera module(model: ELP-USB100W07M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision,one of the world leaders in this field of electronics. The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Features
*CMOS OV9712 sensor for high quality image and low power consumption.

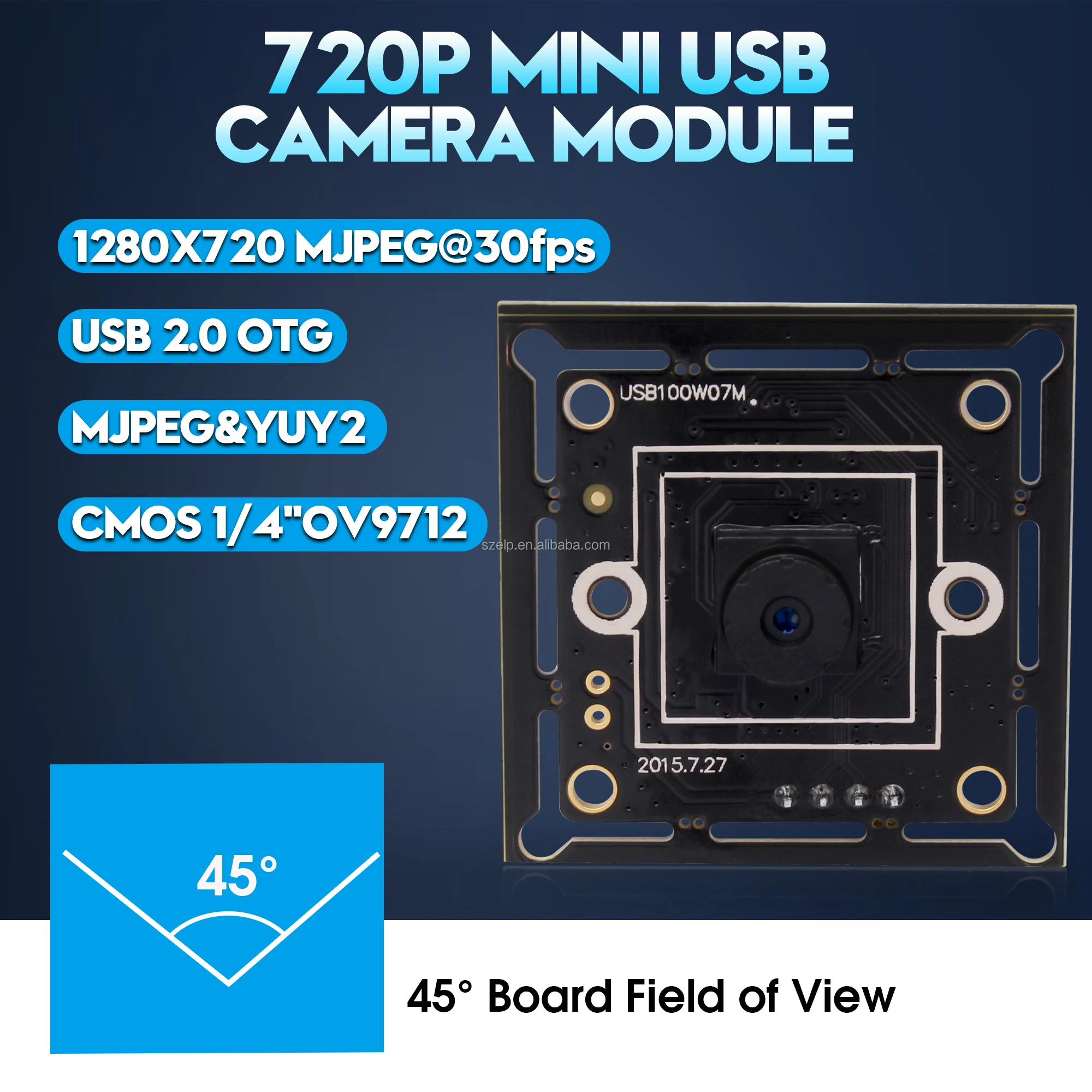

*with mini M7 45 degree lens, 100degree, 120degree lens optional

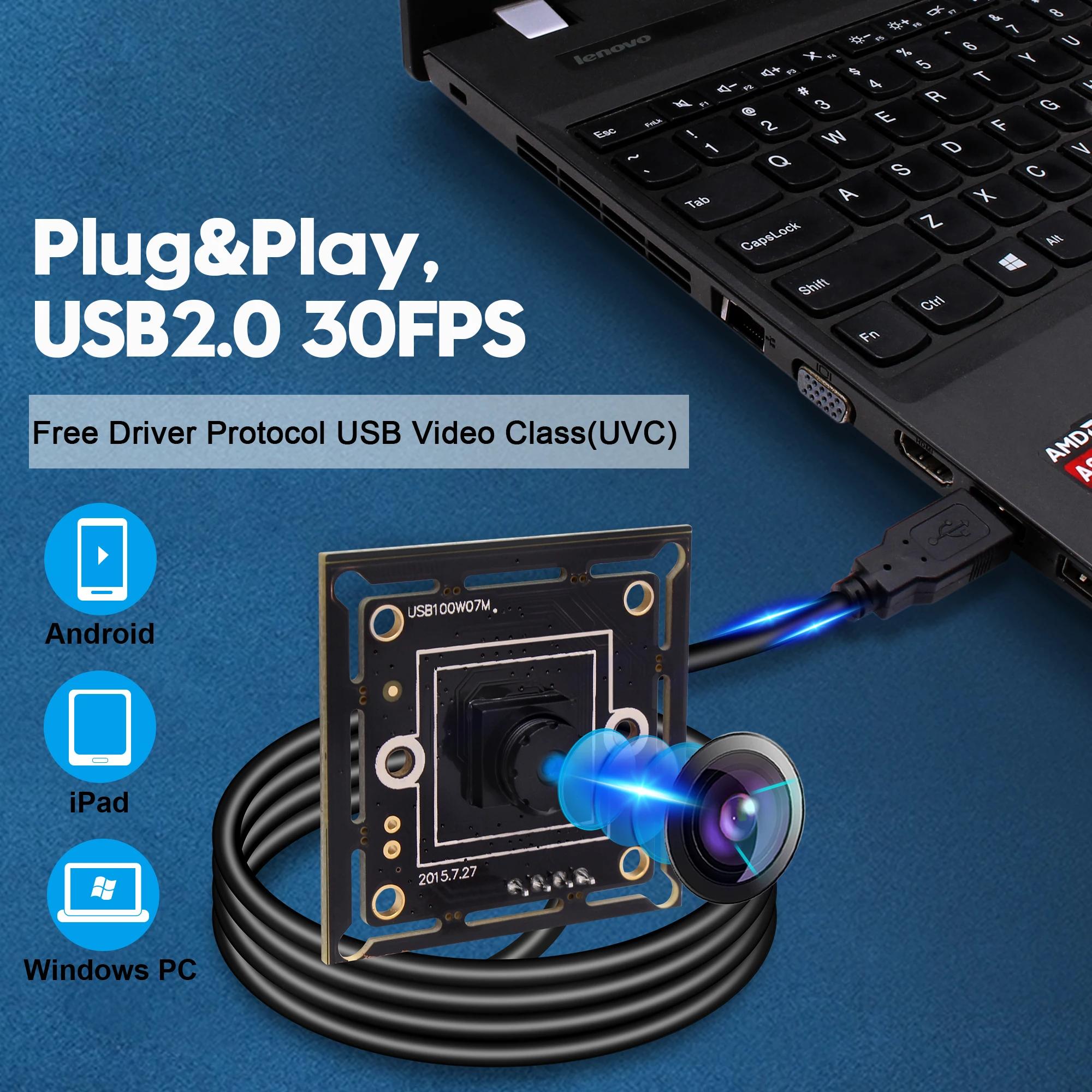

*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low illumination – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 1280*720 resolution
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Free driver, easily used, plug and play
Specification:
Model | ELP-USB100W07M-MHV45 (45 degree M7 lens) ELP-USB100W07M-MHV100 (100 degree M7 lens) ELP-USB100W07M-MHV120 (120 degree M7 lens) |
Sensor | CMOS OV9712 |
Lens Size | 1/4 inch |
Pixel Size | 3.0um X 3.0um |
image area | 3888 µm x 2430 µm |
Max. Resolution | 1280(H)X720(V) |
Compression format | H264 /MJPEG / YUV2(YUYV) |
Resolution & frame | MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@60fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps YUV: 320X240@ 30fps /352X288@ 30fps /640X360@30fps /640X480@ 30fps /800X600@ 15fps /1280X720@ 5fps |
S/N Ratio | 40dB |
Dynamic Range | 69dB |
Sensitivity | 3.7V/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | 100 degree M7 lens, (45 degree, 120 degree optional) |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Power supply | DC5V |
Operating Voltage | 120mA~180mA |
Working current | -10~70°C |
Working temperature | -20~85°C |

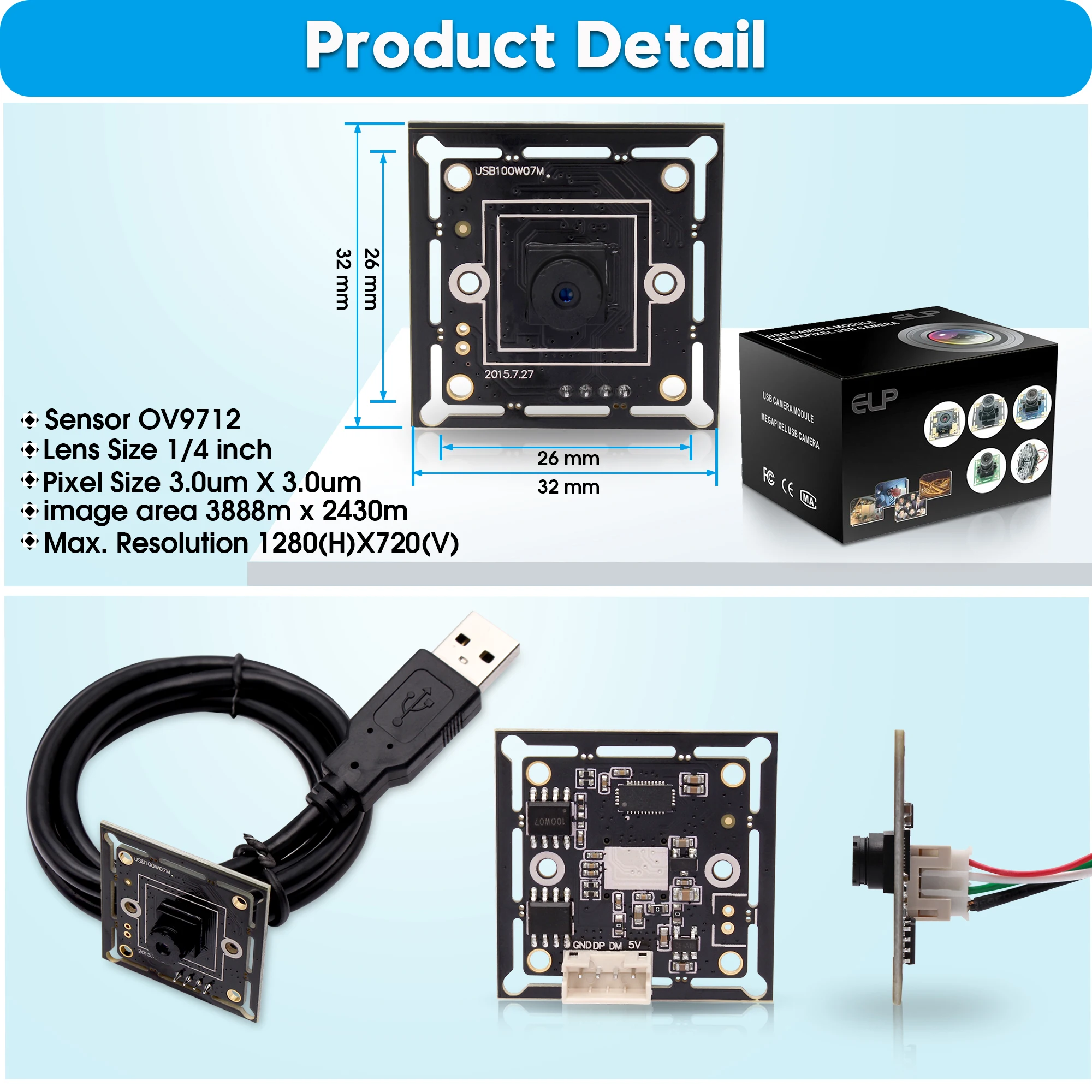

Board size /Weight | 32x32mm/26mmx26mm/ about 30g |
Cable | Standard 1M / optional 2M,3M,5M |
Operating system request | WinXP/Vista/WIN7/WIN8/Win10 Linux with UVC/Mac-OS X 10.4.8 or later/ Wince with UVC/ Android 4.0 or above |
Product Display
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
