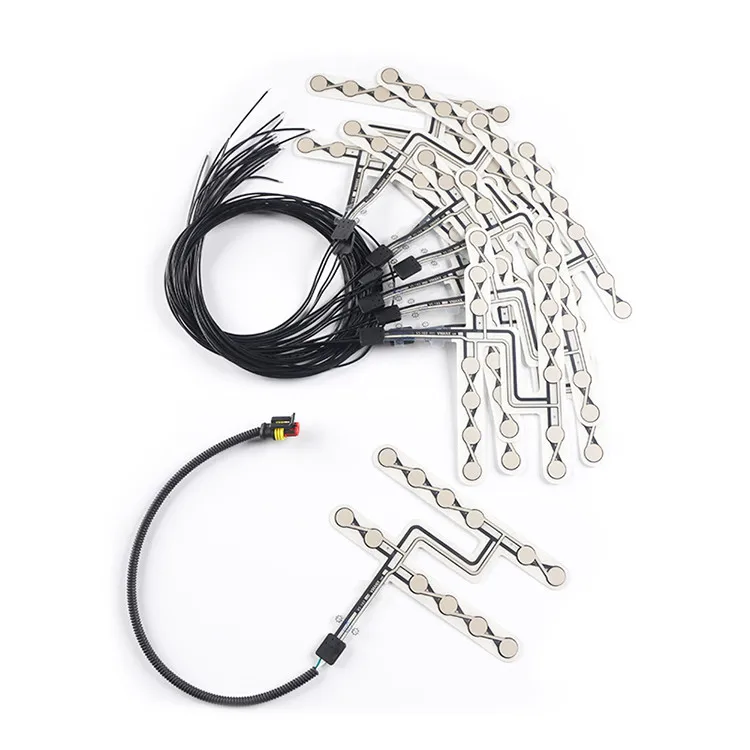

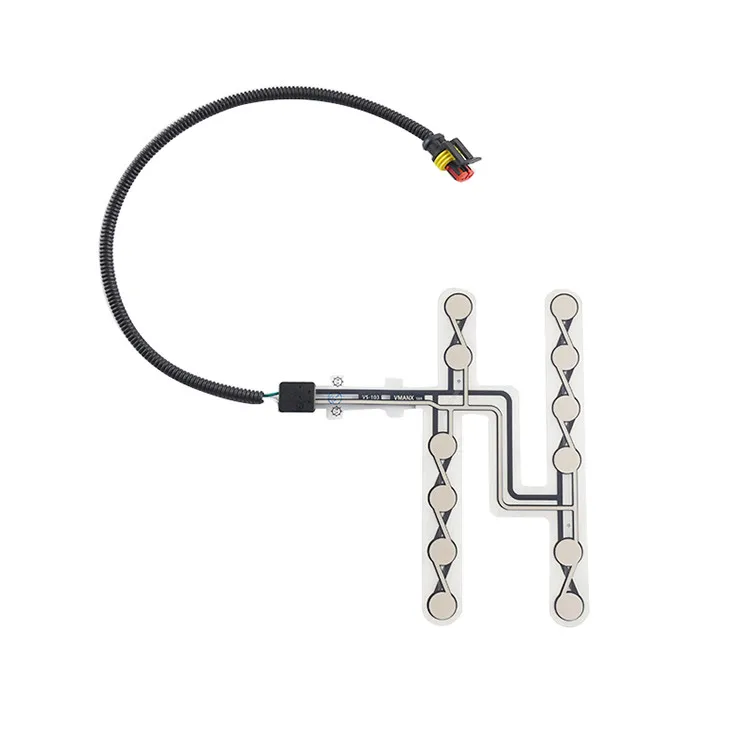

Customized car seat sensor pressure switch for car seat
- Category: >>>
- Supplier: Shenzhen Zhongman Technology Co. Ltd.
Share on (60591115455):
Product Overview
Description
Details Images
Basic parameters————————
Power supply: disposable lithium subbattery (replaceable);
Battery capacity: 3600mAh;
Timed sending: 4 seconds to send once Battery life: more than 3 years;
Communication frequency band: 2.4G; Communication distance: 40 meters (open);
Shell material: ABS material;
Wiring harness interface: 43020; Wire harness length: 200mm;
Shell size: 84.7mm×73.3mm×24.4mm;
Working temperature: -20℃~70℃;
Installation method: fixed installation with cable ties.
Application———————————
1.Statistics on passenger car occupancy rates, to help passenger transport companies realize real-time monitoring of the seat status of operating passenger vehicles, and to help managers use big data analysis to make scientific and effective decisions.
2.Statistics on the attendance rate of movie theaters, intelligently identify and count the number of people seated in movie theaters through the Internet of Things technology, and provide technical support for big data analysis.

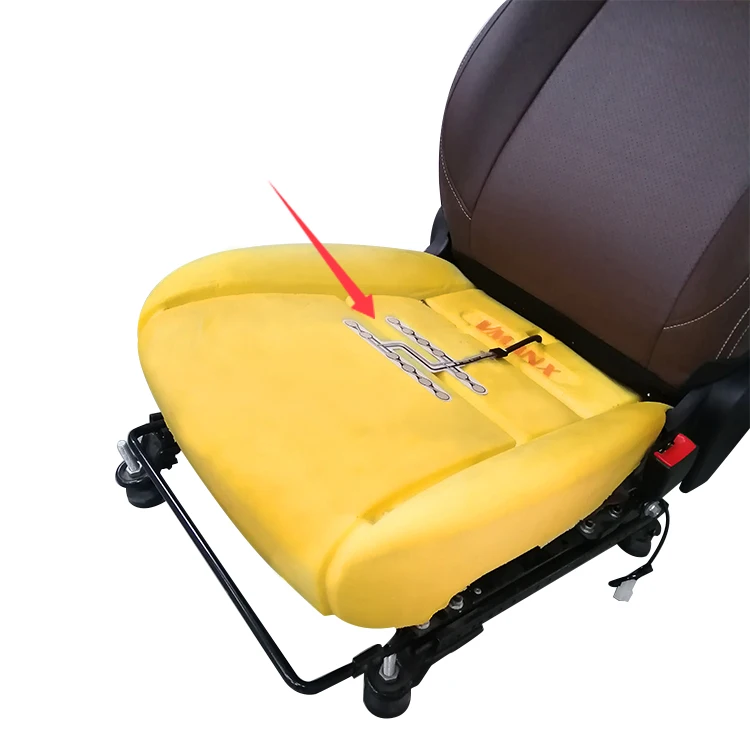

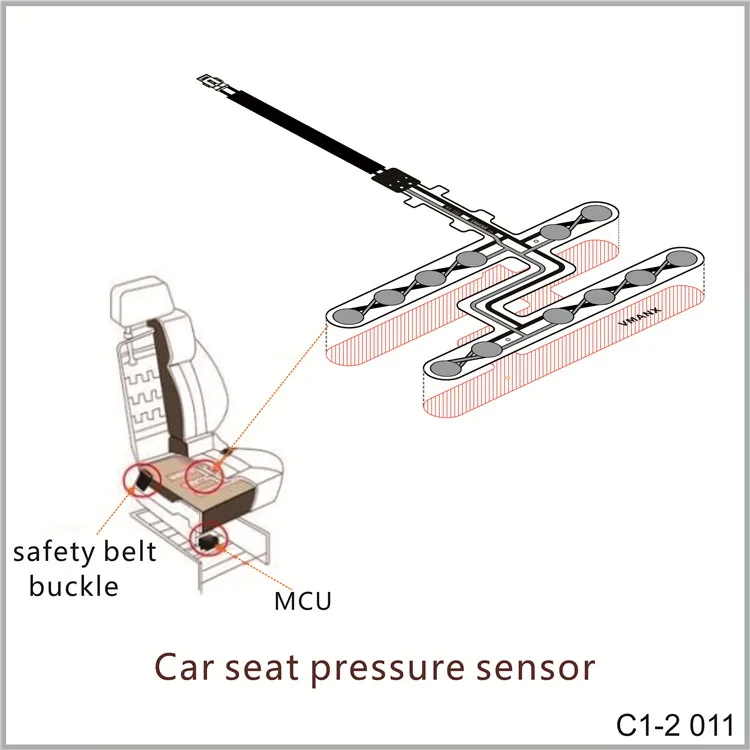

Sensor Installation Drawing
Usage Method : |
1.Double sided release paper facing down ; |
2.Tear off the double-sided adhesive release paper on the back of the sensor and align it with the installation position. It should be flat and laminated without foaming or wrin kling. It should be installed to the installation position accurately and evenly ; |
3.The connection harness is connected to the signal output port through the seat harness hole. |
Features and advantages:
1. It can detect whether someone is sitting,Output the signal to the safety belt warning device.
2. Long service life.
3. Various forms (single point, double point trigger, can be designed according to customer requirements, etc.)
2. Long service life.
3. Various forms (single point, double point trigger, can be designed according to customer requirements, etc.)
Specification
Title: | Hot sale bus passenger seat sensor for seat occupancy | |
Attribute Parameter | ||
Operating Voltage： | Min 0/Max 5.5V | |
Working Current： | Min 0/Max 50mA | |
Peak Current： | Min 0/Max 100mA | |
Non Triggering Resistance（non load）： | Min 10.0K/Max ∞Ω | |
Trigger Resistance（carrying human body）： | Min 0/Max 100Ω | |
Insulation Resistance（no load）： | Min 10/Max 20MΩ | |
Technical Parameter | 1. Heat flow analysis, design and development. | |
Tevture of Material： | PET | |
Material Surface Thickness： | 0.125~0.188mm | |
Output Signal： | Resistance＜100Ω | |
Film Thickness： | 0.4~0.65mm | |
Gum Back： | 3M Glue | |
Ambient Temperature： | -40℃~+80℃ | |
Persistence： | ＞200000 | |
Special Test Weight | ||
Single Point Pressure Range: | ＜50g 100%Non Conductive | |
Single Point Pressure Range: | ＞200g 100%Conductive | |
Connector： | According To Customer Requirements | |
Application Program: | Safety Belt Reminder(SBR) Taxi Automatic Message Accounting System Sensors For Airbags Medical Bed Massage Chair Office Chair | |
