Plastic Shoe Sole Injection Molding Machine in TPU PVC TR TPR Materials
- Category: >>>
- Supplier: Dongguan Jinlei Shoe-Making Machine Co. Ltd.
Share on (60591284405):
Product Overview
Description

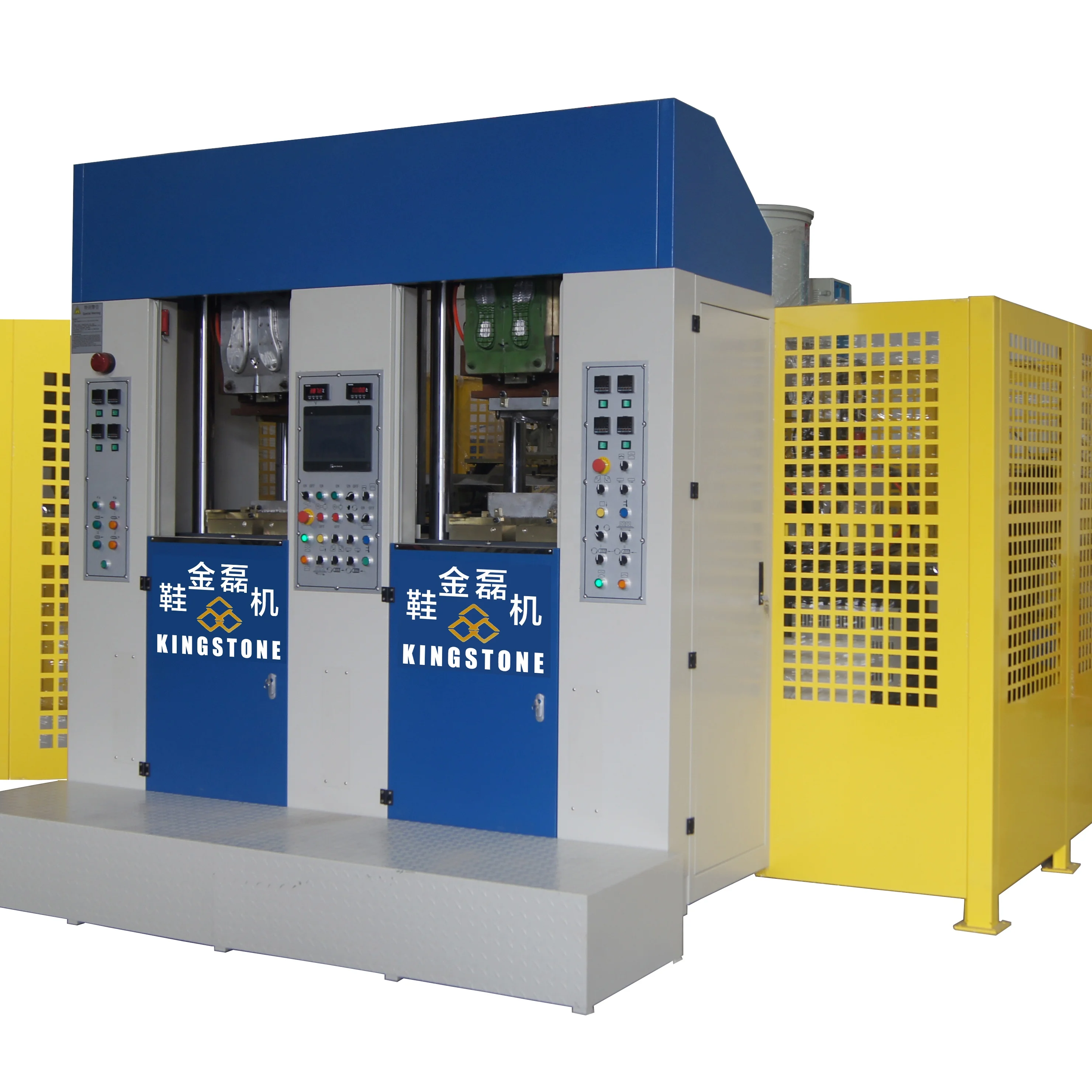

JL-208 Plastic Shoe Sole Injection Molding Machine in TPU PVC TR TPR Materials
Product Description

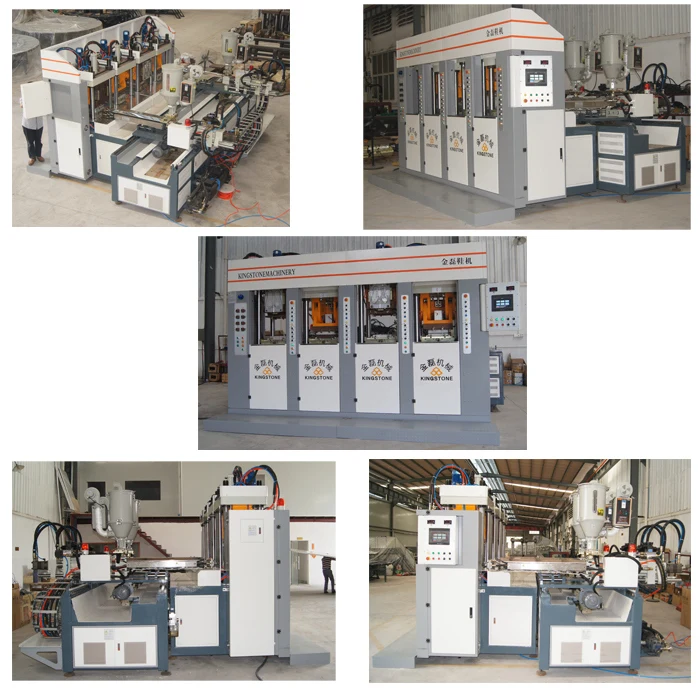

What details of our sole injection molding machine?
Machine Features
Mold Carrier Unit
1. Mold thickness automatically compensated hydraulic clamping system.
2. Three-position (0°-90°) mold rotating head, providing multi-mode production capability for single color and two color unit soles.
3. Unique rotating head positioning mechanism, providing precise and fast mold positioning.
4. Upper and bottom molds ejector units for easy, fast and distortion free sole removal.
5. Automatic sliding unit for flexible and easy sole collection and for easy insertion parts placement.
6. Separate blowing system on three faces rotating head and bottom mold plate, providing easy soles and sprue removal.
7. Suitable for molding TPU in multi-color unit soles by injection system.
Feeding Unit
1. Electric motor driven injection point height adjustment system, suitable for different size of molds.
2. Adjustment or injection point with horizontal leveling, no material heap at channel or extruders.
3. Precise barrel temperature control with P.I.D. control system.
4. It is easy and fast for material changing with less waste.
Electric Control System
1. With self-diagnosis analysis system, current status of machine operation can be monitored to insure smoothly production.
2. Providing with work file records, processing parameters for different molds can be saved with individual files, production is more efficient.
Machine model | JL-208-4S | |
Mould-clamping Unit | ||
Work station |
| 4 |
Clamping force | TON | 220 |
Opening stroke | MM | 350 |
Mould dimension | MM | 300*400 |
Mould height | MM | 100-200/150-250 |
Rotating head | . | 0°-90° |
Injection Unit | ||
Injector | SET | 2 |
Screw diameter | MM | 60/65/70 |
Screw L/D ratio | L/D | 22 |
Max.injection volume | cm3 | 650-1000 |
Injection pressure | Kg/cm² | 650 |
Screw rotation speed | R.P.M | 0-185 |
Electricity Consumption | ||
Heating power of injector | KW | 11*2 |
Hydraulic unit motor | KW | 22.5+13 |
Total electric consumption | KW | 60 |
Temperature control | Section | 4 |
Dimension and Weight | ||
Machine dimension(L*W*H) | M | 6.3*3.5*2.8 |
Machine weight | TONS | 18 |
*Note:Above data only for reference. | ||
Finished Products
What products produced by our machine?
This machine can produce TPU, TR, TPR, PVC Soles for sports shoes, high quality leisure shoes, gumboots, etc.
If you do not know which machine is suitable, please conact us and we will give you some advices.
Customer Visting
1. Our customer will visit our factory and make a checking for the quality of machine.
2. We can show you the machine working conditions and introduce the machine spare parts for you.
3. We will go our customers factory for machine installation, and training the workers how to operate machine and make shoes.
Packaging & Shipping
Trade Terms:
Trade term: FOB,CIF,EXW
Payment terms: T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition: 30% deposit in advance. 70% balance before delivery.
Delivery time: 25-35days working days after deposit.
Packing: One 40 feet Container for one machine, or Wooden case with machine.
Shipment: By Sea.
