7 .Fast method using the mold assembly, maintenance and replacement parts
quickly abnormalities
8 .Visual effects, color uniformity,far visual distance
9 .with GB / 14887-2011 and international standards
10. 2 years warranty

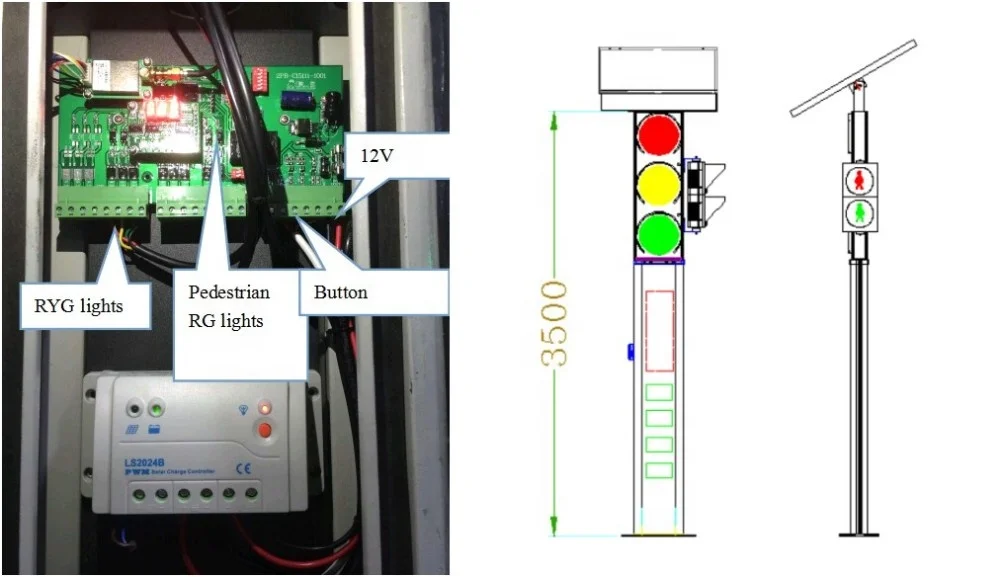

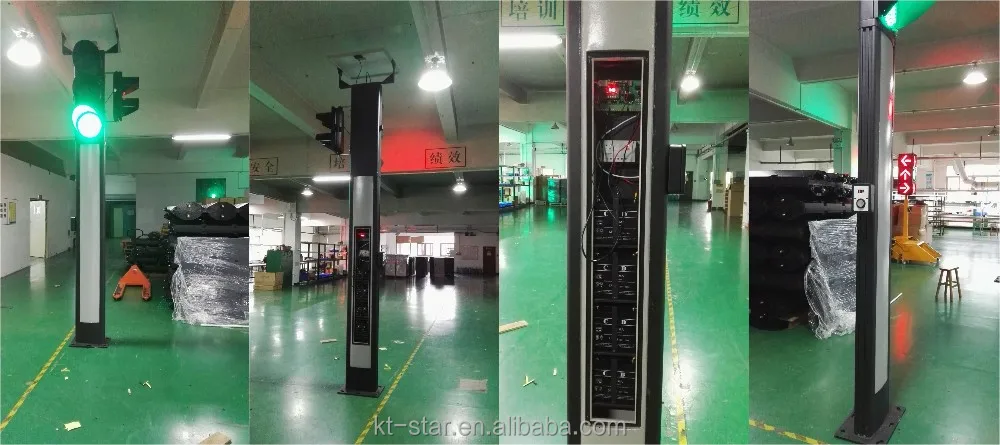

Specification of KuTuo integrated solar wireless pedestrian traffic light :
Single led intensity(mcd)
R:4360~6300,Y:3850-6300,G:8667~12480
Wave length (nm)
R:625±5,Y:590±5,G:505±5
LED quantity
RYG:108pcs,pedestrian RG:60pcs
Working temperature
-40~+80℃
Humidity range
-20%~+95%
Average service life
≥100000 hours
IP rating
IP65
Rated Wind Velocity
40m/s
Appearance size
500mm*600mm*3000mm
Working voltage
Constant current
Size
3500*500*150mm
Power
≤2w
Specification of Solar Panels:
Maximum output power
80w
Peak current
3.8A
Output voltage
18V
Normal working life
≥10years
Capacity of lead acid battery
100AH/12V
Working way
Continuous work
Working voltage
12V
Battery MTBF
≥2years
Wireless Technical Parameter:
Modulation Mode
FSK
Frequency
490MHz
Transmitted Power
200mW(23dB)
(Automatically to be 100mW when power supply is 3V)
Receiving Sensitivity
-122dBm
Transmitted Current
<200mA (TTL interface)
Receiving Current
<35mA
Sleep Current
<10uA
Receive Distance
>500m

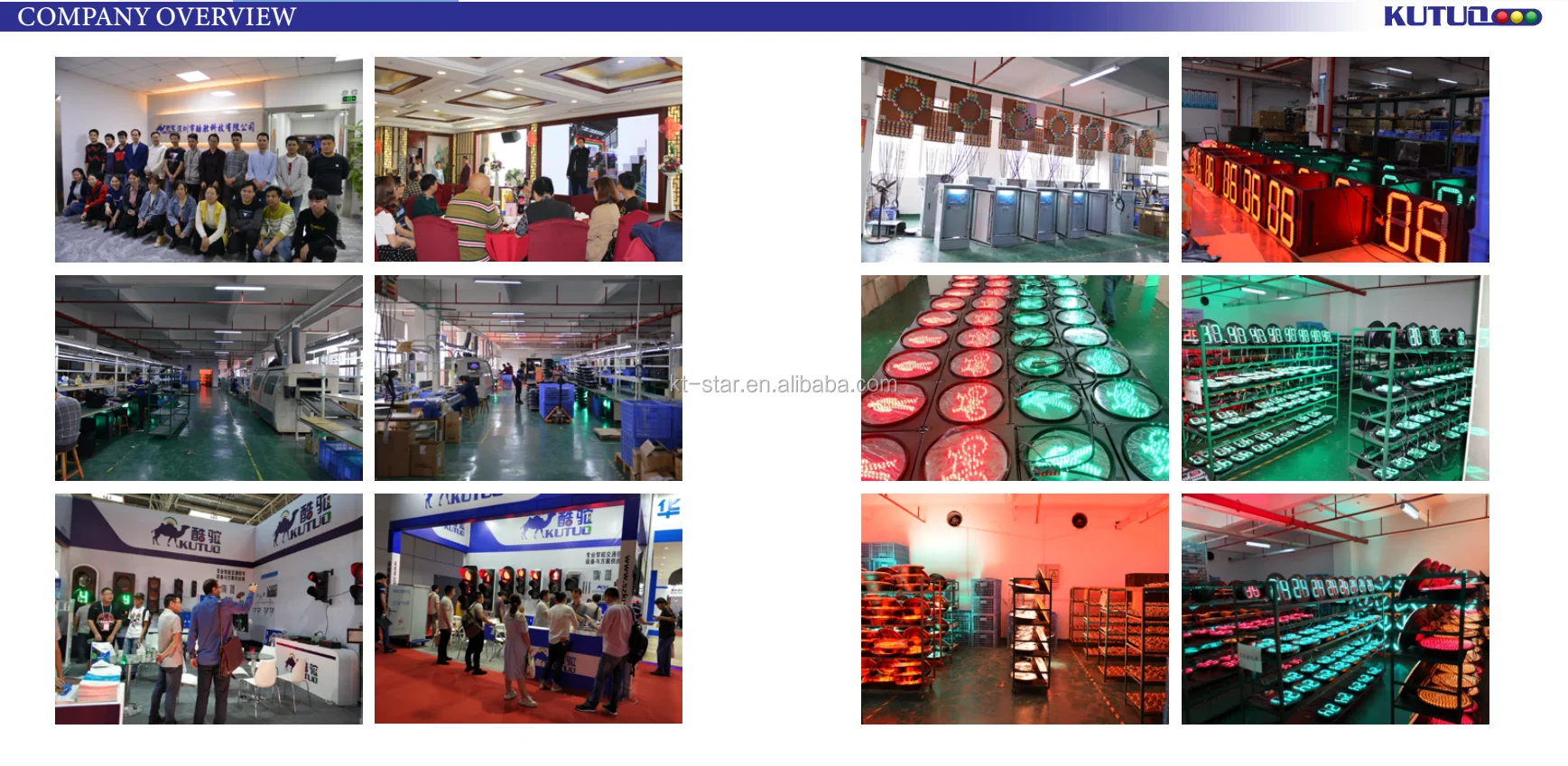

Company Information
Shenzhen Kutuo technology Co.,Ltd. is a high-technology enterprise who is specializing in high-quality traffic signal controllers,LED traffic lights and so on traffic products with more than 10 years R&D experience. There are more than 4000 square meters and over 60 workers of our factory.We also have our own R&D team with more than 10 engineers,thus we could provide one-stop service including both hardware and software.
Besides, we take the lead in adopting ISO9001of SGS, 2000 Quality Management System and ISO14001 Environmental System and complies with them strictly.Our LED traffic lights have adopted CE , RoHS , EN12368 Certification, Chinese GB14887-2007 standards and related international standards. Kutuo is one of the leading brand in traffic product in China, and our market has covered Europe,South America,Middle East,Asia,Africa and more than half of China with many successfull traffic light project cases.

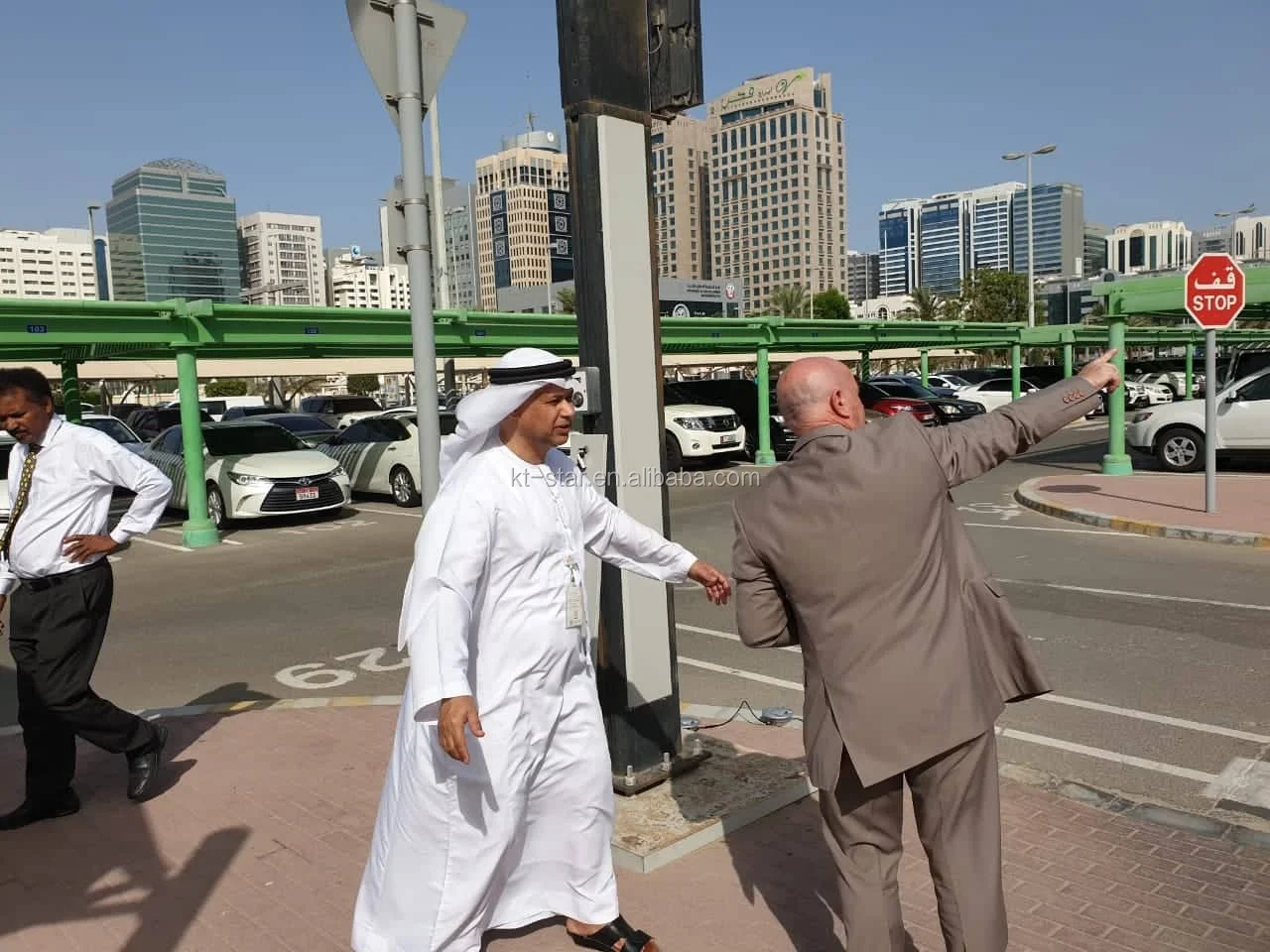

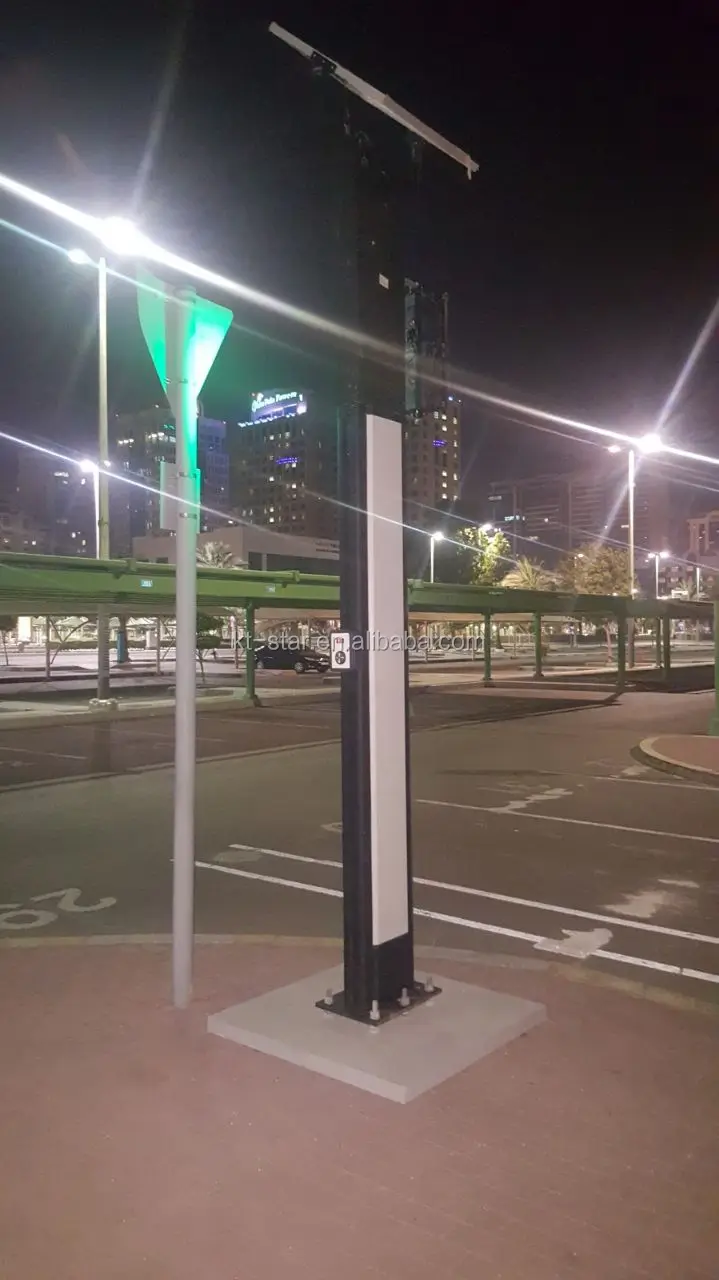

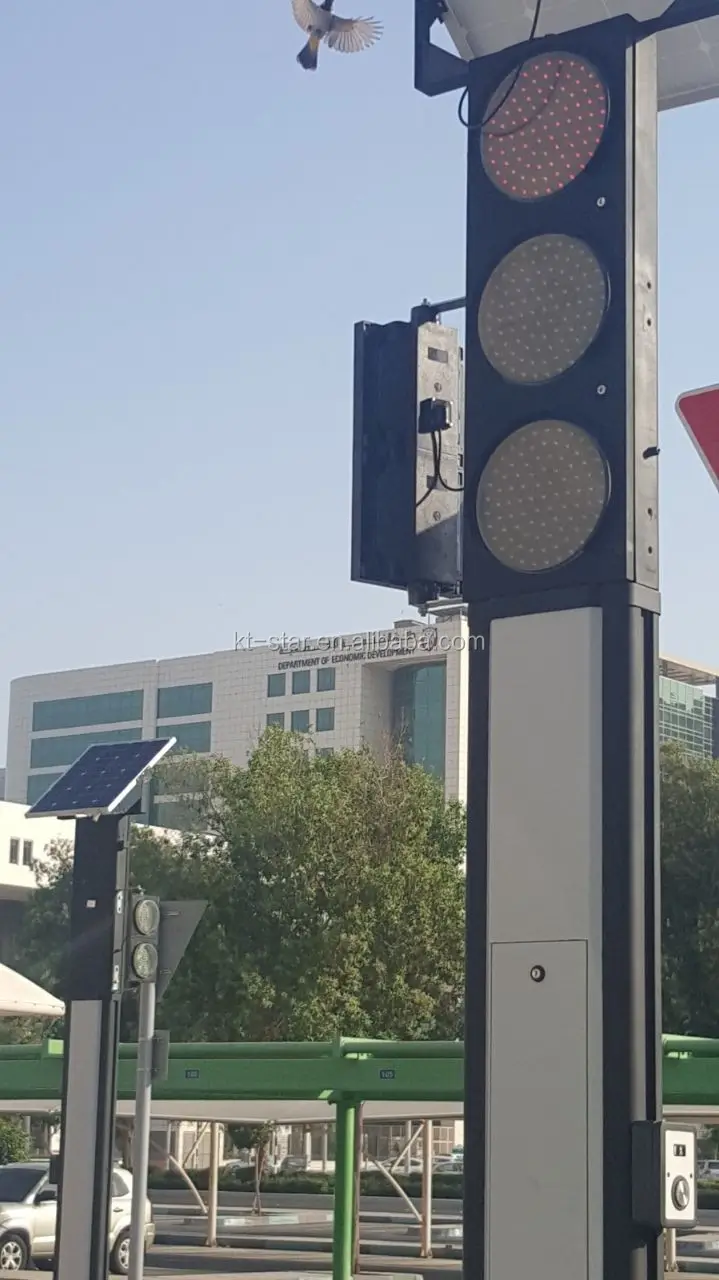

Project cases:
