High Efficiency DC To AC Pure Sine Wave 3KVA Solar Inverter Off Grid Home Solar System
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (60591585412):
Product Overview
Description

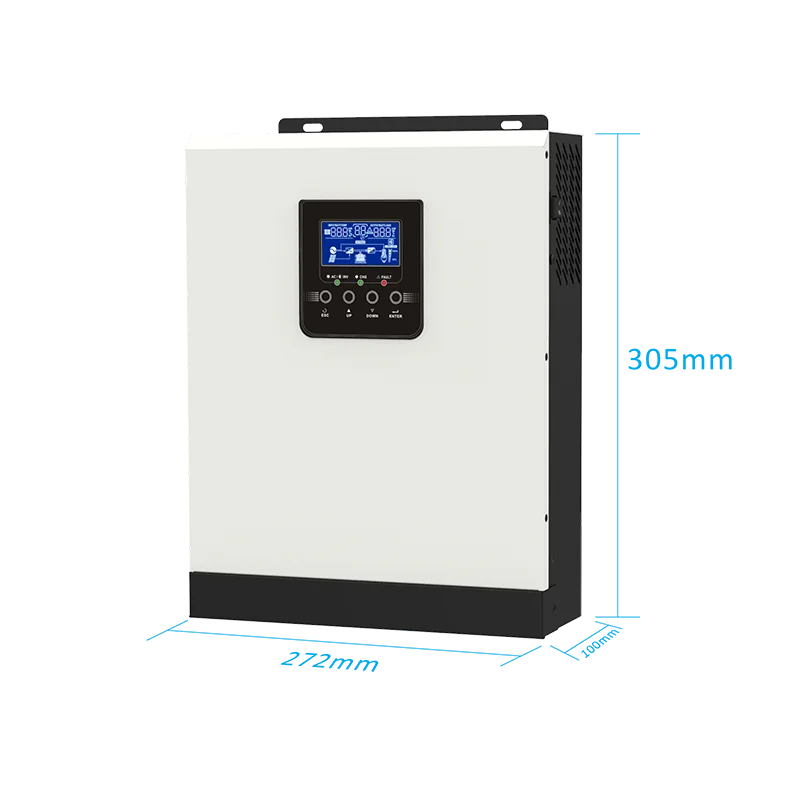

High Efficiency DC To AC Pure Sine Wave 3KVA Solar Inverter Off Grid Home Solar System
• Pure sine wave inverter
• Built-in PWM solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
Product Specification:
Model | HPS 3K-24 |
Rated power | 3000VA/2400W |
INPUT | |
Voltage | 230VAC |
Selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (For home appliances) |
Frequency range | 50Hz/60Hz (auto sensing) |
OUTPUT | |
AC voltage regulation (Batt. mode) | 230VAC±5% |
Surge power | 6000VA |
Efficiency (peak) | 93% |
Transfer time | 10ms (for personal computers) 20ms (for home appliances) |
Waveform | pure sine wave |
BATTERY & AC CHARGER | |
Battery voltage | 24VDC |
Floating charge voltage | 27VDC |
Overcharge protection | 30VDC |
Maximum charge current | 20A / 30A |
SOLAR CHAGER(OPTION) | |
Charging current | 50A |
Maximum PV array open circuit voltage | 80VDC |
PV Range @ Operating Voltage | 30-40VDC |
Standby power consumption | 2W |
PHYSICAL | |
Dimension, D*W*H (mm) | 305*272*110mm |
Net weight (kg) | 5.2kg |
OPERATING ENVIRONMENT | |
Humidity | 5%-95% relative humidity (non-condensing) |
Operating temperature | 0℃-55℃ |
Storage temperature | -15℃-60℃ |
Production Details

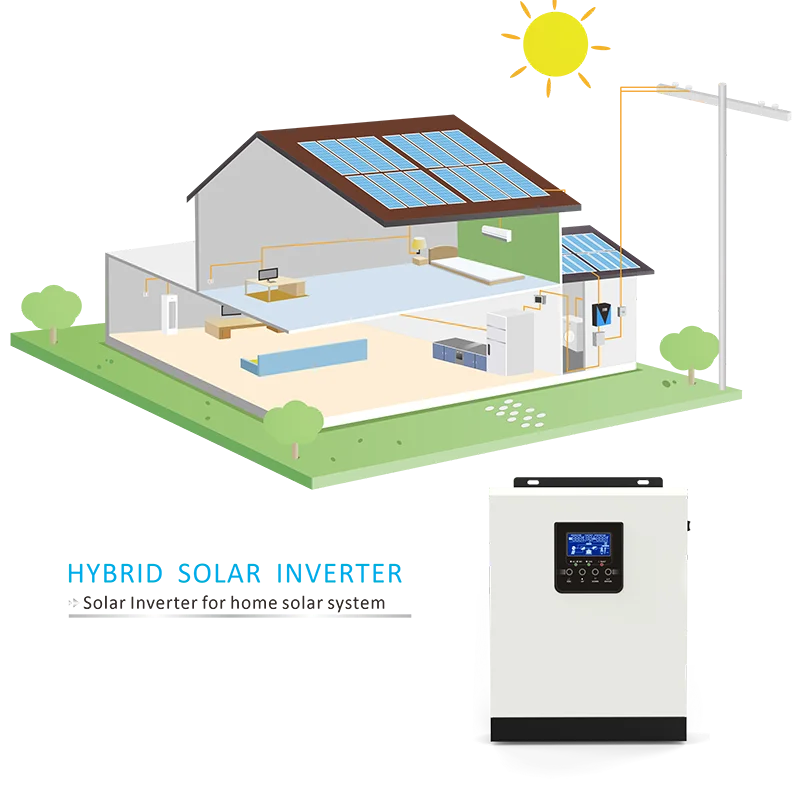

Appliacation for off grid solar system

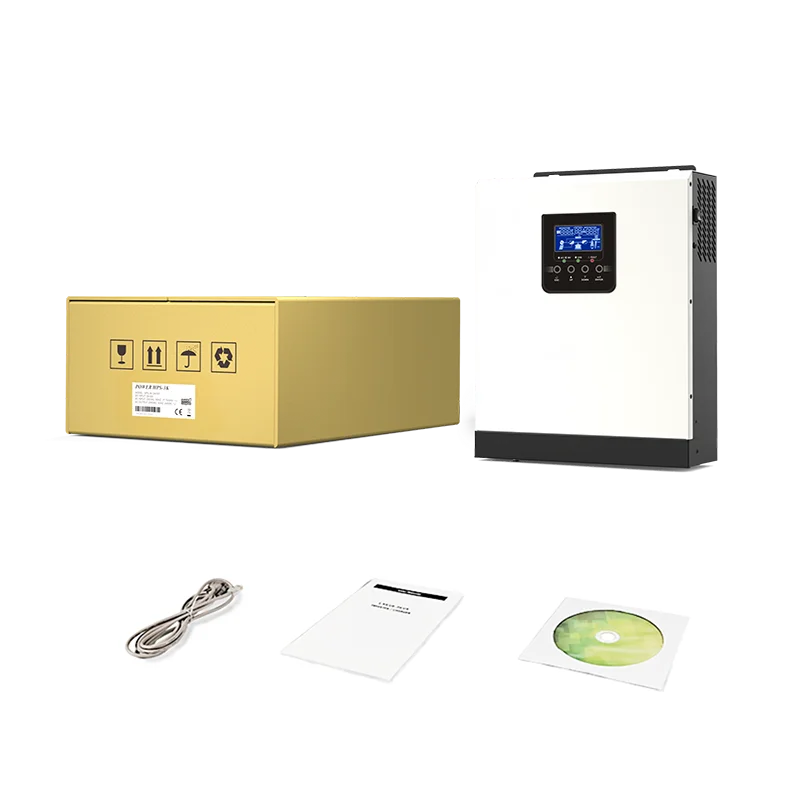

Package List
