Greenhouse Controller

Product Overview

Description

Greenhouse Controller:



This kind of greenhouse adopts modular design, that‘s to say it is a set combination of modular plant factory and designed specifically for vegetable planting, which allows units and individuals, who engaged in agricultural cultivation of plants to customize for factory space according to their needs.The size of this Container Plant Factory is 40HQ container, and one set of container plant factory vegetable production module is consisted by seven container plant factories, one of them is for seedling nursery, another six containers for vegetable matures.



Specification:

Size	40HQ container
Outer size	12192*2438*2900mm
Inside size	11800*2190*2590mm
Effective area inside	25.84 square meter
Production capacity	21600 pieces/crop
Power supply(standard)	200V/380V; 50HZ



The configuration of a single Container Plant factory is as followings:

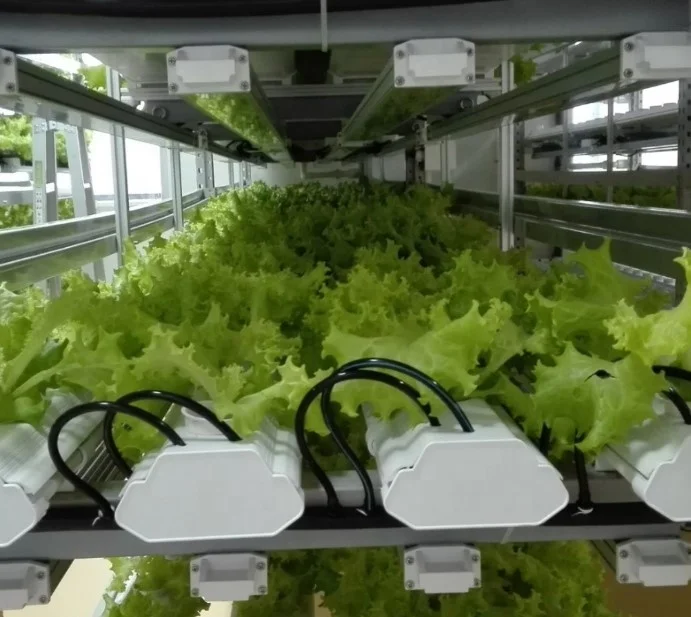

(1) Cultivation system

(2) Nutrient solution circulation system

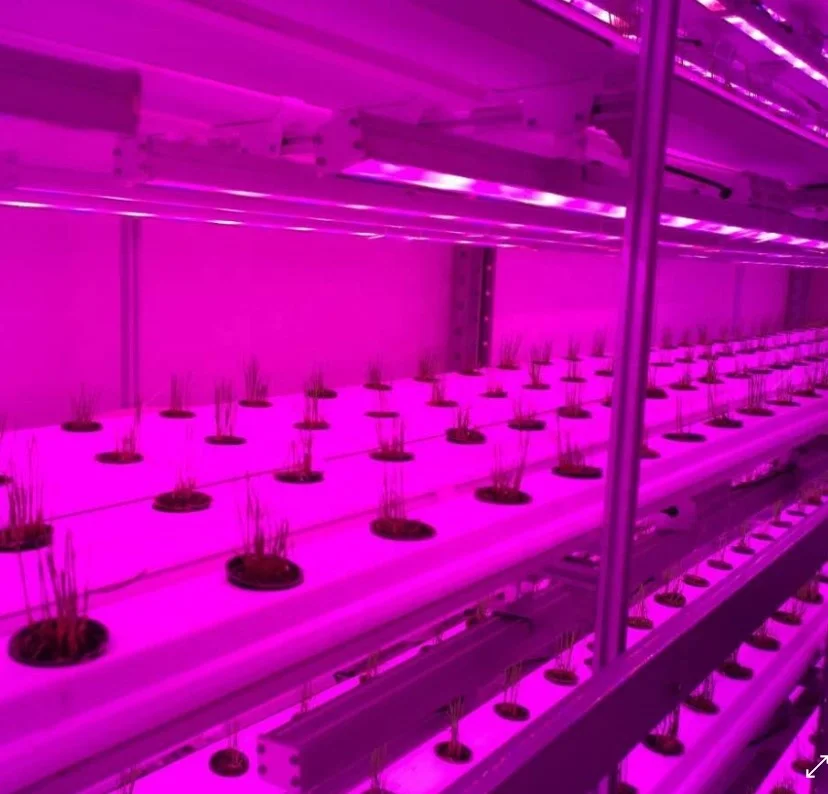

(3) Supplementary lighting system

(4) Air condition system (including ventilation and dehumidification fan)

(5) Humidifying system

(6) CO2 supplement system

(7) Water supply and drainage system

(8) Environment automatic control and automatic fertilizer system

(9) The power distribution and lighting system, etc.





Our Advantages :



Flexible module combination,
Can be easily moved
Mass production is available
Stockage in advance, etc.



Features of container plant factory:

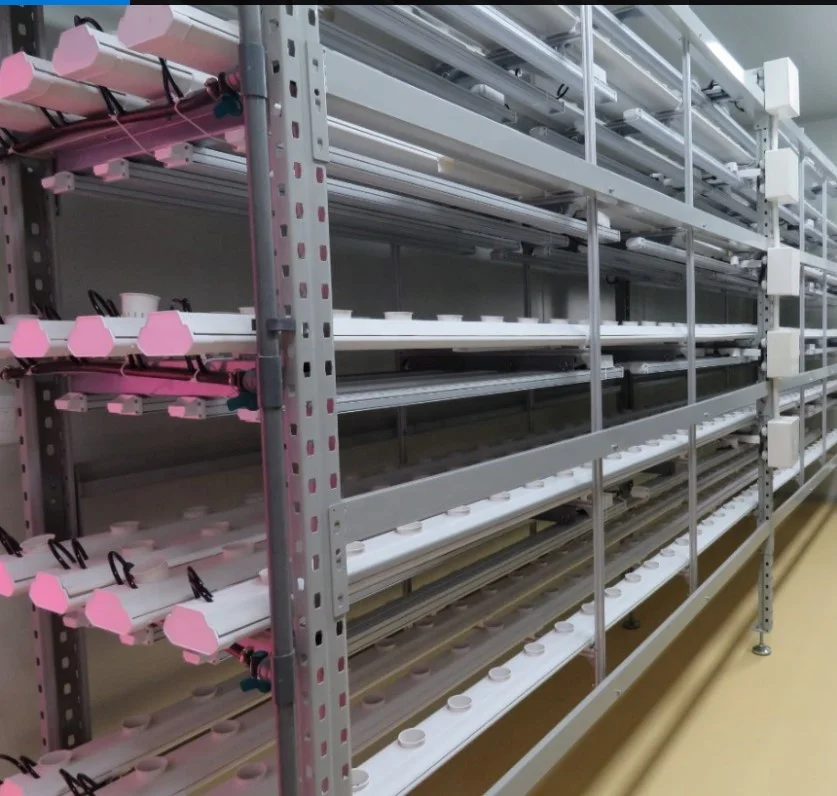

1, Self-developed PVC extruded cultivation gutter :

The cultivation gutter with upper-lower split structure, so that debris can be easily cleaned. With completed accessories, like connector, end caps, brackets and other small pieces, make its construction and installation very high convenience.

2, Energy-saving design:

Electric push rod of outside door may open in timely by the control of the environment automatic control system, which coordinate the electric exhaust fan for ventilation cooling.

3, Resource utilization’s design:

All the nutrient solution can be reused after sterilization, and all air conditioning condensate water is collected together to refill humidifier tank for humidification.
