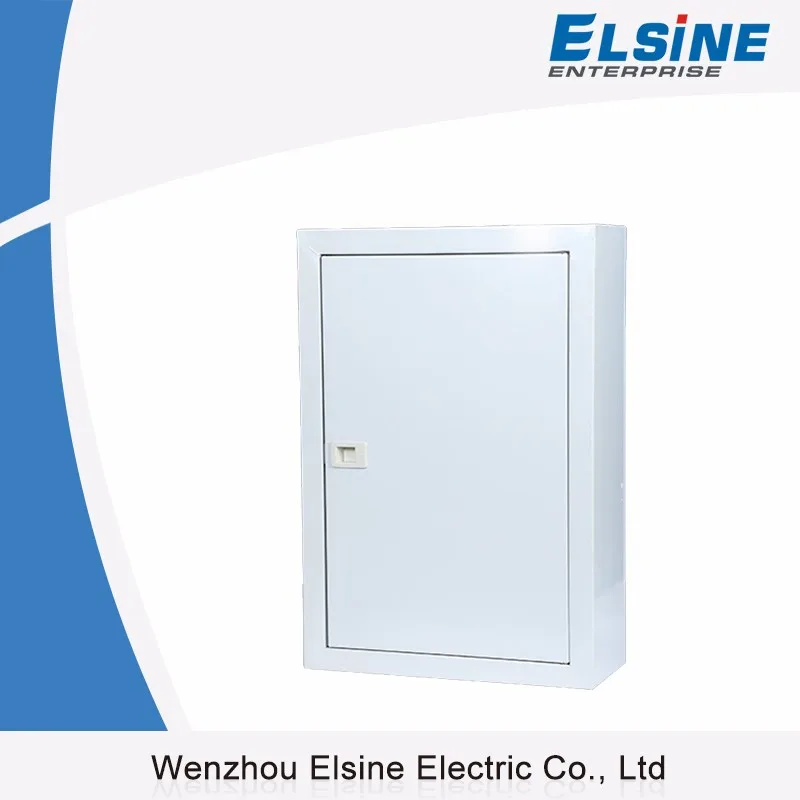

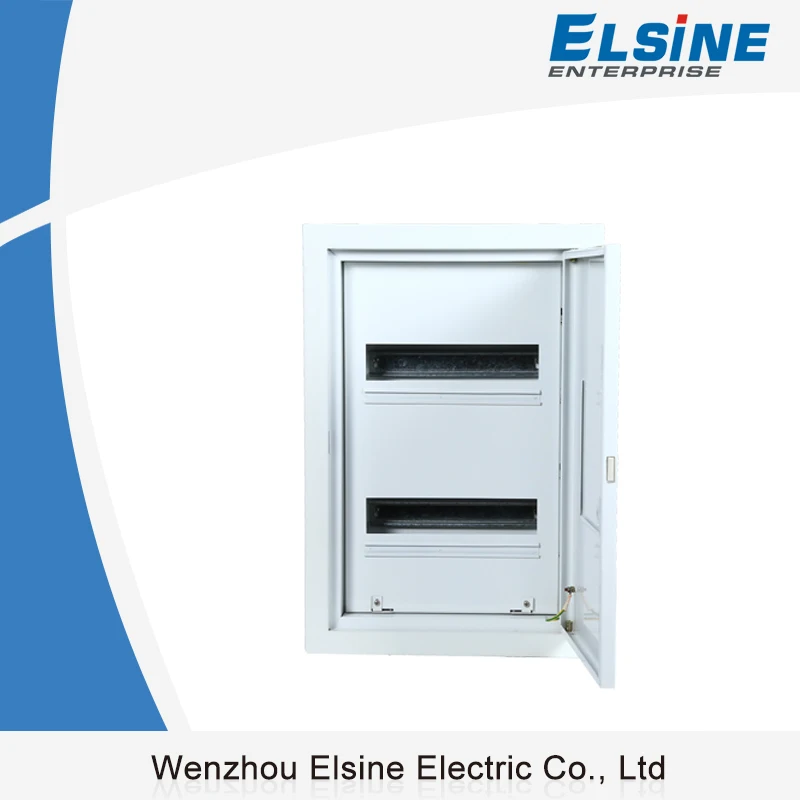

Three phase South Africa surface type din rail distribution box

APPLICATION

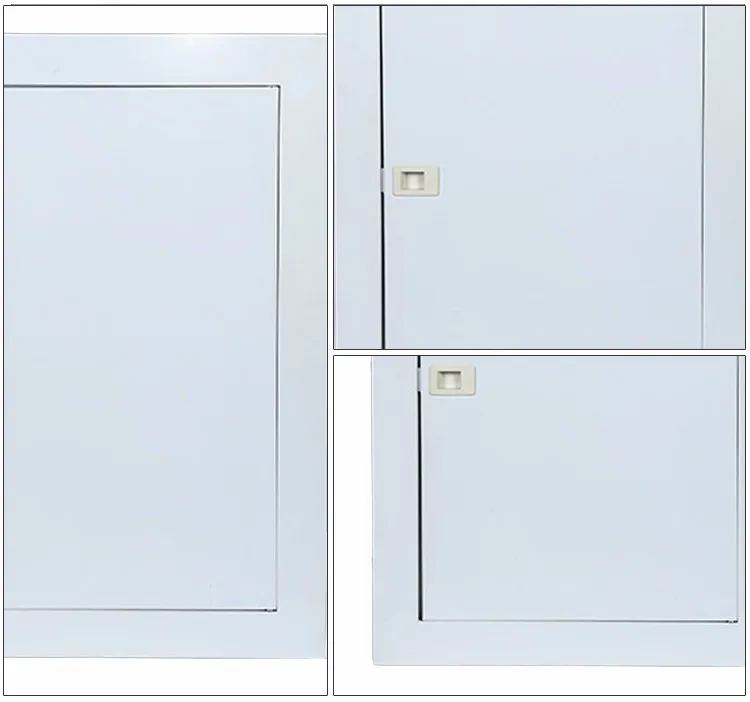

MDB-D series consumer units are design for safe, reliable distribution and control of electrical power as service equipment in domestic, commercial and light industrial premises.Which is easy to install, attractive and highly reliable. Fitted with either steel flap surface or flush door.

Complete with neutral and earth terminals and din rail. Suitable for single phase, 230/415V and rated current upto 63A (Main switch upto 100A)

 FEATURES

♦ Made of high quality steel sheets

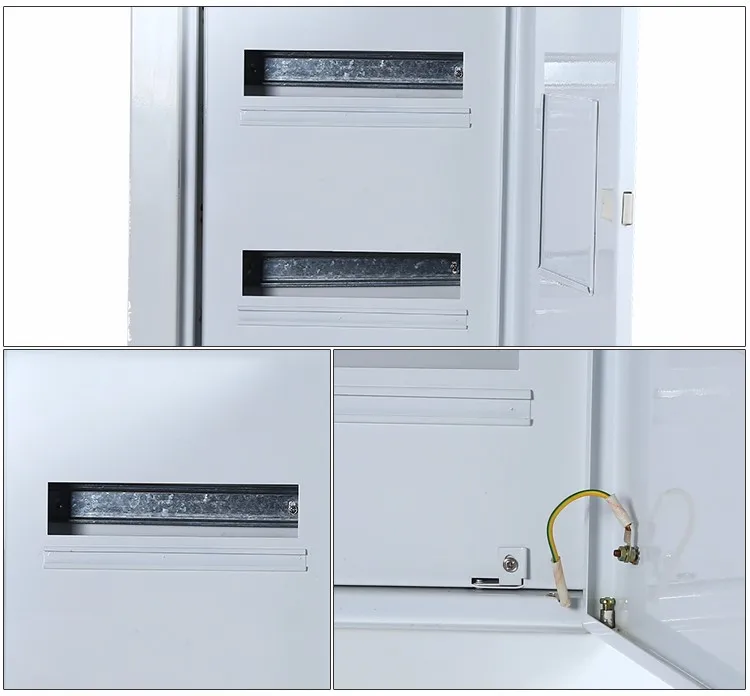

♦ Knockouts of various sizes and removable top and bottom gland plates for ease of cable entry

♦ Depth of pan assembly is adjustable for easy installation

♦ Complete with earth and neutral terminals

♦ Keyhole fixing for ease of wall mounting

♦ Matt-finish polyester powder coated in RAL-7035 light grey colour

♦ Spacious enclosure for easy wiring installations

 TECHNICAL SPECIFICATIONS

◊ Standard: IEC 61439-1, IEC 61439-2, & IEC 61439-3 & BS 60439-1
◊ Max. Load: 100Amps
◊ Rated Current: Branch 6A - 63A; Main switch 63A/100A
◊ Rated Voltage: 120/240V, 230/415V AC
◊ No. of ways: 4, 6, 8, 12
◊ Degree of protection: IP30
◊ Enclosure material: Cold rolled sheet steel
◊ Enclosure finish: RAL 7035 light grey colour

◊ Mounting Type: Surface & Flush

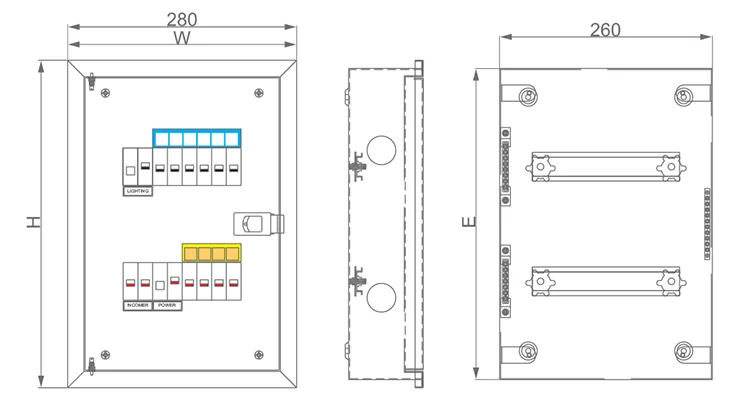

 Dimensions:

All Elsine Load Centers are type tested for complete sequence as per international standards.
Each of our products undergoes a strict quality control check and is routinely checked for construction and performance

♦ Dielectric Properties : A high voltage routine test

♦ Electrical Continuity Test : To confirm correct assembly & operation

♦ Insulation Resistance Test : To ensure high insulation resistance

 About OEM/ODM

♦ Different thickness for your selection: 0.8mm, 1.0mm (default), 1.2mm

♦ We are glad to stamping or printing your logo on the enclosures

♦ Knockouts: Reduce or increase the quantity, change the size or location

♦ Powder Painting Color: Grey (default) or any other colors as required

♦ Packaging: Brown (default) or colorful packaging

♦ Completely production according to customers’ drawings

Elsine electric are professional enterprise in the field of electrical products and accessories. Standing to ISO9001:2000 Principle and IEC standards fastidiously, based on developing principle of innovation, we have developed ourselves’ advantaged new manufacture systems. So all products always experience strict qualitycontrol since material.
Since establishing in 1996, we begun building specialization factories, so that can keep active and high quality creativity, only by which the customers can enjoy new fine service, only by which we and our clients can get good market and profit. Now we have group specialization factories, which are specializing in Switch and Socket for building, Distribution Board, Circuit Breaker, Big power relay, Cable Tray, Tools, Power Cable and Electrical Accessories such as communication accessories, Cable Gland, etc.
OEM and ODM accepted! Any new idea will excite mor market. We will keep show you surprised fine service.

Q 1. What's the payment term?

A. We accept T/T, L/C, Western Union, Cash

Q 2. What's the delivery time ?

A. Usually it would take about 25 days for production

Q 3. What is the standard of package?

A. Export standard package or special package according to customer requirement

Q 4. What kind of product quality your factory offer?

A. We offer most competitive prices with best quality,  copper coil with silver contact.

Q 5. Do you accept OEM and ODM business?

A. We do,for OEM service please send us your authorization, also your quantity should large enough.

Q 6. Could you offer certificate of origin?

A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
