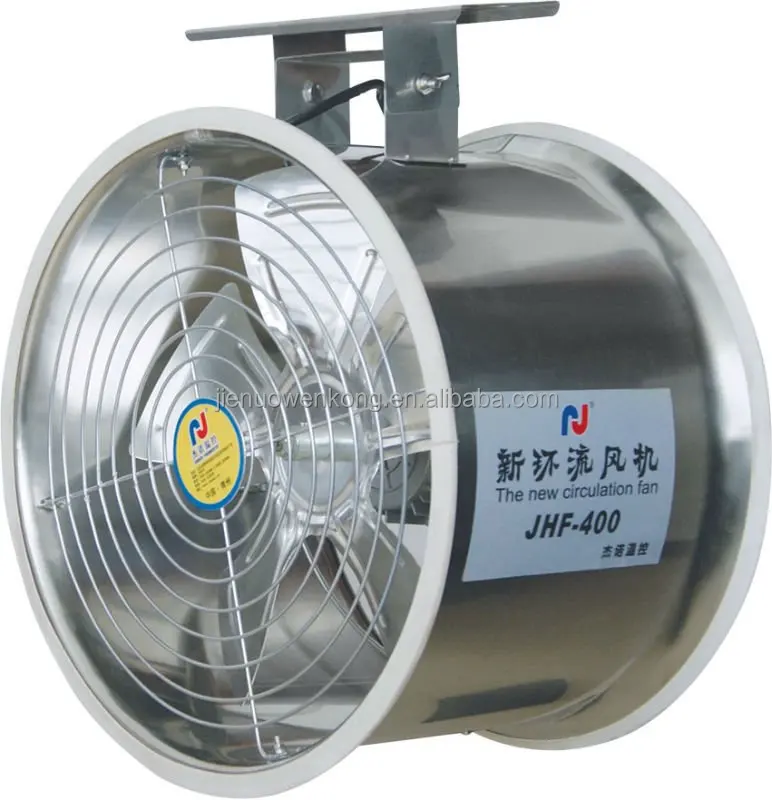

Stainless steel greenhouse ceiling mounted air circulation fan

Product Overview

Description

Details:







JHF Series Greenhouse Circulation Fan

1. Motor is special made for circulation fan, which is with high efficient and energy saving. Motor is

fully enclosed, can work for long time in high temperature and high humidity circumstance.

2. JHF greenhouse circulation fan is subject to 360 hour destructive test to ensure its

performance.

3. Fan blades made of aluminum material features wide angle, light weight, low noise, and excellent

corrosion resistance. Together with specific motor, they are low energy waste, strong wind, long air

distance.

4. Fan shell is made using 304 stainless steel and formed by CNC punch press. It is aesthetically

pleasing and rust resistant.

5. Front and rear safety mesh grills ensure operation safety.

6. Suspension fasteners are made of stainless steel. They are stable operation, low noise, easy to

install, safe to use, and can easily adjust the angle.

7. Designed and made in accordance with ISO9001 standards, the circulation fan is reliable and high

quality.

8. The utilization of internationally advanced energy- saving technology and thermal protection

system results in our greenhouse circulation fan having the advantages of low energy consumption and long service life (over 12 years).





Technical Parameters



Model	Dia (mm)	Voltage(V)	Frequency(Hz)	Input power(w)	Air volume(m3/h)	Press.(Pa)	Blade speed(R/S)	Flow (m)	Overall dimensions(mm)	No. of blade
JHF-40	400	380	50	120	4600	60	1400	12-16	460×460×310	5
JHF-50	500	380	50	250	5800	60	935	18-22	560×560×380	7





Application:
