Good Discount PLG Series Continuous Disc Plate Food Dryer

Product Overview

Description

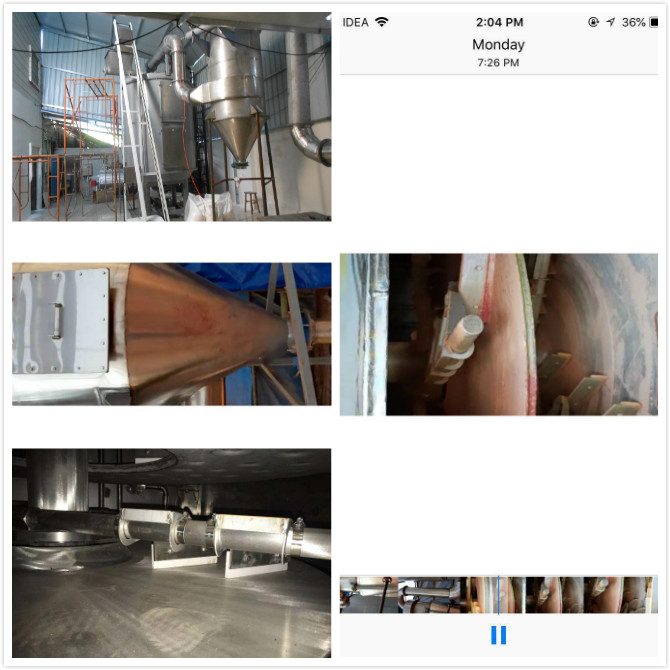

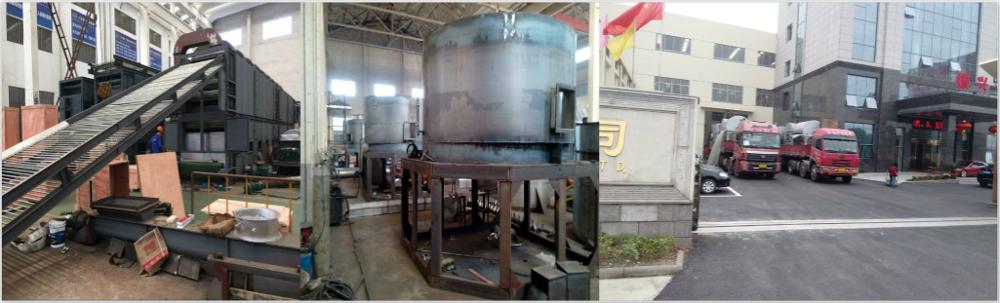

The Dryer Machines are installed at the plant.





DO YOU HAVE ANY QUESTIONS IN DRYING PROCESS ?

IN CHEMICAL FIELD, IN FOOD FIELD, IN SLUDGE FIELD…..



ARE YOU ALSO HAVING ANY INTEREST IN DRYING PRODUCTION LINE?



ARE YOU LOOKING FOR A PROFESSIONAL DRYER MACHINE?



HOW ABOUT A PERSON TO SOLVE ALL QUESTIONS YOU CONCERNED?





 Find me on WHATS APP:   +86-13651500952



Hi, I am Joanna ,and now working for Changzhou ZHENXING Environment Technology Engineering Co., Ltd

I know you are looking for good quality dryer equipment,like this:







Contact me to get full technical support.

So our company can be a good choice, WHY?





TOP 500 WHO CHOOSE US,WE SPECIALIZE IN DRYING FIELD SINCE 1993,



Certificates such as SGS,CE,ISO can also be a proof of our quality



"our machinery have improve production capacity more than 50% in regular process , not only in capacity,but also in fine powder quality."

Hotsale PLG Series Drying Machine Continuous Tray Dryer

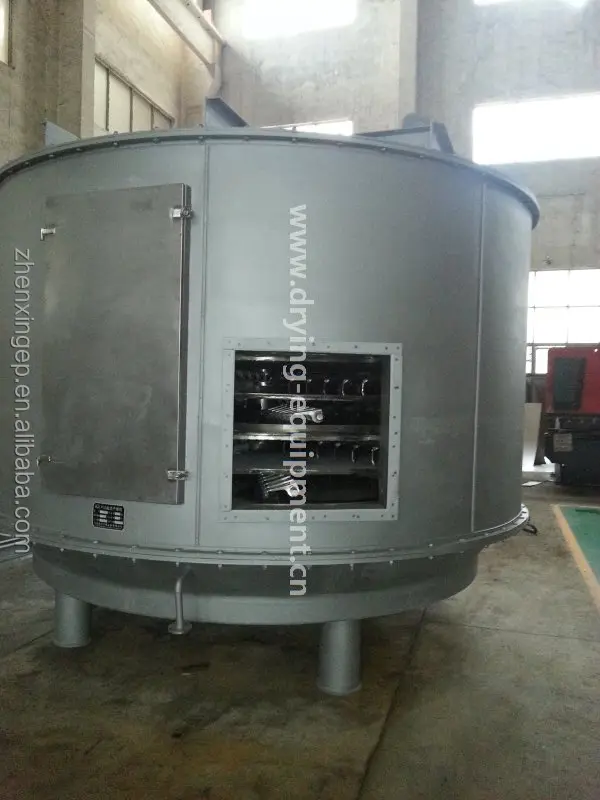

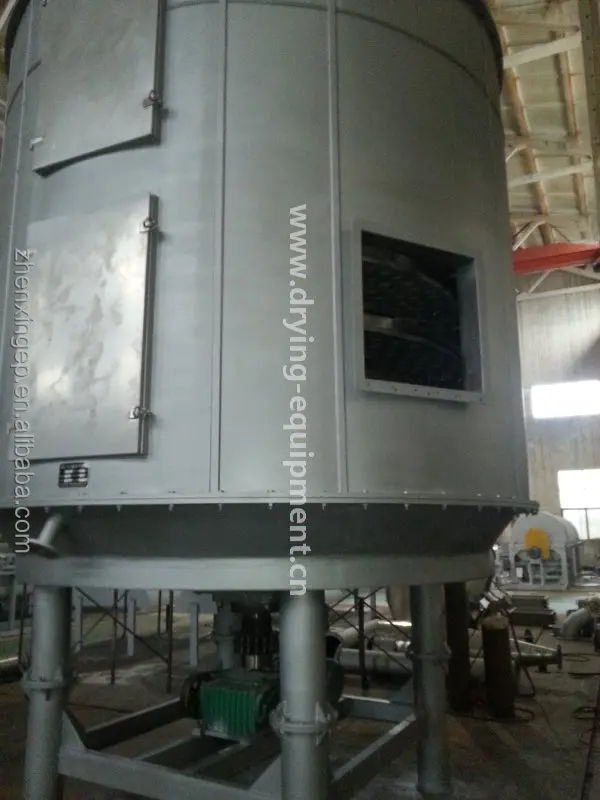

 PLG Series Continuous disc dryer is a high efficiency conducting and continuous drying equipment. Its unique structure and operating principle determine that it has advantages of high heat efficiency, low energy consumption, small occupied area, simple configuration, easy operation and control as well as good operating environment and etc. It can be widely used in drying process in the fields of chemical, pharmaceuticals, agricultural, foodstuff, feed, and other industries.

There are three major types: normal pressure type, closed type, and vacuum type; and four major models: 1200, 1500, 2200 and 3000; and three kind of material grades, A (carbon steel), B (use stainless steel for material contacted area), and C (use stainless steel for material contacted area, steam pipes, main shaft and supports, and linings for cylinder body and top cover).The drying area of the dryer is 4 to 180 m2. We have produced hundreds of models with auxiliary devices which are available to meet requirements of all customers.

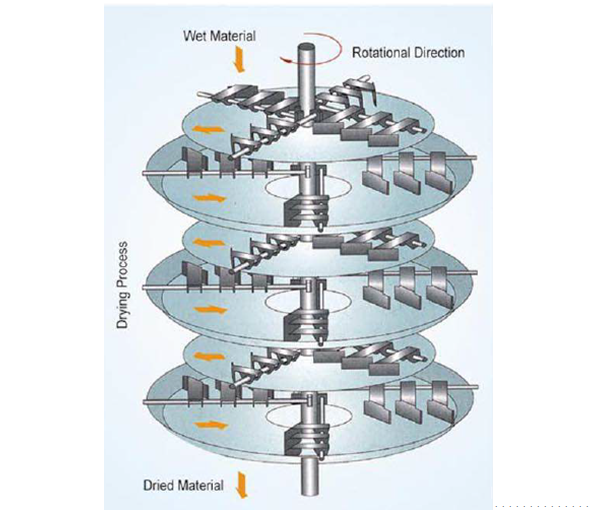

WORKING PRINCIPLE

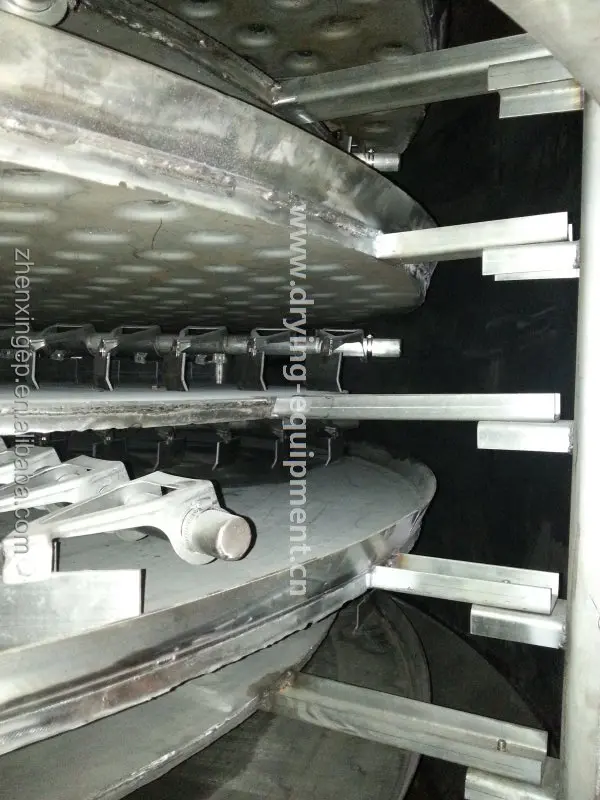

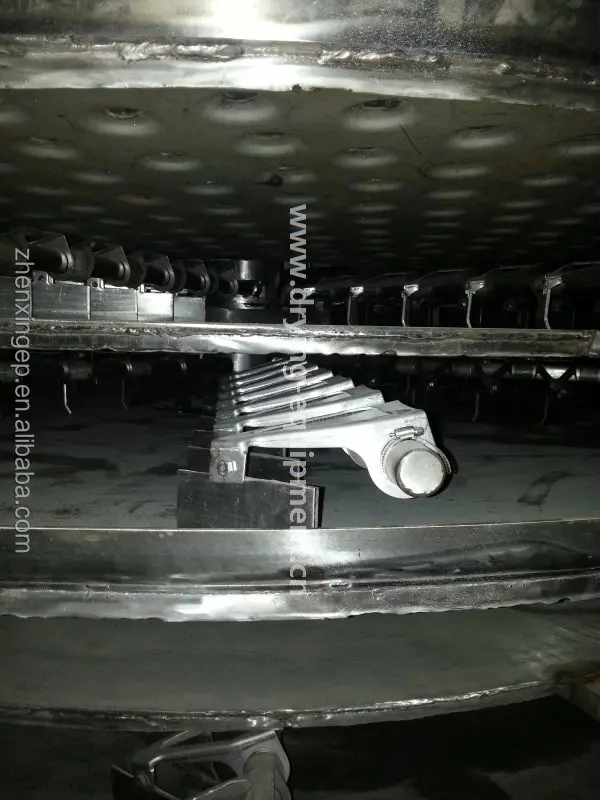

The wet material is fed continuously to the first drying layer on the top of the dryer. It will be turned and stirred by rakes when the rake arm rotates and drop down to the outer edge of the large drying plate along the exponential helical line. The material will be moved from the small drying plate to its outer edge and drop down to the outer edge of the large drying plate underneath. Both small and large drying plates are arranged alternately so the materials can go through the dryer continuously. The heat medium can be saturated steam, hot water or thermal oil. The heat will be led into hollow drying plates from one end and come out from the other end. The dried materials will drop from the last layer of the drying plate to the bottom of the dryer and then moved by rakes to the discharge outlet. The material moisture will be removed from the exhaust outlet on the top cover. For the vacuum-type plate dryer, the moisture will be sucked out by the vacuum pump on the top cover. The dried materials will be discharged from the bottom layer. The drying capability can be improved if the dryer equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism, draft fan, and etc.



TECHNICAL PARAMETERS

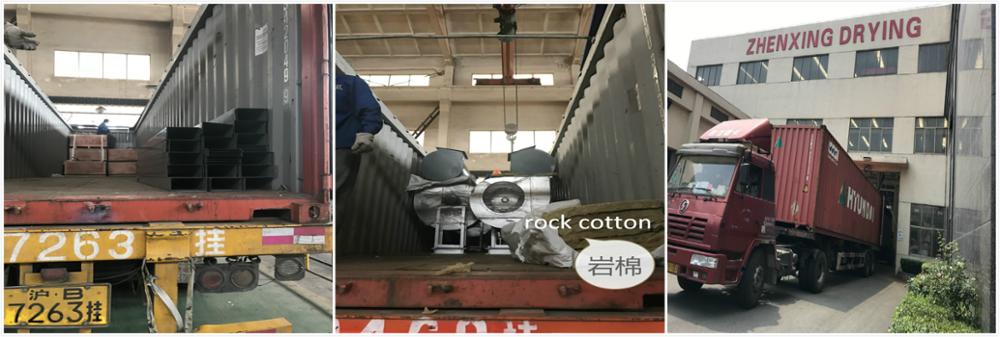

 Packing and Delivery:

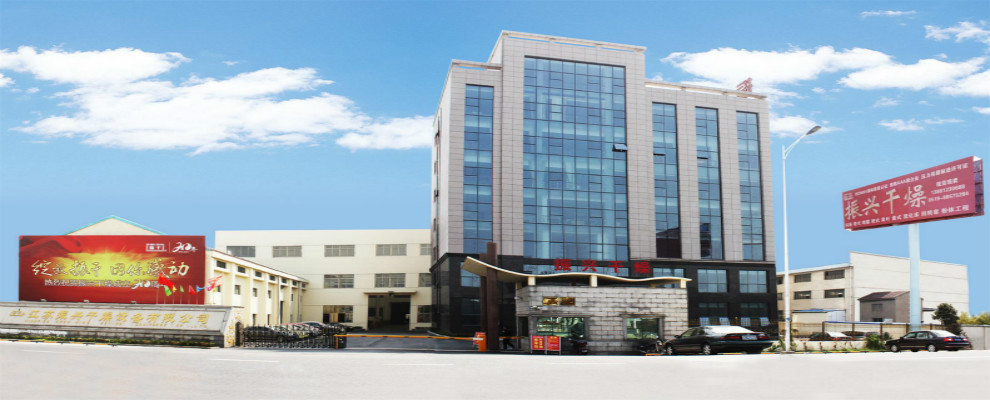

Company Information

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd.,this is Drying Equipment manufacture. We are specialized in development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc.

We follow a strict quality control procedure and we provide high quality products with prompt after sales services and technical supports.

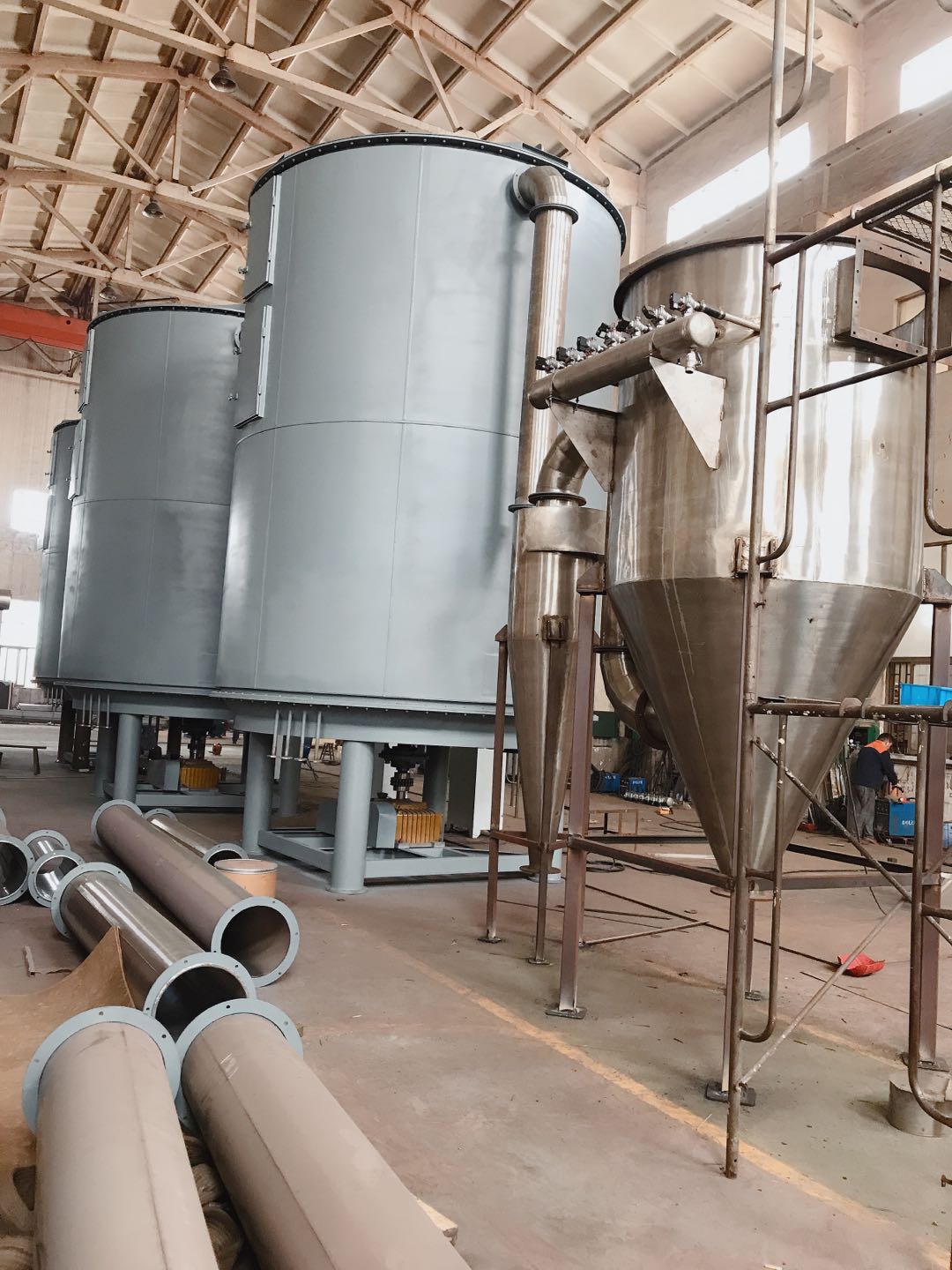

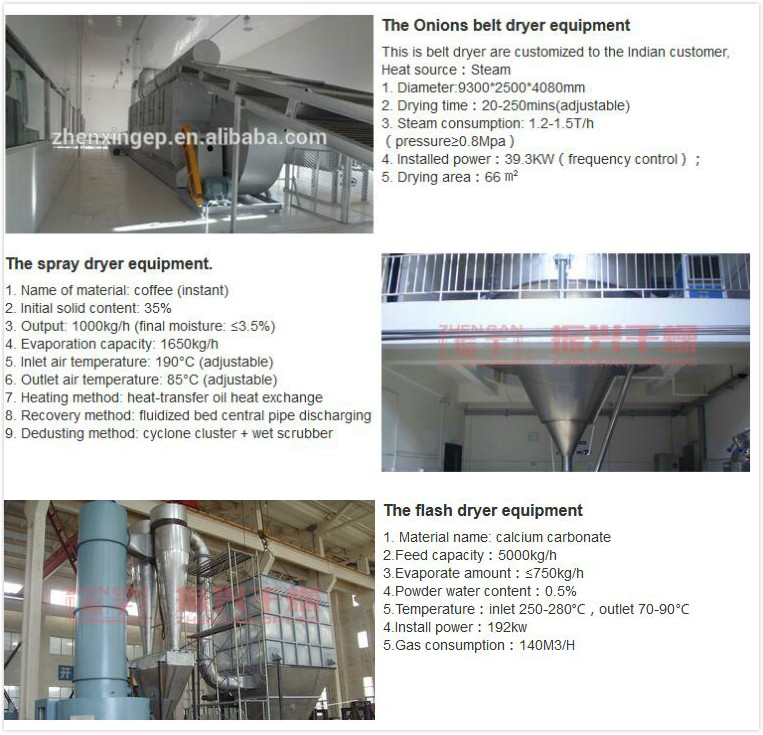

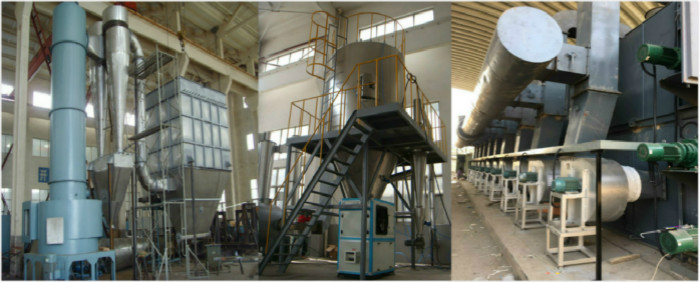

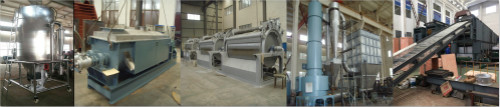

Project Case



During the installation, we can send our engineer to help you instruct if you need.

If you have any other questions, please feel free to contact with me if you need.
