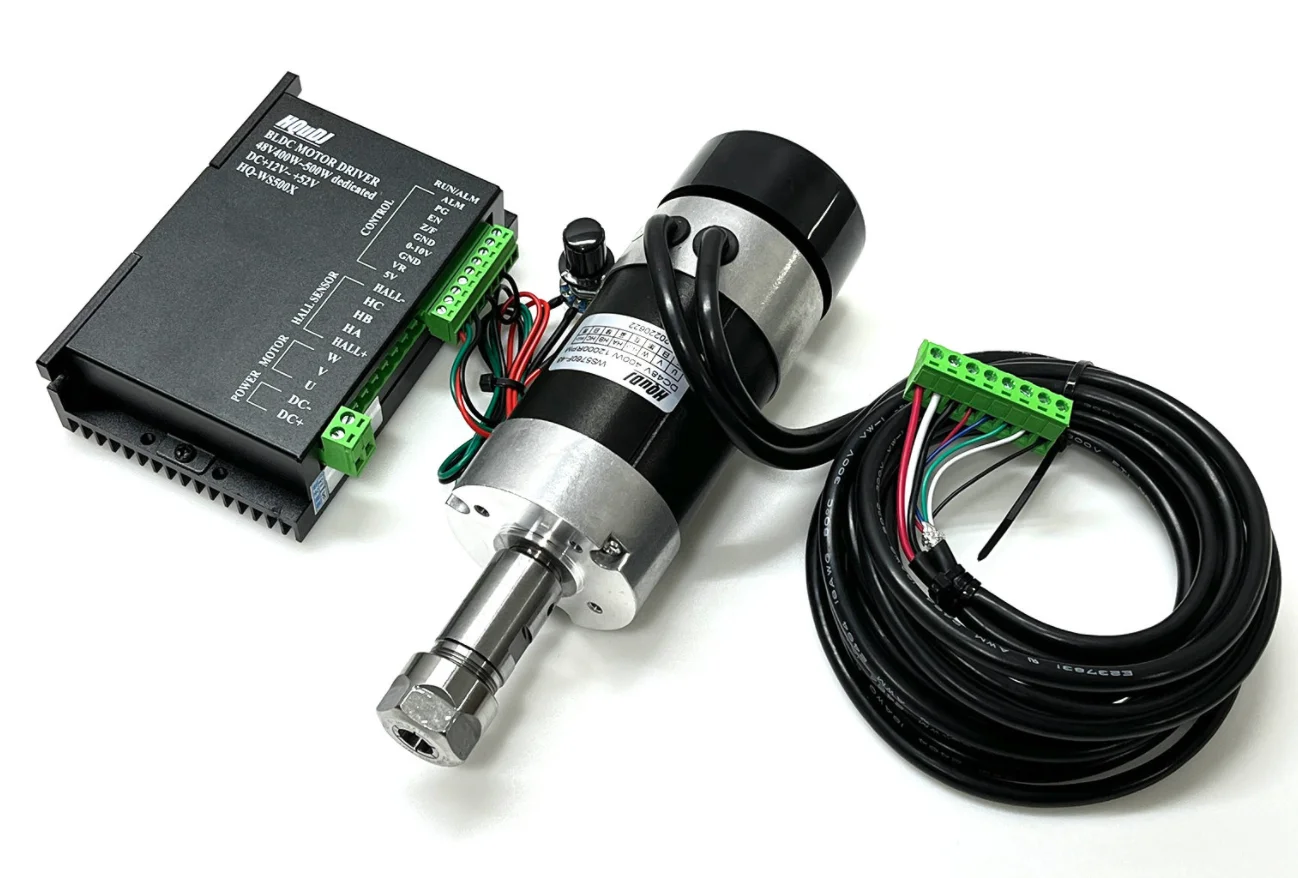

500W Air Cooled Spindle Motor Mach3 ER11 DC48V 0.55NM Power Governor CNC PCB

Type

Air Cooling DC Spindle Motor

Power Governor

Input

AC220V

Output

48 VDC

Support Mach3/PLC

Rated voltage

DC48V

rotate speed

12000RPM

Power

500W

Torque

550mN.m

 Nut& Collet

ER11  3.175mm(default)

Collet range

1~7mm

Dielectric strength of insulation

400V

Diameter*length

52*200 mm

Radial pulsation

0.02mm

Carving object

metal or nonmetal

Carbon brush

Extra position

Advantage

lower noise and large force

Insulation resistance

100 M ohm DC500V

insulation class

B

Warranty

1 year

speed adjustment mode

Manual stepless speed regulation

1PCS

500W DC Spindle Motor

1PCS

Power Governor

1PCS

52D Mount bracket
