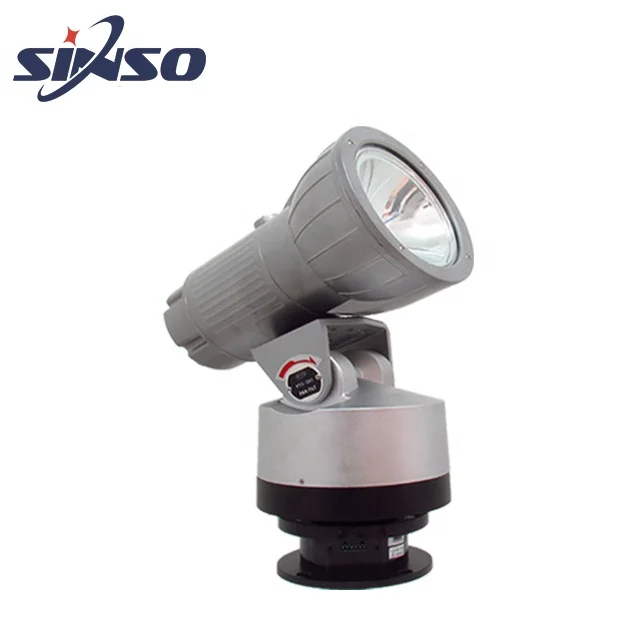

wired control long range moving head aluminum pure white xenon searchlight for watch tower
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (60592158285):
Product Overview
Description

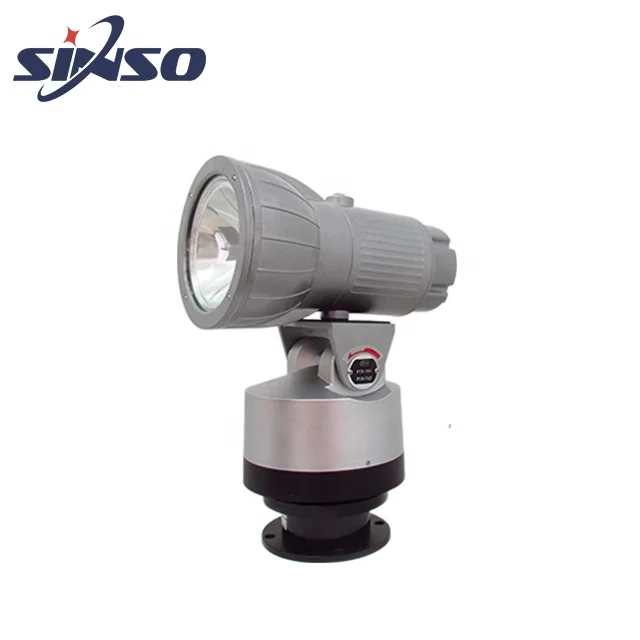

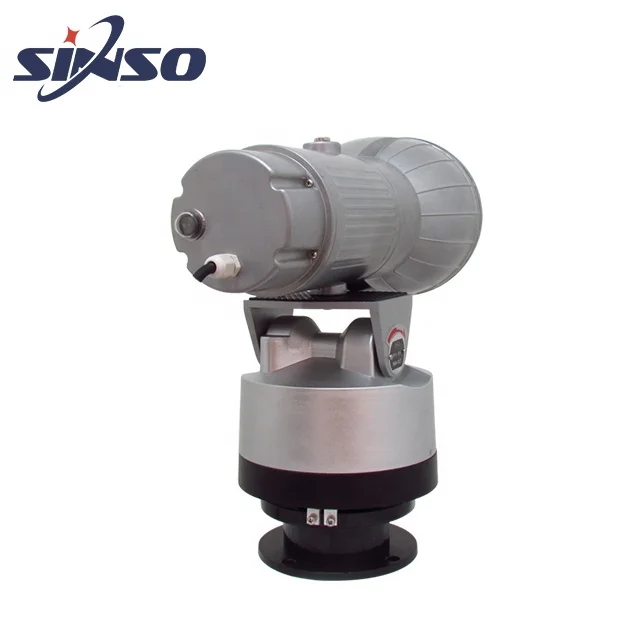

wired control long range moving head aluminum pure white xenon searchlight for watch tower
Product Paramenters
Auto cruise function:searchlight reciprocating motion during limits
Speed adjustment:arbitrary switching speed, there are three speed adjustment
Continuously variable:moving speed can be arbitrary switching,both horizontal and vertical with continuously variable
Preset function:searchlight move to the important position at once,searchlight move to the position in 8s
4/8 directions adjustment:searchlight move to any position of freedom
Home functioning:auto protect the most important area

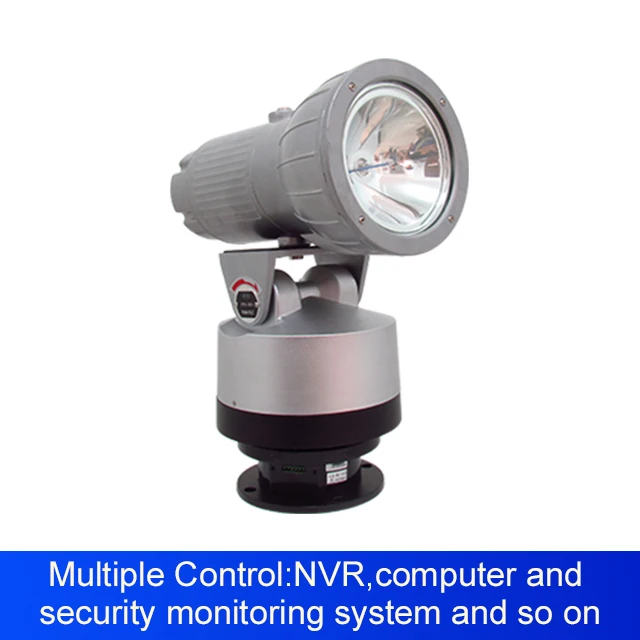

Multiple control:searchlight can be control by wireless remote and wireless keyboard
Speed adjustment:arbitrary switching speed, there are three speed adjustment
Continuously variable:moving speed can be arbitrary switching,both horizontal and vertical with continuously variable
Preset function:searchlight move to the important position at once,searchlight move to the position in 8s
4/8 directions adjustment:searchlight move to any position of freedom
Home functioning:auto protect the most important area
Multiple control:searchlight can be control by wireless remote and wireless keyboard
Type | outdoor searchlight | ||||
Model | PD-022-B | ||||
Control mode | wireless remote,wired keyboard,software(R485 interface) | ||||
Visibility range | 600M | ||||
Power | 150W | ||||
Input voltage | 220VAC,12VDC,24VDC | ||||
Luminous Flux | 10000lm | ||||

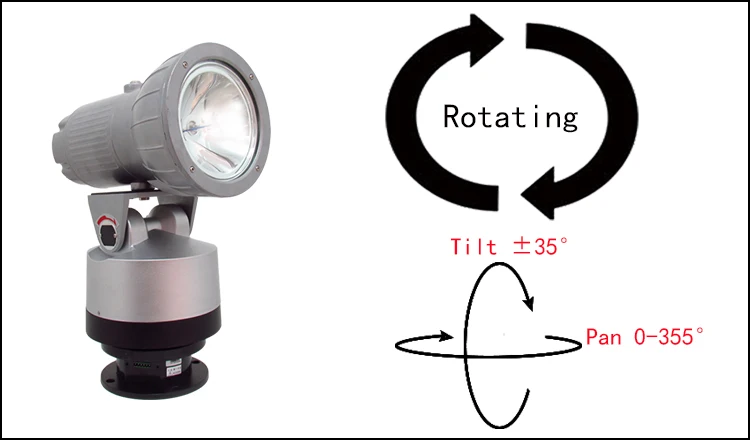

Rotation angle | Pan:0~355°,Tilt:±35° | ||||
Rotation speed | Pan:0-15°/s,Tilt:0-3°/s | ||||
Temperature(CCT) | warn white,pure white,cool white(3000K,6000K,8000K) | ||||
Work temperature | Normal version:-10℃~+45℃,Low temperature version: -30℃~+45℃ | ||||
Material | Cast Aluminum+ABS | IP grade | IP65 | ||
Beam Angle | 6° | CRI(Ra>) | Ra>95 | ||
Lamp Dia | 20CM | Color | Silver-Gray | ||

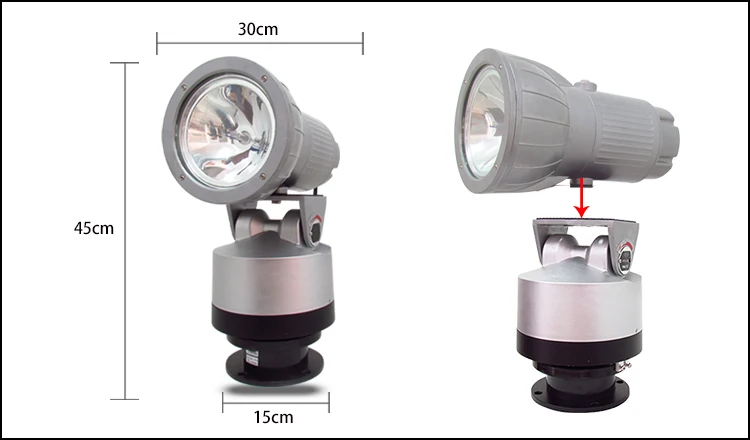

Weight | 6Kg | Dimension | 30*18*45cm | ||
Products Description
wireless remote control
wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M
adjustment in 4 directions and to be
able to adjust the direction of freedom
adjustment in 4 directions and to be
able to adjust the direction of freedom
Wired Keyboard control
wired keyboard control,control range up to 1200 Meters,keyboard with battery inside,can be used without external power.
supply 8 direction adjustment: right,lift,up, down,top right,top left,bottom right,bottom left,to be able to adjust the direction
offreedom
one keyboard control up to 10 searchlights
supply 8 direction adjustment: right,lift,up, down,top right,top left,bottom right,bottom left,to be able to adjust the direction
offreedom
one keyboard control up to 10 searchlights

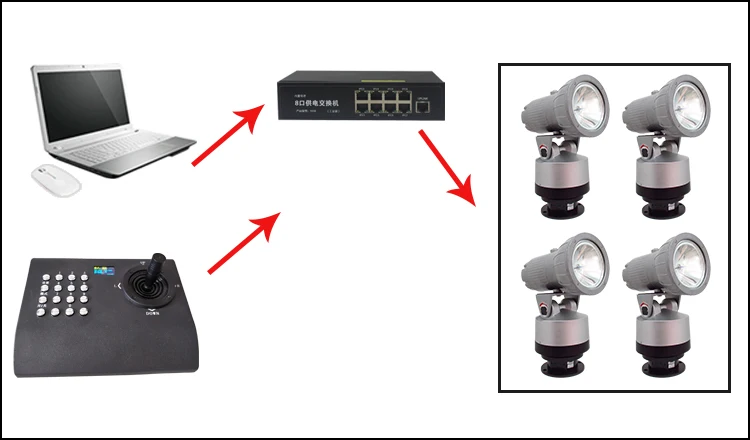

Software control
Communicate method:RS485 interface, PELCO-D,9600bps
Timing function:99 groups Time-Switch,can be control the time of searchlight turn on/off and working mode
One software control multiple searchlights
Timing function:99 groups Time-Switch,can be control the time of searchlight turn on/off and working mode
One software control multiple searchlights

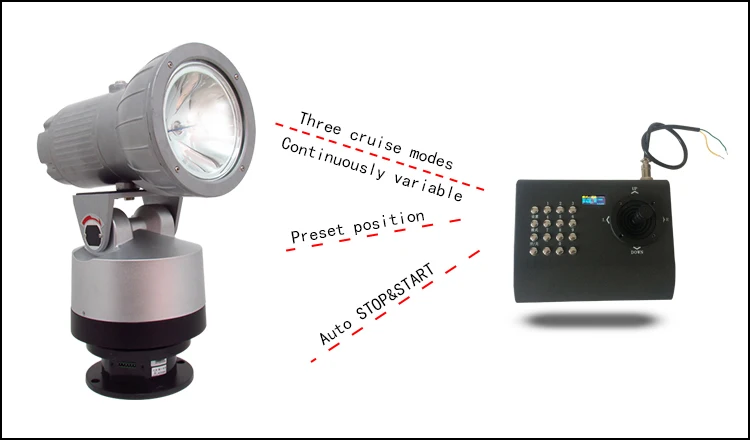

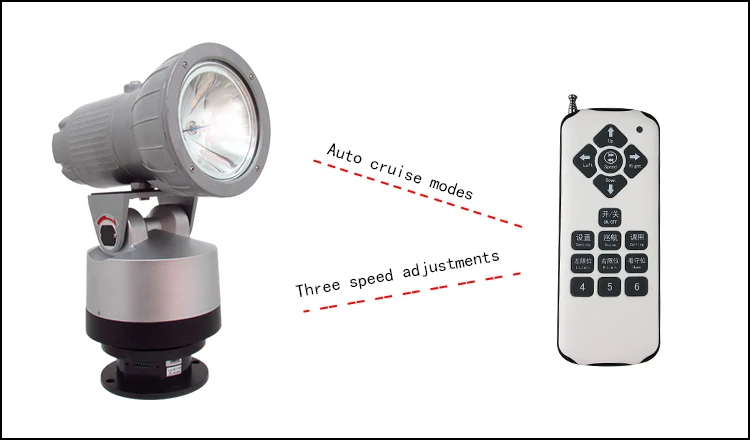

Auto Cruise/Variable Speed Function
Autocruise Function:there are three cruise modes for auto cruise function :horizontal mode,vertical mode,horizontal vertical mode.
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed.
Three speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed.
H:pan:15°/sec, tilt:3°/s,
M:pan:5°/sec,tilt:2.5°/s,
M:pan:5°/sec,tilt:2.5°/s,
L:pan:1°/sec, tilt: 0.5°/s
One for more,more for one
one remote for one searchlight,control distance:50~100Meters
One keyboard can be control up to 10 searchlights, One/multiple keyboard for one /multiple searchlightst,control distance:
1200Meters
Simulate live action,work with timer to achieve unattended;
One keyboard can be control up to 10 searchlights, One/multiple keyboard for one /multiple searchlightst,control distance:
1200Meters
Simulate live action,work with timer to achieve unattended;

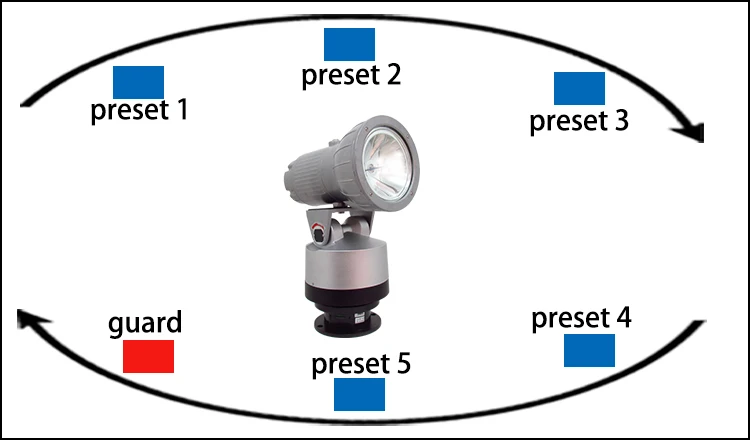

Preset/Auto Scan/Guard Function
Guard Function:searchlight will move to guard position automatically when searchlight without operated for some time.
Preset function:One-click Move to main area, quick response,there are 5 preset positions by remote and 8 preset positions by keyboard
control
Auto Scan:stop and cruise between the presets ,residence time can be set
Auto Scan:stop and cruise between the presets ,residence time can be set
There are 5 presets and one guard position by remote and 8 presets and one guard position by keyoard

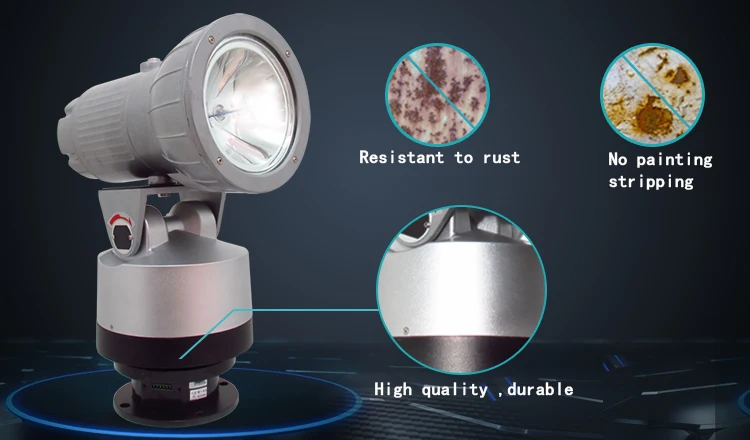

Material
Shell adopts imported engineering cast aluminum,metal reinforcement stress structure, with high resistance to strong
collision,windproof , shock and impact resistant ability, hollowed-out design increase area of heat dissipation,overall stainless
steel,High temperature baking, never aging rust,no paint stripping,timeless as new
collision,windproof , shock and impact resistant ability, hollowed-out design increase area of heat dissipation,overall stainless
steel,High temperature baking, never aging rust,no paint stripping,timeless as new

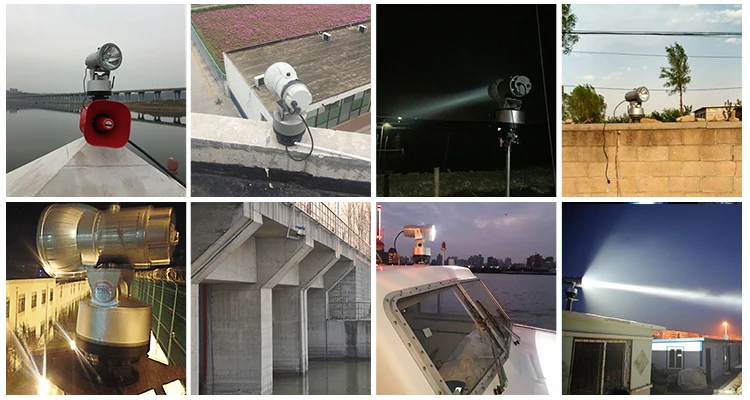

Application
Sinso searchlight used for Homeland&Border Security,Prison Facilities&Prison Security, Maritime Water &Electric
Power,Aquaculture,Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform
Power,Aquaculture,Orchard,Farming,Terminal,Bridge ,Ship/Wharf/Oil platform
Why Choose Us
Why buy from us?
1.Well after sale service.
2.Failure: less than 0.2%.
3.We will reply you as soon as possible when work time & off work time.
4.More discount can be 5% ~ 10% if you have big quantity.
5.Full test before shipment.
6.One year warranty.
