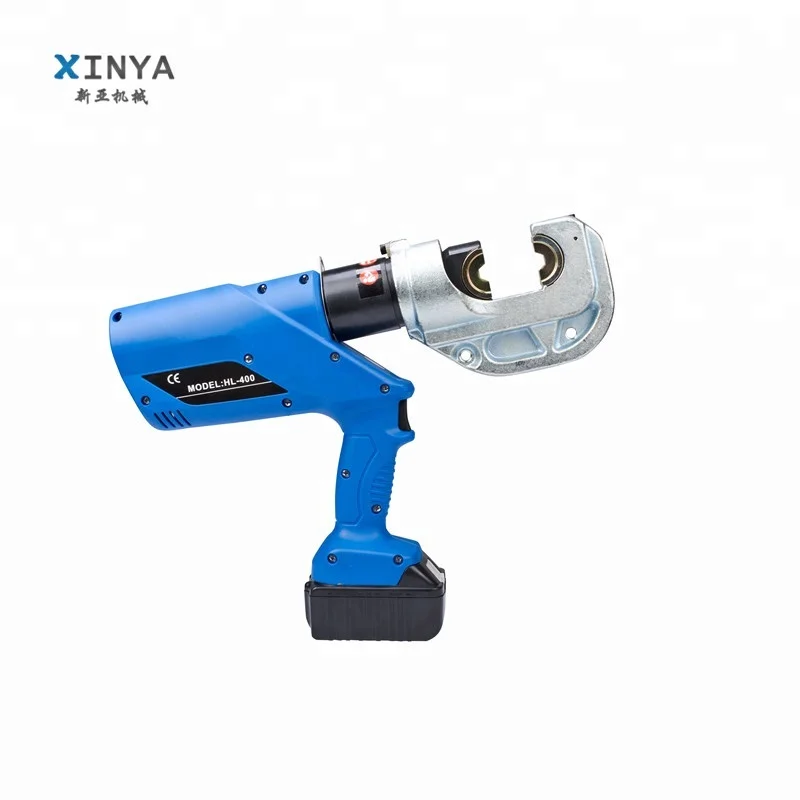

BZ 400 Battery Powered Hydraulic Crimping Tool Range 50 400mm2

Product Overview

Description



Characteristics

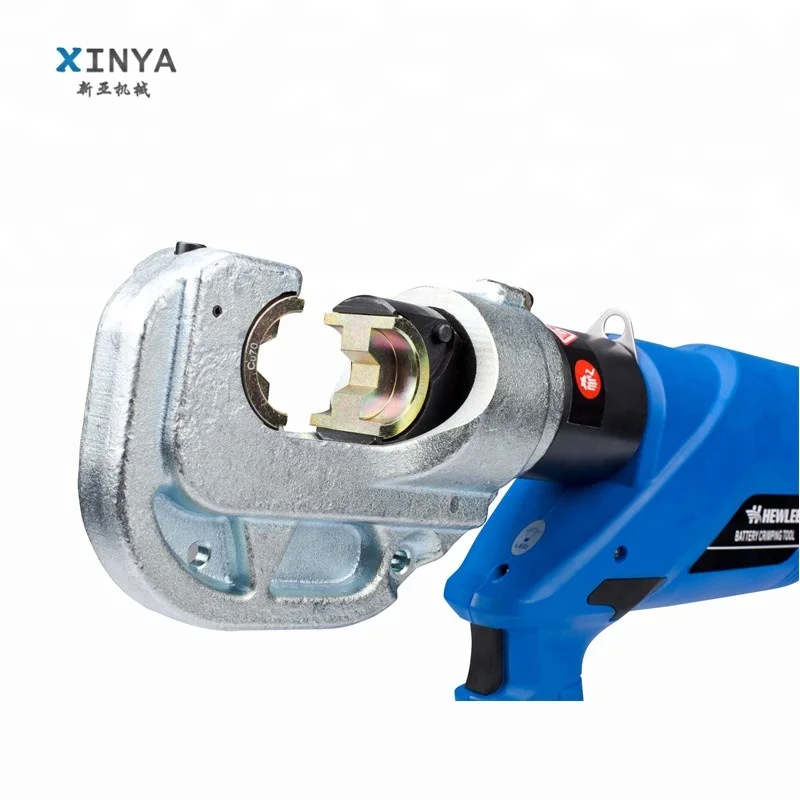

1.Compression mould can be replaced, quick and safe operation;

2.Compression configuration: 50,70,95,120,150,185,240,300,400mm2

Press tools is suitable for DIN.AWG.JIS.

There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

Only one person can work.

Pump is connected to the tools, it can turn 180 degree when pressed on the head.



Technical Data

Model	BZ-300	BZ-400
Max Compression(KN)	60	120
Stroke(mm)	17	42
Compress Range(mm2)	16-300	50-400
Battery	18V3Ah	18V3Ah
Compression die size(mm2)	16,25,35,50,70,95, 120,150,185,240,300	50,70,95,120,150, 185,240,300,400
