PfSense, роутер с креплением в стойку, ОС ПК с Xeon Core i3/i5/i7, SFP, байпас, 6 LAN, 2 SFP, сетевой брандмауэр, устройство безопасности, ПК
- Category: Firewall & VPN >>>
- Supplier: Shenzhen Armortec Technology Limited
Share on (60592332447):
Product Overview
Description
pfSense Rackmount Router OS PC with Xeon Core i3/i5/i7 SFP BYPASS 6 LAN 2 SFP firewall network security appliance
Product Description
Feature:
Adopts the dedicated multi Ethernet application scheme to design
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards
Integrated with 2 Intel 82580DB GbE or 82599ES 10 GbE SFP Ethernet cards(Optional)
Provides 1 Mini PCIe slot, supports wifi, 3G module
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Supports SSD, SATA HDD, CF card storage
Specification:
Model No. | FWB-6761-2O | |
Form Factor | 1U 19” Rackmount | |
Platform | Processor Options | Intel Core i7/i5/i3, Pentium, Celeron or Xeon E3(Ivy Bridge or Sandy Bridge) |
CPU Socket | 1x LGA1155 | |
Chipset | Intel H67 or B75 | |
Security Acceleration | N/A | |
BIOS | AMI SPI Flash BIOS | |
System Memory | Technology | DDR3 1600/1333MHz |
Max. Capacity | 16GB | |
Socket | 2x 204pin SODIMM | |
Networking | Ethernet Ports | 6x GbE RJ45 Intel 82583V/82574L |
Bypass | Optional | |
I/O Interface | Reset Button | - |
LED | Power/Storage | |
Power Button | 1x Power button | |
Console | 1x RJ45 | |
USB | 2x USB 2.0 | |
LCD Module | - | |
Display | 1x VGA | |
Power Input | AC power inlet on PSU | |
Storage | HDD/SSD Support | 2x 2.5'' bays or |
Onboard Storage | 1x m-SATA, 1x CF(signal alternative to each other) | |
Expansion | PCIe | 1x PCIe X8 |
Mini-PCIe | Yes | |
Miscellaneous | Watchdog | Yes |
Internal RTC with Li Battery | Yes | |
TPM | - | |
Cooling | Processor | CPU fan |
System | 2x cooling fans | |
Environmental Parameters | Temperature | 0℃~45℃/ -20℃~70℃ |
Humidity | 5 ~ 90% non condensing / | |
System Dimensions | (WxHxD) | 430x44.5x380mm |
Weight | 4.7 kg | |
Package Dimensions | (WxHxD) | 520x130x460mm |
Weight | 5.4 kg | |
Power | Type/Watts | 220W ATX Single PSU |
Input | ||
Approvals and Compliance | CE, FCC Class B | |

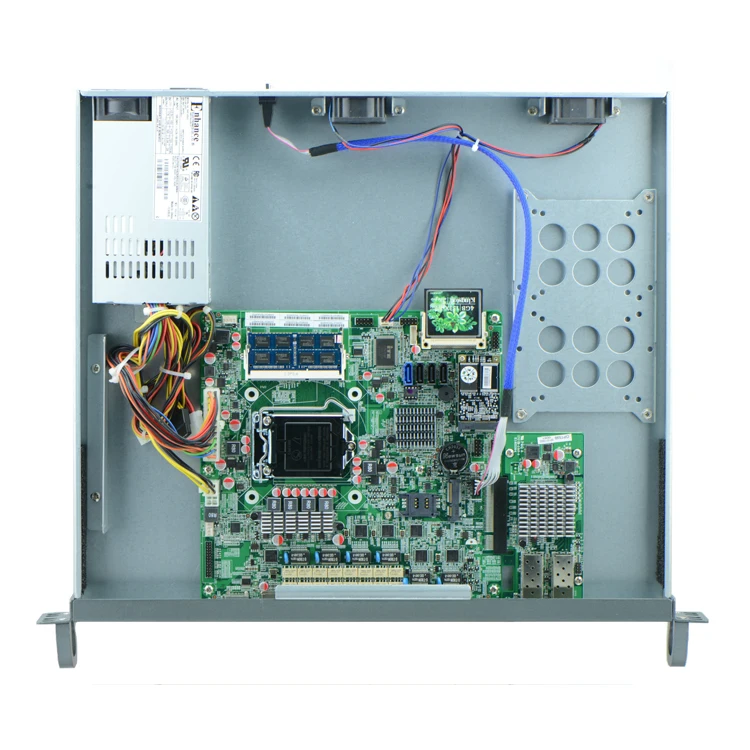

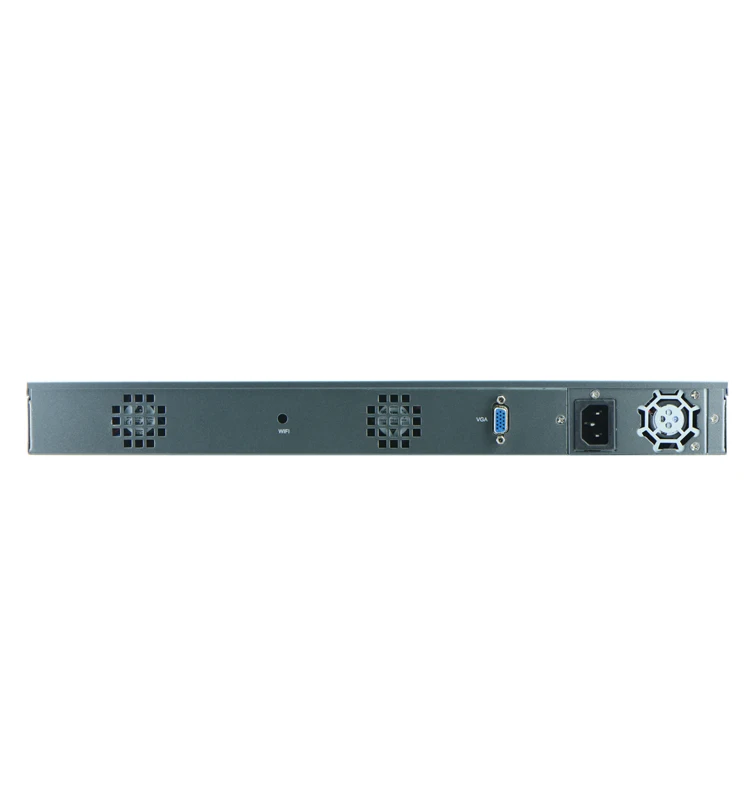

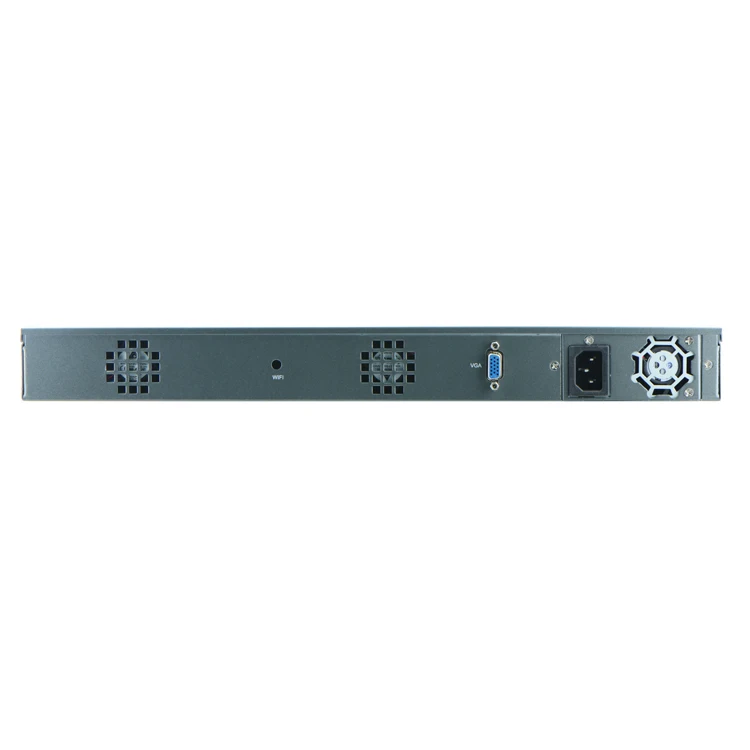

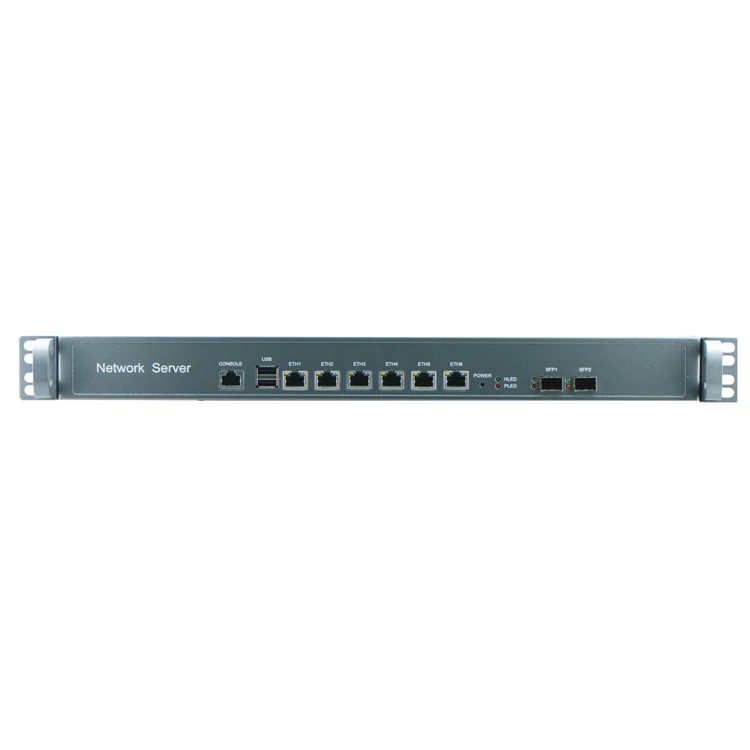

Product Show
