Hot Sale Good Quality Elevator Brake Lining

Share on (60592468130):


Price:

Quantity:


Product Overview

Description


brake roll.jpg

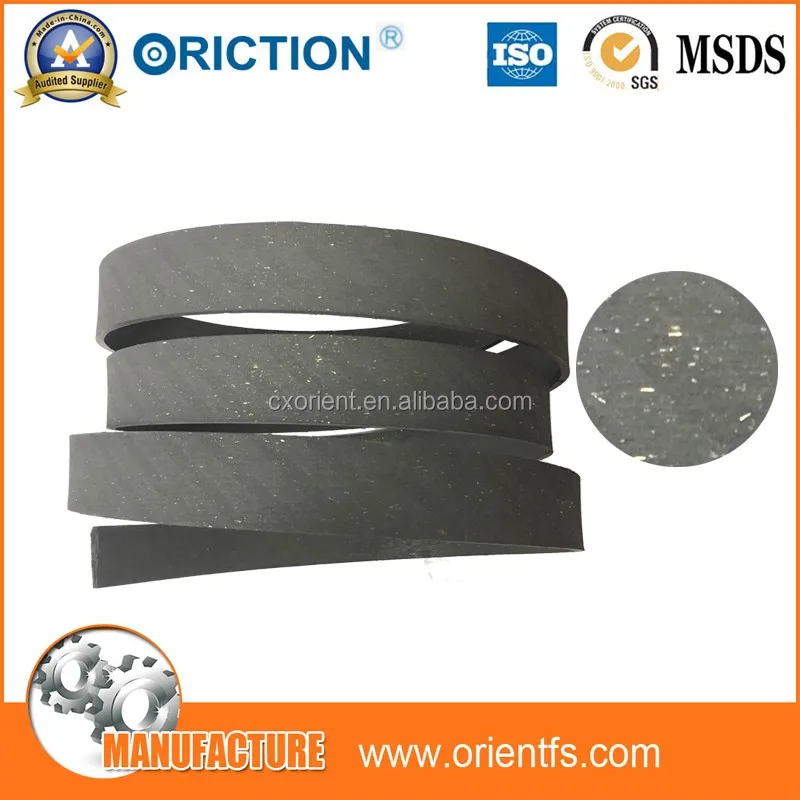

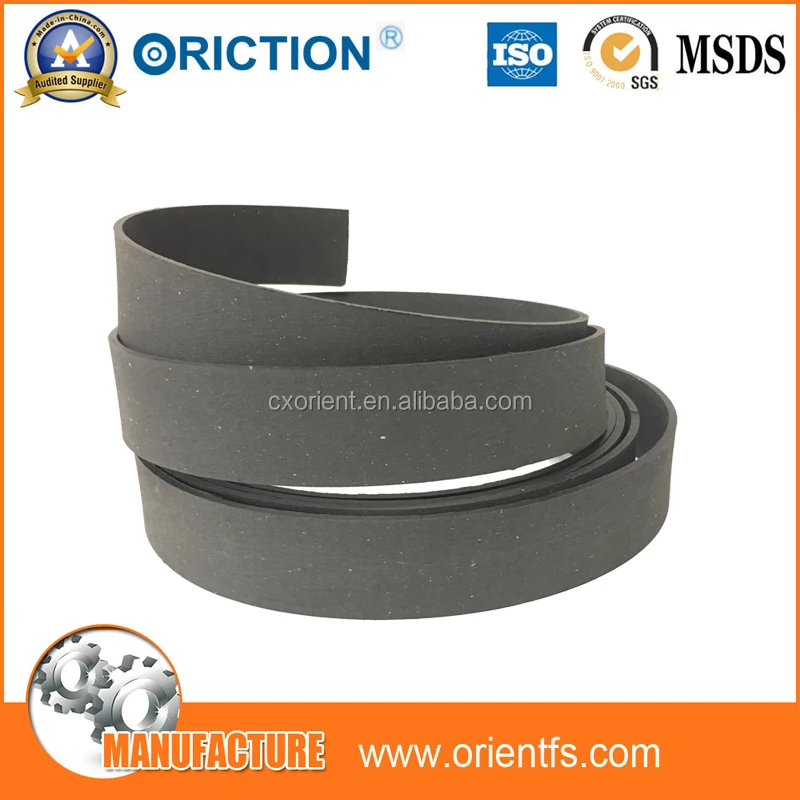

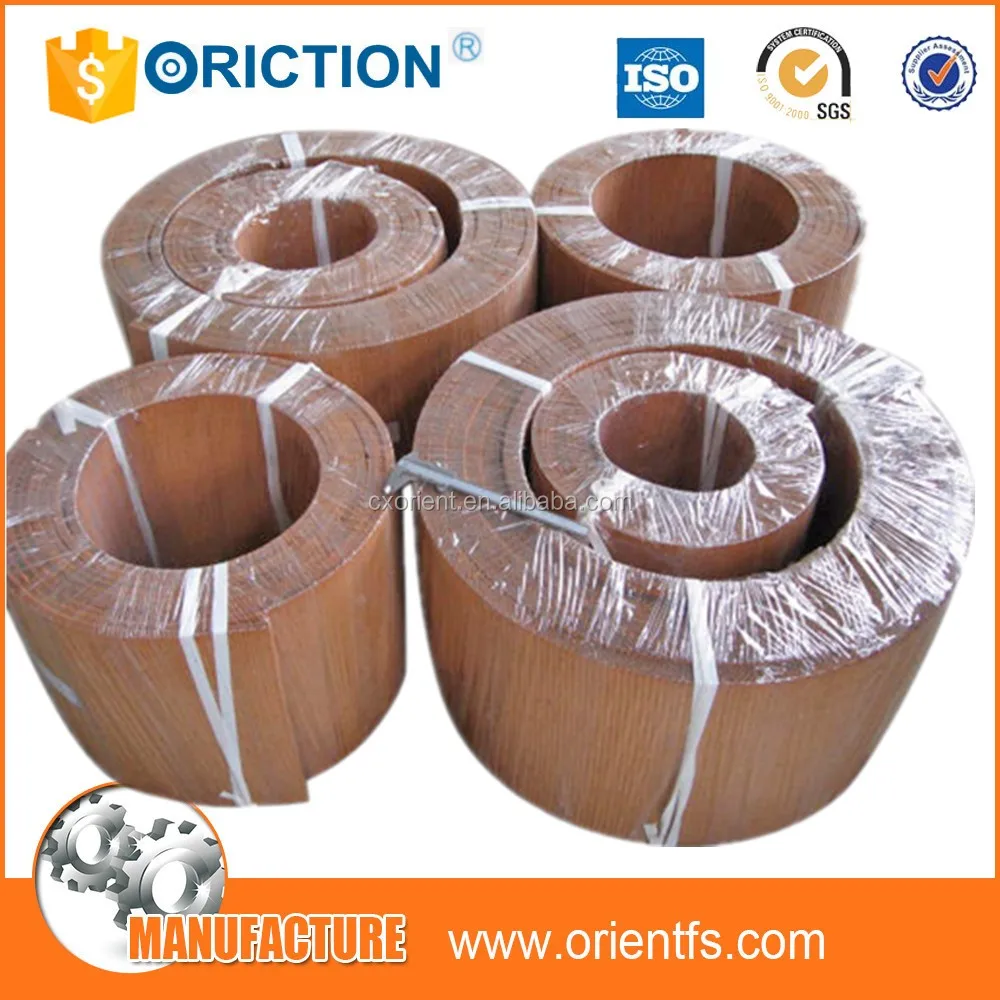

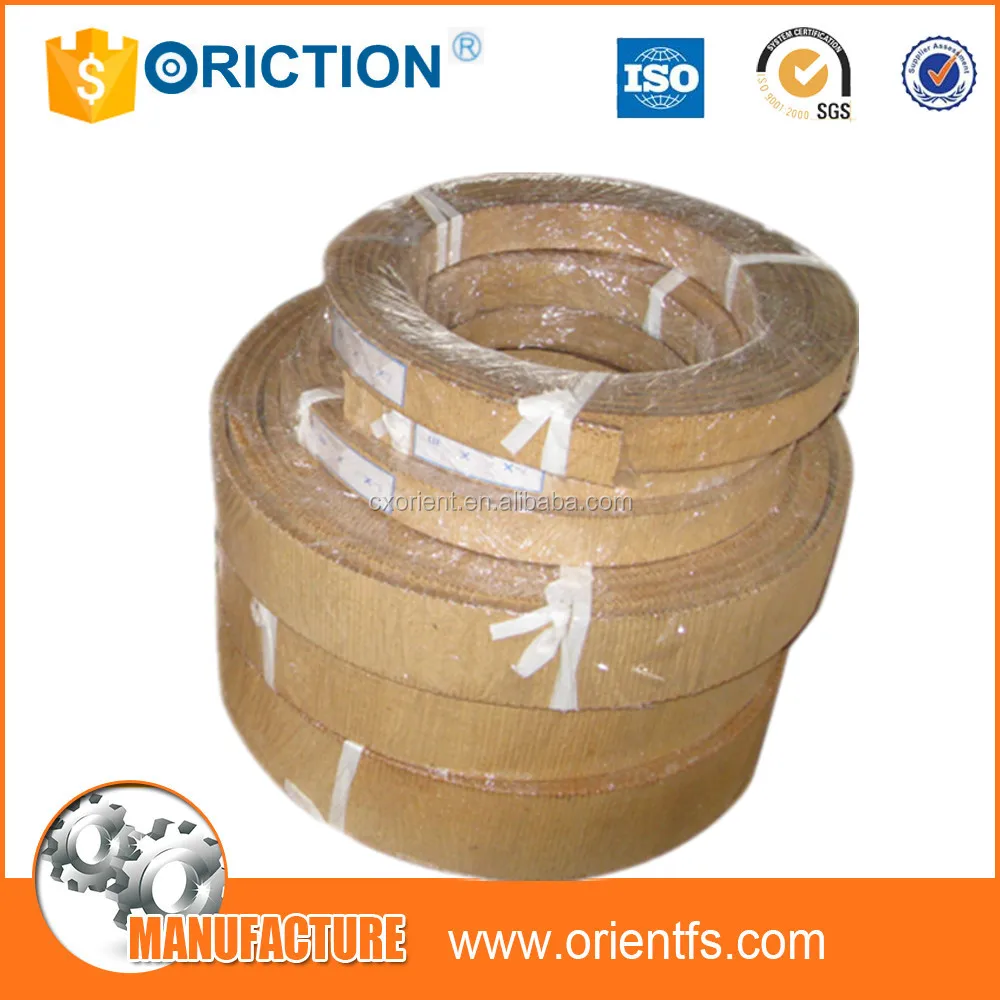

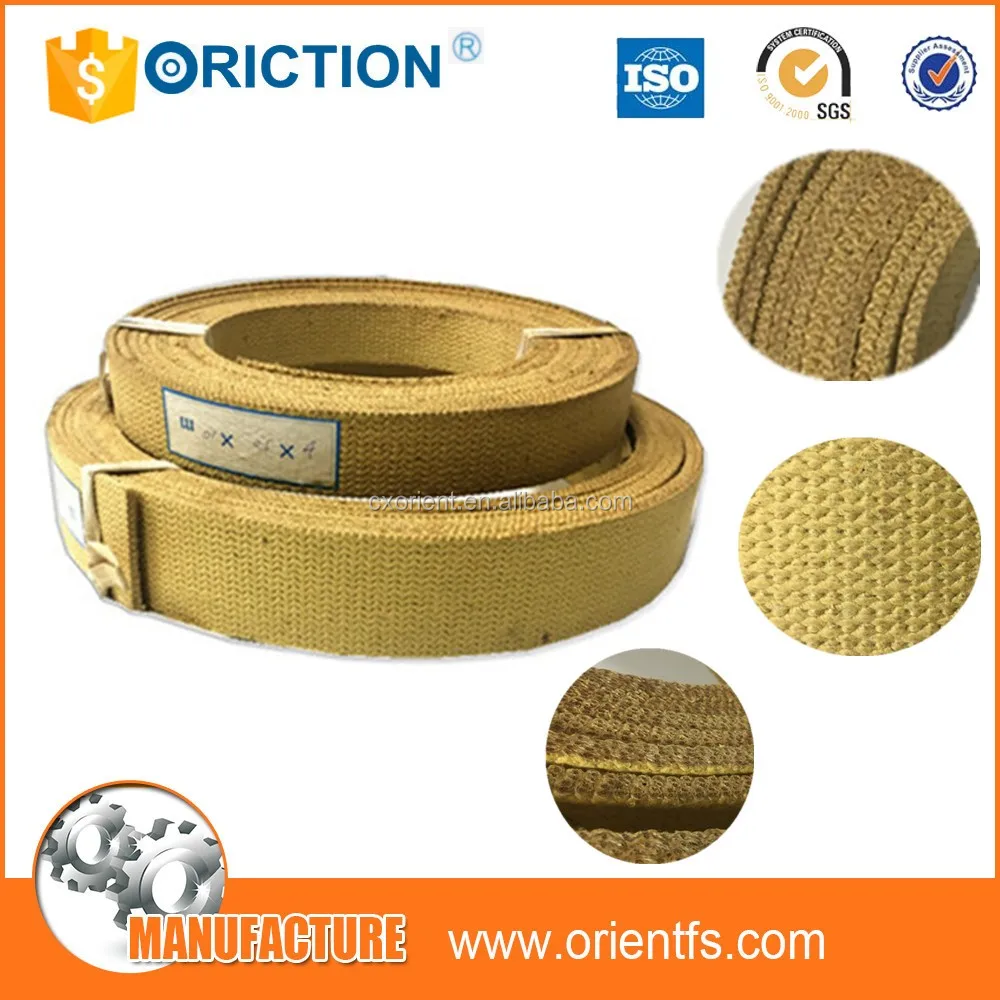

Description of Woven Resin Brake Lining In Roll:

Orient non asbestos woven brake lining in rolls use the new international composite fiber that is wear resisting and heat resisting, woven by advanced equipment, infused in macro molecule resin, finalizing the shape by technology of high and low temperature. Widely used different working environment for braking and dynamic transfer of high power machines, such as marine anchor, port hoist, drilling machine and lift etc.



Data Sheets of Woven Resin Brake Lining In Roll :

Property
Description
Non Asbestos Woven Resin
Brake Lining Roll
ORIENT Type
Type yellow
Type brown
Coefficient of Friction
at 100℃
0.40-0.65
0.40-0.65
at 150℃
0.35-0.65
0.35-0.65
at 200℃
0.30-0.60
0.30-0.60
Wear Rate
(cm3/N.m)
at 100℃
0.3 X 10-7
0.3 X 10-7
at 150℃
0.5 X 10-7
0.5 X 10-7
at 200℃
0.7 X 10-7
0.7 X 10-7
Temp Resistance
Working Temp
200℃
Max Temp
325℃
 Tensile Strength
  21 Mpa
Normal
  Size
Thickness
5-30mm ( 3/16- 1 1/4 inch)
Width
  500mm (20 inch)
Length
10m, 15m, 20m (25feet)
 Material
Viscose fiber, glass fiber, copper wire,melamine resin
Viscose fiber, glass fiber, copper wire, cashew nut oil resin



Note:Other Size, Color, and Material can be manufactured according to your request.



Features of Woven Resin Brake Lining In Roll:

  1.   Stable friction coefficient
  2.   Low wear rate
  3.   High tensile strength
  4.   Good flexibly
