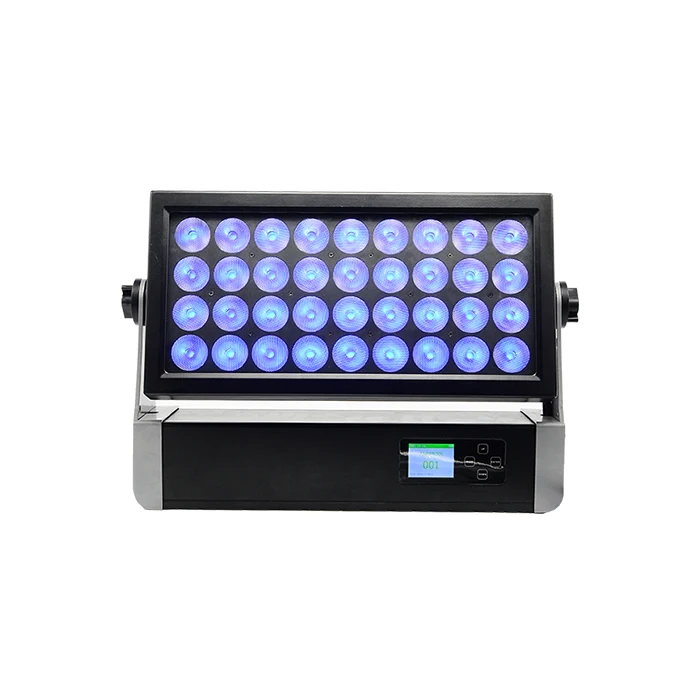

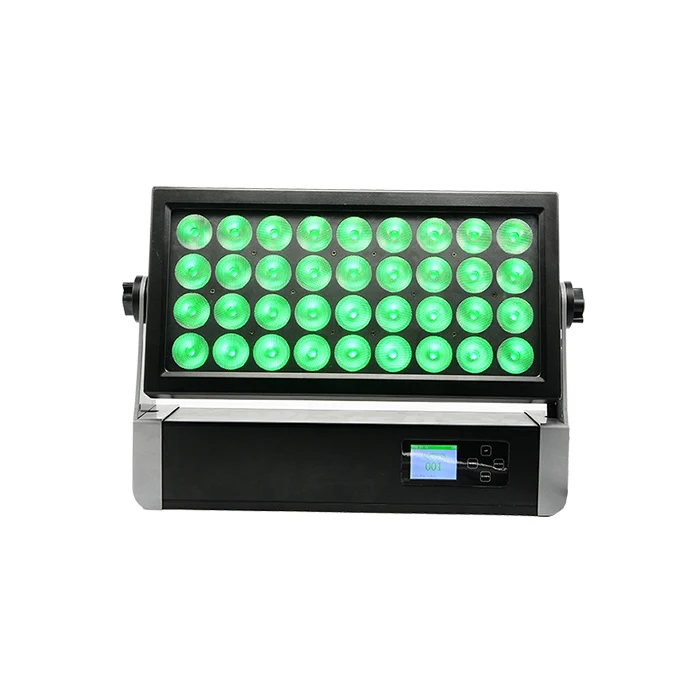

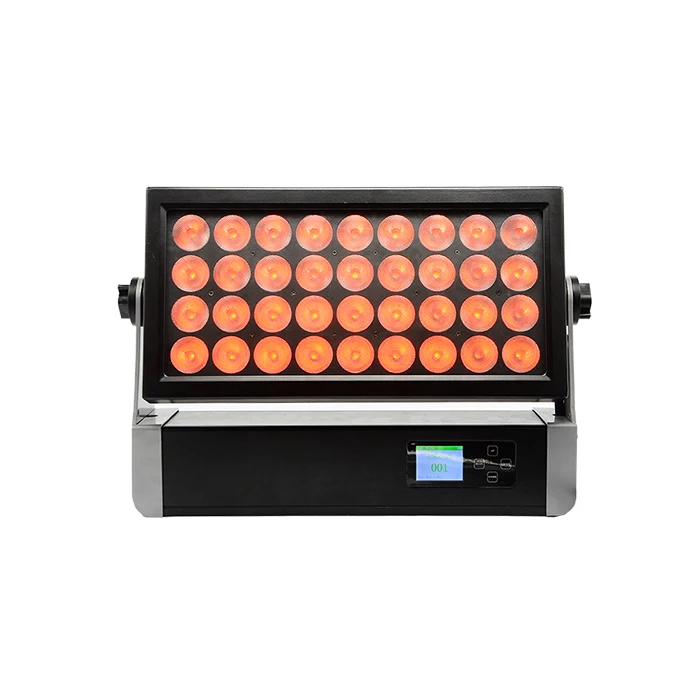

SGM P5 15W RGBW 4 IN 1 made in china outdoor IP67 RDM Wireless 400w led projector light
- Category: >>>
- Supplier: Californiapro-Lighting Co. Limited.Californiapro-Lighting Limited.
Share on (60592567162):
Product Overview
Description
SGM P5 15W RGBW 4 IN 1 made in china outdoor IP67 RDM Wireless 400w led projector light
Specifications
Specifications:
Rated Voltage:AC100V~240V 50-60HZ
Rated Power: 450W
LED Qty: 36x15W High power RGBW LEDs
LED Drive Current: 1A
Beam Angle: 10°(25°,40°optional)
IP Class: IP65
DMX Mode: 2/3/4/13/16/29CH
Packing Size:585x220x425 mm
Net weight: 13.2Kg
Gross weight:15.5Kg
Rated Voltage:AC100V~240V 50-60HZ
Rated Power: 450W
LED Qty: 36x15W High power RGBW LEDs
LED Drive Current: 1A
Beam Angle: 10°(25°,40°optional)
IP Class: IP65
DMX Mode: 2/3/4/13/16/29CH
Packing Size:585x220x425 mm
Net weight: 13.2Kg
Gross weight:15.5Kg
Product features
Dmx input:3 pin electronic J3F2C-W
Dmx output:3 pin electronic K3F2C-W
Power connection:electronic powerCON in(SAC3MPX)/ powerCON
out(SAC3FPX)
3 kinds of control model: DMX512,WDMX,Master/slave
2.4G Wireless DMX control
Setting and Addressing:RDM
DMX function:Dimmer,Strobe,RGBW,Macro color,Color jump,Color
fade,Rainbow,Auto Program choice,Auto speed,Curve dimmer
select,Function setting
Stand-alone mode: Color step,Color shade,Auto,Slave,Macro color,Static
color setting, Rainbow,Auto program choice
Housing color:Black
2.4inch TFT color display screen
Refresh rate:3000Hz
Operation temperature:-20°C ~+40°C.
6 Kinds of DMX modes:2/3/4/13/16/29CH
Dimmer mode: 2 kinds
4 kinds of curve dimmer:Linear Dimmer,Square Dimmer,I. Square Dimmer,S-Curve
Dimmer
Display board can be 180°in turn,it can be fitted in different setting
Strobe effect:Plus Random,Ramp up Random,Ramp down Random
Random strobe,Strobe Break Effect,5s......1s,Strobe 0-20Hz
Perfect mixing color and rainbow effect
Cooling system:fan cooling(Auto&high-speed)
Certficate:CE,ROHS
Stage lighting, Theater lighting, dj lights DMX Control, beam, stage equipment for show event, stage event, party, Lighting rental, music wedding event, bar, outdoor project, park, brige, hotel, buidling and so on.

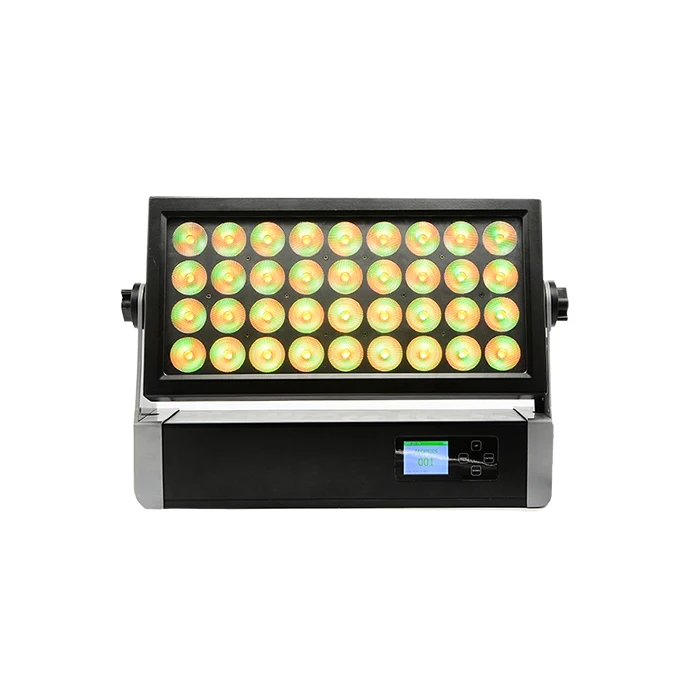

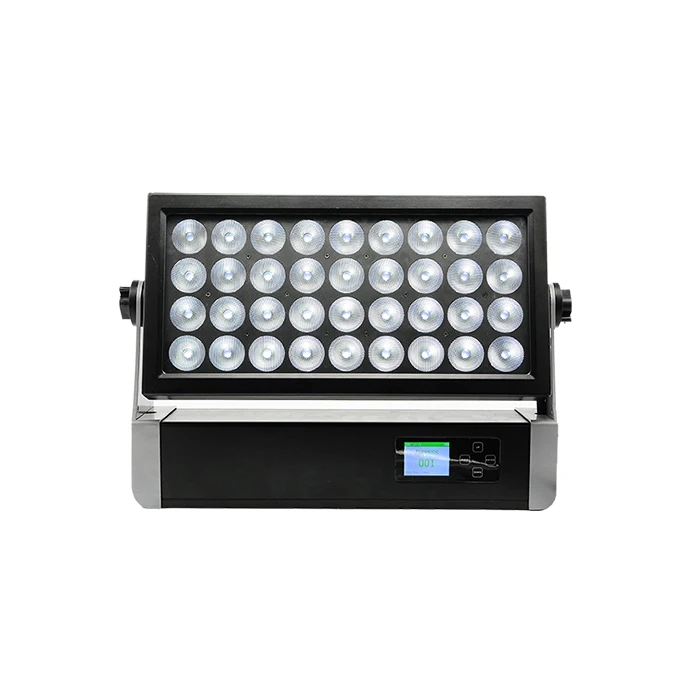

Product Show
Attention:
For your own safety, please read this manual before installingthe device.
This manual covers the important information on installation and applications.
Please install and operate the fixture with following instructions.
RELATED PRODUCT
PRODUCT INFORMATION
PRODUCT ADAVANTAGE
1. LED lamp bead arrangement, in strict accordance with the optical distribution. (when mixed color spot clean)
2.Advanced machine to weld lamp bead
3.Silent SUNON fan with good heat dissipation
4.French 8 degree Gaggione lens
5.Latest edition of IC chip 6205, promote speed
6.Strong twisting force motor
7.PFC power supply
8.Neutrik PowerCon power cord, quick lock
INSTALLATION:
Vertical hanging or flat on the ground directly, not recommended side hangIing that is easy to damage
the lamp. If needed hook effect, please consider security problems of engineering installation.
PRODUCTION PROCESS
Delivery time: sample (3-5 days) formal order (15-20 days)
Main market: Europe and the United States, South America
WARRANTY
Maintenance and Cleaning
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling,suspension, trussing).
3)Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.
4)The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled inst- aller and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to thelights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights due to accumul- ation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that the circ- uit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alco- hol or solvents
There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
CERTIFICATION

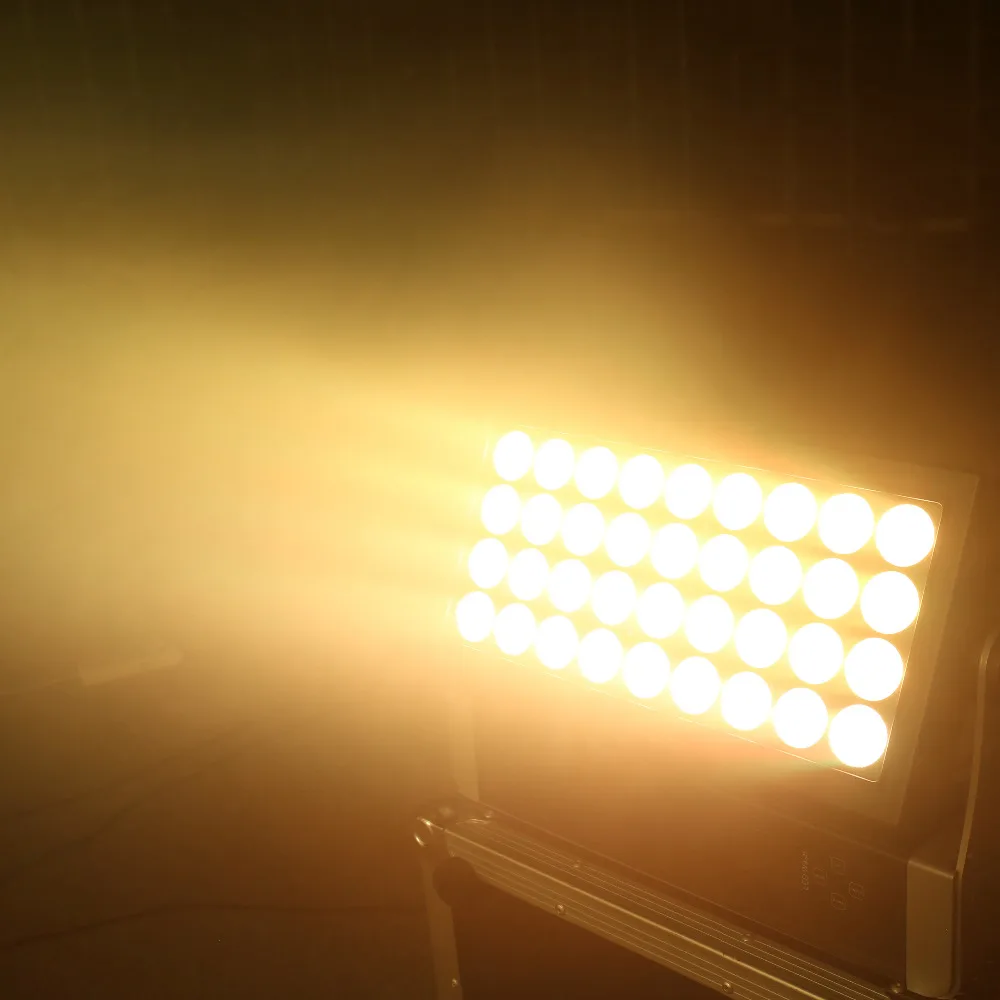

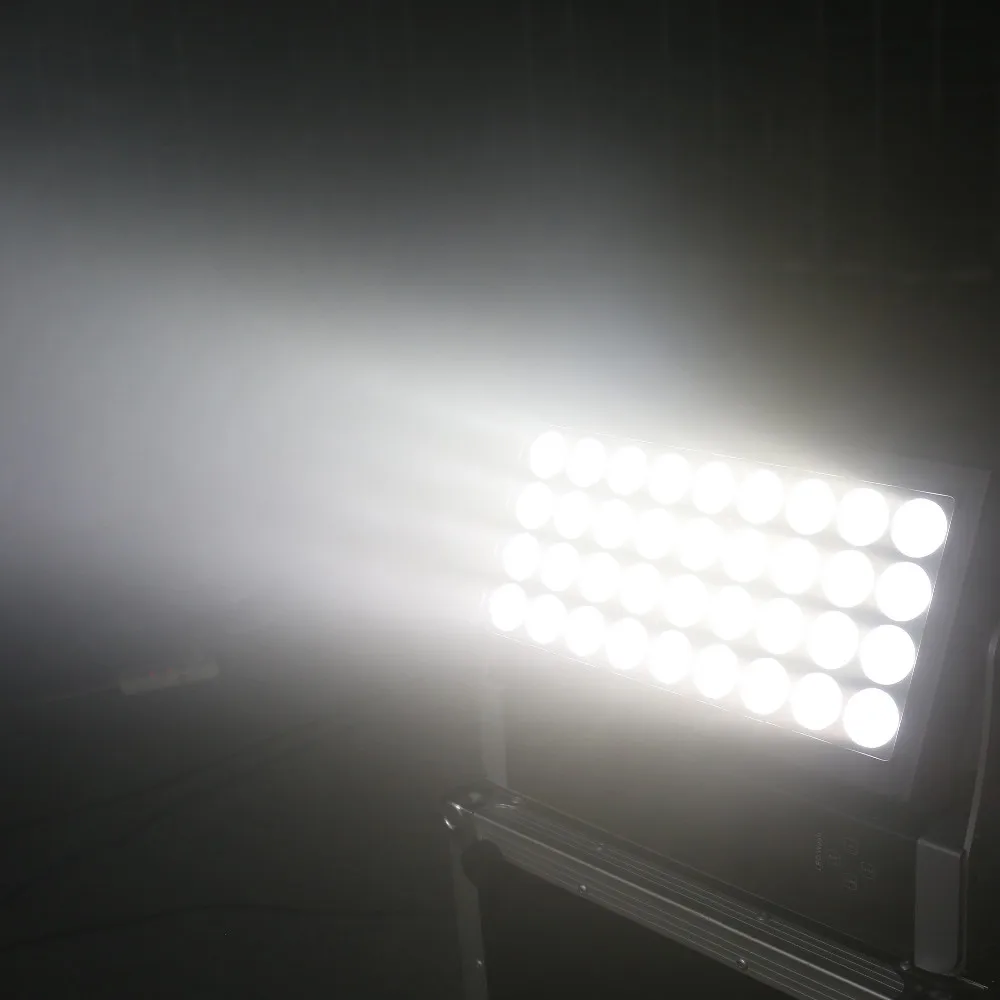

EFFECT PICTURE
FACTORY INFORMATION
Guangzhou California Pro-Lighting Co.LTD situated in Baiyun District Guangzhou City. We are a professional Stage lighting manufacturer that covers 2000m2 and owns High-Tech instrument and modernizing equipment, including more than 100 employees,we possess a strong and outstanding research and development team, they continually create many marvelous products.
AFTER-SALE SERVICE
Item No.: CPL-1049 24x10W 4 IN 1
Outdoor LED Wall Washer Light
Voltage: AC100-240V,50-60Hz
Watts: Max.250W, Die-cast aluninium housing
LEDs: 24x10W 4 IN 1 LED wall washer light
DMX Chs: 3/4/5/6/11 DMX Channels
Beam Angel: 25°35°45°beam angle option
Auto/Master/Slave/DMX 512 controlled,0-100% linear dimmer, 0-20Hz Strobe
Max .ambient TEMP:45°C
Dimensions:427x196x190mm
Weight:14kg
