Product Description

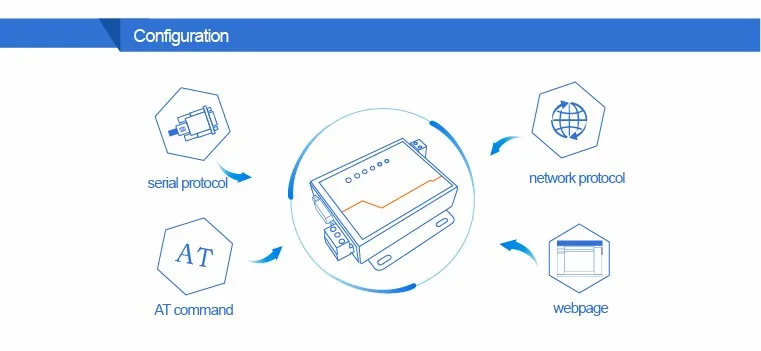

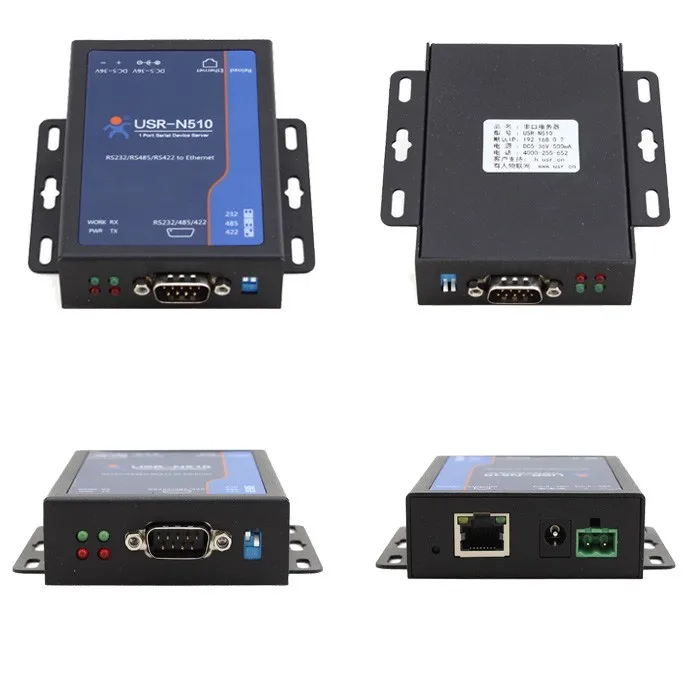

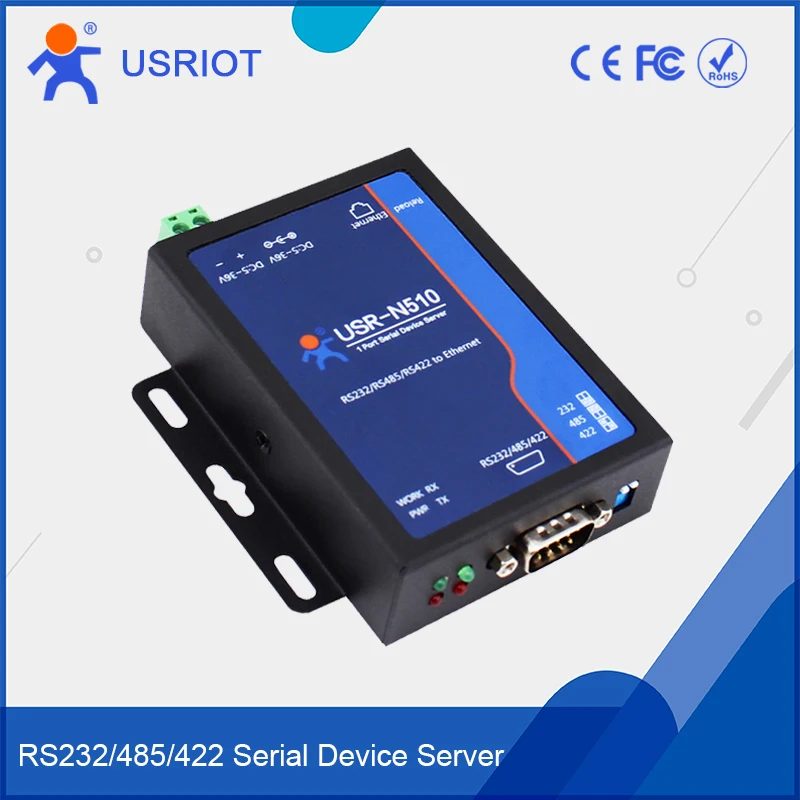

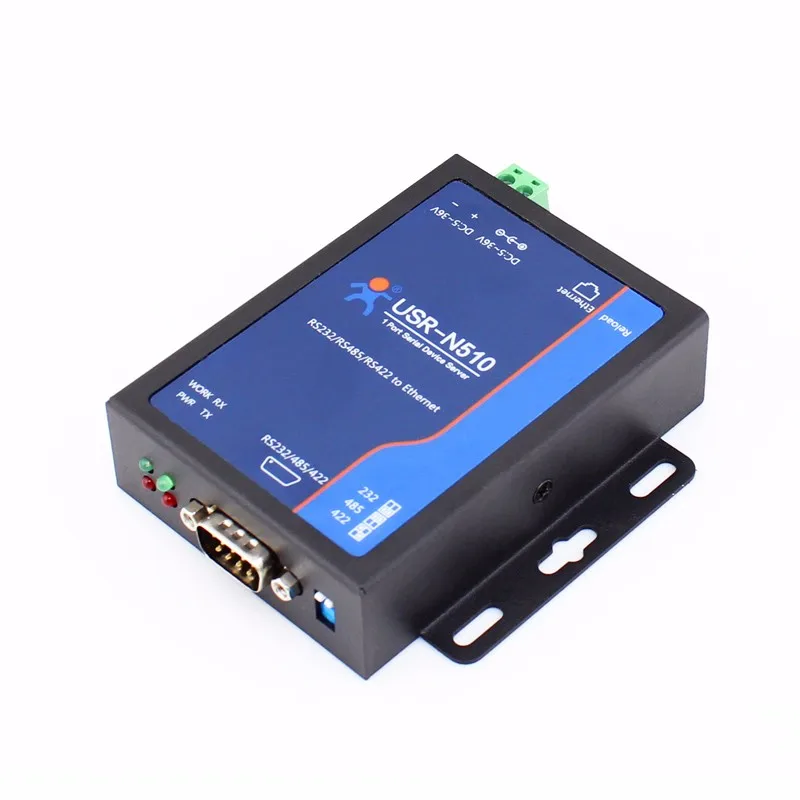

USR-N510 is a single Modbus RTu Ethernet Converter, which can realize bidirectional transparent transmission between serial and Ethernet. No more consider about the details, protocol conversion inside the server. Through simple settings via webpage or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission.
USR-N510 Modbus RTu Ethernet Converter is based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.



Feature


Industrial Solution
TI Cortex M4 Solution, work temp at -40·85C
Power Supply
DC/Terminal type 5V~36V
Serial Port
Supports RS232/RS485/RS422, 3-in-i port
Flow Control
Hardware CTS/RTS, Software: XON/XOFF can be avaliable

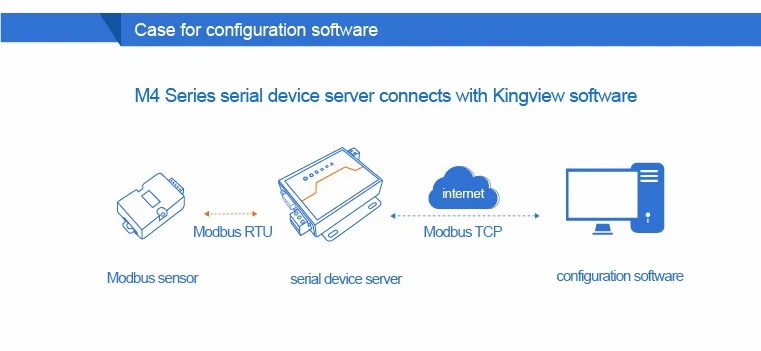

Modbus Gateway
Modbus TCP to Modbus RTU, Modbus Polling
Advanced Function
Network Printing, Customized web page, web socket, modify MAC
Certification
CE/FCC/RoHs/WEEE
Work Mode
TCP Server/ TCP client/ UDP Server/UDP Client/ HTTPD Client
Built-in web page
Customzied web page is acceptable


Port 1

1.Can distinguish which serial port connects to the device via port number.
2.Reload button,one key to restore default settings

3.Support time-out restart

Port 2

1. Data transmission between serial port and web page
2. Supports keep alive function, rapidly detect dead links
3. Serial port can work independently at the same time

4.Identification package/Heartbeat package



Character


Serial Port
RS-232 / RS-485/RS422
Port Type

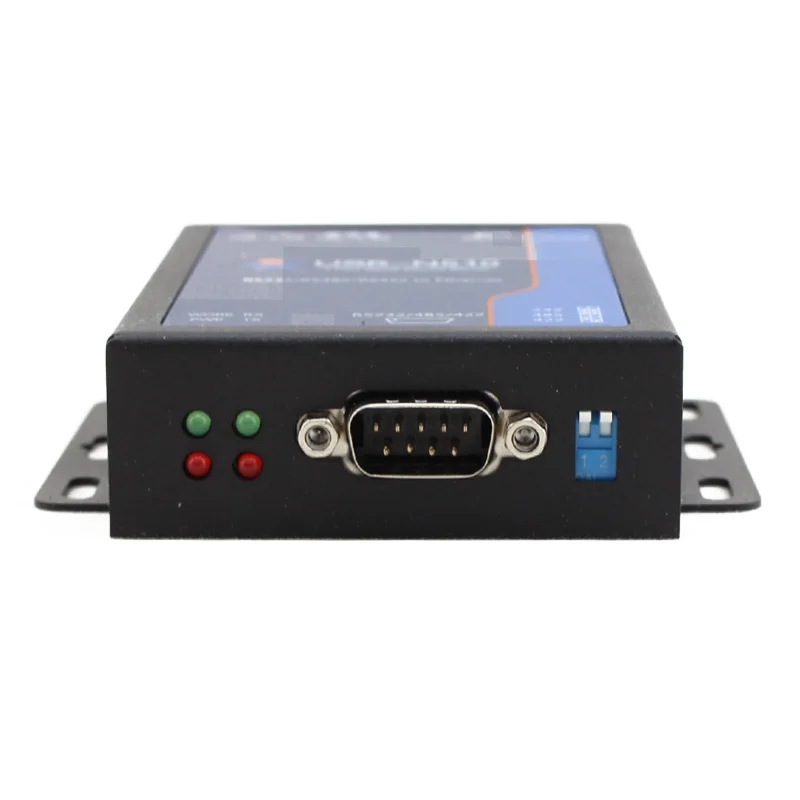

RS-232: DB9 male port; RS-485: A+/B; RS422: A/B/Y/Z
Baud Rate
600 bps ~230.4K bps
Data Bit
5/6/7/8
Stop Bit
1/2
Buffer
Rx: 2K bytes; Tx:2K bytes
Flow Control
Hardware: CTS/RTS; Software: XON/XOFF
Protect
RS-485: ESD/lightning protection/ 2KV electric static protection

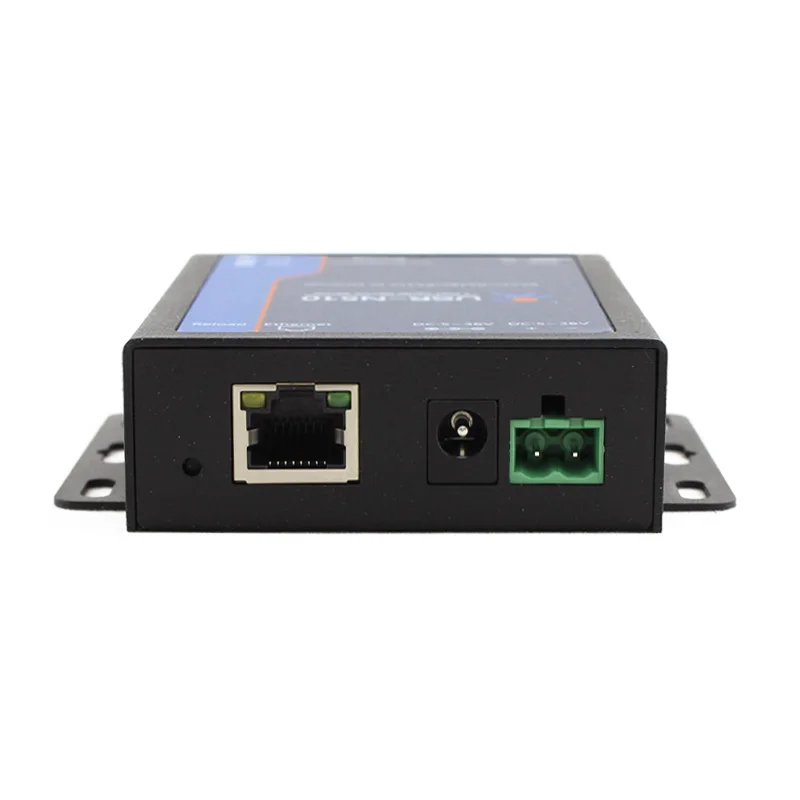

Ethernet
1 Port
Speed Rate
10/100 Mbps, MDI/MDIX
Buffer
Rx/TX: Max 16K bytes
Protection
2 KV Electromagnetic isolation for Ethernet port
Network Protocol
IP/TCP/UDP/DHCP/DNS/HTTP/ ARP/ICMP/Web socket/Httpd client
Power Supply
DC 5-36 V (ESD/ Surge prevention)
Work Temp
-40~85C
Software

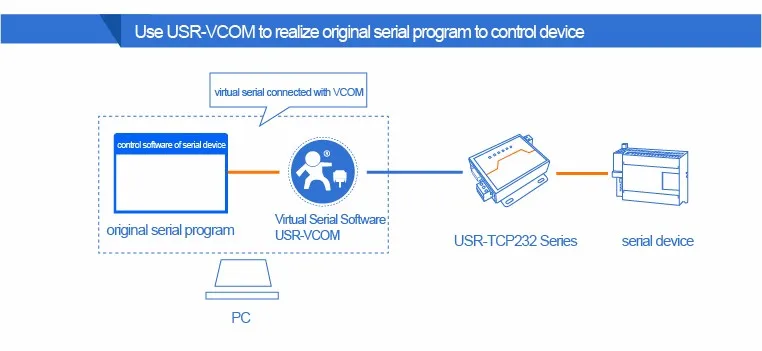

Setup/Virtual COM


Application
