Ce Approved High Precision Peristaltic Dosing Pump Low Flowrate Sauce Honey Dosing Peristaltic Pump
- Category: >>>
- Supplier: Baoding,Signal,Fluid,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

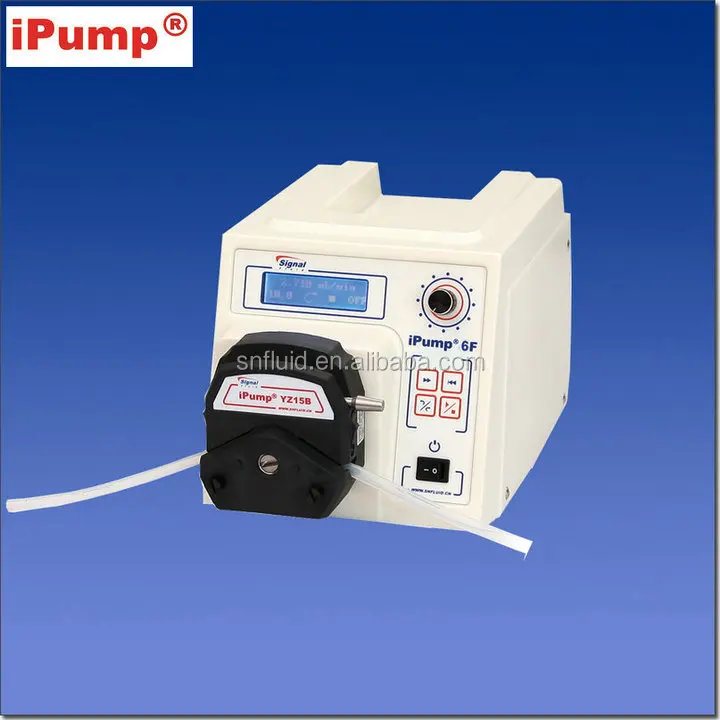

Ce Approved High Precision Peristaltic Dosing Pump Low Flowrate Sauce Honey Dosing Peristaltic Pump
iPump6F Features：
2.Flow correction,liquid volume correction function
3. Flow accuracy up to ±0.5%
4.Support external control(（0-5v 0-10v 4-20ma 0-10khz， RS485)
5.Flow range0.008-2416mL/min
6.Voltage range: ac90-260v
1.Two working modes,traffic mode and allocation mode are optional
2.Flow correction,liquid volume correction function
3. Flow accuracy up to ±0.5%
4.Support external control(（0-5v 0-10v 4-20ma 0-10khz， RS485)
5.Flow range0.008-2416mL/min
6.Voltage range: ac90-260v
Mode | iPump6F |
Speed | 0. 1-600RPM |
Speed resolution | 0. 1(<100RPM), 1(≥100RPM) |
Velocity resolution | Accurate and quantitative packing of liquid |
Loading range | 0.1mL-999L |
Number of soring | 1-9999 times("0" as an infinite loop) |
Separation time interval | 0.1S-24Hr |
Display function | 128*32 dot matrix LCD display, flow and speed display on the same screen |
Direction control | Reversible function |
Operation mode | The ratary coding switch operates with the film key, and user is more convenient to use |
Full speed | The pipeline can be filled and emptied quickly through full speed button |
Power down memory | After recharging ,continue to run according to the state before power off |
Recovery | Runing in the distribtion mode,the pump operates at a certain angle after the shutdown, effectively preventing liquid dropping |
Flow correction | Flow automatic calibration function, the highest accuracy can reach+0.5 |
Allocation of liquid quantity correction | The actual distibution of liquid value is input, and the dispensing volume is automatically corrected. The accuracy of loading is up to+0.5% |
Output | Start stop control, direction output, frequency output 0-10KHz, OC gate output |
Noise control | Intelligent temperature control to minimize peristaltic pump's noise |
Pedalswitch | Optional pedal switch to control star/stop |
Power consumption | 35W（iPump2F）,50W（iPump4F）,75W（iPump6F） |
Power | Wide voltage AC90-260V,50Hz/60Hz |
Operation condition | 0-40℃ centigrade, moisture <80% non condensation |
Size | 291mmX208mmX180mm(not include pump head) |
Drive weight | 3.8KG |
IP rating | IP31 |
Drive | Applied pump head | Number of pump head rollers | Optional channel | Hose | Speed range (RPM) | Flow rage(mL/min) |
iPump6F | 13# | 0.008-46.10 | ||||
14# | 0.027-178.1 | |||||
19# | 0.052-336.9 | |||||
16# | 0.086-556.2 | |||||
25# | 0.18-1176.6 | |||||
17# | 0.32-2111.6 | |||||
18# | 0.41-2416 | |||||
YZ25A YZ25B | 3 | 1,2 | 15# | 0.1-600 | 0.17-1066.6 | |
24# | 0.29-1856 |
Tube size of Double channel peristaltic pump 2 heads pump

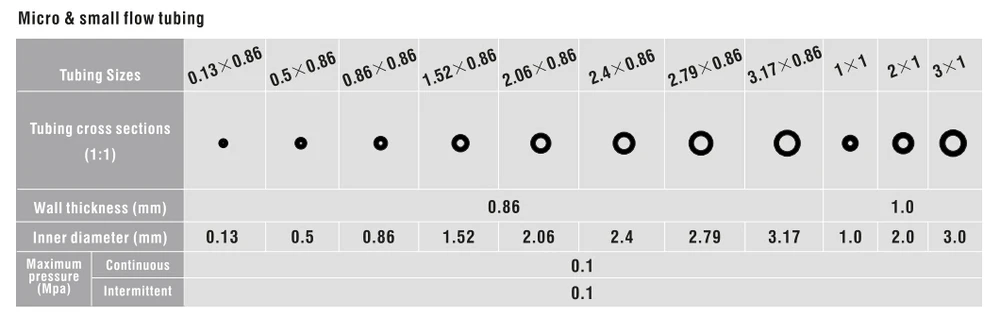

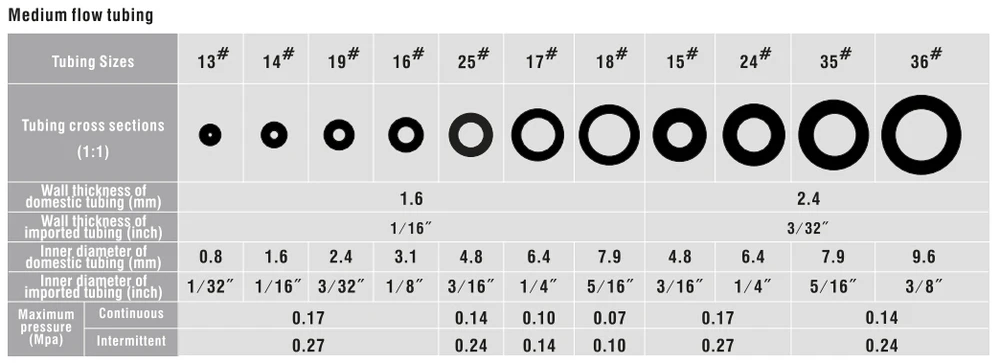

Tubing Specifications
Tubing Specifications
Recommend Products
Company Profile
Baoding Signal Fluid Technology Co., Ltd. We are a leading manufacturer directory who will connect you with the right manufacturers whether you are looking for high volume peristaltic pumps, peristaltic dosing pumps,peristaltic dispensing pump or oem peristaltic pumps.
Every series of peristaltic pumps we offer is available for OEM use, But whether it's a production pump you need or a custom-designed pump solution, you can be assured of a precise, highly reliable flow control system.Per minute flow rate accuracy is better than 1 percent.
Application
Reactor supporting application
Reagent filling
transfer extraction liquid
Vaccine Filling Application
transfer disinfectant
Fermentation tank equipment application
Tell us where you apply it, and we will help you choose the most suitable model for you
Certifications
Why Choose Us
1.competitive pirce (we are manufacture)
2.short lead time
3.minimum order quantity（1 set）
4.good design (custom designed pump solution)
Exhibition
Product packaging
Usually packing: 1set/carton
Support customization
FAQ
Q1:How long of the warranty?
A1:No damage to human factors, one year warranty.
Q2:How long of the Liftspan?
A2:At least 5 years by standard operating.
Q3:Any standard plugs ?
A3:American standard, British standard,EU standard, Chinese standard and so on.
Q4:How many kinds of voltage and HZ?
A4:90V-260V, 50-60HZ
A1:No damage to human factors, one year warranty.
Q2:How long of the Liftspan?
A2:At least 5 years by standard operating.
Q3:Any standard plugs ?
A3:American standard, British standard,EU standard, Chinese standard and so on.
Q4:How many kinds of voltage and HZ?
A4:90V-260V, 50-60HZ
