Good sell 4 heads SPT508GS Challenger Solvent digital printer 10 feet FY 3286T

Product Overview

Description

1,Equipped with 6  SPT 508GS /510-12PL print heads.
2,6 color printing, high speed .
3,AC servo motor is used to run the carriage quicker and more stable.
4,Individual color cleaning minimizes the waste of the ink;
5,3 way intelligent heater (pre/print/post) helps bring more vivid output;
6,The entire printing platform and the girder are made of the alloy-aluminum which is  strong

and flat.

 Specification:

model	FY-3286T
Printhead	SPT Printhead From Japan
Number of Printhead	6 Heads
Number of Model	SPT508GS-12PL gray scale head (12-36 pico liter)
Printhead Sequency	1x6
Printing Speed	Printing mode	Output (m2/hr)
	Draft mode	2 PASS 64
	Production mode	3 PASS49
	Quality mode	4 PASS 32
	High Quality mode	8 PASS 23
Maximum Printing Width	3,200mm(125.98inch)
Ink	Type : Solvent Ink & ECO-Solvent Ink
	Color: 6 Colors(C,M,Y,K,Lc,Lm)
	Capacity :1L or 5L Per Main Tank of Each Color
	Ink Supply System :Low Ink Detector, Auto or Manual Ink Supply System
Media	Width & Weight : Maximum3,300mm(129.92’’) 120KG
	Type :Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc
	Roll Media or Sheet Media
Auto Media Feeding System	Equipped (Max. Media Weight 80kg)
Auto Cleaning System	Individual Positive Pressure Cleaning
	Anti-clogged Flash Function & Capping System
Pre-heat & Dry System	Equipped (Drying System Optional)
Clamp	Equipped
Printing Interface	USB2.0 Cable
Printhead High	Above Media Adjustable
RIP Software	Maintop(equip) , UltraPrint ,Photoprint
Power	Printer :AC 220V, 50Hz  3.5A  770W Platen heating: AC  220V,50HZ  9A  1980W
Machine Dimension	L4, 500 x W905 x H1,280mm / 368KG
Package Dimension	L4, 590 x W970 x H1550mm / 661KG
Operation Environment	Temperature : 20°C~28°C Humidity : 40%~60%

Pictures to reference :

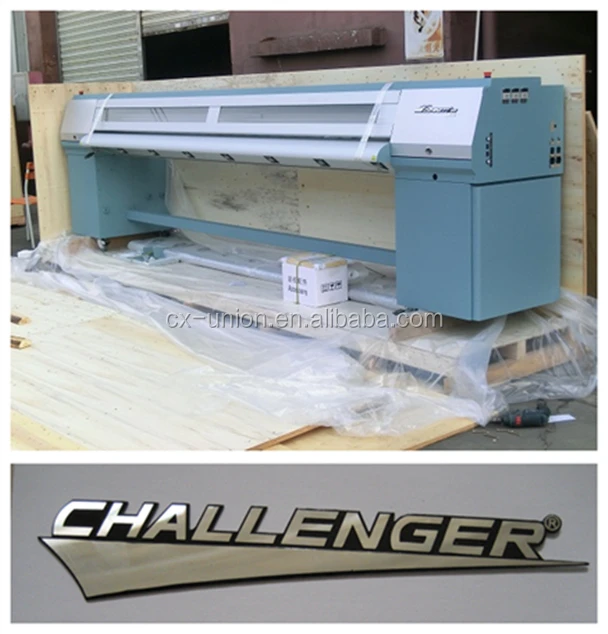

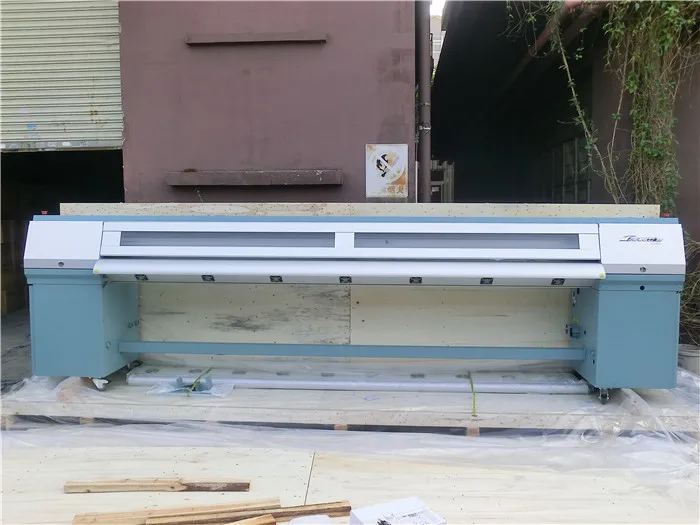

Strong body of FY-3286T.

AC serve motor make the printing more faster and stable .

  Light equited, convienice to check the printing status .

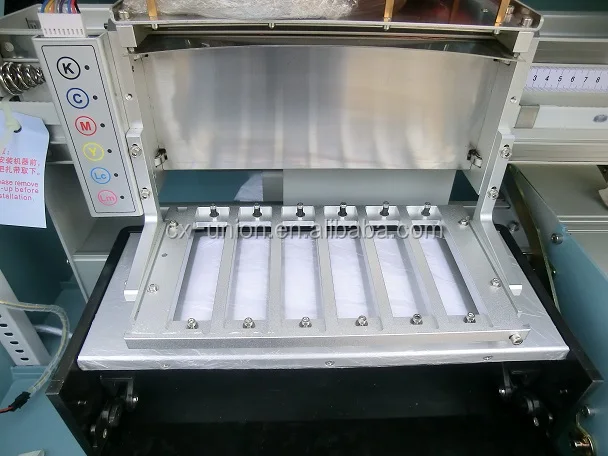

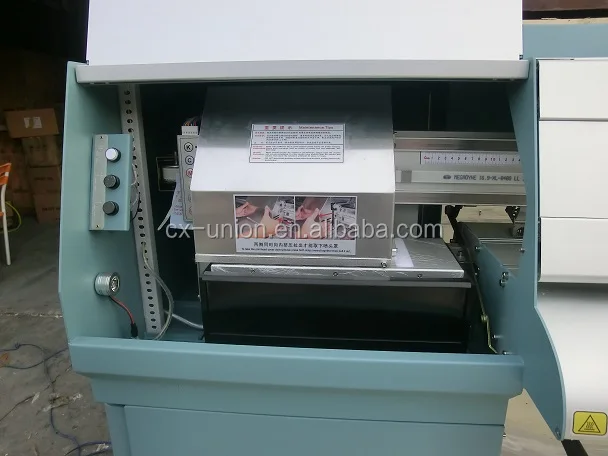

Individual Positive Pressure Cleaning , print head position.

Roller up position .

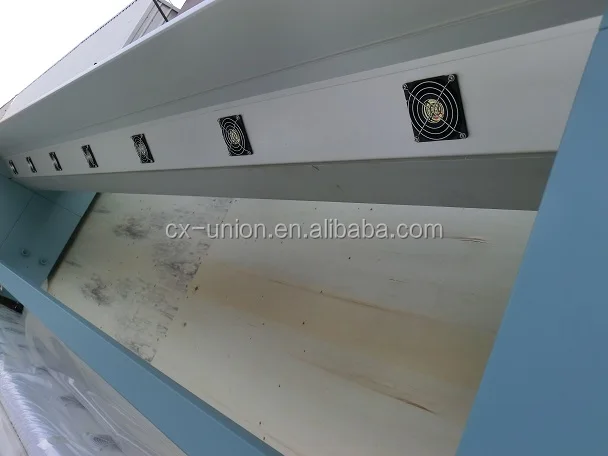

Fans to dry the materials , 3 ways heating . Perfer drying system.

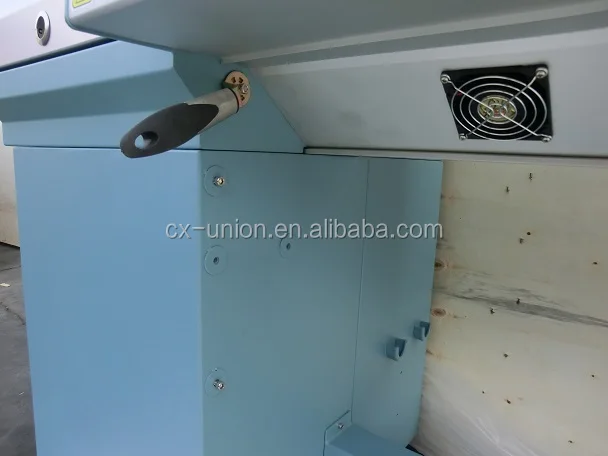

Handle control for the material press .

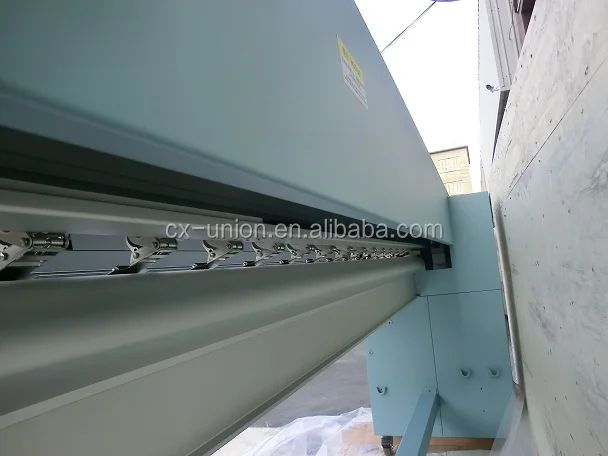

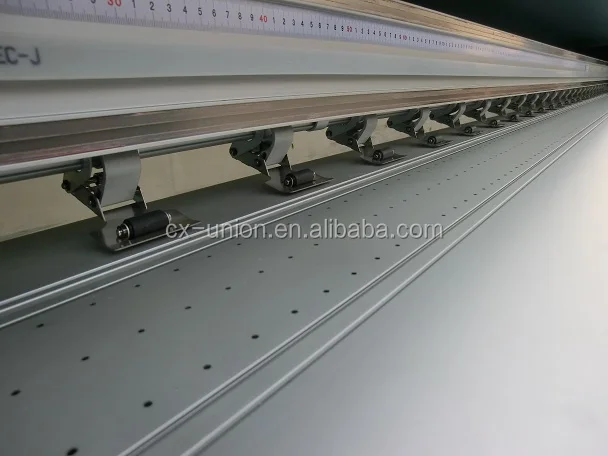

Press cloth wheel .

Front , middle , after heating system . Strong top beam. wide flatform .

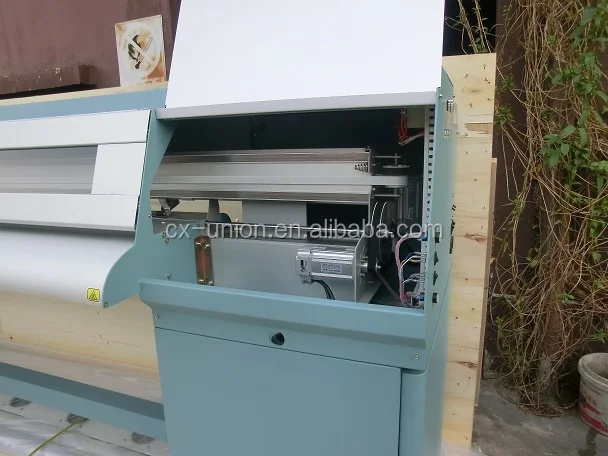

X, Y servo motor insure the carrige running smoothly and stable .

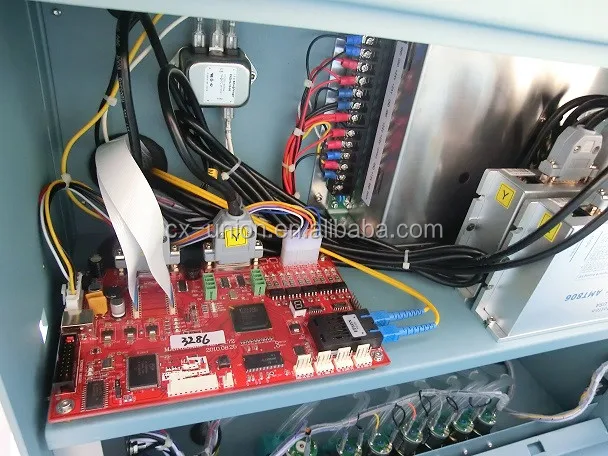

Main board of the machine .

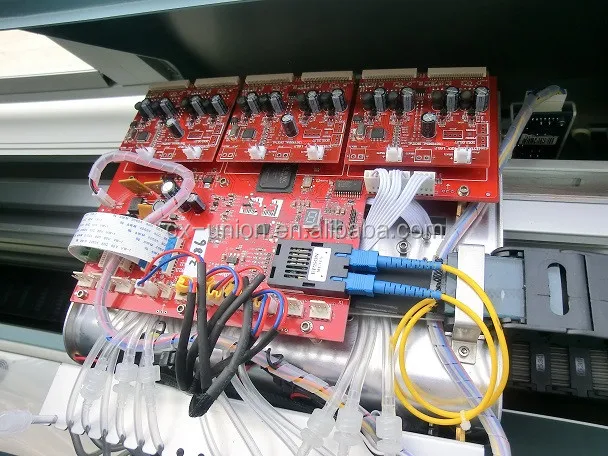

Print head board of machine .

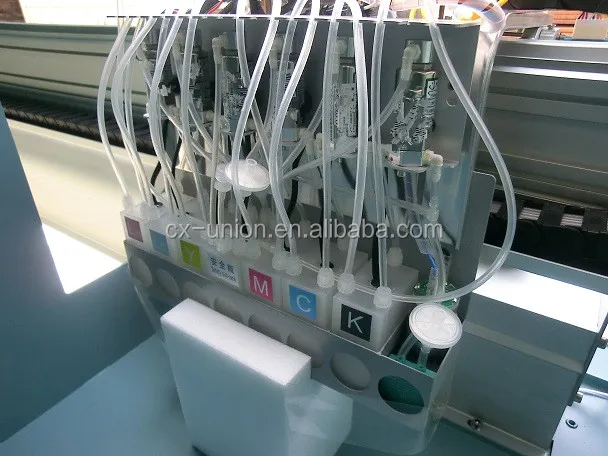

C,M,Y,K ,LC,LM six color printing .

1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .



2. All kinds of original spare parts for the machine to ensure your machine running smoothly .



What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .



This month our company has discount for the machine . And the shipping cost will be 30% off.Please feel feel to contact us.
